Bryant SYSTXBBECW01-A Bedienungsanleitung

SYSTXBBECW01--A, SYSTXBBECN01--A

& SYSTXBBECC01--A

EvolutionrConnextControl

Owner’s Manual

A12479

NOTE: Read the entire instruction manual before starting the installation.

US Patents: Carrier U.S. Pat No. 7,243,004, Carrier U.S. Pat No. 7,775,452, pointSETtU.S.

Pat No. 7,415,102

TABLE OF CONTENTS

PAGE

Introduction 1.....................................................

Home Screen 1....................................................

Information Displayed 1...........................................

Wi--Fi Connectivity 2.............................................

Information Buttons 4.............................................

Main Screen 4....................................................

System Mode 4..................................................

Set Day and Time 5..............................................

Adjust Temperature (Temporary Hold) 6..............................

Adjusting Comfort Activities (See Comfort Profiles on Page 9) 6...........

Adjusting Heating 6..............................................

Adjusting Cooling 7..............................................

Adjust Temperature (Permanent Hold) 7..............................

Adjusting Comfort Activities (See Comfort Profiles on Page 9) 7...........

Adjusting Heating 8..............................................

Adjusting Cooling 8..............................................

Features 8........................................................

Adjust Fan Speed 8...............................................

View Current Humidity Level 9.....................................

Menu Screen 9....................................................

Comfort Profiles 9...............................................

Home Humidity Control 11........................................

TABLE OF CONTENTS (cont.)

PAGE

Home Fresh Air Control 12........................................

Away Humidity Control 13.........................................

Away Fresh Air Control 13.........................................

Programming the EvolutionrConnex Control 14.......................

Schedule Yourself 14.............................................

Guide Me through Scheduling 15....................................

Upload My Schedule 17...........................................

Set Time and Date 18.............................................

Operating Status 19..............................................

Accessories Status 20.............................................

Zone Status (If Applicable) 20......................................

Vacation Settings 21..............................................

Wireless Set--up 22..............................................

Wi--Fi Diagnostics 30............................................

Screen Lock 31..................................................

Weather Forecast 33..............................................

Service 34......................................................

Photo Upload 40.................................................

Accessory Reminders 41..........................................

Display 42.....................................................

Heat Source (If Applicable) 43......................................

Zone Names (If Applicable) 43.....................................

Home Automation System Interface (If Applicable) 44...................

INTRODUCTION

CONGRATULATIONS! Your decision to choose the EvolutionRConnext

Control puts you in a select group of homeowners who understand the value of

precise comfort control and appreciate the simplicity of an easy--to--use, intuitive,

control.

Your new Evolution Connex Control offers high quality comfort technology. Please

take a few moments to carefully read through this manual. Next set up a comfort

profile and schedule that makes sense for your lifestyle; then relax and enjoy the

new comfort of your home!

HOME SCREEN

Information Displayed

The information displayed on the home screen will appear when there has been no

interaction with the Evolution Connex Control for at least one minute. The basic

information displayed on the Home Screen consists of the current date and time, the

room temperature (zone temperature if applicable), the outdoor temperature, and

current weather condition. Connectivity status to the home Wi--Fi network and the

MyEvolution Server will also be displayed on the Home Screen for compatible

Wi--Fi units (SYSTXBBECW01--A and SYSTXBBECC01--A). Note: You must

have Wi--Fi enabled for the indicator to appear.

If you have uploaded a photo to the control (see page 40), it will be displayed until

you touch the display. You will then be taken to the Home Screen.

Wi--Fi Connectivity Status

A13258

With the SYSTXBBECW01--A and SYSTXBBECC01--A Evolution Connex Wi--Fi

models, connectivity status to the home Wi--Fi network and MyEvolution Server is

displayed in the top right hand corner of the Home Screen.

When the Evolution Connex control is connected to the home Wi--Fi network and

the MyEvolution Server, the signal strength bars will be displayed in white as

depicted in the image above. Connection strength to the home Wi--Fi network will

be indicated by the number of solid white bars displayed.

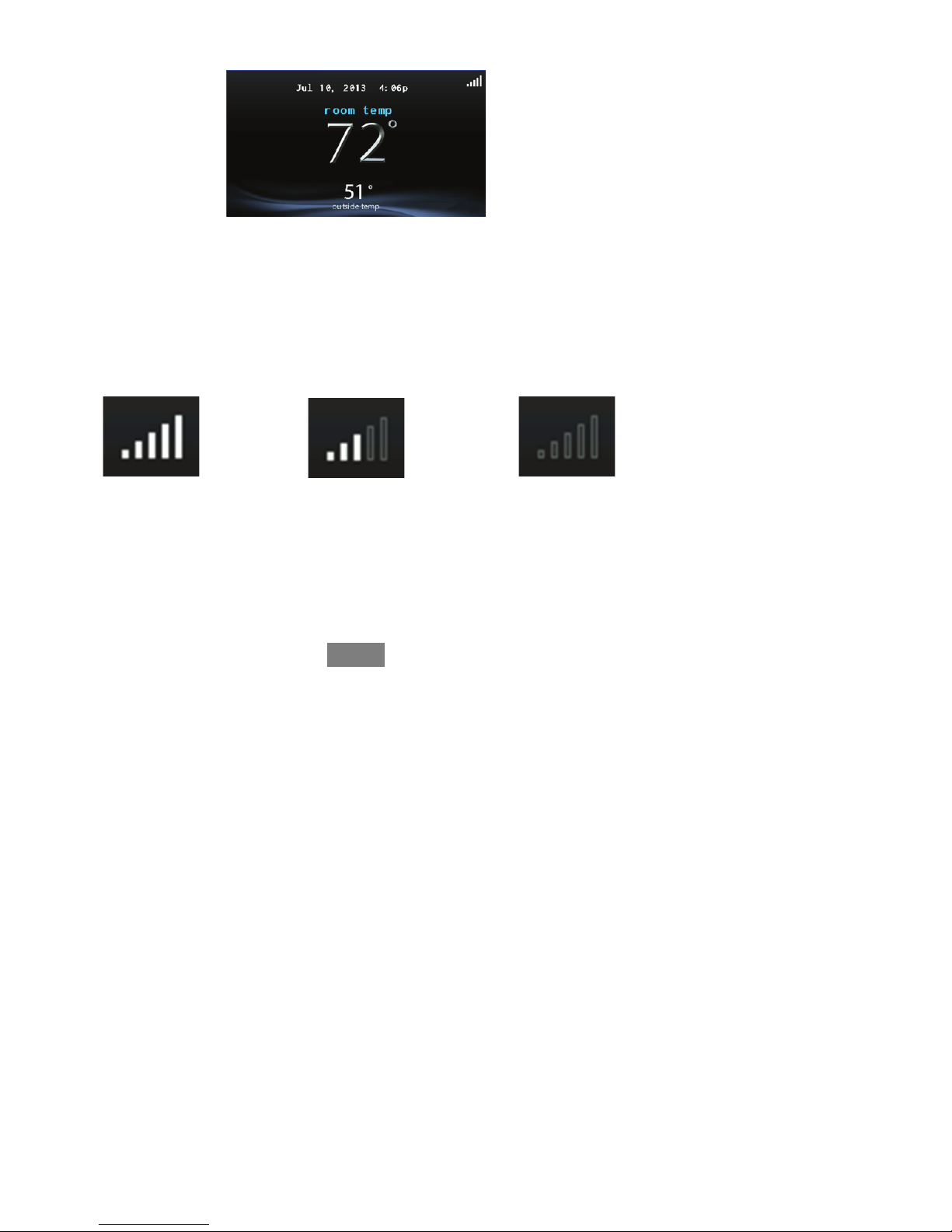

Strong Connection Limited Connection No Connection

A13259

SPressing on the Connectivity Status bars from the Home Screen will

allow you to view the Remote Access Status screen.

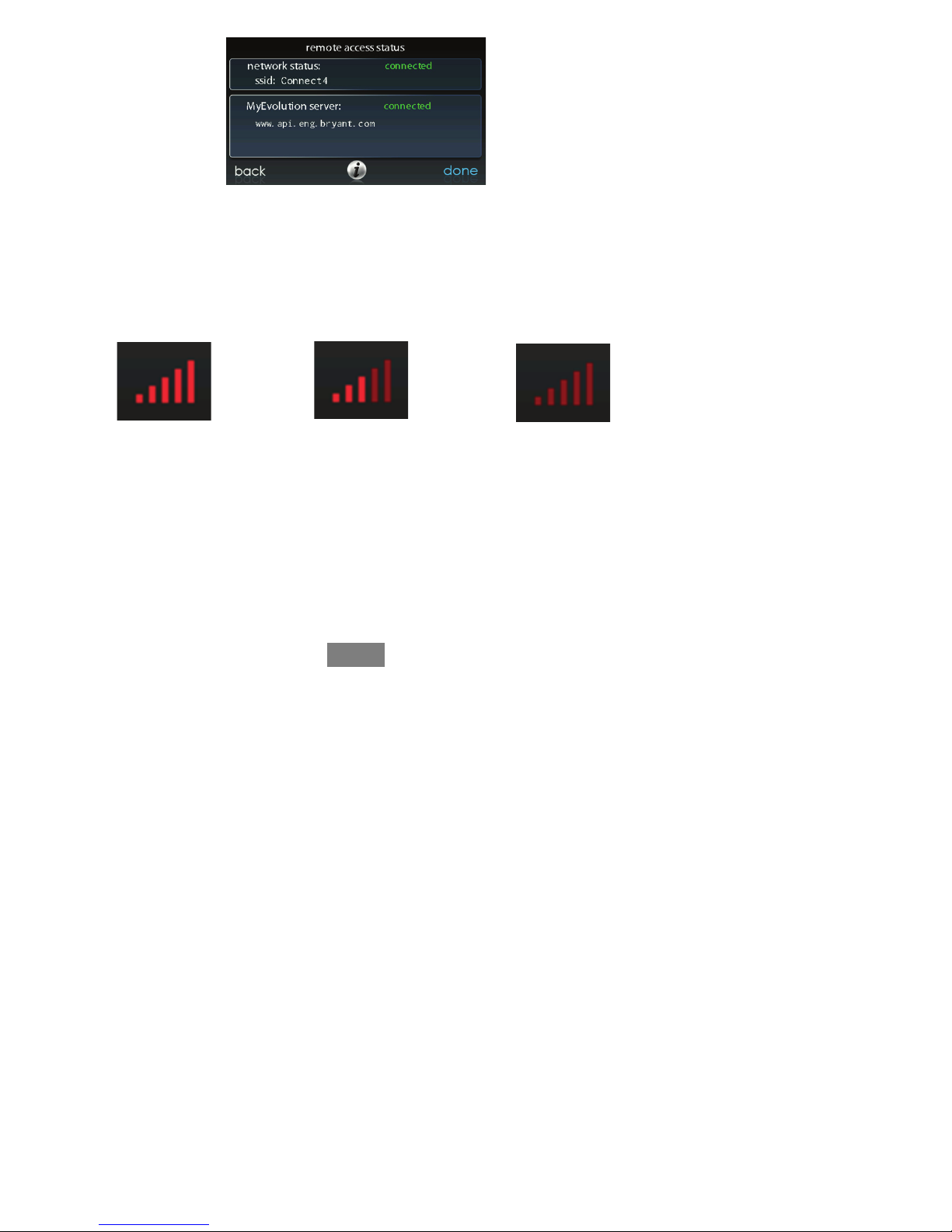

A13266

SNOTE: If the Evolution Connex control is connected to the home Wi--

Fi network but loses connection to the MyEvolution Server, the signal

strength bar will be displayed in red as depicted in the image below.

Connection strength to the home Wi--Fi network will continue to be

displayed by the number of solid bars. If this problem persists, please

contact Bryant Customer Relations at 1--800--4284326 for assistance.

Strong Connection Limited Connection No Connection

A13261

SAgain, pressing on the Connectivity Status bars from the Home Screen

will allow you to view the Remote Access Status screen.

A13267

Information Buttons

On the bottom of some screens will be an information icon. By pressing the

information icon, a text box will display to show what interactions are available on

that particular screen. To close the text box, press the information icon again.

FIGURE PLACE HOLDER

A12103

MAIN SCREEN

The main screen is where most interactions will take place. Touch anywhere on the

screen to arrive at the main screen.

System Mode

SOnce in the main screen,

STo access your system mode touch the MODE label located in the upper

right of the control.

SThe drop--down menu will allow you to choose between AUTO, HEAT,

COOL, FAN ONLY and OFF.

SIf OFF is selected that means your heating and cooling systems are not

operational.

SIf AUTO is selected, the Evolution Connex Control automatically

switches between heating and cooling to maintain your comfort during

transitional seasons.

SIf HEAT is selected then the Evolution Connex Control operates only the

heating system.

SIf COOL is selected then the Evolution Connex Control operates only

the cooling system.

SIf FAN ONLY is selected, then the Evolution Connex Control operates

the indoor fan.

Set Day and Time

STo set the day and time for your home screen enter the main screen by

touching anywhere on the control.

STouch the DAY and TIME label located at the top middle of the screen

or access by going through the menu screen (see page 18).

STo set the HOUR, MINUTE, MONTH, DAY,orYEAR touch the fea-

ture you wish to change.

SUse the Up (Y) and Down (B) buttons to make the appropriate

changes.

SWhen you have completed all of the settings, touch SAVE.

SIf you make a mistake you may touch CANCEL and begin again.

Adjust Temperature (Temporary Hold)

The Evolution Connex Control allows you to temporarily override your

programmed schedule by adjusting the indoor temperature at any time to meet your

needs.

Adjusting Comfort Profiles (See Comfort Profiles on Page 9)

STo adjust the comfort activity, enter the main screen by touching any-

where on the control.

STouch the activity under the Touch N Gotfeature on the left side of the

screen; then select the desired activity of HOME, AWAY, SLEEP,or

WAKE.

SUse the Up (Y) and Down (B) buttons to change the time to temporar-

ily hold the desired temperature in 15 minute increments.

SWhen the correct time interval is displayed, touch DONE.

STo return to the scheduled program, touch HOLD UNTIL,andthen

select PER SCHEDULE.

Adjusting Heating

STo adjust the heating temperature, enter the main screen by touching

anywhere on the control.

SWith the system in either AUTO or HEAT mode, use the Up (Y)and

Down (B) buttons to set the desired temperature.

SOn the left hand side of the screen, the comfort profile will switch to

manual, and the system will be placed in a temporary hold.

SUse the Up (Y) and Down (B) buttons to change the time to temporar-

ily hold the desired temperature in 15 minute increments.

SWhen the correct time interval is displayed, touch DONE.

STo return to the scheduled program, touch HOLD UNTIL,andthen

select PER SCHEDULE.
