BT404

Mini 500 Power Supply

Cat. No. BT404

Page 2of 13

WARNING...................................................................................................................................................... 3

SAFETY INFORMATION.............................................................................................................................. 3

ENVIRONMENTAL CONDITIONS................................................................................................................ 4

AVOIDING ELECTRICAL SHOCK.................................................................................................................. 4

AVOIDING DAMAGE TO THE INSTRUMENT .............................................................................................. 4

EQUIPMENT OPERATION .......................................................................................................................... 5

SYMBOL..................................................................................................................................................... 5

INTRODUCTION............................................................................................................................................. 7

OVERVIEW................................................................................................................................................. 7

PRODUCT DESCRIPTION & FEATURE......................................................................................................... 7

TECHNICAL SPECIFICATION........................................................................................................................... 8

INSTALLATION INSTRUCTIONS...................................................................................................................... 9

OPERATION INSTRUCTIONS .......................................................................................................................... 9

CONTROL INTERFACE................................................................................................................................ 9

START THE OPERATION........................................................................................................................... 10

TROUBLESHOOTING AND MAINTENANCE..................................................................................................11

ENCOUNTERING PROBLEMS ................................................................................................................... 12

REPLACING THE FUSE..............................................................................................................................12

MAINTENANCE........................................................................................................................................13

WARRANTY ................................................................................................................................................. 13

TECHNICAL SUPPORT ..................................................................................................................................13

Page 3of 13

WARNING

BT Lab Systems Mini 500 Power Supply has been tested and found to comply with the limits for the CE

regulation. Also, it is RoHS compliant to deliver confident product which meets the environmental

directive. These limits are designed to provide reasonable protection against harmful interference when

the instrument series is operated in a commercial environment. This instrument series used together

with power supply unit generates, uses, and can radiate radio frequency energy, and if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this instrument series in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at their expense.

Changes or modifications not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment. It is strongly recommended for the user to read the following

points carefully before operating this equipment.

1. Read and follow the manual instructions carefully.

2. Do not alter the equipment. Failure to follow these directions could result in personal and/or

laboratory hazards, as well as invalidate equipment warranty.

3. Use a properly grounded electrical outlet with correct voltage and current handling capacity.

4. Disconnect from power supply before maintenance and servicing. Refer servicing to qualified

personnel.

5. Never use this instrument series without having the safety cover correctly in position.

6. Do not use the unit if there is any sign of damage to the external tank or cover. Replace

damaged parts.

7. Do not use in the presence of flammable or combustible material; fire or explosion may result.

This device contains components which may ignite such materials.

8. Refer maintenance and servicing to qualified personnel.

9. Ensure that the system is connected to electrical service according to local and national

electrical codes. Failure to make a proper connection may create fire or shock hazard.

10. Use appropriate materials and operate correctly to avoid possible hazards of explosion,

implosion or release of toxic or flammable gases arising from overheated materials.

11. The unit shall be operated only by qualified personnel.

Safety Information

Use high level of precaution against any electrical device. Before connecting the electrical supply, check

to see if the supply voltage is within the range stated at the rating label, and see to it that the device be

seated firmly. Place the unit in a safe and dry location; it must NOT touch the surrounding. Follow the

safety precautions for chemicals / dangerous materials. If needed, please contact qualified service

representative or [email protected].

Page 4of 13

Environmental Conditions

Ensure the instrument is installed and operated strictly under the following conditions:

1. Indoor use only

2. ≤95% RH

3. 75-106 kPa

4. Altitude must not exceed 2000 meters

5. 4-40°C operating temperature

6. Pollution degree: 2

7. Mains supply voltage fluctuations up to ±10% of the normal voltage

Avoiding Electrical Shock

Follow the guidelines below to ensure safe operation of the unit.

The Mini 500 Power Supply has been designed to utilize shielded wires thus minimizing any potential

shock hazard to the user. BT Lab Systems recommends against the use of unshielded wires.

To avoid electrical shock:

1. In the event of solution spilling on the instrument, it must be dried out for at least 2 hours and

restored to NORMAL CONDITION before each operation.

2. Never connect or disconnect wires loading from the power jacks when the red indicator light of

power switch is on.

3. WAIT at least 5 seconds after stopping a run before handling output leads or any connected

apparatus.

4. ALWAYS make sure that your hands, work area, and instruments are clean and dry before

making any connections or operating the power supply.

5. ONLY connect the power cord to a properly grounded AC outlet.

Avoiding Damage to the Instrument

1. Do not attempt to operate the device if damage is suspected.

2. Protect this unit from physical damage, corrosive agents and extreme temperatures (direct

sunlight, etc.).

3. For proper ventilation and safety concerns, keep at least 10 cm of space behind the instrument,

and at least 5 cm of space on each side.

4. Use high level of precaution against the damages on the unit.

5. Do not operate the unit out of environmental conditions addressed above.

6. Do not operate the power supplies in high humidity environments (> 95%), or where

condensation may occur.

Page 5of 13

7. To avoid condensation after operating the power supply in a cold room, wrap the unit in a

plastic bag and allow at least 2 hours for the unit to equilibrate to room temperature before

removing the bag and operating the unit.

8. Prior to applying any cleaning or decontamination methods other than manufacturer’s

recommendation, users should check with the manufacturer’s instruction to see if the proposed

method will damage the equipment.

Equipment Operation

Follow the guidelines below to ensure safe operation of the unit:

1. NEVER access dangerous chemicals or other materials to prevent possible hazard of explosion

and damage.

2. Do not operate the unit without lids or covers to prevent possible hazards.

3. A temporary conductivity caused by condensation might occur even though this series is rated

Pollution Degree 2 in accordance with IEC 664.

Symbol

Symbols used on the power supply are explained below.

Indicates an area where a potential shock hazard may exist.

Consult the manual to avoid possible personal injury or instrument damage.

Indicates disposal instruction.

DO NOT throw this unit into a municipal trash bin when this unit has reached the end of its

lifetime. To ensure utmost protection of the global environment and minimize pollution,

please recycle this unit.

Max. voltage: 500 V

Max. current: 400 mA

Max. watt: 120 W

This product has been tested to the requirements of CAN/CSA-C22.2 No. 61010-1,

second edition, including Amendment 1, or a later version of the same standard

incorporating the same level of testing requirements

Potential Risk and Preventive Measure

1. Risk assessment table

Potential Risk

Frequency

Frequent Likely Possible Rare Unlikely

Bruise √

Slash √

Electrical shock √

Power cord plug wrong √

Page 6of 13

2. Preventative measures of risk

Potential Risk Preventive measures

Bruise Do not put the machine near the table edge.

Slash

Prevent hard impact on the case.

Electrical Shock Make sure that your hands, work area, and devices are clean and dry

Power cord plug wrong Observe correct adapter plug.

THIS LIMITED WARRANTY SHALL NOT APPLY IF THE DEFECT WAS CAUSED THROUGH ANY OF THE

FOLLOWING

1. The Product serial number or the accessory date code has been removed, erased, defaced,

altered or is illegible; or

2. The defect is resulting from the use of the product in a manner other than their normal and

customary manner, e.g., in excess of their minimum specification or operating instructions, or

malfunction or failure resulting from use of incorrect voltages; or

3. Deterioration of the Product due to normal wear and tear. All plastic surfaces and other natural

wear of externally exposed parts of the product are scratched or damaged under normal usage

(including casing, key pad, display and accessories, etc.); or

4. The defect is arising from improper installation, unauthorized repair, alteration or modification

to this product by third parties other than MS or its designee; or

5. The defect is arising from operating with components or accessories not officially authorized or

provided by MS or used in other than its intended use; or

6. The defect was caused by unauthorized software including but not limited to ROM upgrades,

non proprietary software; or

7. The defect or damage are arising from unauthorized modification of the operating software or

caused by the computer virus; or

8. The defect or damage is arising from misuse, mishandling, accidental lost, abuse, accident,

negligence and damage caused directly or indirectly by Customer, including but not limited to

improper testing, installation, alteration or modification of any kind, or spillage of food or liquid,

or build up of dirt or dust, or mains supply problem, thunderstorm activities, or infestation by

insects or vermin, or exposure to abnormally corrosive conditions, or operation with extreme

heat or humidity.

Page 7of 13

INTRODUCTION

Overview

BT Lab Systems Mini 500 Power Supplies are recognized as unique power supplies equipped with very

powerful specifications to cover the majority of electrophoresis applications on the market. Sufficient

and accurate output voltages, two terminal pairs, and its compacted size can deliver accurate and

reliable experimental results from one experiment to another. Mini 500 Power Supplies are RoHS and CE

compliant for environmental and safety concerns. Package offering is another feature for users’

convenience and budget concern.

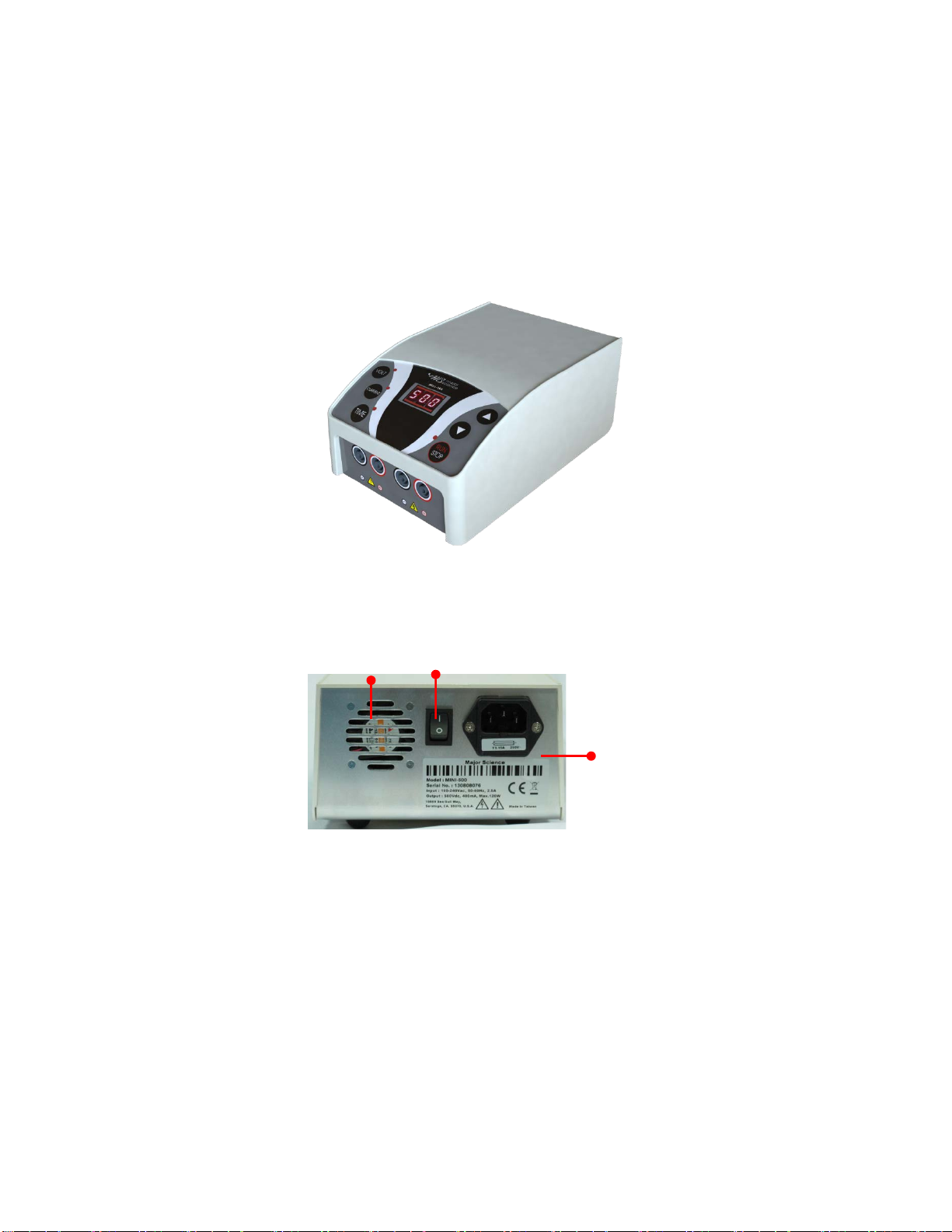

Front view

Rear view

Product Description & Feature

Combining small size and versatility, the newly redesigned Mini 500 power supply is an ideal choice for

any researcher. Capable of providing constant current or constant voltage in 1 mA or 1 V steps, the unit

is perfectly suited to run both vertical polyacrylamide and horizontal agarose electrophoresis

experiments. Continuous or timed operations are easily performed using the simple and user-friendly

interface. The Mini 500V features 2 electrode pairs, allowing for 2 gels to be run simultaneously, saving

both time and valuable bench space. With a universal voltage rating, the Mini 500V is also designed and

constructed to the most rigorous safety standards. Packages including single or dual horizontal

electrophoresis systems are excellent choices for educational or personal use.

Main power socket &

Fuse holder

ON/OFF Switch

Fan

Page 8of 13

•Compact size

•Power capacity: 120W, 400mA, 500V

•Constant Voltage or Constant Current operation

•1 V step voltage selection; 1 mA step current selection

•Timer

•No load detection

•Shrouded plugs and sockets

•Two pairs of outlet terminals

•Output voltage stability

•-Economic choice for larger horizontal electrophoresis & 10 x 10 cm vertical electrophoresis

•Bundled package with ME15-15 and MV-10

•New housing and exterior design

TECHNICAL SPECIFICATION

Cat. No BT402

Output Voltage / Inc. 10 - 500V / 1V

Output Current / Inc. 10 - 400mA / 1mA

Max. Watt 120W

Output Type Constant Voltage or Constant Current

Control Microprocessor controller

Terminal Pairs 2 Pairs

Timer 1 - 999 minutes with alarm, continuous

Safety Device No load detection; shrouded plugs and sockets

Operation Temperature 4

℃

~ 40

℃

Unit Dimension 140 x 191 x 84mm

Construction material Polycarbonate housing and aluminum bottom plates

Weight Approx. 1 kg

Rated Voltage 100 - 240 V~, 50-60Hz, 2A

Page 9of 13

INSTALLATION INSTRUCTIONS

Mini 500 Power Supply is actually a pre-installed instrument. As long as it is placed on a sturdy and level

surface in a safe, dry place, and further connects with well-prepared electrophoresis system, it is ready

for operation.

OPERATION INSTRUCTIONS

Control interface

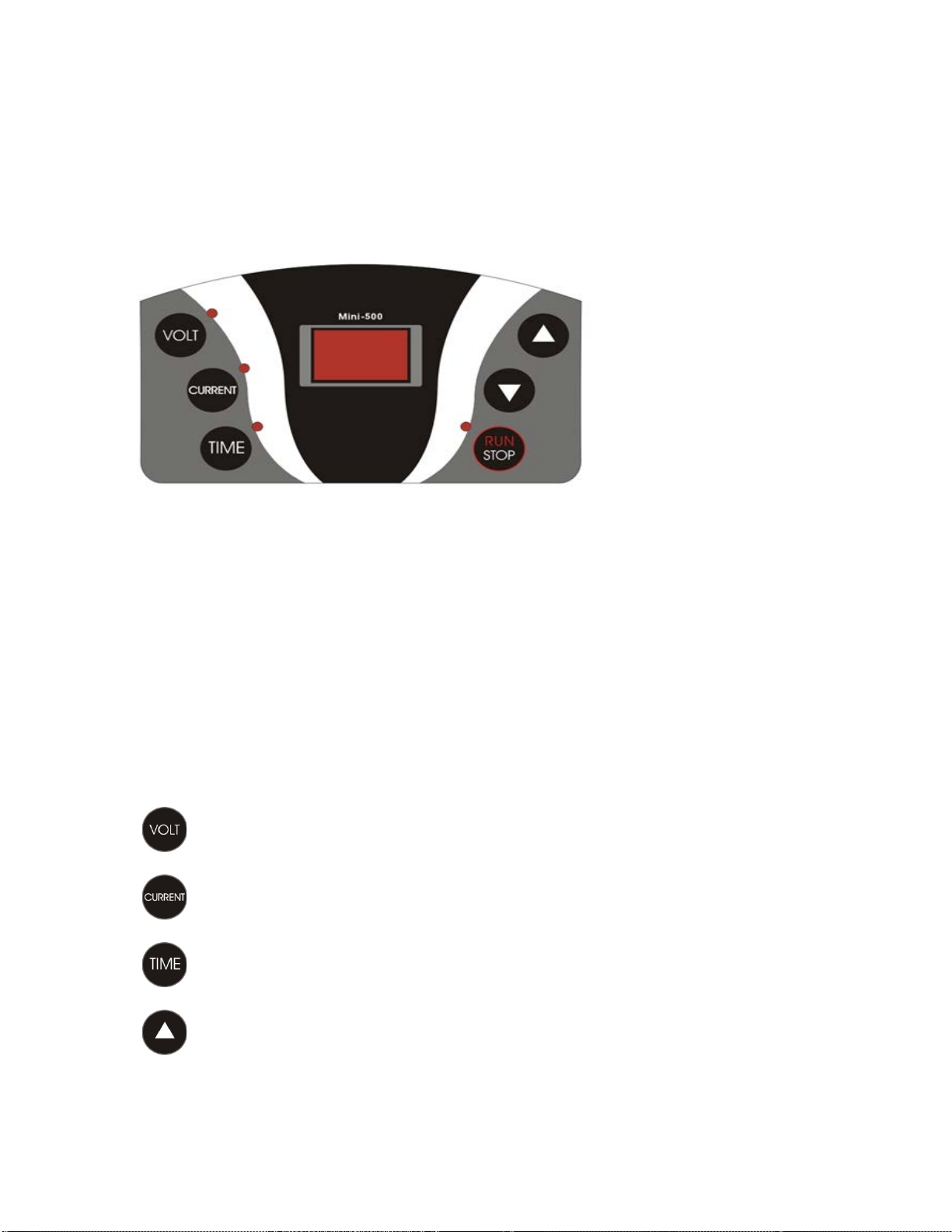

You will be able to find six buttons and 4 LED indicators from the faceplate.

The LED indicates the status of the unit.

a. Setup Mode (before pressing RUN/Start)

LED light indicates your current parameter. If you are setting a value for Voltage, the Voltage LED will be

lit.

b. Operation Mode

After you start the experiment, the LED light next to the RUN/STOP button will light up to indicate unit

under operation.

1. – Select voltage value

2. – Select current value

3. – Timer button

4. – Increase the Voltage, Current or Time

Page 10 of 13

5. – Decrease the Voltage, Current, or Time

6. – Start or stop the unit

Start the operation

Note: To operate under constant voltage or constant current modes, adjust the other parameter to the

maximum value. For example, to operate under constant voltage, adjust current to max before running

using constant voltage, and vice versa.

1. Place the unit on a sturdy and level surface in a safe, dry place, away from laboratory traffic.

2. Ensure that the AC power switch is OFF, and then plug the three-pronged power cord into a

grounded three-prong AC outlet with appropriate voltage (100V to 240V as indicated on the rating

sticker near the AC cord on the back of the unit).

3. Power on the unit by pressing the ON/OFF switch.

4. Connect the DC output jacks from the electrophoresis unit; insert the red lead (+) into the red

output jack, and the black lead (-) into the black output jack.

5. Constant voltage or current

*To set constant voltage, press , the LED indicator should light up.

*To set constant current, press , and LED indicator should light up.

6. Adjust the output value by pressing the or button.

7. After adjusting your constant mode output value, switch to the other parameter and set it to

maximum.

8. Timer Setting: After setting the current or voltage output value, press the Timer button, and then

press key or key to adjust timer accordingly.

Note: When timer is set as “0”, it means continuous operation.

9. Press Key to start the run. Once the electrophoresis starts, the LED light next to the

button will light up.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BT Lab Systems Stromversorgung Handbücher

BT Lab Systems

BT Lab Systems Mini 300 Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
