BT RELATE 1500 Bedienungsanleitung

Relate 1500 Caller Display

& Call Waiting Telephone

For use with BT’s Caller Display and Call Waiting

User guide

Caller Display and Call Waiting Services requires set-up by BT or your

service provider and connection to a digital exchange.

12:30 27 8

00000040229311117

PM NEW

CALLS

CALL WAITINGEXTENSION IN USE

Please open this page for a further ‘at a glance’

guide to your Relate 1500 Caller Display.

Date of call

18 digits

16 alpha

characters

Number of calls

(1-30)

Answered/

unanswered

icon

Name of caller (if stored in

your directory) or a Network

text message

Time of

call/or

time of

day

Telephone

number

Indicates when

another extension

is in use

Indicates that

another person is

trying to call you

Relate 1500 Screen

Idle State

Screen Caller Display

Screen Caller Display/Call Waiting

Screen

12:30 0

PM NEW

CALLS

12:30 27 8 1

PM CALL

00000048243011177

NEW

CALLS

12:30 27 8

0093203406901

PM CALL

CALL WAITING

NEW

CALLS

✱

REDIAL SERVICES CALLS DIRECTORY STORE

RECALL CLEAR

DIAL

MONITOR

PAUSE SECRECY

NO.

EXT.

Directory

Use to access numbers you

have stored in your directory.

Page 15

Incoming Call LED

Flashes, after calls

received.

Calls

Use to access the list

of numbers that have

called you.

Page 12

Services

Use to access

pre-programmed

BT Select Services.

Page 18

Redial

Allows you to redial

the last 3 different

numbers called.

Page 12

At a glance

Dial

Press to dial a number shown in the

display.

Page 10

Clear

Deletes numbers stored in the calls list,

directory and redial.

Pages 14,16

Display

Displays number information in the calls

list plus directory, redial and the number

dialled. Also shows battery low warning

for up to two weeks before the batteries

are drained.

Store

Use when storing and editing

numbers in the directory.

Page 15

Monitor

Allows you to dial a number

without lifting the handset.

Page 11

Recall

For use with BT Select

Services and switchboards.

Page 11

¶ Ä scrolling buttons

Use to move up and down through the

calls list, directory or redial numbers.

§ © scrolling buttons

Use to move left and right to edit individual

characters of numbers/names stored in the

directory.

Timer

Provides a display starting

at 00.00 enabling you to

time the length of a call.

Page 20

Monitor Volume

Use to adjust the volume

of the call monitor loud speaker.

Page 8

Pause

For use with switchboards and

BT Select Services.

Page 17

Secrecy light

Comes on when the Secrecy

function is active.

Page 10

Secrecy

Allows you to talk to someone in the same

room without your caller being able to hear

your conversation.

Page 10

Edition 7 3rd October 97 Edition 7 3rd October 97

BT Helpline

0345 573464

Please call the BT Helpline if you

require further assistance with

your Relate 1500 Caller Display.

RINGER

VOLUME

LOW

OFF

9v DC

Telephone line cord

Plug into the telephone

line socket

Telephone power cord

Plug into the mains power socket

Ringer volume

HI/LOW/OFF

Battery

compartment

At a glance

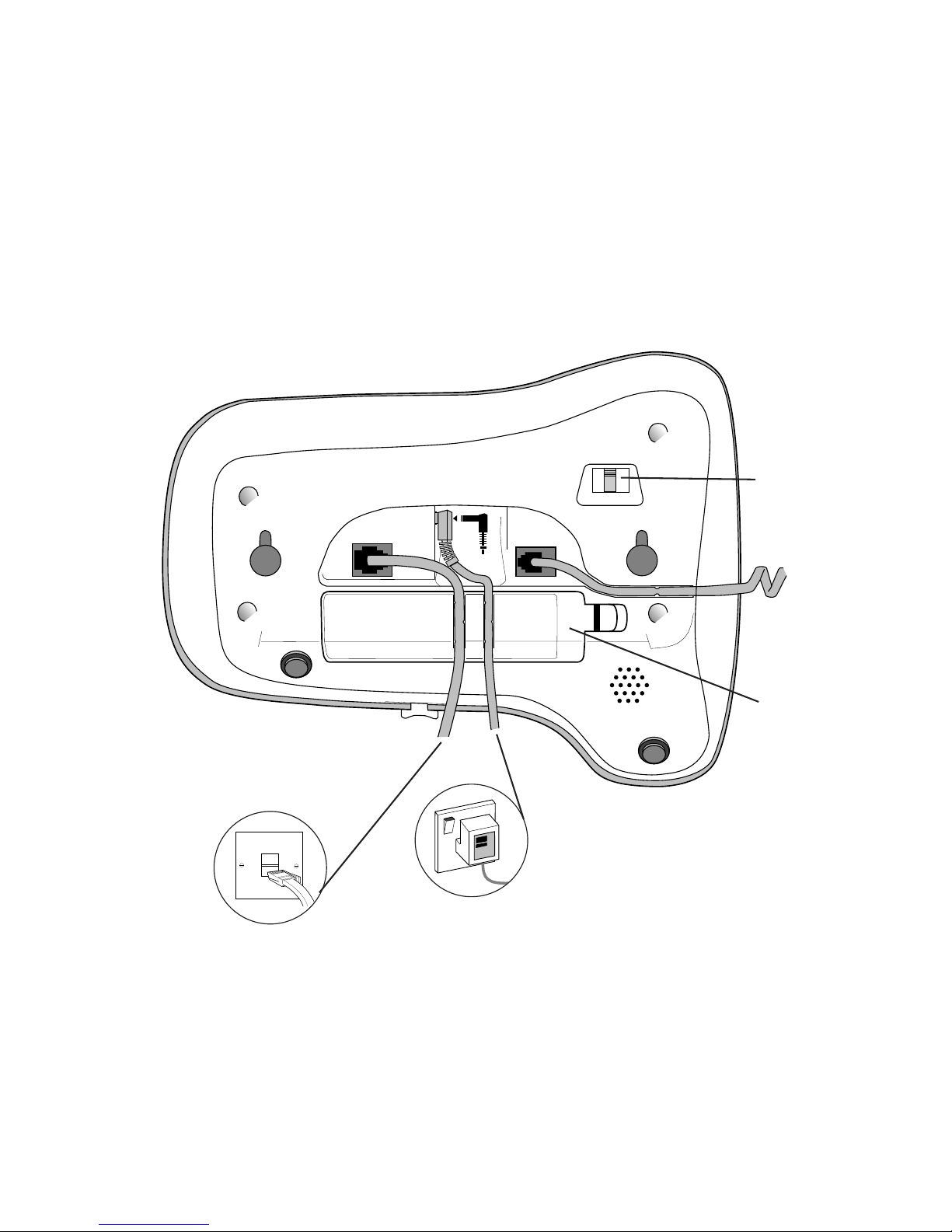

Rear view of the Relate 1500 Caller Display (without base stand)

At a glance 1

Introduction 5

Setting up 6

Using the phone 11

Additional features 19

Help 23

Maintenance 25

Technical information 26

Index 27

Hints and tips boxes

In this user guide we’ve included helpful tips and

useful notes. They are shown in a grey box.

In this guide

BT Helpline 0345 573464

Please call the BT Helpline if you require further

assistance with your Relate 1500 Caller Display

and Call Waiting Telephone.

Introduction Your Relate 1500 is designed for ease of

use and made to the high standards set by BT

We thank you for making the right choice and

expect that your Relate 1500 will give you many

years of quality service.

Please read the instructions carefully before

use and keep this user guide for future

reference.

For your records

Date of purchase:

Place of purchase:

Serial number:

(on the underside of the telephone)

Purchase price:

For warranty purposes, proof of purchase is

required, so please keep your receipt.

Check that your Relate 1500 is complete.

When you unpack you should have:

• Relate 1500 with telephone line cord attached.

• 13 amp mains power adaptor plug.

• Stand.

• 2 screws and 2 wallplugs for wall mounting.

Setting up Follow these steps to get your Relate1500

ready for use

Plan where you will put your Relate 1500. It should

be within 2 metres of a phone socket and within 3

metres of a mains power socket..

Are you connecting to a cable telephone

network?

Your Relate 1500 is designed to work with both BT

and other UK networks.

The operation of the phone is the same for all

networks. On some UK networks the caller’s

information will not be displayed until after the

first ring.

BT’s Caller Display and Call Waiting Services

Your Relate 1500 receives and displays caller

display information transmitted over the BT

network. In most cases this information

includes the caller’s phone number and the

date and time the call was received.

The Relate 1500 will also display the caller’s

details while you are engaged on another call.

For your Relate 1500 to display this information,

you must first subscribe to BT’s Caller Display

and Call Waiting Services.

For more information, call BT on:

Freefone 0800 800 150 for residential

customers.

Freefone 0800 800 152 for business

customers.

Other UK networks

For your Relate 1500 to display the information

you must subscribe to your network providers

Caller Display and Call Waiting Services.

For more information call your network provider.

If you do not have a modern phone socket,

call Freefone 0800 800 150 and ask for a

BT engineer to come and fit the correct socket.

There is a charge for this service.

1 Insert batteries

If there is a power failure and you do not have

batteries fitted, the telephone will operate

normally but the caller display function will not

work and the idle screen will go blank.

Information stored in the calls list and in the

directory will be lost.

To install the batteries, remove the stand if

fitted and open the battery cover on the

underside of your Relate 1500. You need 4

AA Alkaline batteries.

If there is a power failure

As long as batteries are installed and are in good

condition, information stored in the calls list and

directory will not be lost. When the handset is lifted

the display will show NO MAINS POWER.

If the phone is only powered by the batteries the

display will remain blank until the handset is lifted.

Please note, that if batteries only are fitted, the

screen will remain blank until the handset is lifted.

Setting up

Warning

1Do not try to use any power supply other than

the one provided, item code 871057. If you

do, you may permanently damage your Relate

1500 which will result in non-compliance and

invalidate its approval.

2There is a slight chance that your Relate 1500

could be damaged by an electrical storm.

We recommend that you unplug the base unit

from the mains power supply during storms.

RINGER

VOLUME

LOW

OFF

9v DC

AA Alkaline +-

AA Alkaline

AA Alkaline +-

AA Alkaline

Battery low indication

When the batteries are about two weeks away from

being exhausted the display will show BATT LOW

along the bottom of the screen. When the

batteries are fully drained, the display will show

CHANGE BATTERIES.

Battery compartment door

2 Fitting the mains power

adaptor and the stand

• With your Relate 1500 face down, feed

the telephone line cord and power line cord

through the hole in the stand.

• Plug the power line cord into the base of the

Relate 1500.

• Guide the two lugs on the stand into their

respective slots, as shown. Then swing the

stand down to meet the underside of the

base unit and allow the clip on the stand to

click into its slot.

RINGER

VOLUME

LOW

OFF

9v DC

POWER LINE CORD

POWER LINE

PLUG (connected)

• Press the telephone line cord and power line

cord into their guiding grooves to allow the

stand to sit flat when the Relate 1500 is

positioned upright.

You will need to plug the telephone line cord

and power line cord into their respective wall

sockets.

Setting up

3 Set the ringer volume

The ringer switch is located on the bottom of

the unit. There are 3 settings.

HI a loud ring. Your Relate 1500 is pre-set

to this position.

LOW a quiet ring.

OFF no ring.

4 Adjusting the contrast of the

display screen

You can use the ¶or Äbuttons to make the

screen lighter or darker.

To adjust the contrast of the display screen

•Press and hold down the ¶button and at the

same time press the Ä button repeatedly to

alter the screen to a suitable setting.

RINGER

VOLUME

LOW

OFF

5 Setting the call monitor volume

The 3 position volume switch is located on the

front edge of the Relate 1500 and you should

set it to an audible level so that you can hear

dial tone when you press the monitor button.

6 The date and time is set

automatically

When you have subscribed to the Caller Display

service, the date and time on your Relate 1500

are set automatically after your first incoming

call.

You can also set the time manually - see page 22.

MONITOR

VOLUME SWITCH

LOW MEDIUM HIGH

Setting up

Inhaltsverzeichnis

Andere BT Telefon Handbücher

BT CONVERSE 2015 Bedienungsanleitung

BT BT3530 Bedienungsanleitung

BT Diverse 7460 Bedienungsanleitung

BT Home SmartPhone Bedienungsanleitung

BT CONVERSE 125 Bedienungsanleitung

BT Paragon 550 Bedienungsanleitung

BT FREESTYLE 610 Bedienungsanleitung

BT Big Button 100 Bedienungsanleitung

BT FeatureLine & Embark Bedienungsanleitung

BT LYRIC 1100 TWIN Bedienungsanleitung

BT Inspiration Benutzerhandbuch

BT Response 123 Bedienungsanleitung

BT EASICOM 200 Bedienungsanleitung

BT YOUR PHONE Bedienungsanleitung

BT DIVERSE 1010 Bedienungsanleitung

BT CONVERSE 1400 Bedienungsanleitung

BT Elements Bedienungsanleitung

BT Decor 1200 Bedienungsanleitung

BT FREELANCE XB2500 Bedienungsanleitung

BT CONVERSE 2015 Bedienungsanleitung

BT Freestyle 750 Bedienungsanleitung

BT DECOR 300 Bedienungsanleitung

BT FREELANCE XD 5100 Bedienungsanleitung

BT CONVERSE 425 Bedienungsanleitung

Beliebte Telefon Handbücher anderer Marken

GE 2-9480 Bedienungsanleitung

Geemarc

Geemarc PHOTOPHONE 155 Bedienungsanleitung

D-Link

D-Link DWR-720/PW Bedienungsanleitung

Interquartz

Interquartz Gemini IQ333 Bedienungsanleitung

SSS Siedle

SSS Siedle HT 840-0 Bedienungsanleitung

Motorola

Motorola TITANIUM Bedienungsanleitung

Panasonic

Panasonic ICX Bedienungsanleitung

LG H870DS Bedienungsanleitung

Samsung

Samsung GT-I9500 Bedienungsanleitung

AT&T

AT&T Trimline 205 Bedienungsanleitung

Selta

Selta zenyth 600 Bedienungsanleitung

Doro

Doro AFTI 20 Bedienungsanleitung

UNIQCELL

UNIQCELL A1 Bedienungsanleitung

Panasonic

Panasonic KX Series Bedienungsanleitung

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Bedienungsanleitung

NEC

NEC SV8500 Bedienungsanleitung

Teledex

Teledex PEARL Bedienungsanleitung

Ericsson

Ericsson Dialog 3213 Bedienungsanleitung
