Page 6
Figure 3
FIREBOX CLEARANCES
Firebox may be placed directly on a combustible floor,
against a combustible wall at marked clearances or on a
raised wooden platform. If firebox is to be installed on a
raised wooden platform, platform must be a continuous
level surface. The firebox must be secured in place so it
cannot shift positions. Only header (see Figure 3) may
rest on standoffs on top of firebox. When firebox is
installed over carpeting, vinyl tile or any combustible
material other than wood flooring, it must be installed on a
metal or wood panel extending its full width and depth.
Alternatives, carpeting, vinyl tile, etc. may be removed
beneath firebox before installing.
INSTALLING FIREBOX
This list of specific instructions will help you make certain that
every installation operation is performed correctly. Complete
installation steps in sequence shown.
LOCAL BUILDING CODES SHOULD BE CONSULTED IN
ALL CASES AS TO PARTICULAR REQUIREMENTS
CONCERNING INSTALLATION OF FACTORY BUILT
FIREBOXES. Select location for firebox by taking into
consideration factors previously outlined in the “Choosing
Location.” See page 5.

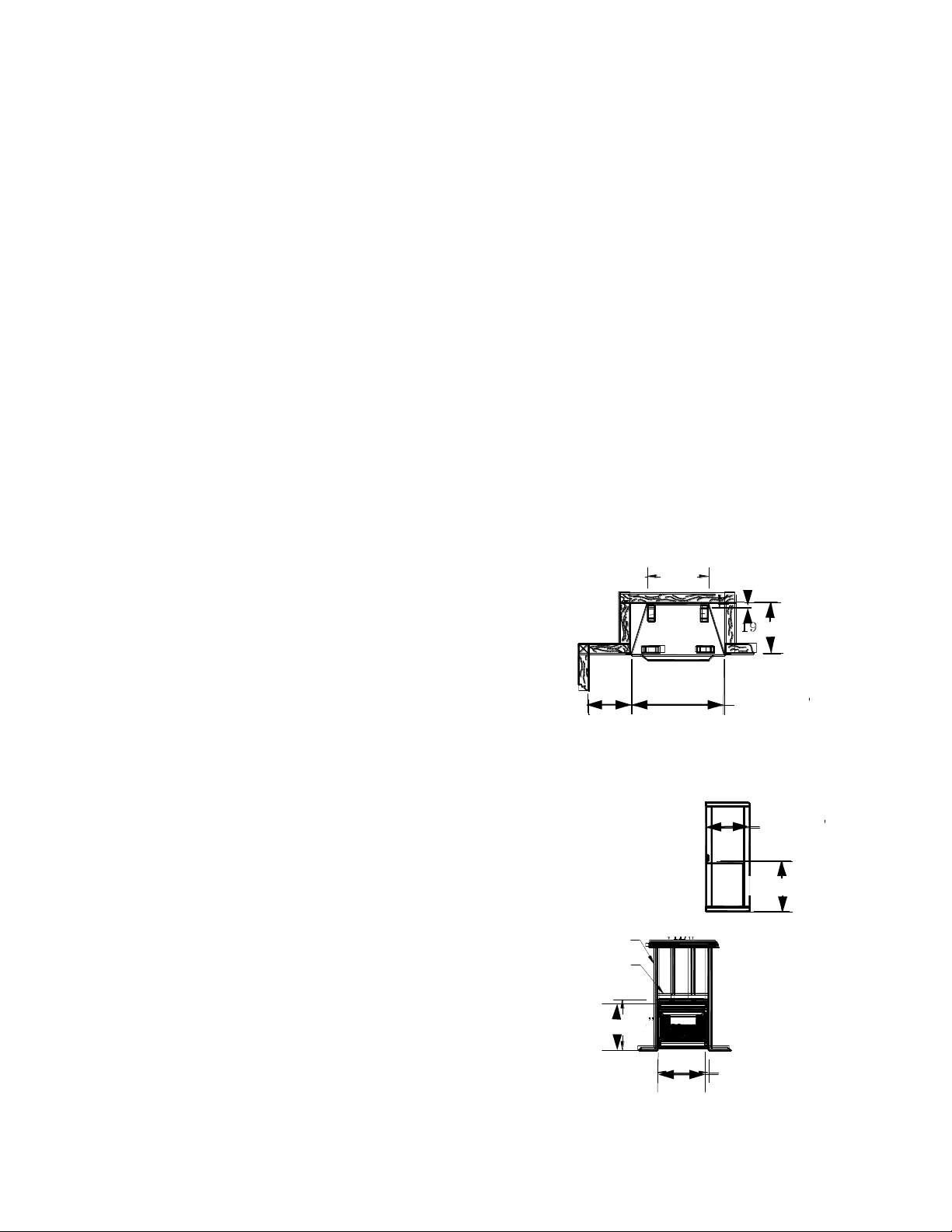

Framing Firebox
The width of framed opening must be 40 7/8". The height of
framed opening must be 38 1/8". The entire firebox can be
elevated above floor to achieve a raised hearth effect. This can be
done by adding a small platformto achieve desired height.
NOTE: The wiring for optional blower must be installed
during framing stage.
When framing is inside home, outside wall will be insulated. If
framing or chase is outside, a thin insulation should be used in
framing on back, sides and top. The bottom should be insulated
with a hard insulating board. This will prevent cold from going
into chase through firebox to living space.
Install Firebox
Install firebox into framed opening by placing it directlyin front of
opening and sliding it into proper position.
Level Firebox
Check the level of firebox on top edge of firebox face.
Secure Firebox
Secure firebox to framing. The nailing flange on firebox will make
securing firebox to frame quick and easy. Use appropriate size
nails or screws to secure firebox.
20 1/4"
40 7/8"
20 1/4"
27"
7"
1/2"
38 1/8"
38 1/8"
40 7/8"
LEFT FRONT RIGHT
TOP
VIEW
SIDE
VIEW
FRONT VIEW
FRAMING
HEADER
COMBUSTIBLE MATERIALS MUST NOT BE
INSTALLED OVER OR TOUCH ANY BLACK PAINTED
SURFACE. DO NOT BLOCK HEAT CIRCULATING AIR
OUTLETS. DOING SO MAY RESULT IN POTENTIAL
FIRE HAZARDS

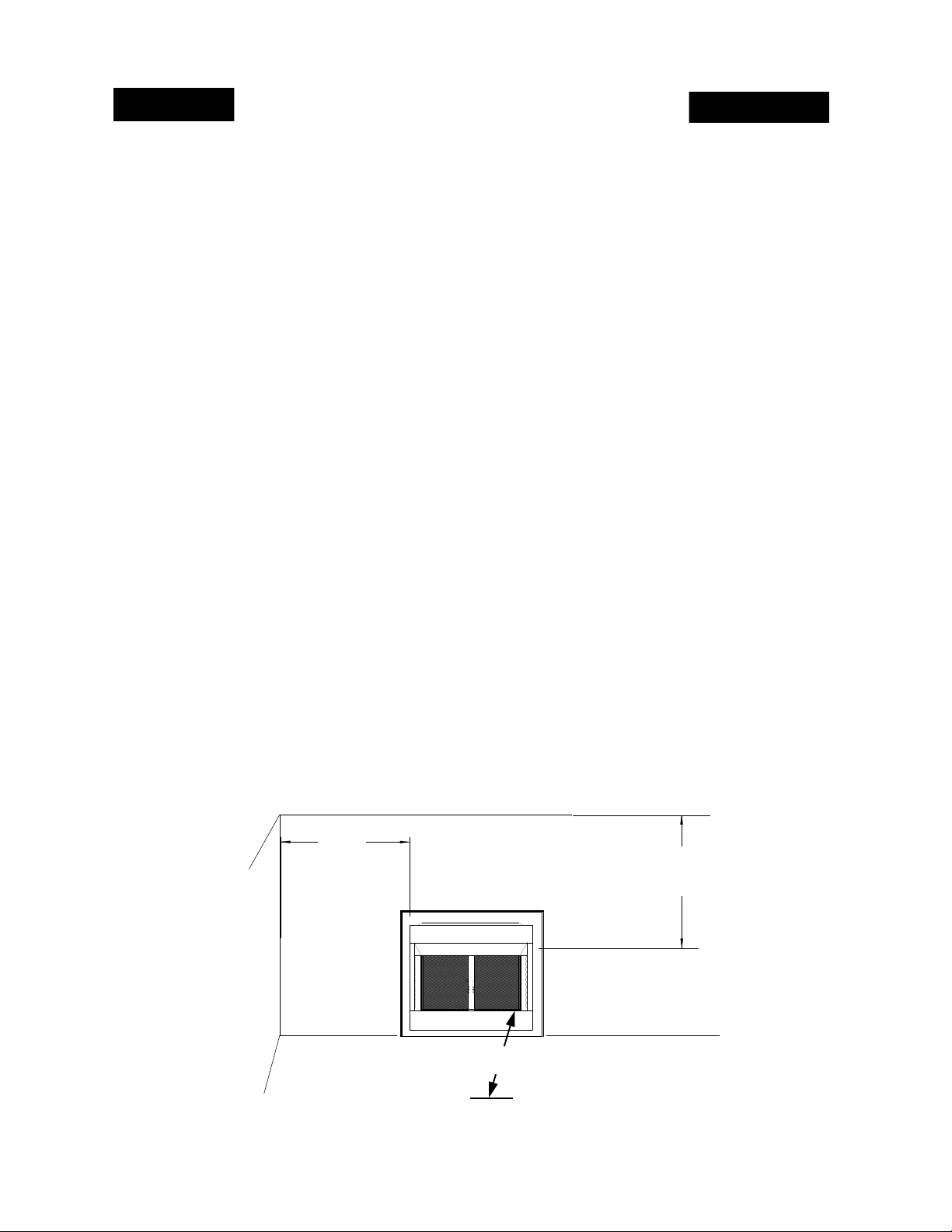

1. Sidewall Clearances: Clearances from side
of firebox opening to any adjacent combustible
wall should not be less than 7".
2. Ceiling Clearances: The ceiling height
should not be less than 42" from top of
firebox opening
