G201

Hot Water Wood and Coal Boiler

Comfortable. Efﬁcient. Intelligent Heating.

Ecological and Economical

Thermostatic Sampson Firing Control

Wood Burning is CO2Neutral

Well Insulated for Heat Retention

Stack Damper for Draft Control

Large Ash Receiver

Water Jacket Surrounds the Fire Box

Water Cooled Grates

Three models with outputs of 96 MBH, 125 MBH, 145 MBH

The Buderus G201 wood boiler is built with the ﬁnest materials, including our patented GL180M cast iron. Its proven design and

technology provides features such as primary and secondary air inlets for excellent combustion as well as reducing creosote

formation, manual draft damper for exceptional draft control, front and rear access for ease in cleaning, and 3" of insulation for

superior heat retention.

23⅝”18”

18”

48” Front Clearance

Model 201/5 201/6 201/8

Performance Data

Net Ratings (Din) 96 125 145

Piping Connections

Chimney Draft Requirements (in. wc) 0.040 0.048 0.052

Flue Connection 7" 7" 7"

Water Connections

Boiler Flow (KV) 1½" 1½" 1½"

Boiler Return (KR) 1½" 1½" 1½"

Pressure Relief Valve (SV) 1¼" 1¼" 1¼"

Boiler Drain (SR/EK) 1" 1" 1"

Firing Controller Tap (F) (not tapered) ¾" ¾" ¾"

Temperature Control Tap ¾" ¾" ¾"

Physical Dimensions

Boiler Length (Lk) 23" 27" 34⅞"

Combustion Chamber Length (T) 19¼" 23¼" 31⅞"

Maximum Wood Length 15¼" 19¼" 27¼"

Fuel Volume (cu.ft) 2⅝3⅜4⅜

Fuel Volume (lbs) 153 196 254

Water Contents (gal.) 8⅝10 12⅛

Net Weight Approx (lbs) 620 706 876

Venting Requirements

The boiler must be connected to a chimney

that is approved for solid fuel ﬁring in your

area. In addition to your local codes, it is

recommended that the chimney be fully

lined, equipped with a clean-out, open at

the top, free of protrusions in the ﬂue, and

higher than the peak of the house. For

ease of inspection, there should be clear

visibility from the clean-out up the ﬂue to

the exit. Additionally the chimney should

not be shared with ﬁreplaces, stoves, or

wood heaters.

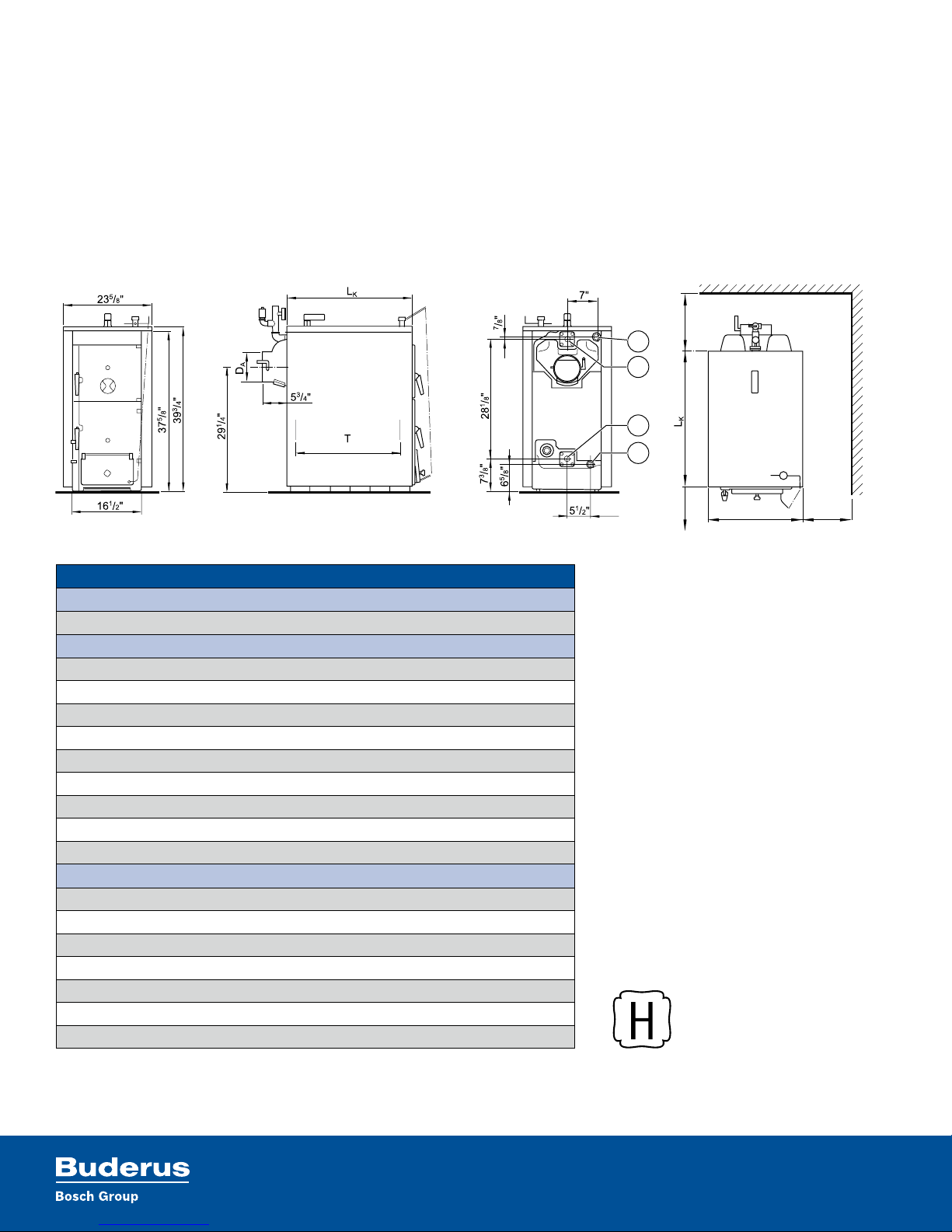

Front View Side View Rear View Top View

Subject to change without notice

Part Number 44499062 07/09

Bosch Thermotechnology Corp.

50 Wentworth Avenue Londonderry, NH 03053

Tel: (603) 552-1100 Fax: (603) 584-1681 www.buderus.net

G201: Hot Water Wood and Coal Boiler
