Chapter 1 Installation

Diagrams

LS210D

LS220D/LS220DE

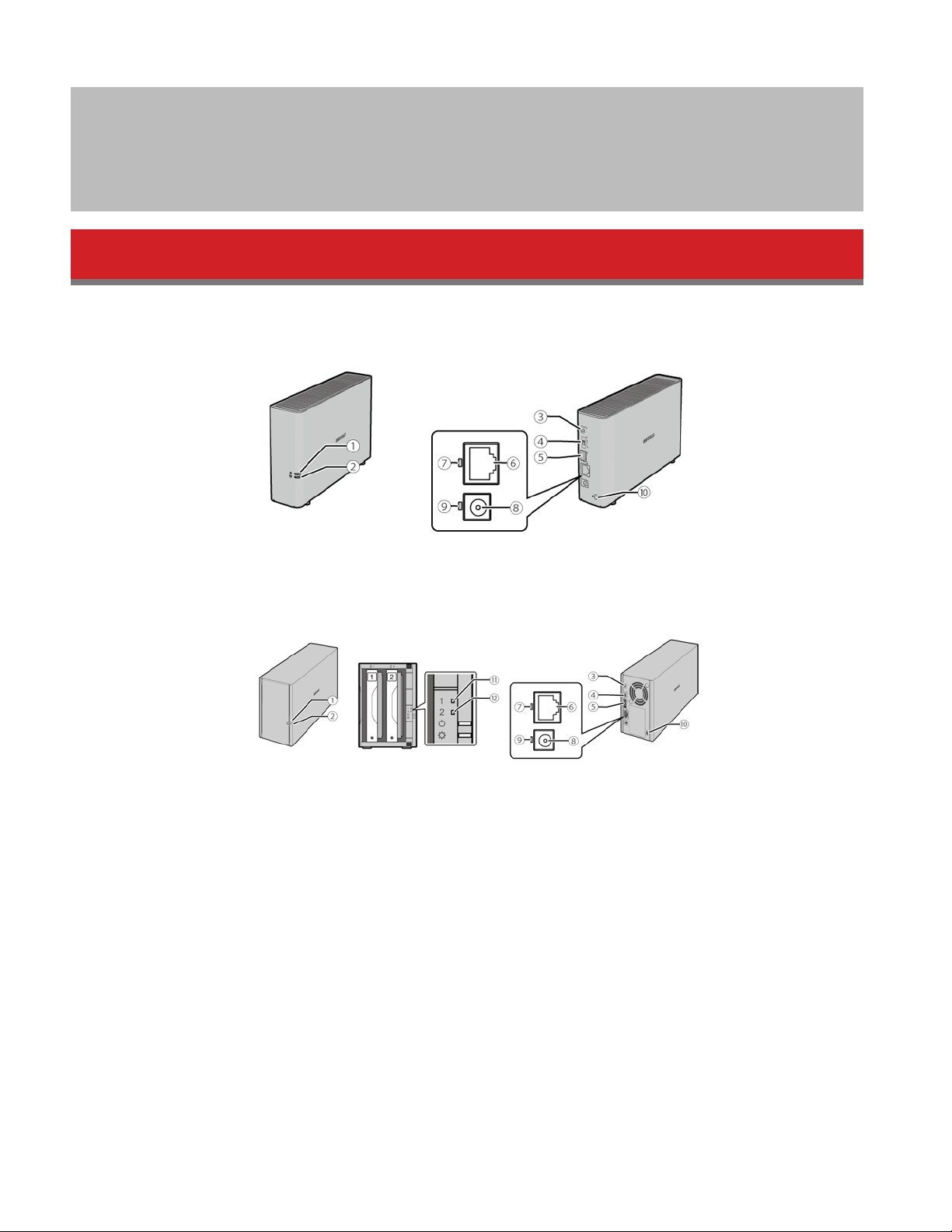

1 Power LED

The white power LED will light up while the LinkStation is on.

The white power LED blinks while booting or shutting down.

The red power LED blinks when an error occurs.

If there is a status message, the power LED blinks amber.

If there is new firmware available, the power LED glows amber.

2 Function LED

This LED glows white while the LinkStation is being initialized and while dismounting USB devices. It blinks white

while Direct Copy.

For enclosure model, the red function LED glows when turning the LinkStation on to the initial hard drive

installation and it blinks after pushing the function button.

3 Function Button

Use this button for Direct Copy, dismounting USB devices, and initializing settings.

4 Power Switch

Move the switch up and down to power on and off.

5 USB 2.0 Port

Compatible Buffalo USB hard drives, USB flash drives, digital cameras, and USB printers can be connected. USB

hubs are not supported.

6 LAN Port

Connect to a router, hub, or switch on your Ethernet network with the included Ethernet cable.

7 Link and Activity LED

This LED shows network activity. It blinks green when the LinkStation is accessed over the network.

8 Power Connector

Use the included power cable to connect to a surge protector or outlet.

9 Power Status LED

The LED glows green when the power cable is connected.

10 Anti-Theft Security Slot

Use this slot to secure your LinkStation with a cable lock (not included).

11 Drive 1 Error LED (LS220D/LS220DE only)

If there is an error on drive 1, this LED will light.

12 Drive 2 Error LED (LS220D/LS220DE only)

If there is an error on drive 2, this LED will light.

Turning the LinkStation On and Off

Move the power switch on the back of the LinkStation to the “on” position to turn it on. To turn it off, move the switch

to the “off” position and wait for the unit to fully shut down before unplugging it. Never unplug the AC adapter without

properly shutting down the LinkStation first.

When all the LEDs on the front of the LinkStation turn off, the shutdown process is complete.

Chapter 2 Configuration

Configure and administer your LinkStation using the Settings interface, accessible from a browser window. Open the

interface using the procedure below or type the LinkStation’s IP address in the URL field of your browser. Within Settings,

the Easy Admin page gives you quick access to commonly used settings.

Opening Settings from a Computer

Note: Internet Explorer 9, Firefox 18, Google Chrome 24, Safari 5, and later are supported. If you have difficulty

viewing Settings, check the following:

• If you have a proxy server enabled in the browser settings, disable the proxy server.

• With Internet Explorer, set security to Local intranet. On Windows Server 2012 or Windows Server 2008, higher-

level security is configured by default. Set the security to a lower level temporarily.

Opening Easy Admin

The Easy Admin page makes it easy to change common settings. Follow the steps below to open Easy Admin.

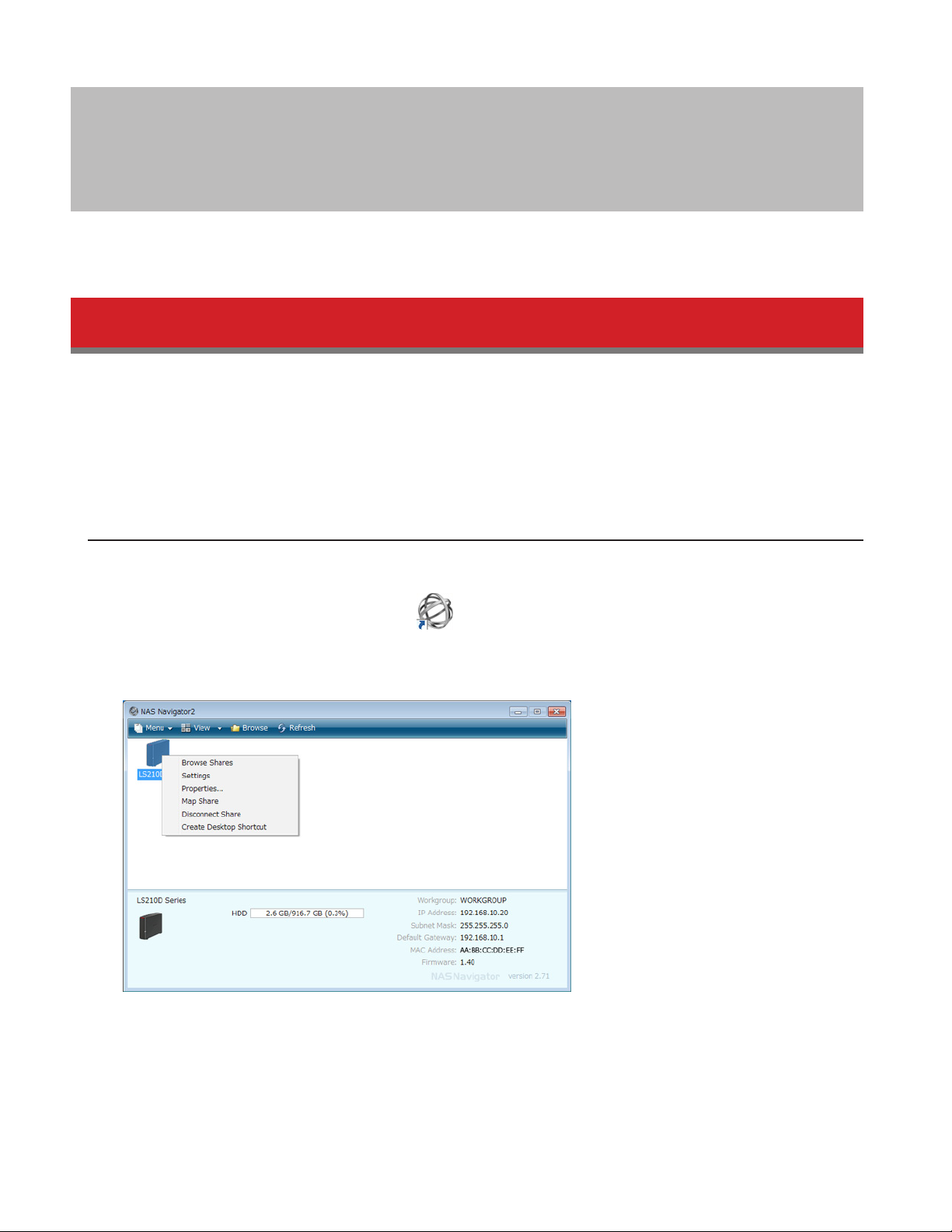

1 Open NAS Navigator2 by double-clicking the icon.

2 Right-click on your LinkStation’s icon and choose Settings. For Mac OS, click your LinkStation’s icon while holding

down the control key, then select Settings.

3 The Easy Admin screen will open.

Notes:

• If you click any buttons, you will need to enter a username and password.

• Username/Password Combinations:

Username Password Settings Available

admin password All

guest blank

LinkStation’s name, IP address,

workgroup, drive status,

firmware version

your username your password

LinkStation’s name, IP address,

workgroup, drive status,

firmware version, and your

password.

• If the time-out period is set to “10 minutes”, you will be logged out of Settings after 10 minutes of inactivity. You

will also be logged out when you reboot the LinkStation or close the web browser, even if you select “Unlimited”.

• Click Secure Connection to log in with an encrypted connection.

• You can also use Bonjour to log in to Settings from Mac OS. In Safari, click View - Show Bookmarks Bar. From Book-

marks, click Bonjour - LinkStation name.

Getting Started

The wizard lets you configure the following settings:

• Changing administrator password

• Creating shared folders

• Access restrictions

Andere Handbücher für LinkStation 200 Series

Inhaltsverzeichnis

Andere Buffalo Lagerung Handbücher

Buffalo

Buffalo MiniStation DataVault HDS-PH160U2 Bedienungsanleitung

Buffalo

Buffalo TeraStation 5200DS Bedienungsanleitung

Buffalo

Buffalo DriveStation Combo Bedienungsanleitung

Buffalo

Buffalo DriveStation HD-HS1.0TQ Bedienungsanleitung

Buffalo

Buffalo TeraStation 3020 Bedienungsanleitung

Buffalo

Buffalo LS520DE Bedienungsanleitung

Buffalo

Buffalo DriveStation HD-CEU2 Bedienungsanleitung

Buffalo

Buffalo HD-WL2TSU2R1 Bedienungsanleitung

Buffalo

Buffalo HD-CELU2 DRIVESTATION Bedienungsanleitung

Buffalo

Buffalo MiniStation Cobalt 320GB Bedienungsanleitung

Buffalo

Buffalo TeraStation 7000 Bedienungsanleitung

Buffalo

Buffalo DriveStation Quad HD-QLSU2R5 Bedienungsanleitung

Buffalo

Buffalo MicroStation SHD-PE Bedienungsanleitung

Buffalo

Buffalo DriveStation Duo HD-WH4TU3R1 Bedienungsanleitung

Buffalo

Buffalo LinkStation Live LS-CHL Bedienungsanleitung

Buffalo

Buffalo LS-WSGL Bedienungsanleitung

Buffalo

Buffalo TeraStation Live Bedienungsanleitung

Buffalo

Buffalo DriveStation HD-HSIU2 Series Bedienungsanleitung

Buffalo

Buffalo TeraStation Live HS-DH-TGL/R5 Bedienungsanleitung

Buffalo

Buffalo HD-PGDU3 Bedienungsanleitung

Buffalo

Buffalo HD-PZU3 Bedienungsanleitung

Buffalo

Buffalo HD-PZU3 Bedienungsanleitung

Buffalo

Buffalo TeraStation TS3400D Bedienungsanleitung

Buffalo

Buffalo DriveStation Combo Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
