Buffalo WMR-G54 Bedienungsanleitung

54Mbps/11Mbps Wireless ADSL Modem Router

WMR-G54

User’s Guide

Table of Contents

Introduction 3

A Look at the Hardware 3

Front Panel 4

BackPanel 4

Hardware Installation 5

Configure the Router for the first time 5

Configuring IP Settings on Your Computer 5

Configuring with Web Browser 6

DeviceInfo 7

QuickSetup 8

Configure WAN (DSL) Connectivity 8

Configure Wireless Connectivity 18

Declaration of Conformity 19

Introduction

WMR-G54 Wireless ADSL Router allows you to share the single

internet account. With built-in NAT, this Router allows up to 253

users on the Ethernet LAN simultaneously and up to 16 users

on the 802.11g/b Wireless LAN simultaneously. WMR-G54 has

the throughput speeds of up to 54Mbps and advanced

Orthogonal Frequency Division Multiplexing (OFDM).

In case of home usage, WMR-G54 acts as a gateway for

Internet connection sharing. You can connect the Wireless

ADSL Modem Router to your Internet connection directly, and

use the wireless LAN to connect your computers to the Internet.

A Look at the Hardware

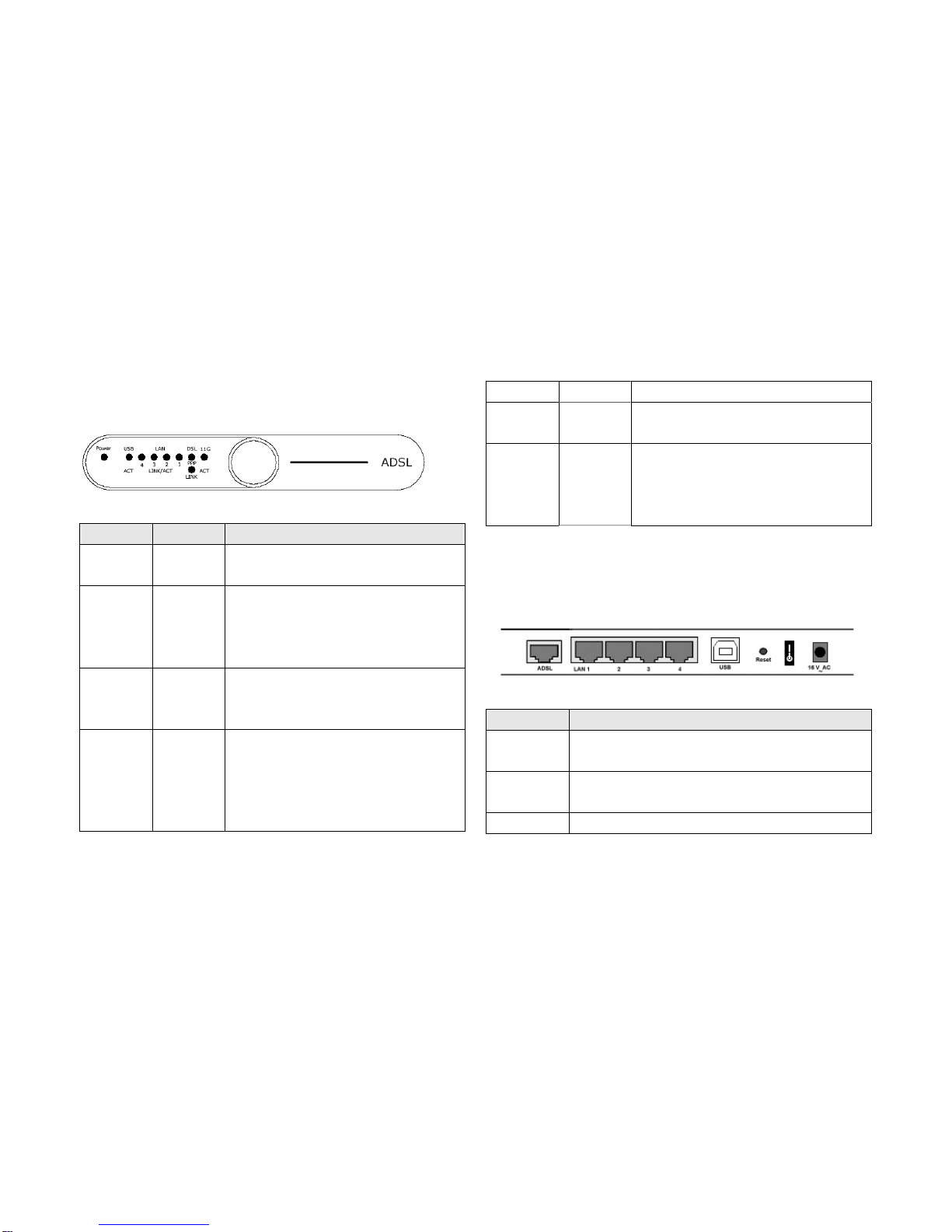

Front Panel

The WMR-G54 Wireless ADSL Modem Router has nine Light

Emitting Diodes (LEDs), or link lights, on its front panel. The

following table defines the behavior for each LED:

LED Represents Activity / Status

Power Power The Power LED will light up when the

device is powered on.

USB USB

Connection - Steady on – USB is connected to a host

PC.

- Blinking – Data is being transferred over

the USB connection.

1, 2, 3, 4 LAN

Connection Steady on - when there is a connection to

the unit.

Blinking – Data is being transferred.

DSL DSL

Connection - Off -ADSL link is not connected.

- Blinking During Off -ADSL is

handshaking and receiving signal.

- Steady on - ADSL link is connected.

- Blinking During steady on - Data is being

transferred over the ADSL connection.

PPP Link PPP

Connection Blinking – PPP is connected.

11G Wireless

LAN - Steady on – Wireless LAN access point is

enabled.

- Blinking – Data is being transferred over

the Wireless LAN connection.

Back Panel

Connector Description

ADSL Connect one end of the RJ-11 cable to the ADSL

port and connect the other end to the ADSL line.

LAN 1-4 Accepts a RJ-45 Ethernet cable for connecting up

to 4 network devices.

USB For USB connection (optional), connect the USB

cable to the USB port and connect the other end

to the computer.

Reset Use an object, such as a stretched paper clip, to

press the button for at least 3 seconds. LAN 1, 2,

3, 4 LED will light up for a short time and then be

off. You can release the button now to reset the

device to its factory-default settings.

On/Off Turn on the router by pressing up the power

switch to the “On” position.

Power Connect the power adapter to this Power port,

and then plug the other end of the power cable

into a power outlet.

Hardware Installation

Thank you for purchasing the 54Mbps/11Mbps WirelessADSL

Modem Router WMR-G54. The following instructions will walk

you through installation of the router.

Step 1. Connect the ADSL port of the router into your ADSL wall

socket with the provided cable.

Step 2. Connect the LAN port of the router to the Ethernet port

of your computer with the Ethernet cable provided.

Step 3. Connect the 16V AC power adapter to the power socket

of router, and plug the adapter into a mains power socket.

Switch on the router. If the power is turned on, the PWR LED on

the front panel will illuminate.

Configure the Router for the first

time

Configuring IP Settings on Your Computer

To configure WMR-G54 Wireless ADSL Modem Router for the

first time, the configuration PC must have a static IP address.

Use 192.168.1.x (x is any number between 2 and 254) and

subnet mask 255.255.255.0. Specify gateway as 192.168.1.1

and enter DNS server IP.

For Windows 2000/Windows XP

1. Right-click on My Network Places icon on the desktop and

then click Properties in menu.

2. Double-click Local Area Connection icon and then

click Properties button.

3. Scroll down to highlight TCP/IP (your network card) and

then click Properties button.

4. Check the radio button for Specify an IP address. In the

IP address box, type the assigned IP address 192.168.1.x

(x is any number between 2 and 254).

5. In the Subnet mask box, type the subnet mask

255.255.255.0.

6. In the default gateway box, type the default gateway IP

address. For example, 192.168.1.1.

7. Click OK button in the TCP/IP Properties window to

complete the PC configuration, and click Close or the OK

button to close the Network window.

Configuring with Web Browser

Before you begin

Make sure that you get the setup information you need (for

example, VPI, VCI, and type of encapsulation) from your

Internet Service Provider (ISP).

The ADSL Modem Router can be configured with your web

browser. The product provides a very easy and user-friendly

interface for configuration.

1. Open your web browser. Enter http://192.168.1.1 in the

web browser’s address field, and press the enter key.

2. A login window will appear. Enter admin in the User

Name field and enter admin in the Password field.

3. After login, WMR-G54 Web UI screen will appear.

I. Device Info

The Device Info page contains information of the software

version of your device and some settings, such as IPAddress

and gateway.

II. Quick Setup

The Quick Setup will guide you through the steps necessary to

configure your DSL Router.

III. Configure WAN (DSL) Connectivity

1. Click the Advanced Setup tab on the left frame.

2. Click the WAN tab on the left frame. AWAN Setup page

will appear on the right frame. Click the Add button.

3. The ATM PVC Configuration page will appear. Enter the

appropriate VPI and VCI values. Select appropriate

Service Category. Click Next.

PVC is identified by the VPI (Virtual Path Identifier) and VCI

(Virtual Channel Identifier). Consult your ISP to get the numbers.

The valid range for the VPI number is from 0 to 255 (The default

value is 0.). The valid range for the VCI number is from 32 to

65535 (The default value is 35).

There are five service categories provided: UBR Without PCR,

UBR With PCR, CBR, Non Realtime VBR, and Realtime VBR.

4. A Connection Type page will appear. There are several

ways for the device to have a public IP address and then to

access the Internet. You have to check with your ISP about

which way is adopted. Check the radio button of your

connection type.

5. Scroll down to select the appropriate Encapsulation Type.

WMR-G54 ADSL Modem Router supports the following five

network operating modes over an ATM PVC WAN interface:

PPP overATM (PPPoA)

PPP over Ethernet (PPPoE)

MAC Encapsulated Routing (MER)

IP overATM (IPoA)

Bridging

The steps to configure PPP over ATM (PPPoA) are similar to

PPPoE.

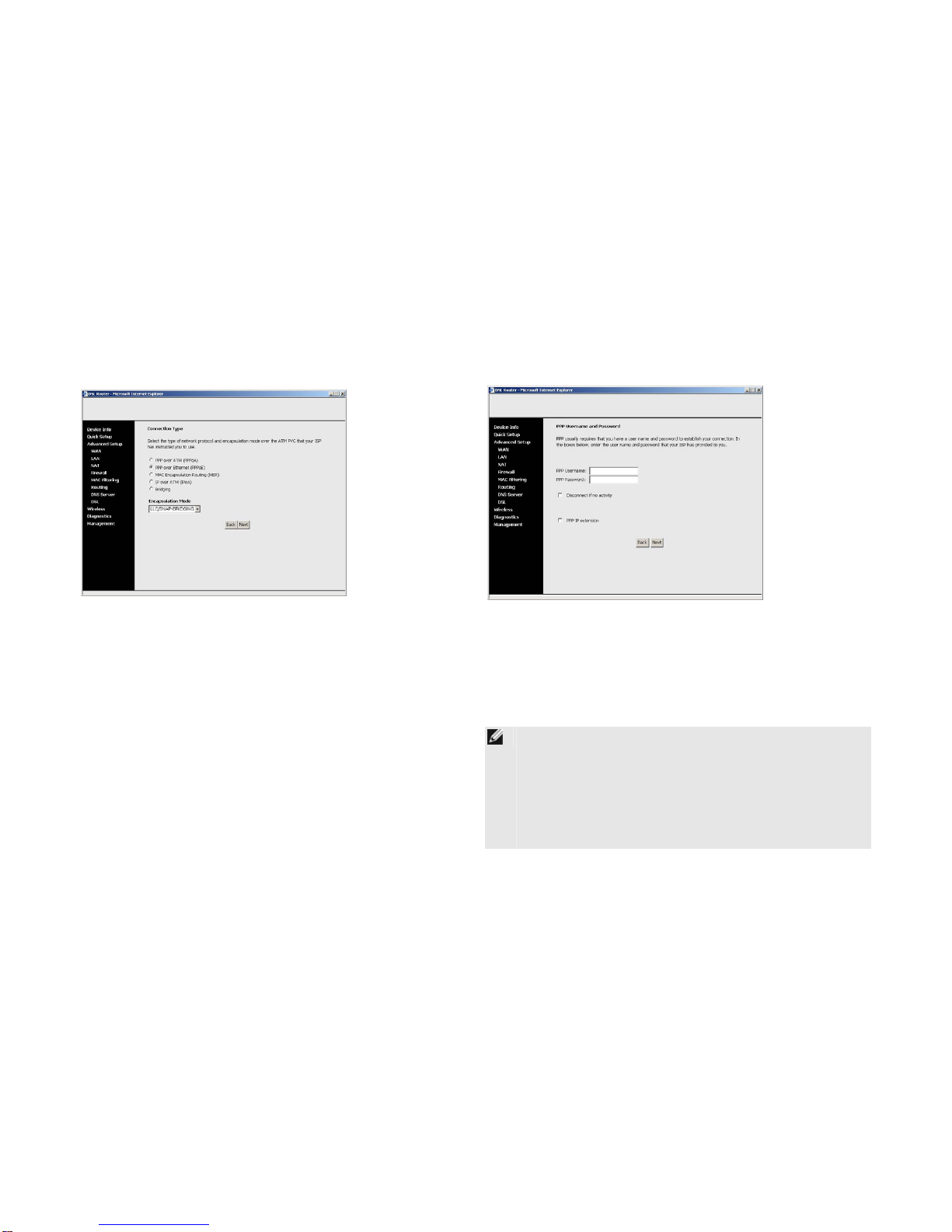

PPP over Ethernet (PPPoE)

1. Select the PPP over Ethernet (PPPoE) radio button and

scroll down to select the appropriate Encapsulation Mode.

There are two encapsulation types available:

LLC/SNAP-BRIDGING and VC/MUX. Then click the Next

button.

2. In the PPP Username and Password page, enter the user

name and password supplied by your ISP in PPP

Username and PPP Password fields.

3. Check the box Disconnect if no activity if you want to

enable the function of automatic disconnection. It will

auto-disconnect the ADSL Modem Router when there is no

activity on the line for a period of time.

PPP IP Extension is a special feature deployed by some service

providers. Unless your ISP specifically requires this setup, do

NOT select it.

The PPP IP Extension supports the following conditions:
