IMPORTANT NOTICES

Dear Customer,

thank you for choosing EVA, the Bugatti’s Hand Blender. Like any domestic appliance, this Hand

Blender must be used with care and attention to prevent people getting injured and the Hand Blender getting

damaged.

BEFORE USING THE HAND BLENDER FOR THE

FIRST TIME, READ ALL THE INSTRUCTIONS ON

INSTALLATION, USE AND MAINTENANCE AND

THE SAFETY INSTRUCTIONS CAREFULLY.

DO NOT USE THE HAND BLENDER UNLESS YOU ARE THOROUGHLY FAMILIAR WITH THE INSTRUCTIONS.

WARNING

No liability is accepted for damage due to:

- incorrect use or different use from its intended purpose

- repairs carried out by unauthorized persons

- use of non-original spare parts or accessories

Use of the owner’s guide

For further information, or in the event of problems that have not been sufciently described in these

instructions, contact Customer Care at CASA BUGATTI

SAVE THESE INSTRUCTIONS CAREFULLY

and remember to pass them on to those who will use the Hand Blender after you. If the instructions are lost

before you use the Hand Blender, request the instruction booklet at Customer Care at CASA BUGATTI or send

an e-mail to: [email protected].

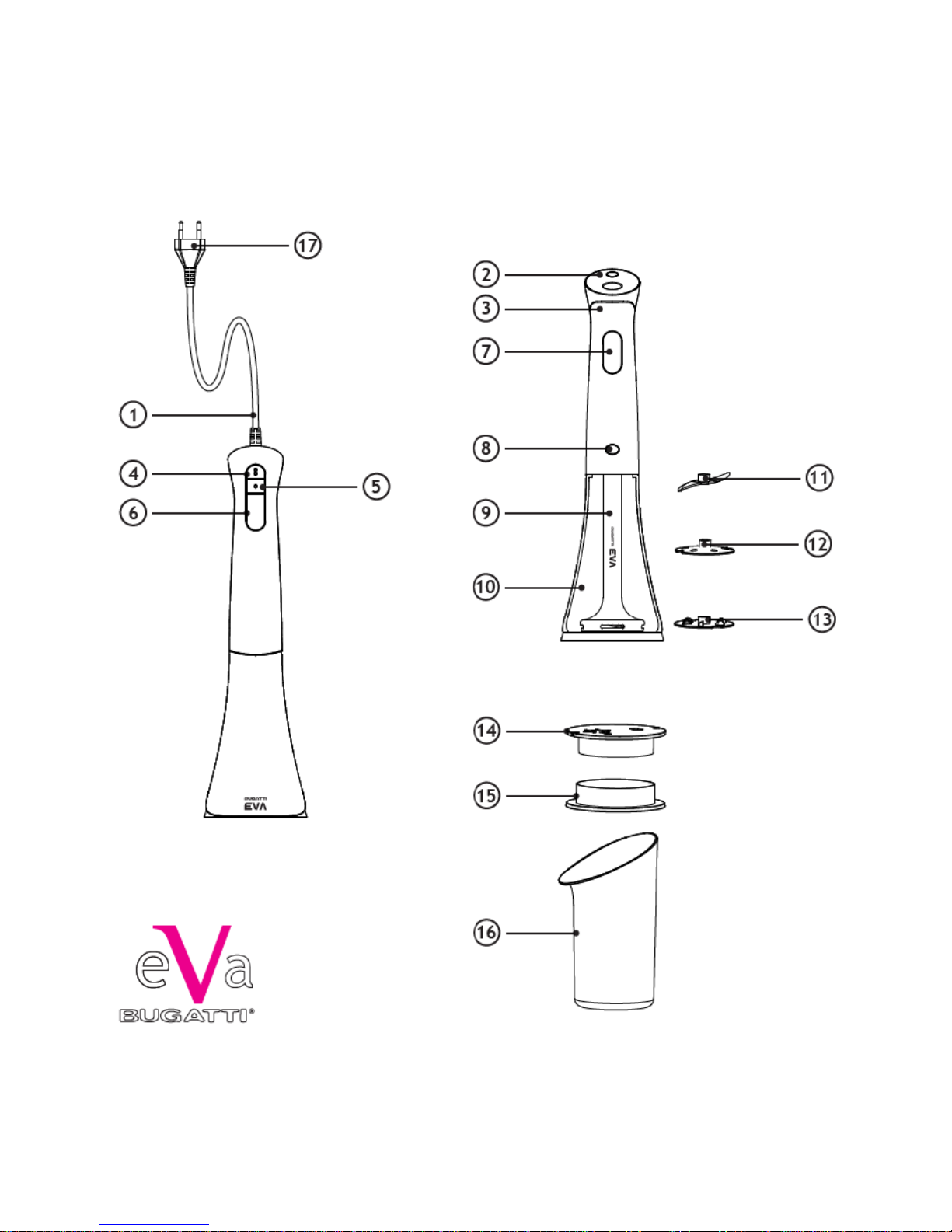

On the rst page of the cover

you will nd the illustrations

related to the text. Keep

the rst page open as you

read the instructions on use.

Power Cord with plug

On-Off Button

Motor Unit

High Speed Selector Button (15.000 RPM no loading

11.000 RPM under loading)

Low Speed Selector Button (10.000 RPM no loading

6.000 RPM under loading)

Start Button

Hand safety Sensor

Release Button for the bar (9) of the blender

Power supply See rating plate underneath appliance

Power rating See rating plate underneath appliance

Hand blender dimensions Diam. 11 x H 41 cm (diam. 4 ¼“ x 16 ¼“) approximately

Measuring Jug dimensions Diam. 8,5 x H 18 cm (diam. 3 ¼” x h 7 “) approximately

Max blending capacity : 350 ml – Max measuring capacity: 600 ml

Body and parts material ABS housing - Stainless steel Blender Bar and blades – PCT (BPA free) JUG –

ABS blade box

Weight 1.1 Kg approx

Length of power cable 1.5 meters approximately

Specications

Description of hand blender

Index

Pag. 12 Specication

Pag. 12 Description of hand blender

Pag. 13-15 Important safeguards

Pag. 15-16 Installation and starting up

Pag. 16-18 Advice and recommendation on use

Pag. 18 Cleaning and maintenance

Pag. 19 Troubleshooting

Pag. 20 Guaranty

Bar of the Blender

Blender Stand

Blender Blade

Whisk disk

Beater/Mixer disk

Cover of the blade box

Base of the blade box

Jug : 350 ml maximum level for blender use.

600 ml maximum level for measuring cup use

only. It is in PCT BPA free

Plug

IMPORTANT SAFEGUARD

1.READ ALL INSTRUCTIONS CAREFULLY.

THE APPLIANCE MUST BE USED ONLY BY ADULTS

WHO HAVE BEEN TRAINED IN ITS USE.

KEEP THESE INSTRUCTIONS.

2. TO PREVENT SERIOUS INJURIES, ELECTRIC SHOCKS AND FIRE DO NOT

IMMERSE CABLES, PLUGS, OR THE HAND BLENDER ITSELF IN WATER OR

OTHER LIQUIDS, EITHER PARTIALLY OR TOTALLY, NOR RINSE IT

UNDER TAP.

3. The Hand Blender has been designed for HOUSEHOLD USE ONLY.

Use the Hand Blender only for its intended aim. Do not make any technical modications.

4. Close supervision is necessary when any appliance is used near children. The appliance must not be used by children or

persons with reduced physical, sensorial or mental capabilities, or with lack of experience and knowledge, unless they are

under supervision or have been given instruction. The Hand Blender must be used only by adults who know how to use it in

accordance with these instructions.

5. The use of attachment not recommended or sold by the manufacturer may cause re, electric shock or injury.

6. Never touch live electrical parts. They may cause electric shocks and serious personal injury. Connect

the Hand Blender to a wall socket which has the appropriate voltage. The voltage must correspond to the voltage

indicated on the rating label on the appliance. Do not use the Hand Blender with bare or wet feet.

7. Figure A: power cable with plug. A short power cable with plug is supplied. Long detachable power

cord or extension cables should not be used. Use only if a QUALIFIED ELECTRICIAN can conrm that they comply with wiring

regulations. DO NOT USE plug/socket adapters.

If a long detachable power cable or extension cable is used:

a) The electrical rating of the detachable power cable or extension cable should have the same technical, electrical properties

of the Hand Blender as indicated on the rating label underneath the Hand Blender itself.

b) A long cable or extension cable must never protrude from furniture or over counter tops or table tops where it may be pulled

on by children or tripped over.

c) Do not place Hand Blender or cable on or near a hot gas range or electric hotplate, or in or near the oven (picture C).

d) Do not use the Hand Blender outdoors or anywhere the cord or motor body might come into contact with water while in use.

e) Do not let the cables hang over the edge of the table or counter, or touching hot surfaces.

f) Do not operate the Hand Blender after it has developed faults, or has been damaged in any manner. Return appliance to the

nearest authorized service facility for examination or repair.

g) If the power cable or plugs are damaged, they must be replaced by the manufacturer or by an authorized service centre or

by a qualied person in order to prevent all risks. Using accessories that have not been recommended by the manufacturer may

cause res, electric shocks and personal injuries.

8. Figure B: make sure that children cannot play with the Hand Blender. Children are not aware that electrical appliances are

dangerous.

Place the Hand Blender on a at surface, making sure that the feet rest rmly on the at surface so that the Hand Blender is

stable. Do not put the Hand Blender on hot surfaces or near open ames (picture C).

9. Do not place kitchen utensils or other implements near the blade when the Hand Blender is on. Placing any utensil near

the blade, while the Hand Blender is running, may cause serious personal injury or irreparable damage to the Hand Blender.

10. Figure D: In order to ensure that the Hand Blender works properly, place it on a at surface, in a well-lit and hygienic room

near to a power socket. Keep the Hand Blender at least 10 cm (4 inches) away from the wall.

11. Unplug the plug (17) from the power socket when the Hand Blender is not in use, before removing any part, before cleaning

and before assembling and disassembling.

12. Figure E: Never touch the Hand Blender, for any reason, with wet or damp hands or with a damp or wet cloth. Always unplug

the appliance if it is not used and before cleaning. Never pull on the cable to remove the plug (17). Always remove the plug (17)

before removing and tting different parts. The Hand Blender must be cleaned with a dry or slightly damp non abrasive cloth,

adding a few drops of non-corrosive neutral detergent (never use solvents). Clean only and exclusively the outside surfaces

of the Hand Blender.

13. The Hand Blender must always be supervised while it is in use.



14. Do not touch moving parts. Do not touch the blades, especially when the appliance is plugged in. The blades are very

sharp. If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.

15.The appliance may be used for a maximum of one (1) minute and rest for three (3) minutes after each use.

16. Do not attempt to remove the safety devices: you could cause yourself serious personal injury or severely damage the Hand

Blender.

17. In the event of faults, defects or suspected defects after a fall, remove the plug (17)immediately from the power socket.

Never use the Hand Blender if it is faulty. Repairs must be carried out by CASA BUGATTI Service Centre. Contact your dealer

and/or CASA BUGATTI Customer Care.

18. Use a carbon dioxide (CO

) extinguisher to ght res. Do not use water or powder extinguishers.

19. When mixing liquids, expecially hot liquids, use a tall container or make small quantities at time to reduce spillage.

20. Keeps hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage

to the unit. A scraper may be used but must be used only when the unit is not running.

21. Blades are sharp. Handle carefully.

22. FOR USA/CANADA version

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will t

in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a

qualied electrician. Do not modify the plug in any way.

Installation and starting up

The original package is designed for dispatch by post. Keep it in case you need to return the Hand

Blender to the supplier. Before installing the Hand Blender strictly follow all points of the safety

instructions specied above.After removing the Hand Blender from its package, check that it is in

perfect condition and check that no type of material, packaging, guarantee sheet or anything else has

accidentally entered the motor unit (3) and on top and bottom of the Bar (9) of the Hand Blender. Keep

the plastic bags containing the Hand Blender and its components away from children: they may cause

suffocation.

Do not plug (17) in the Hand Blender until it has been correctly and completely assembled and always

unplug the Hand Blender after use. Before use for the rst time, wash all removable components as the

blades (11) (12) (13), the jug (16). Wash with neutral, non-abrasive and non-corrosive detergents, rinse

and dry carefully. Just rinse under the tap the Blender BAR (9) and dry it very well immediately.

To remove the dust that may accumulate on the motor Unit (3) and all the other parts of the Hand

Blender, simply wipe with a dry soft cloth. DO NOT RINSE UNDER TAP or IMMERSE THEM IN WATER.

After cleaning, assemble all the components. Before removing and

assembling any part, unplug from the socket the plug (17) . Do not unplug

the hand blender by pulling on the cord but only pulling the plug (17).

Assembling/Disassembling the Blades

Always remember to unplug the plug (17) from socket. Be cautious in

handling blade attachments as they are sharp and may cause injury.

ASSEMBLING of the BLADE:

Detach the Blender Bar (9) by pressing the Release Button (8)

and pull the Bar (9) away from the Motor Unit (3). Picture (C)

To un-screw:

Turn anti-clockwise

To screw:

Turn clockwise

1312

Turn upside down the Blender Bar (9) and insert the lower part of it into the Center hole (A) of the inner part of the cover of

the blade box (14).

Then take the blade intended for use (11 for Blending) or (12 for whisking) or (13 for beating) and align it on the shaft (B) of

the Blender Bar (9).

Turn the blade clockwise direction for one lap to screw it on the shaft (B).

Take the blade box Base (15) and turn it upside down to insert it on top of the blade.

Turn it clockwise till the two pins of the blade box Base (15) hook the blender blade (or the notches of the Beater/

Whisk) and continue to turn till the blade is rmly xed.

DISASSEMBLING THE BLADE:

Detach the Blender Bar (9) by pressing the Release Button (8) and pull the Bar (9) away from the Motor Unit (3).

Turn upside down the Blender Bar (9) and insert the lower part of it into the center hole(A) of the inner part of the cover of the

blade box (14). Take and hold the blade box Base (15) and turn it upside down to insert it on top of the blade.

Turn it anti-clockwise till the two pins of the blade box Base (15) hook the blender blade (or the notches of the Beater/

Whisk) and continue to turn anti-clockwise till the blade is removed from the shaft (B).

The removed blade attachments can be stored inside the compartment of the blade box (14+15) .

Advice and recommendations on use

TIPS AND HINTS

1.(adhere strictly to all points of the safety instructions specied above). Never use defective

or damaged cables. Never allow parts carrying live voltage to come into contact with water:

you may cause a short circuit!!!

2. Take the Blender Bar, already assembled with the blade intended for use, and insert it into the bottom of the motor unit (3)

until you hear a “click” sound. Picture “C”

3. Put the food ingredients in the Jug (16) ( ATTENTION the max level for blender use is 350 ml)

4. Connect the plug (17) of the

Hand Blender to a wall socket having the appropriate voltage. The voltage must correspond to the voltage indicated on the rating

label on the motor unit (3) of the appliance.
