Instruction sheet -- Buhl Flat panel TV cart

Model number: PLCAB4420E

Congratulations for having chosen this excellent Buhl product.

To assure your complete satisfaction, this product is warranted against defect in

manufacture for one year after the purchase date. Any parts requiring replacement

during the 1--year period, under normal use and service, as a result of defective

workmanship, will be replaced by Buhl or by an authorized Buhl dealer, without cost,

except for transportation charges. All unit should be returnd in original packing to

guarantee safe transport.

Buhl

is not responsible for damage in shipment.

Note: This unit is easier to assemble with two people.

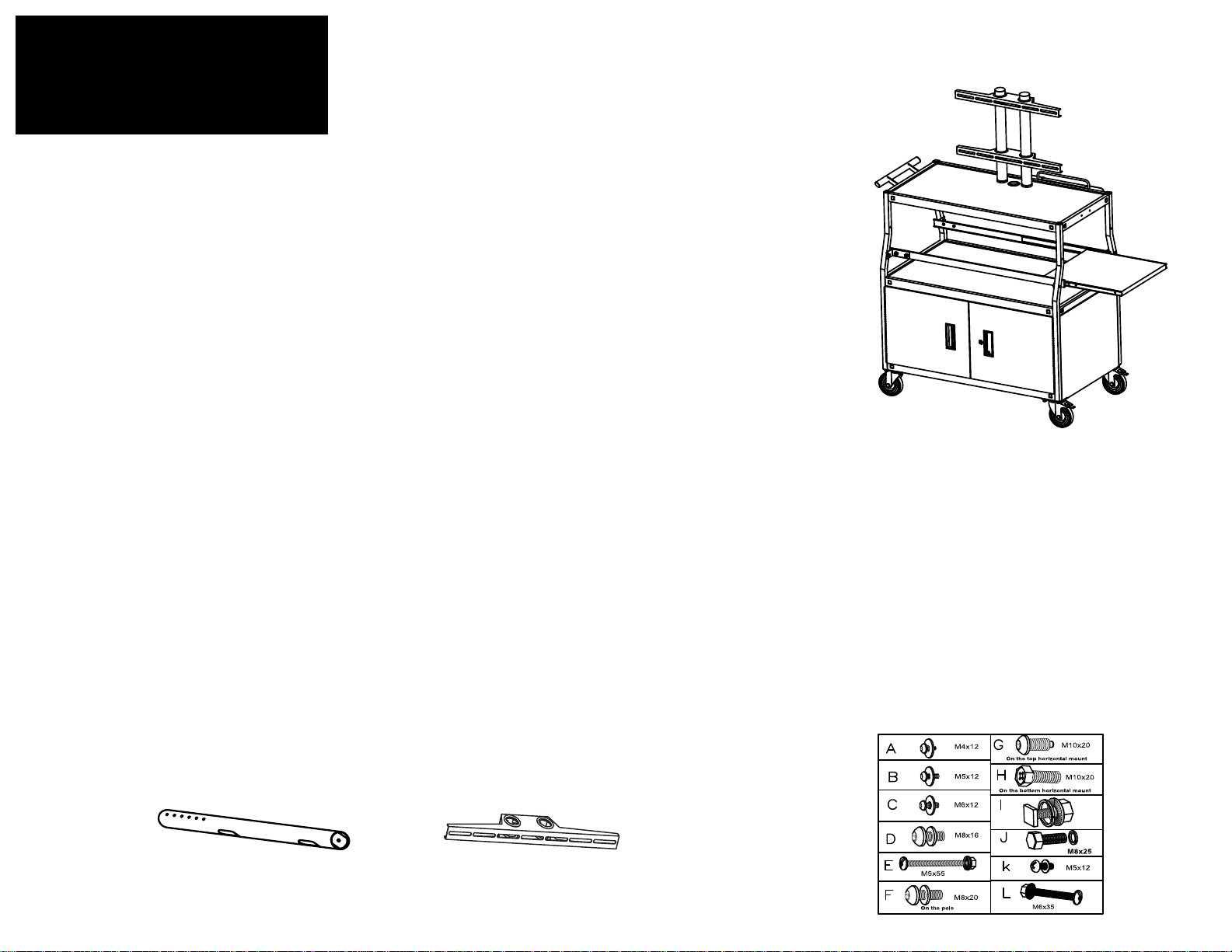

PLCAB4420E with handle

Page 1

Parts list

Qty. Description

1 Top shelf with decal

1 Middle shelf

1 Bottom shelf

1 Cabinet shelf

2 Legs (Labeled "O")

2 Legs (Labeled "X")

2 Side panels

1 Rear panel

1 Cart handle (Optional)

Qty. Description

1 Right door assembly

1 Left door assembly

2 Plate casters with brakes

2 Plate casters without brakes

1 Electrical bracket

1 Power cord

4 Shelf support

3 Set Screws and serrated nuts (E)

2 Horizontal mount

Qty. Description

25 Set Square head bolts,washer and serrated nuts (I)

25 Set Machine screws and washer (K)

2 Security screws for mounting the poles (F)

13 Set Hex head screws and washer for the casters (J)

1 Set Pull out shelf

2 Poles for supporting flat panel TV

2 Security screws (G)

2 Hex head screws (H)

5 Set Screws and serrated nuts (L)

Tools required

Hex wrench

L key

Adjustable wrench/pliers

Rubber mallet

Horizontal mount

Screw table

Some screws may have already been

screwed on the related parts.

Pole

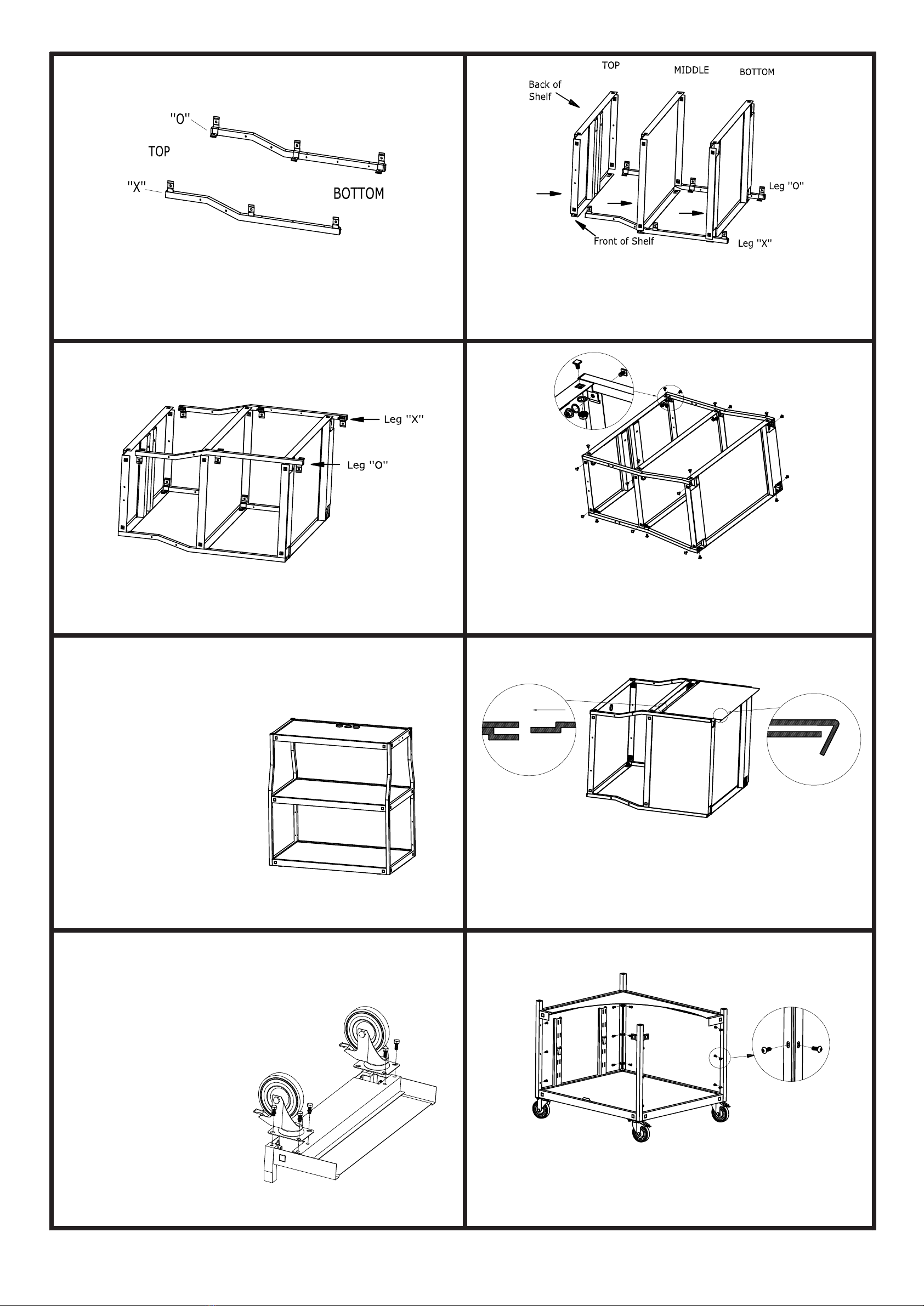

Lay front legs (labeled "O" and "X") on the floor with the brackets

facing upward and inward as illustrated. Note: legs,when placed

on the floor should bend upward, off the floor at their top end and

the width of the unit should remain constant all the way to the top.

Slide each shelf over the brackets of the legs.The top shelf has

the Buhl decal on it. The larger shelves are on the bottom. The

shelf with wire hole is the middle shelf. Please make sure the

locking mechanism facing the same direction on middle and

bottom shelves.

Slide the two remaining legs onto the shelves as illustrated.

Make sure that the brackets are on the inside of the shelves.

HAND TIGHTEN the top, middle and bottom shelves at the two

corners on top with square bolt, washer and nut (see screw table I)

as illustrated. Please make sure washer and nut are together on

the inside of the leg bracket. Do not tighten completely at this time.

In order to have the unit

properly aligned, stand

unit upright on a level

surface. Gently rock unit

back and forth to realign

and level the unit.

TIGHTEN ALL NUTS AND

BOLTS WITH WRENCHES

AT THIS TIME. Unit should

now be properly aligned

and level. If unit is not level

at this time, repeat the

above steps before

proceeding to step 6.

Slide the back panel between the middle and bottom shelf. The

bottom of the back panel needs to hook onto the bottom

shelf lip and the top of the panel needs to go in between

middle shelf lip and the brackets.

The side panels Assembly as same as above steps.

To secure the cabinet panel, use the machine screws (see screw

table k) to tighten the cabinet panels to the poles as shown. There

are three screws on each side.

( Instructions continued on next page )

Page 2

Lay unit on side. Align the

holes on the casters with

the holes on the corner

of the bottom shelf. Use

the hex screws (see Screw

table J) and tighten the

caster. Repeat the same

for the other three casters.

It is recommended you

place the locking casters

on either the right side or

left side of the unit for safer

and easier movement of

cart through doorways, ect..

A Division of Vcom MM Corp.

South Hackensack, NJ 07606, USA

Tel.:(800)631-0868

If any parts or hardware are missing or damaged, Do Not

Return the unit to your dealer. Call the Buhl helpline at

(800)742-5672 for immediate parts replacement.

Page 3

Insert shelf support to desired height as shown. Put the cabinet

shelf on top of the shelf supports. Install the two doors onto the

poles with three machine screws(see screw table K) on each side.

Do not tighten completely at this time. Adjust the doors to make

sure they close and lock OK. Tighten all screws.

10.

Insert the two supporting poles onto the holes on top shelf. Wire

holes face inside.

12.

Tighten the two supporting poles onto the top shelf with two

security screws as shown (see screw table F).

14.

Use the appropriate security screws needed (M4, M5, M6 or M8,

see screw table A,B,C or D) to fasten the flat panel TV onto the

horizontal mounts as shown.

15.

The handle assembly instruction (Optional)

A. Unscrew the scews from the handle.

B. Attach the handle to the top shelf (either side) and tighten

handle to the shelf with screws from the inside under the shelf

as shown.

16.

Pull out shelf assembly instruction

Adjust the width of the pull out

shelf as shown on Fig. A by

loosing the screws and tightening

again so that the width of the

pull out shelf matches the width

of the cart. You may choose the

shelf be pull out from either side

of the cart. Tighten the pull out

shelf to the cart with the screws

as shown on Fig. A and Fig. B.

11.

Insert the two horizontal

mounts onto the supporting

poles. Note: The mount with

adjustable screw(see screw

table H) should go on the

bottom. Screw(see screw

table G) the top mount to

desired height from A to F.

Adjust the bottom mount

height according to the TV

screw position as shown.

Top horizontal mount

Bottom horizontal mount

13.

Electrical bracket assembly instruction

A. Push power cord into cord winder bracket.

B. Attach electrical bracket to back side of top shelf with two nuts

and bolts(see screw table E). Tighten nuts and bolts securely.

Wrap power cord around wings of the bracket.

Electrical

bracket

Bolts

Serrated nut

Fig. A Fig. B

17.

To return the pull out

shelf inside the cart

when not in use, push

and hold the locking

mechanism down as

shown.
