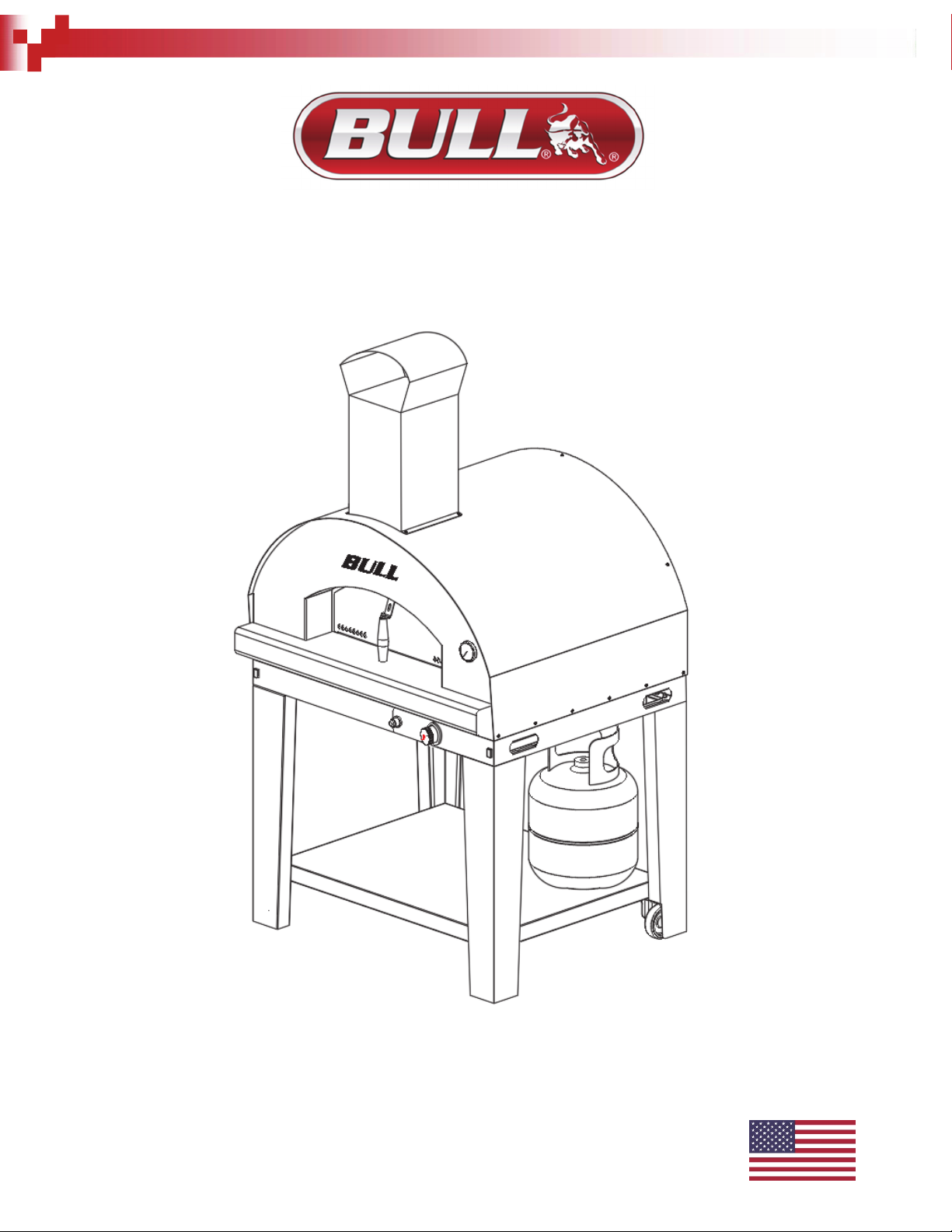

MODEL#77650EXTRALARGEPIZZAOVEN,LIQUIDPROPANEGAS(LP)

WITHMODEL#77651CART

ASSEMBLY&OPERATINGINSTRUCTIONS

U.S.A. Edition

OWNER’S MANUAL

FOR USE WITH L.P. (LIQUID PETROLEUM)

NATURAL

GAS

IN CANADA, PROPANE GAS

ANSI Z21.89-2013 / CSA 1.18-2013

CONTENTS

KEEP THIS MANUAL FOR FUTURE REFERENCE.

THIS INSTRUCTION MANUAL CONTAINS IMPORATANT INFORMATION NECESSARY FOR THE

PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE. READ AND FOLLOW ALL

WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLAINCE.

FOR ASSEMBLY INSTRUCTION, PLEASE SEE YOUR ASSEMBLY MANUAL

SAFETY……………………………………………………

INSTALLATION……………………………………………

LP GAS CYLINDER………………………………………

OPD EQUIPPED CYLINDER……………………………

HOSE & REGULATOR…………………………………..

LEAK TESTING…………………………………………...

LIGHTING………………………………………………….

OPERATION……………………………………………….

MAINTENANCE…………………………………………..

VENTURI TUBES…………………………………………

TROUBLE SHOOTING…………………………………..

WARRANTY……………………………………………….

PLEASE RECORD YOUR MODEL

NUMBER, SERIAL NUMBER AND DATE

OF PURCHASE HERE.

This information can be found on the black and silver caution sticker on the

back or side of your gas appliance.

Model Number

Serial Number

Date of Purchase

yyyy

DANGER

IF YOU SMELL

GAS:

IF ODOR CONTINUES, KEEP AWAY FROM THE

APPLIANCE AND

IMMEDIATELY CALL YOUR GAS

SUPPLIER OR YOUR FIRE

DEPARTMENT

SHUT OFF GAS TO THE APPLIANCE

EXTINGUISH ANY OPEN FLAME

DANGER

Fax simile

FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD RESULT IN FIRE OR EXPLOSION WHICH

COULD CUASE PROPERTY DAMAGE, PERSONALY

INJURY OR DEATH.

1. NEVER OPERATE THIS APPLIANCE

UNATTENDED.

2. NEVER OPERATE THIS APPLIANCE WITHIN 25

FT (7.5M) OF ANY FLAMMABLE LIQUID.

3. IF A FIRE SHOULD OCCUR, KEEP AWAY FROM

THE APPLIANCE AND IMMEDIATELY CALL

YOUR FIRE DEPARTMENT.

FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD

RESULT IN FIRE, EXPLOSION, OR BURN

HAZARD WHICH COULD CUASE PROPERTY

DAMAGE, PERSONALY INJURY OR DEATH.

If the precautions listed on this page are not taken, a fire causing death or serious injury may occur.

OPD EQUIPPED CYLINDER HOSE & REGULATOR

OVERFILL PREVENTION DEVICE

1. The standard for outdoor gas appliances, ANSI Z21.58/

CAN/CGA-1.6, requires that appliances be used with

cylinders equipped with an Overfill Prevention Device (OPD).

2. The OPD is designed to reduce the potential for the overfilling

ofpropanecylinders,thusreducingthepossibility of relief valve

discharges of raw propane. The OPD causes a slower

purge/fill operation. Some consumers have been advised

by filling stations that these cylinders are “defective.” This is

not a defect. Some propane filling stations may not be aware

of this device and its effect on the purge/fill operation.

3. New OPDs coming onto the market have technology that

allows for much greater BTU outputs which will decrease the

amount of time it takes to purge a cylinder.

IDENTIFICATION

To identify these cylinders, the OPD handwheel has been

standardized to the shape shown.

All models are equipped with a hose and regulator with a

QCC®-1 Quick Closing Coupling.

The QCC® coupling contains a magnetic Flow Limiting Device

which will limit the flow of gas should there be a leak between

the regulator and the appliance valve. This device will activate if

the cylinder valve is opened while the appliance valves are open.

Be sure the appliance valves are off before the cylinder valve

is opened to

prevent accidental activation.

The QCC® coupling incorporates a heat sensitive hand wheel

that will cause the back-flow check module in the QCC® cylinder

valve to close when exposed to temperatures between 240°

and 300°F. Should this occur, do not attempt to reconnect the hand

wheel. Remove hose/regulator assembly and replace with a new

one.

The pressure regulator is set at 11 inches WC (water column)

and is for use with LP gas only. The hose and hose couplings

comply with CGA Standard CAN 1.83. No modifications or

substitutions should be attempted.

Protect the hose from dripping grease and keep

the fuel supply

hose away from any heated surface(s), including the base

casting of the barbecue.

Inspect the seal in the QCC® cylinder valve when replacing the

LP gas cylinder or once per year whichever is more frequent.

Replace the seal if there is any indication of cracks, creases, or

abrasion.

Inspect and clean the hose before each use. If the hose is

cracked, cut, abraded or damaged in any way, the hose must be

replaced prior to the appliance being put into operation.

For repair or replacement of the hose/regulator assembly

(see page "component list"),

contact your appliance dealer.

CONNECTION

Be sure cylinder valve and appliance valves are “OFF.”

Center the nipple in the cylinder valve and hold in place. Using

other hand, turn the hand wheel clockwise until there is a

positive stop. Do not use tools. Hand tighten

only. When

making the connection, hold the regulator in a parallel with

the cylinder valve, so as not to cross thread the connection.

Leak test connections. See “Leak Testing.” (page 5)

Refer to lighting instructions. To avoid activating the Flow

Limiting Device when lighting, open cylinder valve slowly

with the appliance valves off. If the Flow Limiting Device is

accidentally activated, turn off cylinder valve and appliance

valves, wait 10 seconds to allow the device to reset, open

cylinder valve slowly, then open the appliance valve.

DISCONNECTION Always close LP cylinder valve and

remove coupling nut before moving cylinder from specified

operation position.

LEAK TESTING

All factory-made connections have been rigorously tested for gas

leaks. However, shipping and handling may have loosened a gas

fitting.

AS A SAFETY PRECAUTION:

• Test all fittings for leaks before using your appliance.

• Test for leaks every time you connect a gas fitting.

• Do not smoke at any time while testing.

• Never test for leaks with a lit match or open flame.

• Test for leaks outdoors.

• Test LP cylinder valve for leaks each time the cylinder is

filled.

• If a leak persists, contact your gas appliance dealer for

assistance. Do not attempt to operate appliance if a leak is

present.

LEAK TESTING ON NATURAL GAS:

TO TEST FOR LEAKS BETWEEN THE NATURAL GAS

SUPPLY AND GAS VALVE:

Extinguish any open flame or cigarettes in the area.

Be sure gas supply and

appliance valves are “OFF.”

Prepare a soap solution of

one-part water, one-part

liquid detergent.

Brush the soap solution on

each connection.

Slowly open the natural gas supply valve.

A leak is identified by a flow of bubbles from the area of

the leak.

If a leak is detected, close the natural gas supply valve,

tighten the connection and retest.

TO TEST FOR LEAKS BETWEEN THE ORIFICE AND GAS

VALVE:

Follow steps 1 - 5 above.

Place fingertip over the opening in the orifice.

Turn and hold burner control knob at “HIGH.”

A leak is identified by a flow of bubbles from the area of

the leak.

If a leak is detected, turn burner control knob to “OFF”,

tighten the connection and retest.

When finished, return burner control knob to “OFF”.

IF THE GAS SUPPLY SYSTEM IS PRESSURE

TESTED:

The appliance and its individual shutoff valve must be

disconnected from the gas supply piping system during

any pressure testing of that system at test pressures in

excess of ½ psi (3.5 kPa).

The appliance must be isolated from the gas supply

piping system by closing its individual manual shutoff

valve during any pressure testing of the gas supply

piping system at test pressures equal to or less than ½

psi (3.5 kPa).

LEAK TEST WITH AN LP CYCLINDER:

TO TEST FOR LEAKS BETWEEN THE LP CYCLINDER

AND GAS VALVE:

Extinguish any open flame or cigarettes in the area.

Be sure that cylinder and appliance valves are “OFF.”

Connect LP gas cylinder. See “Hose and Regulator.”

Prepare a soap solution of one-part water, one-part

liquid detergent.

Brush the soap solution on each connection.

With a full gas cylinder, open cylinder slowly.

A leak is identified by a flow of bubbles from the area of

the leak.

If a leak is detected, close the gas cylinder “shut-off”

valve, tighten the connection and retest.

TO TEST FOR LEAKS BETWEEN THE ORIFICE AND

GAS VALVE:

Follow steps 1 - 6 above.

Place fingertip over the opening in the orifice.

Turn and hold burner control knob at “HIGH.”

A leak is identified by a flow of bubbles from the area of

the leak.

If a leak is detected, turn burner control knob to “OFF”,

tighten the connection and retest.

When finished, return burner control knob to “OFF

OVEN COMPONENTS PARTS LIST AND DRAWING

DWG ID

DESCRIPTION

BULL PART #

BURNER CONTROL KNOB

66102

IGNITER

66105

DOOR HANDLE, SILICONE

66103

DOOR

66106

OVEN HOSE & REGULATOR

66108

FLUE

66107

TEMPERATURE GAUGE

66104

WARRANTY PERIOD FOR THESE PARTS IS 1 YEAR

LIGHTING INSTRUCTIONS

The appliance must be assembled as per the assembly

instructions.

Ensure the gas supply is properly connected to the appliance. LP

installations see: “Hose and Regulator.” (page 4) NG installations

see: “Natural Gas Conversion Kit” manual.

Ensure there are no gas leaks in the gas supply system. See:

“Leak Testing.” (page 5)

Ensure that Burner ignition wires are connected.

WARNING: Always open door before lighting.

Set control knobs to “OFF” and turn on the gas supply.

LIGHTING THE BURNER:

Open door (D) and leave open until lit.

Check that the battery has been installed in the electronic

ignition (A).

Push and turn burner control knob (B) to “HIGH.”

Push and hold down the igniter button (A).

Burner should ignite within 5 seconds; turn off gas source

immediately if ignition does not occur in this timeframe.

CAUTION Check oven

burner flames after

lighting. All burner ports

should show a 2.5cm / 1”

flame on “HIGH.” If flames

are lazy yellow or lifting off

burner, adjust air shutter

until the flames are mostly

blue and are not lifting.

IF BURNER DOES NOT IGNITE:

Push and turn control knob to “OFF.” Wait 5 minutes then try

again with control knob set at “MEDIUM.”

•If any burner will not light, see page 8 “Troubleshooting”

•If problem persists, do not attempt to operate the

appliance; contact your dealer or an approved service

center.

OPERATION

WARNING: The use of Prescription drugs may impair the

consumer’s ability to properly assemble or safely

operate the appliance.

TIPPING HAZARD: Place the gas cylinder in the appropriate hole

to avoid overturns and accidents

First Time Use: Before cooking with your gas appliance for

the first time, burn it off (see page 7) to rid it of any odors

or foreign matter in the following manner:

Preheating: Preheat the appliance on MEDIUM/HIGH with

the door closed for ten minutes. Reduce heat as appropriate

for your application.

Door Position: The position of the door during operation is a

matter of personal preference, but the appliance cooks faster,

uses less fuel, and controls the temperature best with the

door closed. A closed door also imparts a smokier flavor and

is essential for smoking and convection cooking.

Shutdown:

Turn off cylinder valve/main gas supply.

Turn control knobs to “OFF.”

REGULAR MAINTENANCE

The following components should be inspected and cleaned (as necessary) before every usage of your gas appliance to ensure

optimal performance, safety andefficiency.

GENERAL CLEANING / Perform a Burn-Off (see below). When appliance is cool, clean the interior of the appliance (if necessary)

by scraping the bottom of the cooking plane and vacuuming.

BURN-OFF / Ignite the burners as per “Lighting” (page 6). Operate gas appliance on HIGH with door closed for 10 min. or until

smoking stops. Turn the gas source off then turn control knobs to OFF

ANNUAL MAINTENANCE

The following components should be inspected and cleaned at least once a year or after any period of storage over 30 days to ensure optimal

performance, safety and efficiency.

BURNER / Remove burner and inspect for cracks and deterioration. Clean venturi tubes using a pipe cleaner to eliminate any blockages. See

“Venturi Tubes.” While the burner is removed, clean the interior of appliance by scraping the bottom of the cooking plane and vacuuming.

HOSE / Inspect and replace if necessary. For propane see “Hose and Regulator.” (Page 4)

ORIFICE / Inspect the orifice to make sure it is not blocked, misaligned, or loose.

STAINLESS STEEL ORIFICE

Wash with soap and water. Use stainless steel cleaner to polish and remove stains or marks.

Extreme heat can cause the stainless-steel door to turn color. This is discoloration is not considered

a manufacturing defect.

REPLACEMENT PARTS

If a problem is found with the regulator, hose, burner, or control valves, do not attempt repair. See your dealer,

approved service center, or contact the factory for repairs or replacement parts. To ensure optimum performance, use

only original replacement parts.

LEAK TEST

When reconnecting that appliance to a gas supply, be sure to check for leaks. See “Leak Testing.” (Page 5)

VENTURI

TUBES

Always keep venturi tubes clean. Blockages in the venturi tubes caused by spiders, insects and nests can cause a flashback fire.

In fact, although the gas grill may still light, the backed-up gas can ignite and cause a fire around the venturi tubes at the control panel or the

side burner.

If a flashback fire occurs, turn off gas at the source immediately. Inspect and clean the venturi tubes if any of the following

symptoms occur:

You smell gas.

Your appliance does not reach temperature.

Your appliance heats unevenly.

The burners make popping noises.

INSPECTING & CLEANING VENTURI

TUBES

Turn off gas by closing the propane cylinder valve.

When appliance is cool, clean the venturi tubes with a pipe cleaner.

Turn off gas by the propane cylinder valve.

TROUBLESHOOTING

PROBLEM

POSSIBLE CAUSE

CORRECTIVE ACTION

SMELL OF GAS

SHUT OFF GAS SUPPLY VALVE AT ONCE.

DO NOT USE THE APPLIANCE UNTIL LEAK ISSEALED.

Leak detected at

cylinder,

regulator or

other connection.

Regulator fitting loose.

Gas leak in hose/regulator or control valves.

Tighten fitting and “Leak Test.” (page 5)

See authorized service center.

Flames Beneath Control

Panel (Flashback Fire)

1. Venturi blocked. 1. Remove burner and clean venturi. See “Venturi Tubes” (page 7)

for assistance.

Flickering Burner

Flame or

Low Temperatures on

HIGH Setting

1. Excess flow safety device has been

activated in

connection between cylinder and

barbecue.

2. Improper air shutter adjustment

1. Turn LP cylinder valve off then turn all burners to OFF

position. Disconnect the regulator from the cylinder. Wait two

minutes. Re-attach regulator to the cylinder. Open the cylinder

valve slowly. Wait one minute. Light smoker oven as per

“Lighting” (page 6)

Burner Not Lighting

Out of LP Gas/Gas Supply Valve Off.

Igniter issue.

Excess flow safety device has been activated.

Regulator is not fully connected to the cylinder

valve.

A leak in the system causing the excess flow

device to activate.

Venturi blocked or misaligned with valve orifice.

Orifice blocked.

Hose is twisted.

Improper air shutter adjustment.

Refill LP Gas Cylinder/turn on main gas supply valve.

It is an igniter issue. See “Igniter Not Working” below

Follow “Flickering Flame or Low Temperatures on HIGH setting”

solution above.

Tighten the regulator hand wheel.

Leak test connections to determine loose fitting. Tighten fitting.

Leak test system.

Clean venturi See page 5 for assistance.

Clean orifice with a pin or fine wire. Do not drill orifices.

Straighten hose.

Adjust air shutter.

Igniter Not Working

Igniter battery is dead

Igniter wire(s) not connected

Electrode misaligned on burner

Igniter malfunction

Replace battery

Ensure main burner and side burner electrode wires are all

connected

Realign electrode and clear any surrounding debris from area

Contact dealer for replacement igniter.

Decreasing Heat,

“Popping

Sound”

Out of LP Gas.

Venturi blocked.

Refill LP Gas Cylinder.

Remove burner and clean venturi. See “Venturi Tubes” (page 7) for

assistance.

Hot spots on Cooking Surface

Venturi blocked

Burner ports partially blocked by debris

Improper air shutter adjustment

Remove burner, clean venturi. See “Venturi Tubes” (page 7) for

assistance.

Remove burner & clean with soft bristle brush (e.g. toothbrush).

Adjust air shutter.

Regulator Humming Noise 1. Cylinder valve opened too quickly. 1. Open cylinder valve slowly.

Yellow Flame

Some yellow flame is normal. If it is excessive,

the venturi may be blocked.

Burner ports partially blocked by debris.

Clean venturi. See “Venturi Tubes” (page

7) for assistance.

Remove burner & clean with soft bristle brush (e.g.

toothbrush).

If troubleshooting fails to solve any of these or any other issues, please contact your dealer or approved service center.

Bull Outdoor Products continues to be the industry’s leader in Warranty Durations with our product line. Warranty

Durations can be located in the Parts Section of each manual. Components such as doors, drawers, and non-mechanical

items are covered under a one year warranty from the date of purchase on invoice or purchase order.

Warranty Claims must be filed on line through the Bullbbq.com Website. Warranty Claims will not be accepted via email,

fax, or phone.

Bull Outdoor Products, Inc. warrants to the original purchaser at the original site of delivery with proof of purchase of each

Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the

periods specified below. This warranty excludes grills used in rental or commercial applications. It does not apply to rust,

corrosion, oxidation, or discoloration, which may occur due to moisture, overheating, or packaging, unless the affected

product becomes inoperable. Warranty Claims do not include shipping charges of item(s), labor or any labor related

charges. There will be a shipping and handling charge for the delivery of the warranty part(s).

Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty

period. The extent of any liability of Bull Outdoor Products, Inc., under this warranty is limited to repair or replacement. This

warranty does not cover normal wear of parts, damage resulting from any of the following: negligent use or misuse of the

product, use on improper fuel/gas supply, use contrary to operating instructions, or alteration by any person other than our

factory service center. The warranty period is not extended by such repair or replacement. Product repair as provided

under this warranty is your exclusive remedy. Bull Outdoor Products, Inc. shall not be liable for any incidental or

consequential damages for breach of any express or implied warranty on its products.

Product repair as provided under this warranty is your exclusive remedy. Bull Outdoor Products, Inc. shall not be liable for

any incidental or consequential damages for breach of any express or implied warranty on its products. Except to the

extent prohibited by applicable law, any implied warranty or merchantability or fitness for a particular purpose on this

product to the duration of the above warranty. Some states do not allow the exclusion or limitation of incidental or

consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions

may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to

state.

Based on country or geographical area, the following methods are used to file a Warranty Claim:

https://www.bullbbq.com/support-warranty

United States of America / Canada / Central America / South America

https://www.bullbbq.eu/en/warrantyform.htm

Belgium / Denmark / France / Germany / Italy / Latvia

Malta / Netherlands / Norway / Portugal / Romania / Spain

Sweden / Switzerland / United Kingdom

Mail= Exim International PTY LTD PO Box 70 Helensvale, Queensland 4212 Australia

Australia

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Bull Küchengerät Handbücher

Bull

Bull DuraBull 15910 Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
