Bunker Hill Security 57937 Bedienungsanleitung
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 20j
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2020 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
To ol s r eq ui r ed f o r as s em bl y a nd se rvice m ay not be in cluded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 57937
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
1. Do not mix old and new batteries.
Do not mix alkaline, standard
(carbon-zinc), or rechargeable
(nickel-cadmium) batteries. Position
batteries in proper polarity. Do not
use swollen or leaking batteries.
2. Keep installation area clean.
Cluttered areas invite accidents.
3. Observe installation area
conditions. Keep work area
well lit during installation.
4. Check for damaged parts. Before
using any product, any part that appears
damaged should be carefully checked
to determine that it will operate properly
and perform its intended function.
Check for any broken or damaged
parts and any other conditions that may
affect its operation. Replace or repair
damaged or worn parts immediately. Do
not use the Alert System if any switch
does not turn on and off properly.
5. Replacement parts and accessories.
When servicing, use only identical
replacement parts. Use of any
other parts will void the warranty.
6. Keep children away. Mount the Sensor
and Receiver out of children’s reach.
7. Dress properly. Protective,
electrically non-conductive
clothes and nonskid footwear are
recommended when working with
the Alert System. Wear restrictive
hair covering to contain long hair.
Page 3For technical questions, please call 1-888-866-5797.Item 57937
8. Use eye protection. Wear ANSI-
approved impact safety goggles
when setting up this product.
9. Maintain products with care. Keep the
Alert System clean for better and safer
performance. Inspect the components
periodically. If damaged, have it
repaired by a qualified technician.
10. Do not overreach. Keep proper footing
and balance at all times. If a ladder
is to be used during installation, it
should be supported by an assistant.
11. Do not set up the Alert System
if under the influence of alcohol
or drugs. Read warning labels on
prescriptions to determine if your
judgement or reflexes are impaired
while taking drugs. If there is any
doubt, do not set up the Light.
12. Have your power tool serviced by
a qualified repair person using
only identical replacement parts.
This will ensure that the safety of
the power tool is maintained.
13. The warnings, precautions, and
instructions discussed in this instruction
manual cannot cover all possible
conditions and situations that may
occur. It must be understood by the
operator that common sense and
caution are factors which cannot
be built into this product, but must
be supplied by the operator.
SAVE THESE INSTRUCTIONS.
Page 4 For technical questions, please call 1-888-866-5797. Item 57937
Functional Description
Specifications
Sensor Module
Passive Infrared (PIR) motion detector
Transmitter: 433 MHz, range up to 400'
Sensor Detection: 40° angle coverage at 30', mounted at 4' high
Battery: 9V (not included)
Low battery LED indicator
Receiver Module
Range: Up to 400' from Sensor Module
Battery: 3 C (not included)
Switch with three settings: Off/Hi/Low
Input connector for 6VDC Adapter (not included)
Low battery LED indicator
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC ID: NS3S615

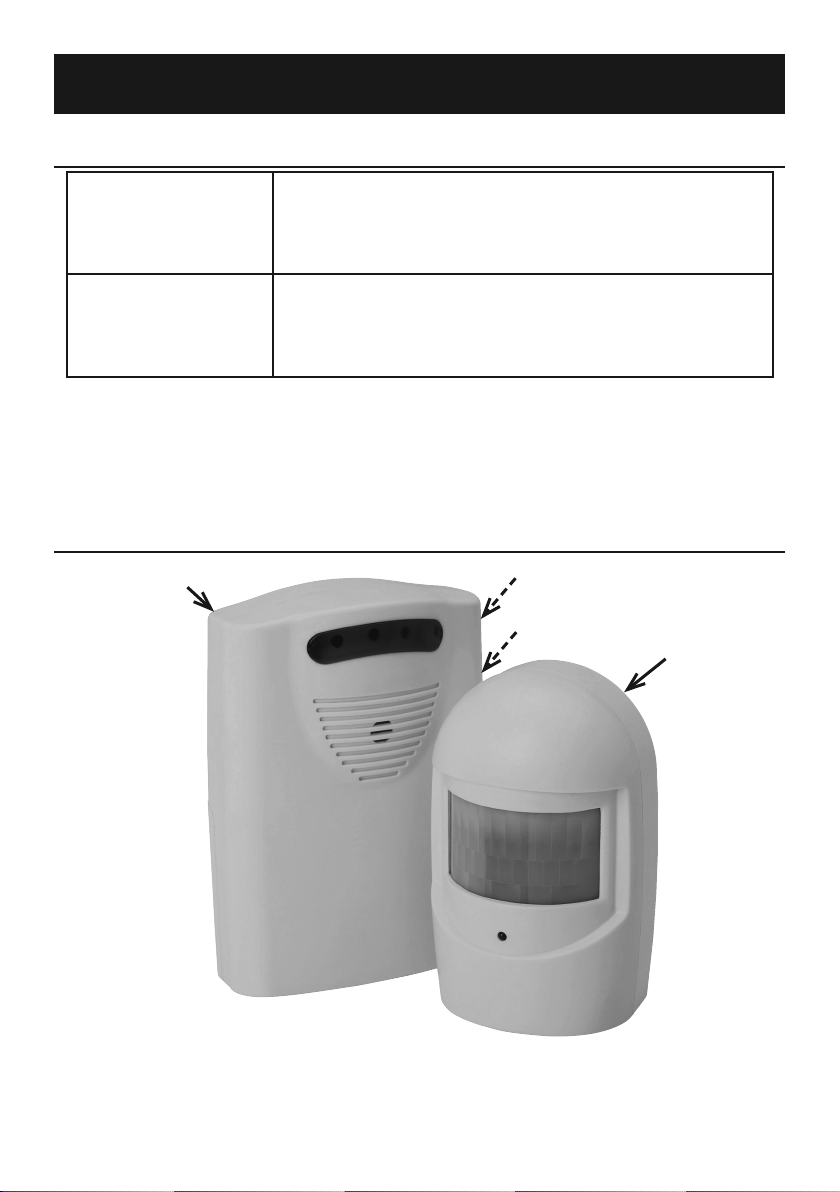

Components and Controls
Sensor
Receiver
Switch
(On Side)
DC Jack
(On Side)
Figure A
Page 5For technical questions, please call 1-888-866-5797.Item 57937
Setup Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this document including all text under subheadings therein
before set up or use of this product.
Installing Batteries
CAUTION! Do not mix old and new
batteries. Do not mix alkaline,
standard (carbon-zinc), or rechargeable
(nickel-cadmium) batteries. Position
batteries in proper polarity. Do not
use swollen or leaking batteries.
1. Using a screwdriver (not included),
remove the Battery Cover of the
Sensor, and insert a 9V battery (not
included). Replace the Battery Cover.
2. Using a screwdriver (not included),
remove the Battery Cover of the
Receiver, and insert three
C batteries (not included).
Replace the Battery Cover.
Note: An optional 6 volt, 200 mA power
adapter (not included) can be used to
power the Receiver instead of batteries.
Installing the Sensor and Receiver
CAUTION! Verify that installation
surface has no hidden utility lines
before drilling or driving screws.
1. Consider the following when
choosing a location for the Sensor:
a. The passive infrared sensor detects
heat. Avoid aiming it towards
areas that produce heat such as
heater vents, windows where the
sun hits, or outdoor spotlights.
b. Mount the Sensor at least 3
feet above the ground. If placed
under the garage eaves, be sure
that the Sensor is not blocked
by the roof facia board.
c. If placed above 8 feet high,
the Sensor should be aimed
downward so that it is pointed
toward the area being monitored.
2. Mount the Sensor to a flat
surface with hardware (3).
3. Place the Receiver within
400 feet of the Sensor.
Note: Obstructions may reduce
the receiving range.
4. Mount the Receiver to a flat surface
with hardware, or stand on a
flat surface. The receiver is not
intended to be weather resistant.
Note: Do not install the Receiver
in a location that will get wet or
directly exposed to the elements.
Page 6 For technical questions, please call 1-888-866-5797. Item 57937
Operation
Power Switch
The Power Switch has three settings:
a. Off: Power is off.
b. Hi: A loud beep will sound
(approximately 92dB) and the LED
will flash when motion is detected.
c. Low: A short beep will sound
(approximately 80dB) and the LED
will flash when motion is detected.
Operation
1. To operate the Driveway Alert, slide
the Power Switch on the Receiver
to the “Hi” setting. Allow 30 seconds
for warm-up. Two short beeps will
sound, indicating the unit is working.
2. Test the Sensor by walking or
driving into the protected area.
Another person should be listening
for the alarm to sound.
3. If the Sensor does not activate,
Sensor relocation or aiming
adjustment will be required.
4. If the Receiver does not activate with the
Sensor, reposition them closer together.
5. Once you have determined that the unit
is working properly, leave in the “Hi”
setting or adjust to the “Low” setting.
Low Battery
1. Replace the Sensor batteries when
the LED on the Sensor turns on.
2. Replace the Receiver batteries when
the LED on the Receiver turns on.
Page 7For technical questions, please call 1-888-866-5797.Item 57937
Parts List
Part Description Qty
1 Sensor 1
2 Receiver 1
Part Description Qty
3 Hardware 1
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175427199 when ordering parts.
Maintenance
Procedures not specifically explained in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the
general condition of the tool. Check for:
• leaking, swollen, or cracked batteries,
• loose hardware,
• misalignment or binding of parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Replace the batteries in the
Receiver or Sensor when their low
battery LED indicator lights.
4. There are no replaceable parts on
the Receiver or Sensor units.
