BURY LT 9100 Bedienungsanleitung

TWIN-PHONE FOR UNI System 8

LT 9100

Operating manual

Table of Contents

Introductory information 2

1. General 2

2. Notes on safety 2

3. Included in delivery 3

Device description and installation 4

4. Description of the Twin-Phone 4

5. Installation of the Twin-Phone 6

6. Switching off and removing the phone 6

7. Steering wheel remote control 7

7.1 Fitting the steering wheel remote control 7

7.2 Key functions 8

7.3 Creating contacts and SMS 9

The first steps 11

8. First use 11

9. Making a call 11

10. Answering a call 12

Menu navigation 13

11. Main menu 13

12. Bluetooth profiles 13

12.1 SIM card profile 14

12.2 SAP profile 15

12.3 Hands-free profile 16

12.4 Auto profile 16

13. Bluetooth connections 17

13.1 Establishing a BT connection in HF profile 17

13.2 Establishing a BT connection in SAP profile 19

13.3 Paired devices 19

13.4 Disconnecting BT connections 20

13.5 BT setup 21

14. Phone book 22

14.1 Internal phone book 22

14.2 External phone book 25

15. Call registers 26

15.1 Dialled numbers 26

15.2 Received calls 27

15.3 Missed calls 28

15.4 Clear call registers 28

16. SMS 29

16.1 Inbox 29

16.2 Message options 29

16.3 Writing messages 30

16.4 Message settings 31

17. Settings 32

Additional information 36

18. Service and regulations 36

18.1 Service 36

18.2 Regulations 36

18.3 Information about GNU General Public License (GNU GPL) 37

19. Index 42

LT 9100

Introductory information

1. General

Dear customer,

You have purchased a Bury connecting unit and therefore chosen a

product of high quality as well as absolute ease of use. Bury’s purchase,

production and service are subject to strict quality management accor-

ding to DIN EN ISO 9001. The “LT 9100” connecting unit (hereinafter

referred to as Twin-Phone) corresponds to the CE and e1 safety stan-

dards.

Please read the user’s guide carefully in order to familiarise yourself

with the connecting unit and therefore enjoy using it for a long time.

Please also read all notes and retain for reference in your vehicle.

If you have further questions on installation and use, please contact

your specialist dealer. They will be happy to give proper advice and

forward your experience and suggestions to the Bury team. You may

also contact our hotline. Please find all telephone and fax numbers

under the Service section.

Have a pleasant journey!

Your Bury team

2. Notes on safety

Installation – who and where

You can easily insert the Twin-Phone in the hang-up cup of a Bury

hands-free car kit (base unit from the UNI System 8) at any time. The

hands-free car kit, however, should always be installed by a specialist

dealer.

Power supply

This device to be used in connection with a Bury hands-free car kit has

been designed for use in vehicles with an onboard supply system of 12

Volts (cars). Always contact your Bury specialist dealer or seek informa-

tion through our telephone hotline if you are planning to install the

device in a vehicle with 24V onboard system (lorries).

Position, volume

Install the hang-up cup (of the base unit) of the Bury hands-free car kit

in the vehicle so that it does not obstruct your view and that the com-

ponents are not located in passenger impact areas within the vehicle

cabin or in airbag deployment zones. Please adjust the device’s volume

so that you can still hear outside noises.

Use while driving

Only use the Twin-Phone in situations where the traffic allows such use

and you do not injure, hinder or disturb other motorists or put them at

risk.

Intended use

Damages caused by improper use of the connecting unit or the hands-

free car kit may result in loss of warranty. For this reason, please read

the user’s guide carefully. The device must always be protected from

moisture, extreme temperatures or shock.

Faults

Do not switch the device on if you have noticed and/or suspect faults.

Please visit a Bury specialist dealer or contact the Bury hotline. Impro-

per repairs may put you at risk. Therefore only qualified personnel must

inspect the device.

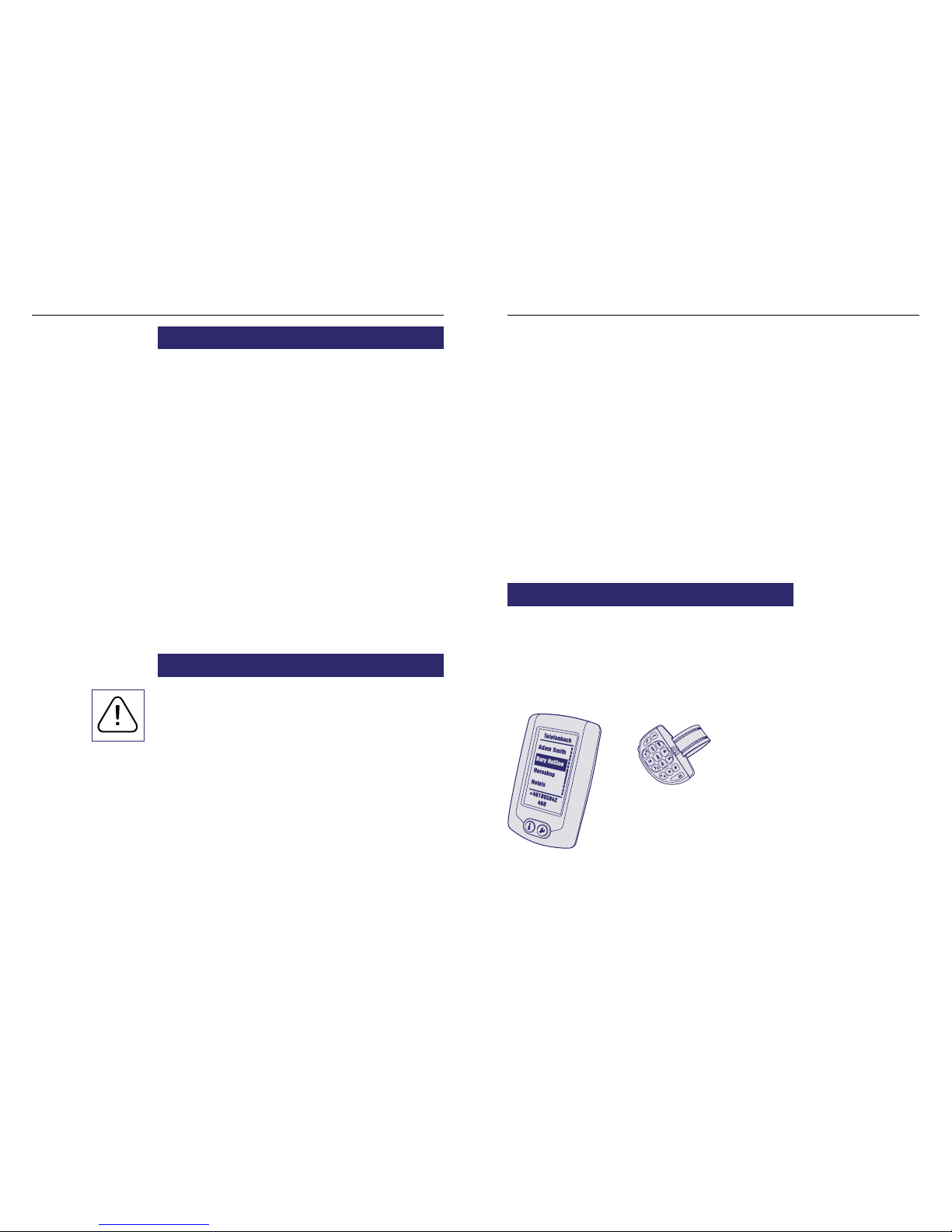

3. Included in delivery

The following components are included in your package:

1. Twin-Phone 2. Steering wheel remote control

will switch to standby mode, in order to reduce power consumption. All

available functions can be used via the Twin-Phone until you disable

external SIM access.

The HF profile (hands-free profile) provides a second connection opti-

on. Here, connections are established via your mobile’s GSM network.

The mobile phone can be used as usual.

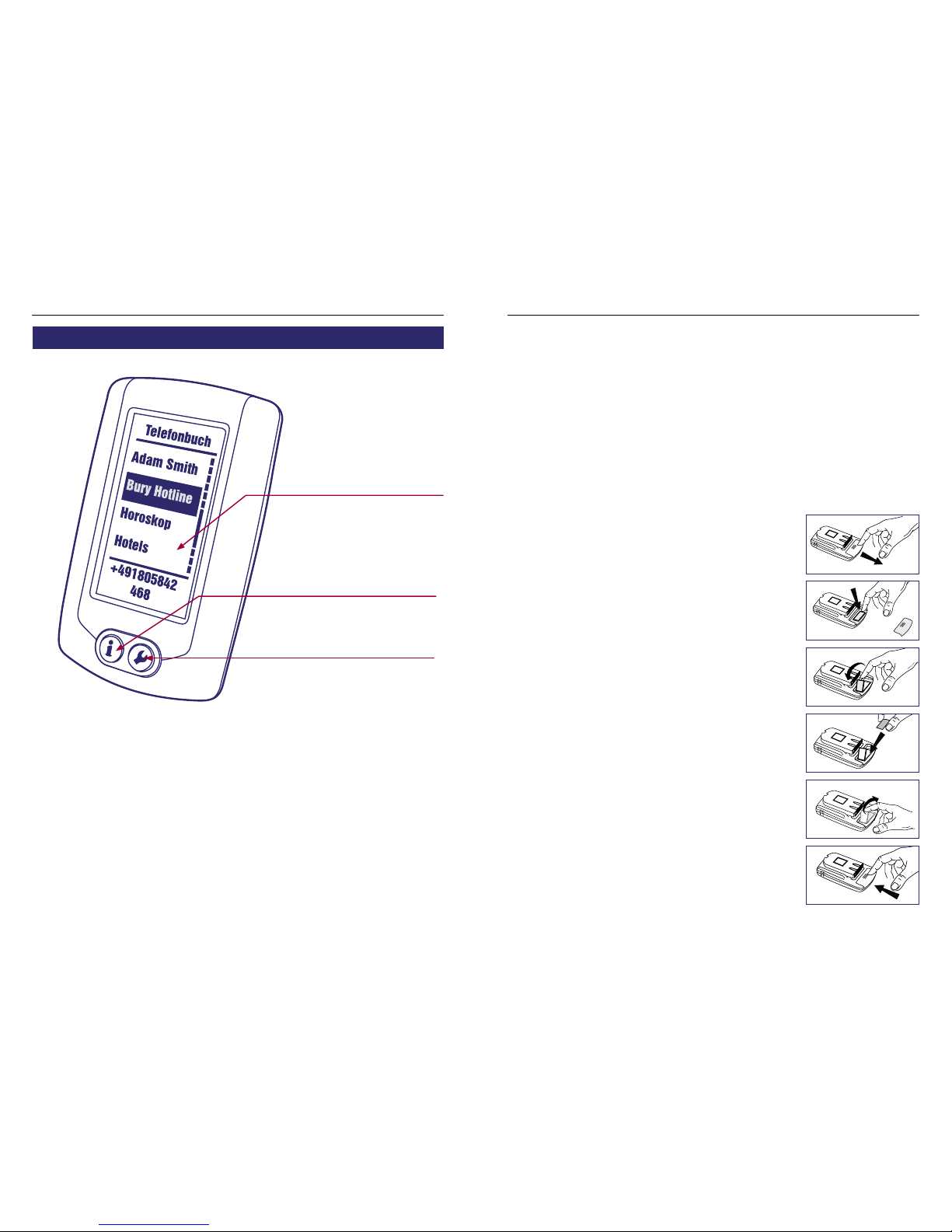

The SIM card slot

The SIM card slot inside the Twin-Phone is the component in which the

SIM card is inserted. Through this, the Twin-Phone can read the data

stored on your SIM card (e.g. phonebook entries).

You can insert the SIM card into the back of the Twin-Phone. In order

to do so, remove the device from the hang-up cup.

Open the sliding element on the back of the Twin-Phone in a

downward movement as indicated by the arrow.

Open the black flap. The flap will flip open by pressing the

small vertical, rectangular button – marked with PUSH OPEN.

Now, you can insert a SIM and/or a TWIN card into the inside

of the flap. Please make sure that the topside of the SIM card

(with the memory chip) is facing upwards when inserting it in

the flap. It must be on the visible side. The SIM card edge

with the bevelled corner must face upwards.

Close the flap. Press the Push mark on the flap. The flap will

snap and close.

Push the sliding element back until it locks. The local SIM card

is now ready for use. Place the device back in the hang-up

cup.

Display

Telematic key (info number) for

speed dialling

4. Description of the Twin-Phone

Device description and installation

Telematic key (service number) for

speed dialling

The Twin-Phone

The Twin-Phone is a high quality connecting unit for a Bury hands-free car kit (a base unit from the UNI

System 8). The large high-contrast display shows all menu and telephone functions (depending on

mobile model).

You can also insert a SIM card in the Twin-Phone in order to use it as an independent phone (only in-

side the vehicle).

The Twin-Phone also allows you to connect a mobile phone via the Bluetooth interface. For this, you

can use different profiles (transmission protocols, HFP and SAP).

If you connect the Twin-Phone to a mobile phone using the SAP profile (SIM Access profile), the inte-

grated GSM module will access the SIM card in your mobile. This will render the mobile inactive, i.e. it

6Device description and installation 7

1. 2.

3. 4.

5. 6.

7. 8.

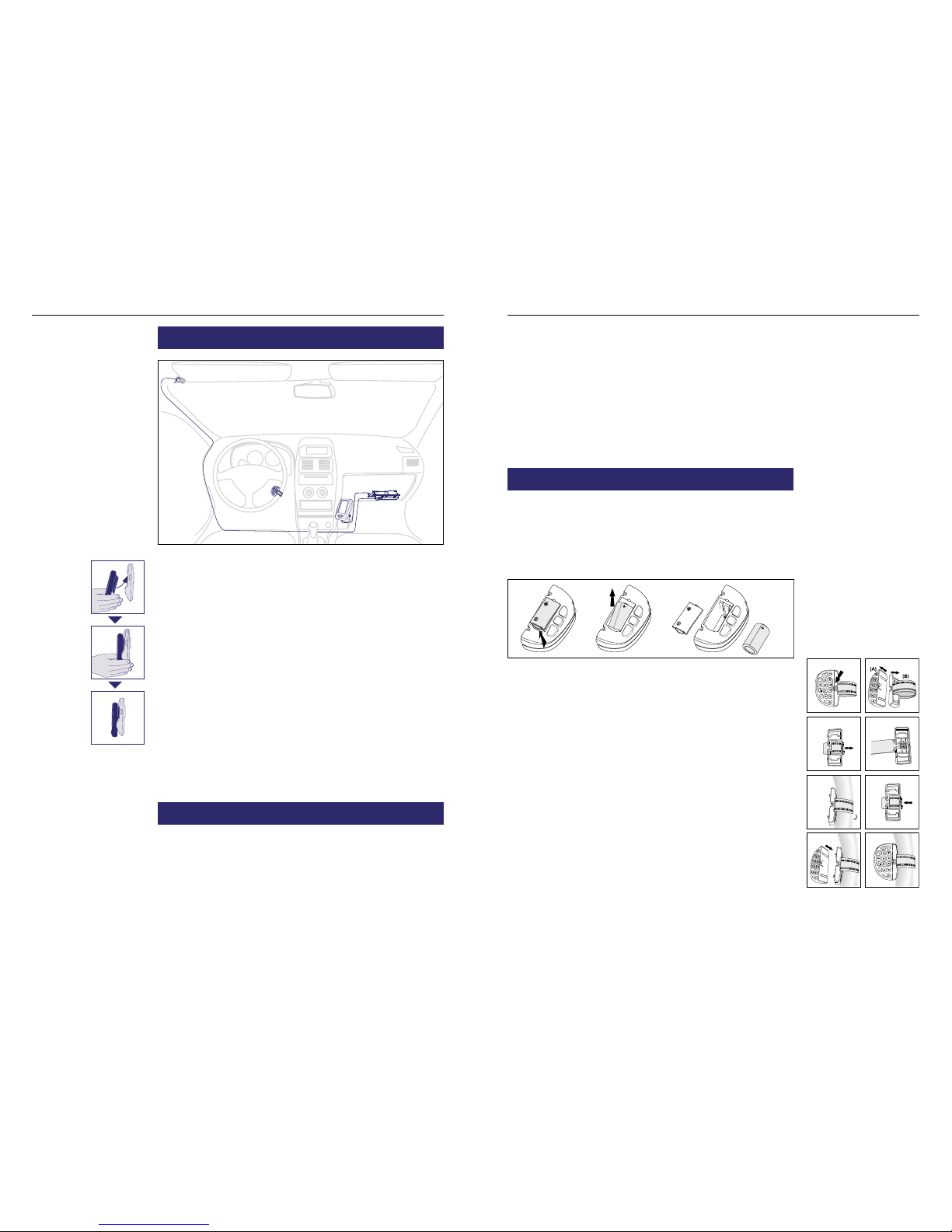

5. Installation of the Twin-Phone

Installation Overview e.g. with UNI CarTalk

Place the Twin-Phone in the hang-up cup of the Bury hands-free car kit

in order to enable power supply to reach the device. If such supply is

continuous, the device will immediately switch on. If not, the system

will be activated upon ignition and/or starting the engine.

As a default, the Twin-Phone screensaver will be displayed, which also

shows the time and date. In order to ensure that these functions are

continuously provided in case of an interruption to the power supply

(e.g. when removing the Twin-Phone from the hang-up cup), the Twin-

Phone uses an integrated re-chargeable battery. When the car is swit-

ched off (Twin-Phone remains in hang-up cup), the power supply will be

maintained – time and date are still displayed. It is not necessary to

remove the battery as it re-charges automatically once the Twin-Phone

is supplied with onboard power.

In case of an interruption to the power supply (removal from the hang-

up cup), the battery will ensure the time and date are displayed for a

period of approx. 3 to 4 weeks. In case of longer periods of interrupti-

on, the time and date must be reset.

6. Switching off and removing the phone

If you leave your car for a short while, you can set the Turn-off time

function (Setup, System settings, Turn-off time) so that the Twin-

Phone will automatically switch off after a certain period of time. See

the chapter on the respective menu for detailed information.

If you leave your car for longer periods or over night, you should, in

general, never leave the Twin-Phone in the vehicle. This is the best

protection against theft. In order to do so, press the button on the right

side (looking at the phone from above) of your hands-free car kit’s

hang-up cup to release the lock.

If the phone is exposed to direct sunlight while the car is parked, the

inside of the cabin may heat to temperatures exceeding 70°C. For this

reason, remove the Twin-Phone from the hang-up cup and vehicle as

you may otherwise encounter disruptions for a short while once the

Twin-Phone has been switched back on.

7. Steering wheel remote control

You can control the system and enter data via the illuminated steering

wheel remote control (hereinafter referred to as SWRC). The SWRC is

housed in part A of the SWRC is low after being used for a long time,

simply replace it with a new, suitable battery.

Part (A)

7.1 Fitting the steering wheel remote control

First, disconnect the parts (A) and (B). Loosen the clamping device of

part (B) as illustrated in the picture. Now place the clamping device on

the steering wheel and re-attach it to part (B). Reassemble the two

parts. The SWRC is now fitted.

8Device description and installation 9

Pairing the steering wheel remote control

The Twin-Phone is normally paired to the supplied SWRC when it leaves

the factory. This means that both devices each detect the identifier si-

gnal of the other device. If this is not the case, pair the devices as fol-

lows with enabled ignition:

On the SWRC, press the ESC and the information key at the same time

(keys 3 and 7), see picture 8. Then place the Twin-Phone in the hang-

up cup of your HFCK. The display will now show ‘BURY TECHNOLO-

GIES’, i.e. the initialising process is now running. Once the initialisation

has been successfully completed, the screen saver is displayed.

Now release keys 3 and 7 of the SWRC and press the shift key to open

the main menu of the Twin-Phone. If this is not possible, the device and

the SWRC have not been paired correctly. Please repeat the pairing

procedure as described above.

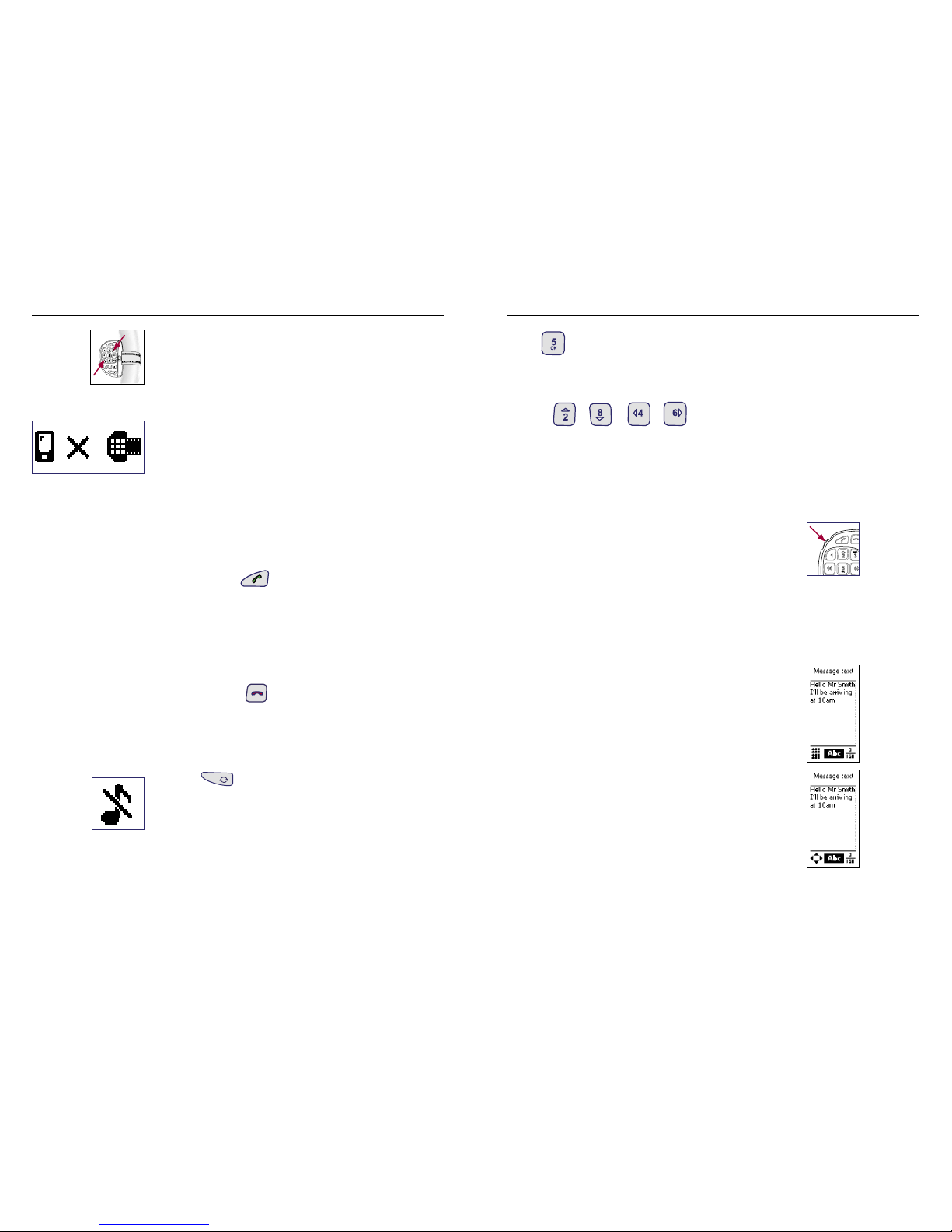

7.2 Key functions

Call answering key

For answering incoming calls.

In standby mode: press key once to access the submenu last Dialled

numbers. You can activate the voice-dial function by pressing and

holding this key.

In the menu: confirm new entries created using the number keys.

Call termination key

Reject incoming calls or end a call.

In the menu: press key to confirm after selecting a function by highligh-

ting the respective item with OK key.

Shift key

Accessing the main menu while the screen saver is activated.

In the individual submenus: access to options such as Clear list in the

Dialled numbers submenu.

Phonebook entries or SMS: shift between scroll keys and number

keys.

In standby mode: enabling and disabling the silent function by holding

this key.

OK key

Confirming a selection (if such was not entered via the number keys).

Scroll keys

In the menu: scroll function, from above downwards and from left to

right.

Number keys

Enter numbers and write SMS.

Volume control

In standby mode: press this key once for setting the Ring tone volu-

me, twice for setting the Voice-tag volume, three times for setting

the Talk volume. Turn the control upwards and/or downwards to turn

up and/or down the volume.

When calling: press key once for setting the Talk volume, twice for

setting the Ring tone volume, three times for setting the Voice-tag

volume.

7.3 Creating contacts and SMS

You can save entries in the internal and external phone book as

well as Write SMS using the number keys of the SWRC. The keys 2 to

9 also display letters, which can be entered by pressing the required

key. The first letter (from left to right) can be entered by pressing the

respective key once, the second one by quickly pressing the key twice

and so on.

In the left bottom corner of the display, the icon for the number keys of

the SWRC is displayed when creating phone book entries or writing an

SMS, i.e. the number keys are enabled and you can enter the required

letters.

The call termination key can be used for deleting an entered letter

and/or text. The respective last letter to the left of the cursor will then

be deleted. If you want to delete or insert a letter located elsewhere,

press the shift key in order to enable the scroll keys (the icon in the left

bottom corner will now show the arrows indicating the four possible

directions instead of the number keys). You can now position the cursor

anywhere in the entered name and/or the SMS text using the scroll

keys 2, 4, 6 and 8.

If you want to enter another letter after having shifted the cursor, press

the shift key in order to enable the number keys again. The icon in the

left bottom corner will now show the number keys.

At the bottom of the display (centre), you can see whether capital let-

ters (ABC) or lower case (Abc and/or abc) is enabled. If ‘Abc’ is display-

ed, the first word of each sentence will begin with a capital letter. The

other letters and words will automatically be displayed in lower case. If

you only want to use capital letters, press the hash key once or press

this key twice for lower case.

In the right bottom corner and above the line, the number of characters

already entered is displayed, and below the line, how many characters

you may still type in. When entering names in the internal or exter-

nal phone book, you may enter up to 50 characters. When writing an

SMS, you may use a maximum of 160 characters.

Space characters can be entered by pressing the 0 key. If you press the

0 key repeatedly 2 to 17 times, you can enter one of the following cha-

racters in the order given: 0 % ( ) + - * / ^ = < > [ ] { }.

Dots can be entered by pressing the 1 key. You can also enter the fol-

lowing (punctuation marks) characters in the order given by pressing

this key repeatedly: . , ! ? 1 ’ : ; - / “ _ .

For entering the special characters & @ # € £ $ ¥ xx ~ § \ | ¡ ¿, press

the star key once and/or 2 to 14 times repeatedly.

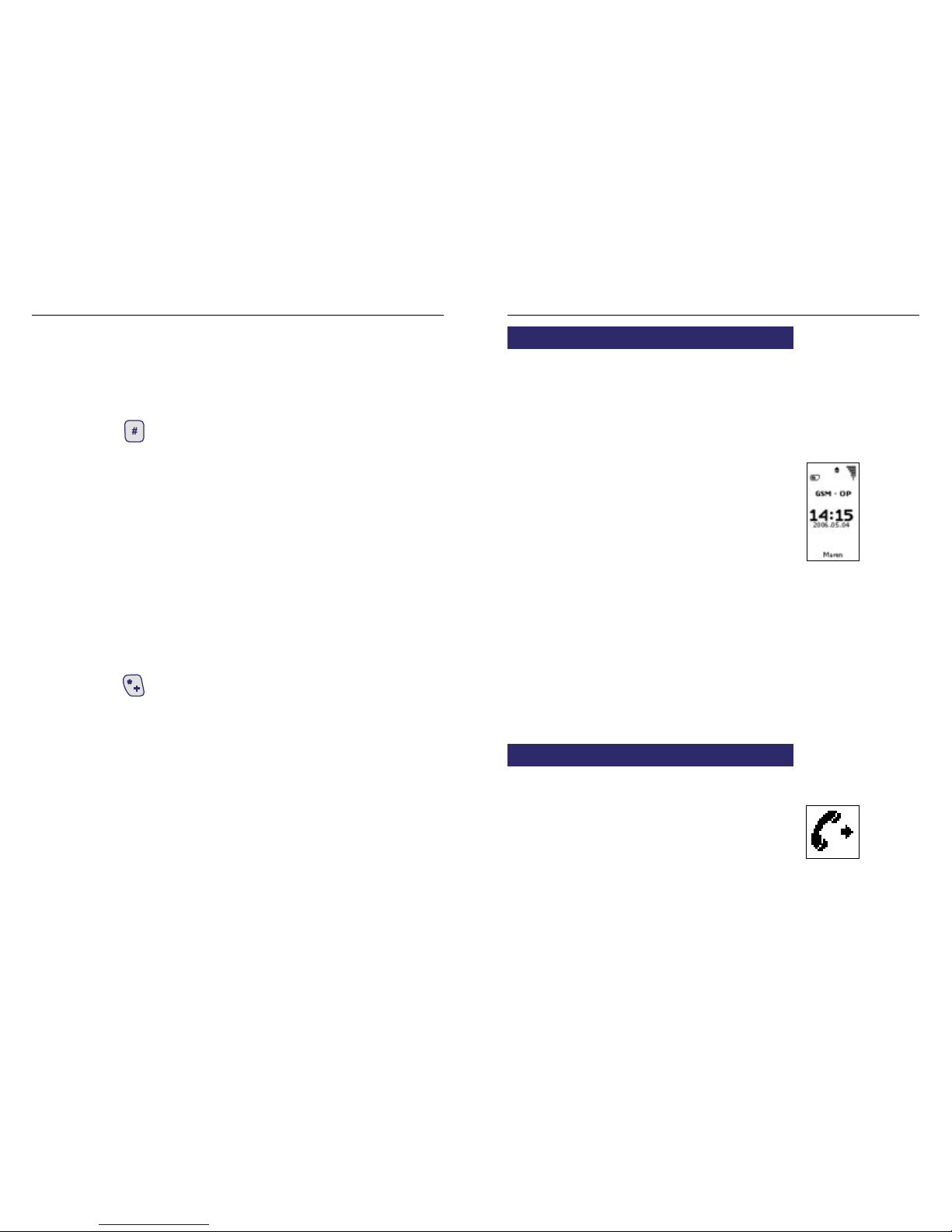

The first steps

8. First use

When the device is switched on, the illuminated display will first show

‘BURY TECHNOLOGIES’ and then read Waiting for SIM card activa-

tion. You may also have to enter your PIN. If no SIM card was inserted,

the display will read SIM card missing for a moment until the screen

saver is activated. Press the shift key in order to access the main

The screen saver comprises the following information: in the top left

corner the icon for the SIM card is shown - when Default is set (re-

gardless whether a SIM card was inserted or not). In the top right

corner, the symbol for the antenna is displayed, with two to three hori-

zontal bars showing the quality of reception. In the middle of the dis-

play, the time and date is displayed.

The display will remain illuminated for approx. 60 seconds. After this

time, the light will switch off if you do not use the phone, and the pho-

ne will automatically switch to standby mode.

By default, the device is set so that users are able to use the phone

immediately for calls once the SIM card is inserted into the Twin-Phone.

This means that the SIM card BT profile is already activated. Please

refer to the chapter BT profile for information on the operating profile

of SIM card as well as the SAP, HFP and Auto profiles.

In order to be able to make calls when in other profiles, select the re-

quired profile in the BT profile submenu. Then select the item BT

connections to pair your mobile phone with the Twin-Phone from the-

re. Please refer to the chapters following the section “The first steps”

for more detailed information.

9. Making a call

When the Twin-Phone is switched on, e.g. with inserted SIM card, you

can make a call by entering the phone number using the number keys

and then establish a connection by pressing the call answering key.

Or simply press the call answering key once when the screen saver is

shown in order to open the list of the last Dialled numbers. If you

now press the call answering key once, a connection is established to

phone the last dialled number. When the phone is used for the first

time, the Call registers are empty.

In all BT profiles, you also have the option to establish a connection

12 The first steps 13

via the menu to a phone whose number is stored in the internal pho-

ne book of the Twin-Phone.

In the SIM card profile or SAP profile, you can also establish a con-

nection to the phone whose number is stored in the external phone

book. In the external phone book, only entries stored on your SIM

card can be used.

Or simply enable the voice-dial function by pressing and holding the call

answering key. You are then prompted to say a record (only possible if

a record was previously stored in the internal phone book).

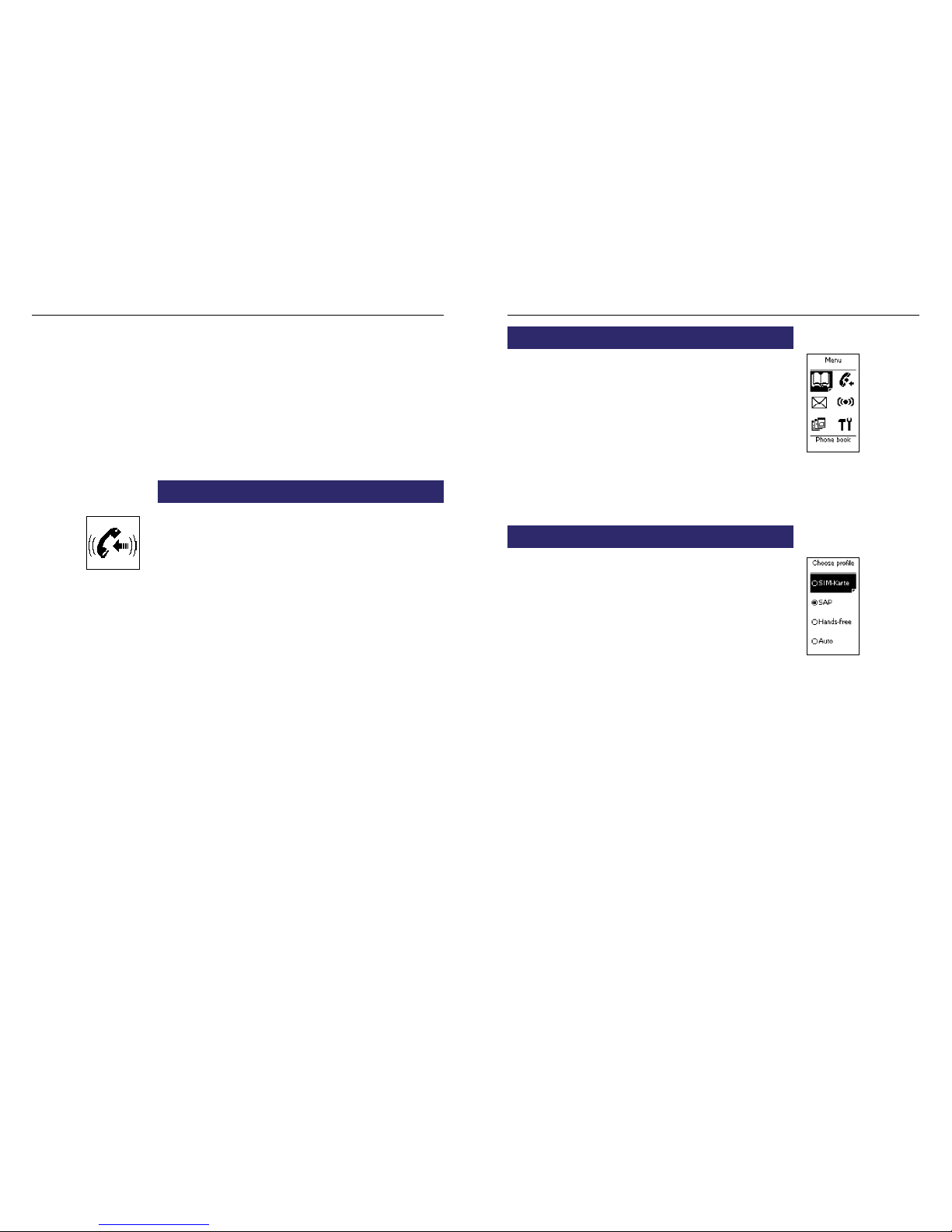

10. Answering a call

If your phone shows an incoming call, a symbolised telephone receiver

icon will be displayed on the Twin-Phone. When the SIM card was inser-

ted or if in SAP profile, only the ring tone set for the Twin-Phone will

sound; the same applies to SMS. In the HF profile, the ring tone of

both the Twin-Phone and the mobile phone will sound in case of an in-

coming call.

If there is an entry for the respective caller in the internal or external

phone book, the saved name will be displayed (in HF profile, no

entry will be displayed if stored in the external phone book).

Answer the call by pressing the call answering key; press the call termi-

nation key to end or reject a call.

The number of missed calls will be displayed in the top right corner.

Details on the missed calls are shown in the main menu Call registers,

Missed calls.

The same applies to received SMS. These will be indicated by a small

icon in the form of a closed envelope. To read the message, select the

main menu SMS and then Inbox.

Menu navigation

11. Main menu

In order to open the main menu when the screen saver is active, always

press the SWRC shift key.

In the main menu, the display will show six menu items: Phone book,

Call registers, SMS, BT connections, BT profiles, Setup, which

you can access using the SWRC scroll keys 2, 4, 6 and 8.

In order to quit a menu, press either the call answering key, the call

termination key or the OK key depending on the submenu structure.

Please note that not every menu in every profile may be active. Please

refer to the chapter BT profile for more details.

12. Bluetooth profiles

In the BT profile menu’s submenu, you can choose from four opera-

ting profiles, which represent different ways of establishing a connec-

tion to your mobile phone. You can access the submenu by pressing the

OK key. Then, the SIM card, SAP, Hands-free and Auto profiles

are displayed.

Find the required operating mode using the scroll keys 2 and 8 and then

select it by pressing the OK key. Confirm the selected profile by pres-

sing the call termination key. The enabled operating profile will then be

displayed in the top left corner on the screen saver.

The last active profile, for example the symbol for the SAP profile, will

flash in the top left corner of the display after the phone was switched

on. If you do not change the SAP profile, the Twin-Phone will, each

time it is restarted, automatically attempt to establish a connection to

the mobile phone it last communicated with.

If you wish to change the profile, press the shift key, open the menu BT

profiles, choose the required profile and confirm with the call termina-

tion key. When a new BT profile is selected, no automatic connection

between the Twin-Phone and the mobile phone will be established. This

must be established via the menu BT connections. You may skip to

this chapter now if you want to read the descriptions of the individual

BT profiles at a later time.

14 Menu navigation 15

12.1 SIM card profile

Choose this profile if you want to use a SIM card with the Twin-Phone.

In this case, pairing or the current BT connection to the mobile phone

is not required. The Twin-Phone – with inserted SIM card – can be

turned into an independent car phone when used in conjunction with a

UNI System 8 hands-free car kit.

You may also use a TWIN card in your Twin-Phone. The TWIN card is

linked to your SIM card, therefore the telephone number is identical.

Calls or SMS will be transmitted by the respective active card. Conse-

quently, it is no longer necessary to swap the SIM card.

If you have selected the SIM card profile, you may be required to

enter your PIN. The PIN is your Personal Identification Number and is

normally provided with the SIM card. If you have set your mobile to

request the PIN every time the phone is switched on, you must also

enter this PIN in the Twin-Phone. In all other cases, you will not be re-

quested to enter your PIN.

After you have entered the 4- to 8-digit PIN, confirm this using the call

answering key. If you have accidentally entered a wrong digit, you may

delete this by pressing the call termination key, then correct it by re-

entering the digit using the number keys and confirm using the call

answering key. If the correct PIN is entered, the screen saver will be

displayed. In case that an incorrect PIN is entered, an error message

will be displayed and you will be prompted to re-enter the PIN.

Note:

Please note that your PIN will be locked for security re-

asons if an incorrect PIN is entered three times consecu-

tively. You will require your PUK code (Personal Unblocking

Key) to unlock the SIM card; this code is also supplied with

the SIM card. If an incorrect PUK code is entered ten times

consecutively, your SIM card will be completely blocked. The

display will then read ‘SIM card locked’. In this case, please

contact your network operator for assistance in providing

either a copy of your current SIM card or a new card.

In the SIM card profile, the SIM card symbol is displayed in the top

left corner of the screen saver. In the top middle, a small house-like

icon is displayed as symbol for your home network. If a pyramid is

displayed instead of the house symbol, the telephone is operating in a

different available network.



Furthermore, the antenna symbol is displayed in the top right corner of

the screen saver screen when in SIM card profile. The antenna sym-

bol, including the bars for reception quality, is displayed even if no SIM

card is inserted in the Twin-Phone. The antenna symbol indicates an

unknown, available network (to be used in emergencies).

Note:

You can call the emergency number (e. g. 112 in Germa-

ny or 999 in Great Britain) directly from the Twin-Phone

without inserting a SIM card. (The easiest way to do this is

to use the Twin-Phone telematic keys, see chapter Setup,

System settings, Telematic keys).

When a SIM card is inserted, the following items are enabled in the

Twin-Phone main menu: Phone book, Call registers, Messages, BT

profiles and Setup. Since connection to the mobile is not required,

the menu item BT connections is not available.

12.2 SAP profile

The SIM access profile allows the integrated GSM module to exter-

nally access the SIM card in your mobile. This means that the Twin-

Phone is able to retrieve the SIM data via the SAP profile. Your mobi-

le must support the SAP (SIM Access profile) technology if you want to

use this option.

In this profile, your mobile is put in on standby to reduce the electrical

discharge of the mobile battery to a minimum while the connection is

maintained.

If you have selected the SAP profile, you may need to enter your PIN.

If you have set your mobile to request the PIN every time the phone is

switched on, you must also enter this PIN in the Twin-Phone.

In case of incoming calls, only the ring tone of the Twin-Phone will

sound. Missed calls as well as the name of your network operator will

now be displayed on the Twin-Phone. The same applies to receiving

and sending an SMS. No entries can be made in the mobile as long as

the activated SAP connection is maintained.

Due to the transmission of SIM card data, it may take up to 60 seconds

before the SMS submenu can be accessed.



16 Menu navigation 17

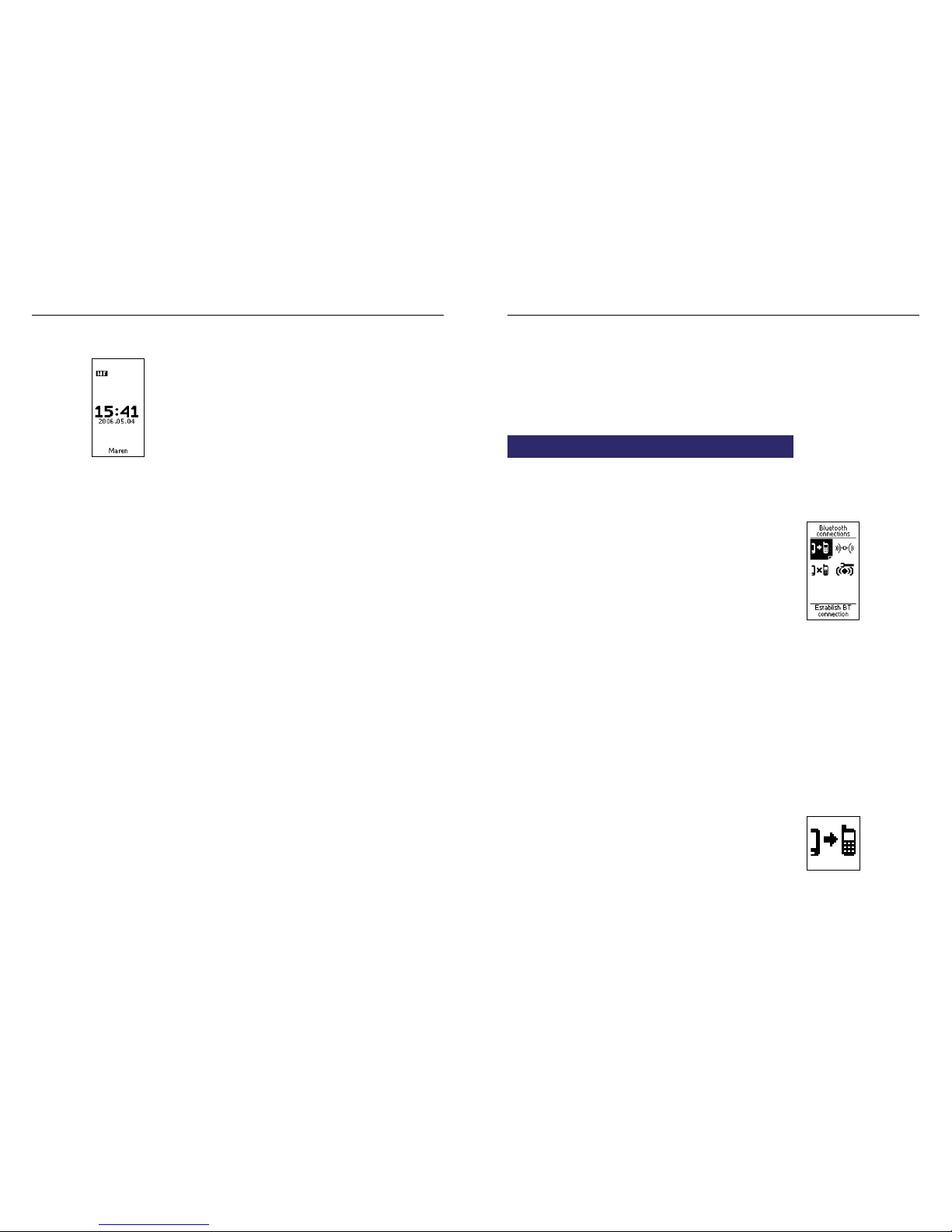

12.3 Hands-free profile

Yet another operating option is the hands-free profile (HF profile) in

the BT profiles menu.

Note:

Please note that, with the selection of the HF profile,

using the BT technology will increase the battery discharge

rate of your mobile and therefore reduce the number of

operating hours.

In the HF profile, the connection is established via the GSM network

of your mobile. The name of your network operator will, however, only

be displayed on the mobile.

Incoming calls are displayed on the Twin-Phone. The mobile phone ring

tones and the Twin-Phone will also sound. The same applies to inco-

ming SMS.

Apart from the SMS function, all other main menu functions are availab-

le when the HF profile is selected. When using the phone book, you

can only access the internal phone book. The external phone

book function is not available.

The HF profile also provides the option to disconnect any connection

between the Twin-Phone and mobile via the menu of your mobile pho-

ne.

12.4 Auto profile

In the auto profile, the Twin-Phone independently selects a profile.

The Twin-Phone will search for options to establish a connection in the

following order: first, it will check whether a SIM card has been inserted

in the integrated card slot. Then, it will search for an option to establish

a connection using the SAP technology. Finally, it will check whether it

is possible to establish a connection in the HF profile.

If a SIM card is inserted in the Twin-Phone, the auto profile will auto-

matically open the SIM card profile and will stop searching.

It is advisable to select the auto profile if, for example, a user with an

SAP-compatible mobile and another with an HFP-compatible mobile use

the Twin-Phone in turn. The pre-selected auto profile will automati-

cally enable the suitable profile after the phone is switched on.



If only one person uses the Twin-Phone, they choose their preferred

profile (SIM card, SAP profile or HF profile), which will be enabled

every time the phone is switched on (unless the profile has been chan-

ged). In the future, this will allow a connection to be automatically es-

tablished between the Twin-Phone and the mobile once the devices

have been paired.

13. Bluetooth connections

You can access the menu BT connections in the main menu by pres-

sing the OK key. This submenu is required for pairing or connecting

your mobile with and/or to the Twin-Phone. Here, pairing means to

establish the very first connection through identification. The BT con-

nections menu comprises four submenus: Establish BT connection,

Paired devices, Disconnect BT and Bluetooth setup.

If you use your SIM card with the Twin-Phone, you will not need the

functions available in the BT connections menu. This function will not

be available when the SIM card is inserted.

Note:

For security reasons, it is not possible to pair your mo-

bile phone with and/or establish a new connection to the

Twin-Phone via your mobile’s menu. This is the only way to

ensure that no other user within the same reception zone,

e.g. a passenger in certain traffic conditions (traffic jam),

can connect their mobile to your Twin-Phone.

13.1 Establishing a BT connection in HF profile

The submenu Establish BT connection indicates whether a BT con-

nection to a mobile was established. The BT connections menu will

only be enabled if you have activated the HF profile or SAP profile

via the Twin-Phone menu BT profiles.

Pairing

Use this submenu for pairing the phone with another BT device. This

means that both devices will detect the respective identifier signal of its

respective counterpart to automatically establish a connection in the

future.

a) Select Establish BT connection in order to pair the Twin-Phone

with your mobile.



Inhaltsverzeichnis

Andere BURY Handy Handbücher

BURY

BURY CP 1100 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
