BZB Gear BG-PSC11X2-HDBT Bedienungsanleitung

USER MANUAL

BG-PSC11X2-HDBT

4K 11x2 HDMI Multi-format Presentation Scaler Switcher

Thank you for purchasing this product. For optimum performance and safety, please read

these instructions carefully before connecting, operating or adjusting this product. Please keep

this manual for future reference.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by electrical

spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly

recommended in order to protect and extend the life of your equipment.

Table of Content

Introduction ...................................................................................................................4

Features .........................................................................................................................4

Panel Descriptions .........................................................................................................5

Front Panel.............................................................................................................5

Rear Panel ..............................................................................................................7

Remote Control Description ..........................................................................................9

Application Diagram ....................................................................................................10

Specifications ...............................................................................................................10

RS-232 Pin Assignment ................................................................................................11

RS232 and Telnet Commands......................................................................................11

Package Contents.........................................................................................................13

Maintenance ................................................................................................................14

Warranty Policy............................................................................................................14

Limitations of Warranty...............................................................................................14

Exclusive Remedies......................................................................................................15

RMA Policy ...................................................................................................................15

Standard Replacement.........................................................................................15

Once you have obtained an RMA number ..........................................................16

Please note:..........................................................................................................16

Warranty Information (Second Year Assurance).........................................................17

Mission Statement.......................................................................................................18

Introduction

The BG-PSC11X2-HDBT is a multi-format video presentation scaler switch with audio. It features

11 inputs of various video formats including HDMI, VGA, Component, Composite, and HDBaseT

with HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions

from 640x480 up to 1920x1080 @ 60Hz.

Embedded splitter and dual switcher modes, it can work as 11:1x2 multiple splitter and 5x1

&11x1 dual switcher. It also features a switchable digital bypass output allowing any HDMI

input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced

audio embedding and de-embedding, it can provide flexible audio signal integration. Each

source can be switched to the HDMI output using the front-panel, IR remote control or RS-232

interface.

The BG-PSC11X2-HDBT integrates easily in various analog to digital applications such as

when used in collaboration environments, lecture halls, conference rooms, classrooms,

healthcare facilities and control centers.

Features

•Switch & Scale 11-inputs to 2 HD/UHD displays.

•4x HDMI, 4x VGA, 1x YPbPr, 1x Composite, 1xHDBaseT Inputs.

•2 simultaneous outputs (1x HDMI, 1x HDBaseT), bypass and scaled formatted output

selectable.

•Dual mode selectable (1x2 Splitter Mode and 5x1 &11x1 Dual Switcher Mode).

•Scaling from 640x480 to 1920x1080 @ 60Hz.

•HDTV formats up to 4K@30Hz.

•HDBaseT POE Transmitter & Receiver supports distance up to 330ft /100m.

•With built in Ethernet Hub.

•HDCP 1.4 compliant.

•Audio embedder and audio extractor.

•OSD menu for volume control and resolution selection.

•Controllable via front panel, IR remote, TCP/IP or RS232.

•Front-panel LCD display for status feedback.

•Easy installation with rack-mounting ears.

Panel Descriptions

Front Panel

①LCD display---Show the status of input-output selection, EDID info and so on.

②IR receiver window----Receive the IR from the remote control of BG-PSC11X2-HDBT.

③Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI

1 is selected by HDBT/HDMI1/HDMI2/HDMI3/HDMI4 which works as 4K 5x1 switcher in

by-pass mode; Output HDMI2 is selected by HDBT/HDMI1/HDMI2/HDMI3/HDMI4/VGA1

/VGA2/VGA3/VGA4/YPbPr/AV, it will always be scaled & formatted output regardless of

by-pass ON/OFF, works as scaling 11x1 switcher,

④Mode button---Press to set Dual Switcher mode ON/OFF.

⑤HDBT input selection button---Press to select the output 1 from HDBT input working as 4k

5x1 switcher.

⑥HDMI input 1 to 4 selection buttons---Press to select the output 1 from 1 to 4 working as

4k 5x1 switcher.

⑦Format set button---Press to set the resolution for the output.

⑧Menu button---Press to enter EDID set, volume setting or F/W information. Three EDID

segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example:

IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1. The blinking segment is

the one can be changed currently; press “Menu”button will change the segment.

Segment content items as below:

INPUT

VIDEO

AUDIO

Note

IN1

1080I

2.0CH.

IN2

1080P

5.1CH

IN3

7.1CH

IN4

4K2K

NONE

IN5

D1024

D1024=DVI 1024 x 768

IN6

D1080

D1080=DVI 1920 x 1080

IN7

D1200

D1200=DVI 1920 x 1200

IN8

OUT1

OUT1=Copy OUTPUT1 EDID to INPUTx

IN9

OUT2

OUT2=Copy OUTPUT2 EDID to INPUTx

IN10

IN11

ALL

ALL=Set EDID to ALL INPUTs

Note: Volume can be changed by UP and Down button. During F/W mode，press Enter

button will show the current F/W information.

⑨Up selection button--- Press to change segment’s value.

⑩Down selection button---Press to change segment’s value.

⑪Enter button--- Press to confirm the settings.

⑫Power LED indicator---Indicate the status of power.

⑬Embed LED indicator ---When the LED is lit, embed mode is on. When embed in on, the

L/R in will be embedded in to the HDMI outputs (The two outputs will be embedded with

the L/R in audio and the volume is adjustable)

⑭L/R in selection button---Press to embed L/R audio to the HDMI output.

⑮HDBT input selection button ---Press to select HDBT input.

⑯HDMI input selection button 1 to 4---Press to select the input from 1 to 4.

⑰VGA input selection button---Press to select VGA input.

⑱YPbPr input selection button---Press to select YPbPr input.

⑲AV input selection button---Press to select AV input.

⑳ESC---Press to quit EDID set mode.

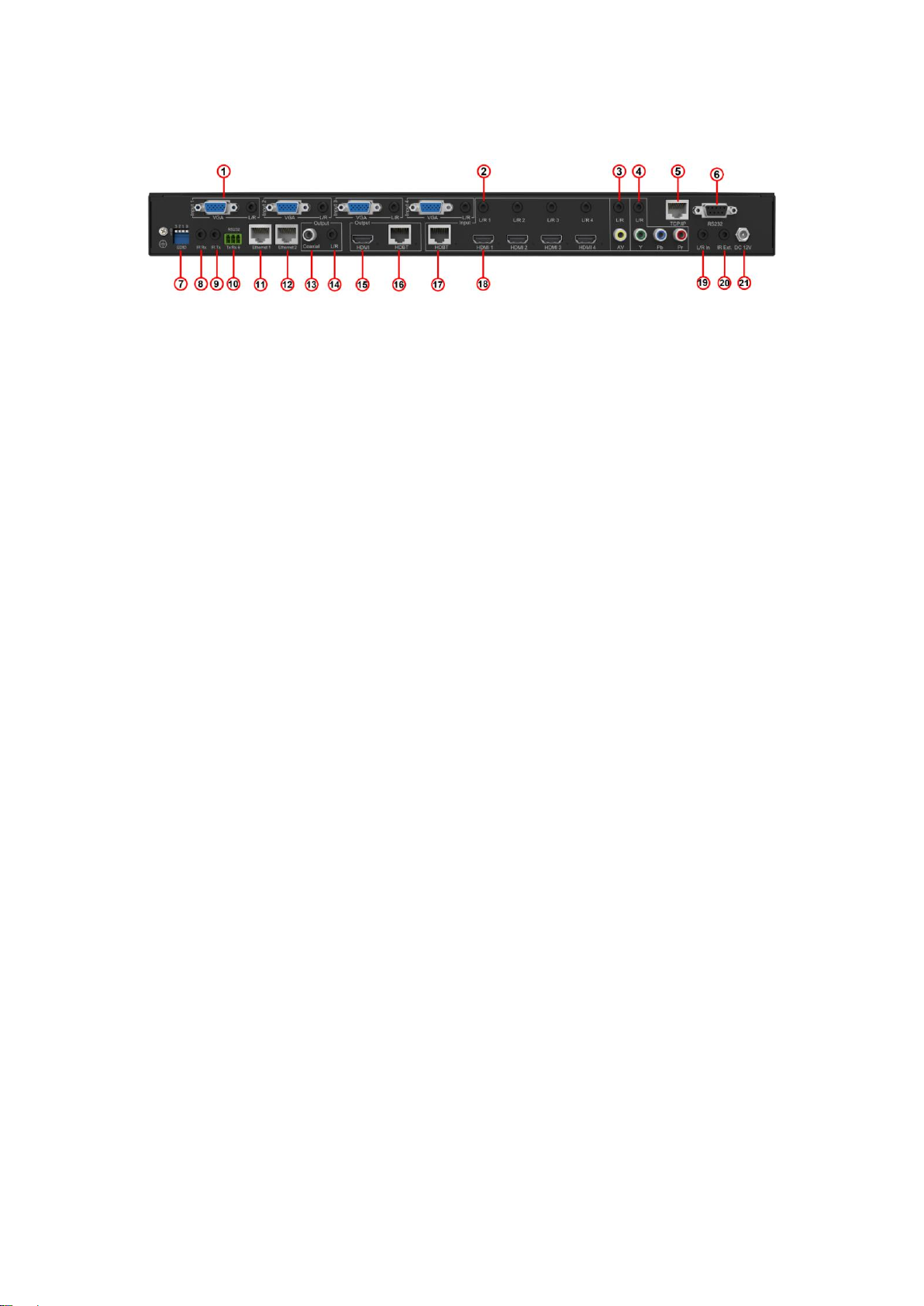

Rear Panel

①VGA input 1 to 4--- VGA input 1 to 4 with L/R audio input.

②L/R In 1 to 4--- Connect to addition audio input to embed to HDMI output 1 to 4.

③AV input--- AV input with L/R audio input.

④YPbPr input--- YPbPr input with L/R audio input.

⑤TCP/IP---Connect to Ethernet for control.

⑥RS232 port--- DB9 connector for local control only.

⑦DIP switcher---EDID settings.

[DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM

[DIP]=1111: Copy EDID from HDMI output, i.e., EDID pass through

[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY

[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD

[DIP]=0011: HDMI 1080i@60Hz, Audio 2CH PCM

[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY

[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD

[DIP]=0110: HDMI 1080p@60Hz/3D, Audio 2CH PCM

[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY

[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD

[DIP]=1001: HDMI 4K2K, Audio 2CH PCM

[DIP]=1010: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY

[DIP]=1011: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD

[DIP]=1100: DVI 1280x1024@60Hz, Audio None

[DIP]=1101: DVI 1920x1080@60Hz, Audio None

[DIP]=1110: DVI 1920x1200@60Hz, Audio None

⑧IR RX---Connect to IR receiver cable.

⑨IR TX--- Connect to IR emitter cable.

⑩Phoenix terminal---Work with HDBT Transmitter / Receiver for RS232 pass through.

⑪Ethernet port—Connect to Ethernet. (Embedded Ethernet hub)

⑫Ethernet port--- Connect to Ethernet port. (Embedded Ethernet hub)

⑬Coaxial audio output --- It will always follow HDMI output 2.

⑭L/R audio output--- It will always follow HDMI output 2.

⑮HDMI output--- Connect to HDTV.

⑯HDBT output---Connect to HDBT class A receiver

⑰HDBT input--- Connect to HDBT class A transmitter.

⑱HDMI input 1 to 4 ---Connect to HDMI sources

⑲L/R In --- Connect to Global Audio Input to embed to both HDMI outputs.

⑳IR Ext. --- Connect to IR receiver cable.

○

21 DC 12V---Connect to 12V/5A power supply.

Remote Control Description

HDMI1 Out: Source selection for HDMI

output 1 when in Matrix Switcher mode.

HDMI2/HDBT Out: Source selection for

HDMI output 2 when in Matrix Switcher

mode or when in Splitter mode

Format: Video output resolution selection.

The BG-PSC11X2-HDBT includes in-built

video scaler. Press the required resolution

button on remote control to change the

HDMI output video resolution.

Setting:

Bypass: Audio on HDMI outputs is from

HDMI input selected.

Mute: Mutes the audio on all outputs

(HDMI, Coaxial digital and Analogue

audio)

Mode: Switches between Matrix

Switcher mode and Splitter mode

Embed: Audio on HDMI outputs is from

L/R Analogue audio input (3.5mm Jack)

Volume: Adjust the audio Volume on all

outputs (HDMI, Coaxial digital and Analogue

audio)

Application Diagram

Specifications

Bandwidth：

10.2Gbps

Video Input Connectors:

4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV

Video Output Connectors:

1x HDMI Type A, 1x RJ45

Audio Input Connectors:

11x 3.5mm stereo jack

Audio Output Connectors:

1x 3.5mm stereo jack,1x RCA (SPDIF)

RS-232 serial port:

1x DB 9 connector,1x 3 phoenix terminal

TCP/IP

1x RJ45

IR Input ports:

2x 3.5mm stereo jack

IR Output ports:

1x 3.5mm mono jack

Dimensions (W x H x D):

438mm x 225mm x 44mm , without feet

Shipping Weight:

1.2Kg

Operating Temperature:

32°F to 104°F (0°C to 40°C)

Storage Temperature :

-4°F to 140°F (-20°C to 60°C)

Power Supply:

DC 12V/5A
