UIO

Point-to-Point

Antenna

Assembly Guide

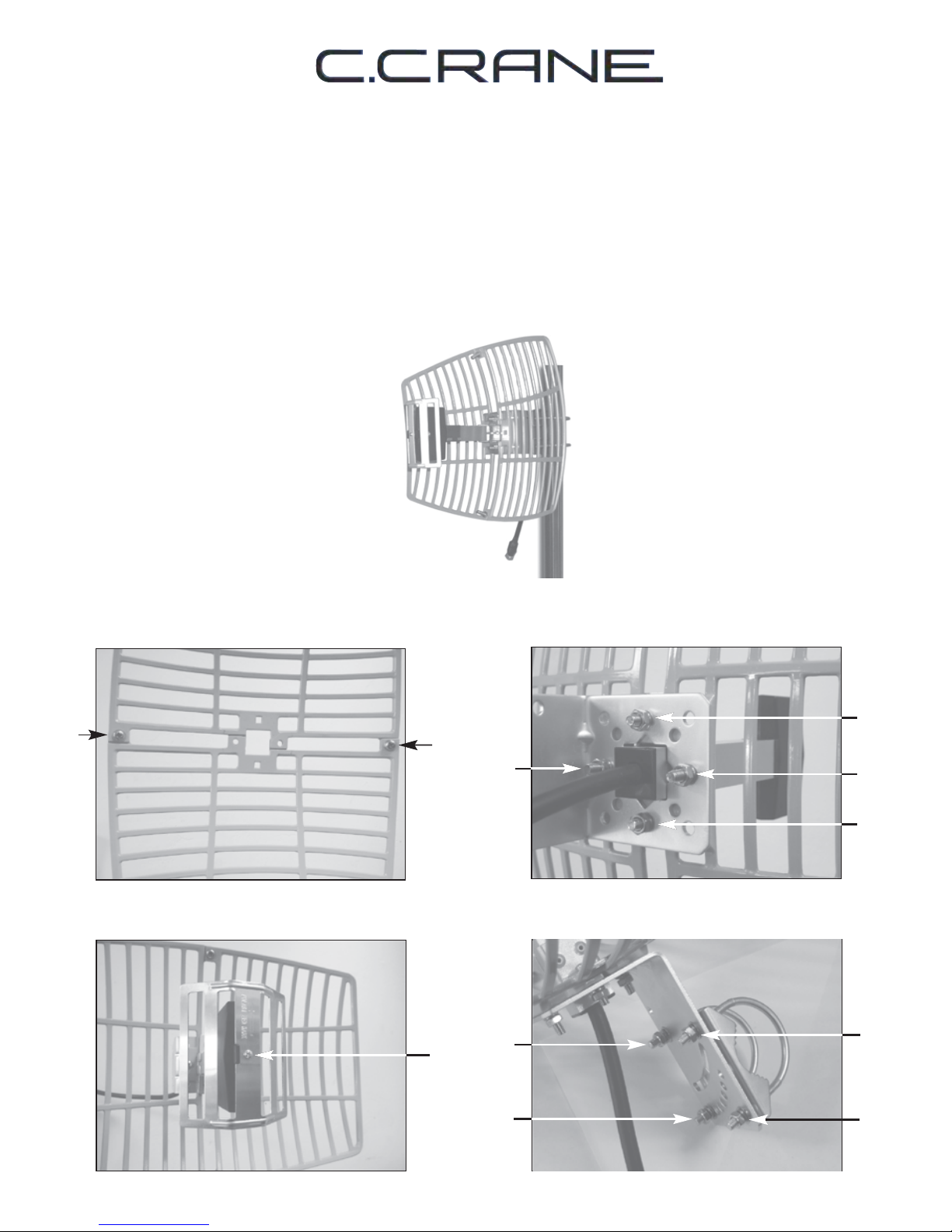

Please follow the pictures below for screw locations and assembly order.

2013 by

C. Crane Company, Inc.

1001 Main St, Fortuna, CA 95540

Phone: 1-800-522-8863 Web: ccrane.com

soever, without permission in writing from C. Crane Company, Inc.

Made in Taiwan

Specifications

Frequency Range 2400-2485 MHz

Gain (co-polar) 15dBi

H-Plane 3dB Beamwidth 16±1 degree

E-Plane 3dB Beamwidth 21±1 degree

Side Lobe Level > -15dB

Front-Back Ratio >20dB

Polarization Horizontal or Vertical

Cross-Polar Discrimination >18dB

Impedance 50Ω

VSWR < 1.5

Maximum Input Power 100W

Connector N Female

Lightning Protection Direct Ground

Dimensions 300mm L × 400mm W

Weight of Antenna 1.5kg

Diameter of Installation Pole Φ30~50mm

Angle of Pitch 0~40 degree

Rated Wind Speed 140km/h

Horizontal Vertical

Safety Instructions for Point -to-Point Antenna

READ BEFORE MOUNTING ANTENNA - SAVE THESE INSTRUCTIONS

1. Read and understand all safety and operating instructions prior to installing the antenna.

Retain Instructions: The safety and operating instructions should be retained for future reference.

2. Water and Moisture: Coaxial sealant around openings and connections of device and antenna will

prevent damage when used outdoors. Use device in a vertical position.

3. Never use a utility pole to mount the device and antenna or to use as a support. Never climb a utility pole.

4. Antenna installations can be dangerous because many times it involves the use of a ladder and a

possible fall. Do Not install antenna on a wet, snowy or windy day or if a thunderstorm is approaching

especially when on top of a building or ladder.

5. The antenna can be struck by lightning, which can be fatal. We recommend a licensed and insured

6. In the event of storms, disconnect the antenna from your device. This will prevent damage caused

by lightning.

7. The installation or dismantling of any antenna near power lines is dangerous. Each year hundreds of

people are killed or injured while attempting to install or dismantle an antenna.

You may need to ground your antenna if you live in

an area prone to lightning.

Never mount an antenna near power lines. If a

power line falls and comes in contact with your

antenna, DO NOT TRY TO REMOVE IT.

Call your local power company.

Installing an antenna on windy days can be

dangerous. Slight winds can create strong forces

against the antenna equipment.

C. Crane is not responsible or liable for damage

or injury resulting from antenna installations.

Before seU

Lighng

Power Lines

Wind

If you have any doubts about your ability to

install your antenna safely, please hire a

licensed, bonded professional to do the work.

Please read these IMPORTANT SAFETY INSTRUCTIONS before use.

It is important to read and understand all instrucons.
