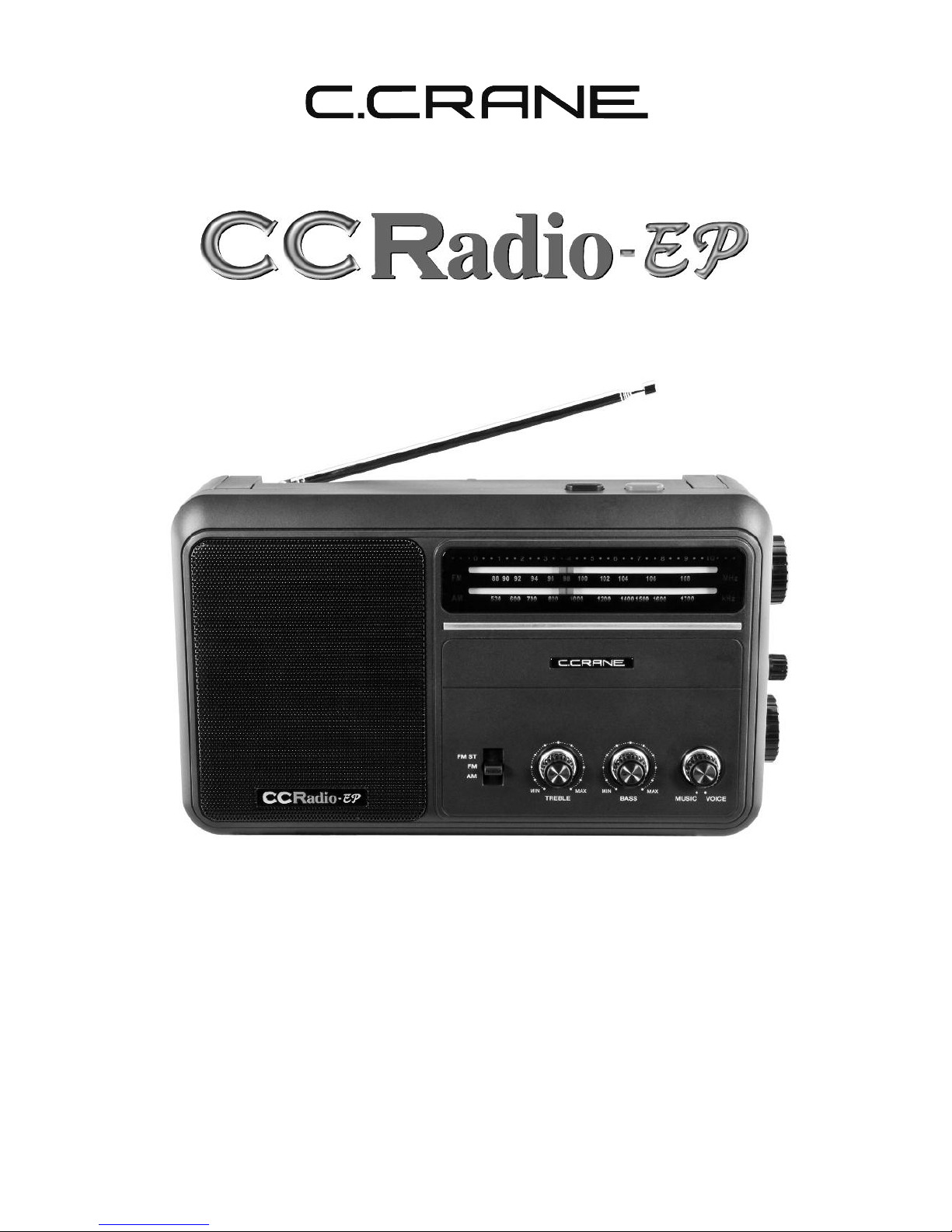

C. Crane CCRadio-EP Bedienungsanleitung

INSTRUCTION MANUAL

PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE

AND SAVE THIS MANUAL FOR FUTURE REFERENCE

Ver. 1.0

WARNING: TO PREVENT FIRE OR ELECTRIC

SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

THE L GHTN NG

FLASH AND ARROW-

HEAD W TH N THE

TR ANGLE S A WARN-

NG S GN ALERT NG

YOU OF “DANGER-

OUS VOLTAGE”

NS DE THE RAD O.

CAUT ON: TO REDUCE THE

R SK OF ELECTR C

SHOCK, DO NOT REMOVE

THE RAD O BACK. NO

USER SERV CEABLE

PARTS NS DE. REFER

SERV C NG TO QUAL F ED

SERV CE PERSONNEL.

THE EXCLAMAT ON

PO NT W TH N THE

TR ANGLE S A WARN-

NG S GN ALERT NG

YOU OF MPORTANT

NSTRUCT ONS

ACCOMPANY NG TH S

RAD O.



ᏘCAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

For your future reference:

Serial No. (found inside battery compartment)

Date of purchase

Name & address of dealer

Before Use

Please read IMPORTANT SAFETY

INSTRUCTIONS on page 11 before

use. It is important to read and

understand all instructions.

Ꮨ

Unpacking ................................................................................. 3

About the CCRadio-EP .......................................................... 4

uick Start Guide .................................................................... 4

Radio Controls and Functions ......................................... 5-6

Getting Started

Powering Your Radio ................................................ 7

AC Operation ............................................................... 7

Installing The Batteries ............................................ 8

Specifications .......................................................................... 9

Troubleshooting Guide ........................................................ 10

Safety Instructions ................................................................ 11

Table of Contents

CCRadio-EP Page 3

The box should contain the CCRadio-EP, the power cord and this man-

ual. f anything is missing or damaged, please contact your dealer

immediately. We recommend you keep the box in the unlikely event

your radio will need servicing.

Unpacking

Page 4 CCRadio-EP

Thank you for purchasing a CCRadio-EP.

t is a radio built specifically for “ease of use” that addresses the desires

of some of our customers. nside it still has the technology we have

developed over the years to help tune in a station clearer and provide

excellent audio. Built-in is the patented Twin Coil Ferrite®AM Antenna.

There is also a large, high quality speaker along with bass and treble

controls so that the audio is accurate and rich. We hope the CCRadio-

EP will give you many years of learning, news and entertainment. f you

have any questions about your radio, please give us a call or email

[email protected].

About the CCRadio-EP

1. nsert AC Power Adapter or 4 “D” batteries (see “Powering Your

Radio” on page 7).

2.Turn the radio on by pressing the red POWER Button on the top of

the radio (see “Radio Controls and Functions” on page 5 for loca-

tion).

3. Adjust the VOLUME Knob to your preferred listening level.

4. Adjust the BAND Switch to either AM, FM, or FM Stereo.

5. For best FM reception, lift, extend and rotate the FM WH P

ANTENNA.

6. Adjust the TUN NG Knob until your desired radio station frequency

is indicated on the dial or until your station has best reception.

7. For best AM reception, rotate the entire radio until station reception

is best. Adjust the MUS C-VO CE Knob for your sound preference.

uick Start Guide

Note: The TW N CO L FERR TE®AM F NE TUN NG Knob comes

locked into position for most listening. Some stations are difficult to tune

and rotating this knob may help for more improvement. To use the

knob, first remove the sticker that secures the knob. When tuning to

another station, remember to return the knob to the “Normal” position

for best results.

CCRadio-EP Page 5

UMUSIC-VOICE Swit h (AM Only)

Adjust for optimal audio clarity

when listening to music or voice.

IBASS Knob

Adjust low pitch tones to your

preferred listening level.

OTREBLE Knob

Adjust high pitch tones to your

preferred listening level.

PBAND SELECTION Swit h

Select between AM, FM, and

FM Stereo.

{FLIP UP HANDLE

For easy portable transportation.

}FM WHIP ANTENNA

Lift and fully extend; rotate for

best FM radio reception.

QDISPLAY LIGHT Button

Use to turn the dial backlight

ON or OFF.

WPOWER Button

Turn the power ON or OFF.

EAM/FM TUNING DIAL

Sliding pointer indicates the

station frequency being

received on AM or FM.

RAM/FM TUNING Knob

Rotate to tune in a radio

station on AM or FM.

TAM FINE TUNING Knob

Rotate for fine tuning once

your station has been selected.

YVOLUME Knob

Rotate to raise or lower the

volume level.

Radio Controls and Functions

UIOP

{}W

Page 6 CCRadio-EP

Radio Controls and Functions

qHEADPHONE Ja k

Use for private listening with

optional headphones or

earbuds. Can also be used

as an audio output for an

optional recording device or

to connect amplified speak-

ers.

wLINE INPUT Ja k

For connecting a portable

music player or other device

which would use radio as

speaker.

ePOWER Ja k

Use to connect AC Adapter

for continuous power to radio.

rANTENNA SELECTION Swit h

Normally keep it set to

“ nternal” except when an exter-

nal antenna is used.

tEXTERNAL AM ANTENNA

CONNECTION AND GROUND

Connect and ground an exter-

nal AM antenna.

yEXTERNAL FM ANTENNA

CONNECTION

Connect an external FM

antenna.

uBATTERY COMPARTMENT

For portable use of the radio,

insert four “D” cell batteries.

CCRadio-EP Page 7

Getting Started

The CCRadio-EP will run on four “D” size NiMH or alkaline batteries or

on 120V AC house current using the included power cord. Batteries are

optional.

Before powering your radio be sure to read

the Safety Instructions on page 11.

Before you plug the AC power adapter into the radio, be sure the AC

voltage is 120Volts/60Hz.

Note: f you have batteries in the radio and you use the AC power cord,

the batteries will automatically be disconnected.

Plug the supplied AC power

adapter into the “DC N 6V”

power jack on the left side of

the radio.

POWERING YOUR RADIO

AC OPERATION



Page 8 CCRadio-EP

Getting Started

1) Position the radio on a soft surface

face down, with the bottom of

the radio facing you.

2) On the battery compartment arrow

marked “OPEN”, use two fingers to

press down and towards you until

the cover slides off.

3) nsert four “D” batteries as shown

in the diagram inside the battery

compartment. Notice that the fourth battery is inserted between the

second and third batteries for easiest insertion. Be sure that the “+”

polarity mark on the batteries point to the right.

4) Replace the battery compartment door by sliding it towards the top

of the radio.

INSTALLING THE BATTERIES

31 2

Note: When the batteries are very low you may notice a decrease in

volume or radio operation has become irregular. Test the radio by using

the AC power adapter to confirm that low batteries are the problem.

Important: Since batteries have been known to sometimes leak, we

recommend removing the batteries when not in use for more than 30

days or if the radio is primarily used with the AC power adapter.

CCRadio-EP Page 9

Specifications

DIMENSIONS

11.4" W x 7.3" H x 2.75" D

WEIGHT

3 pounds without batteries

INPUT POWER

4 “D” size batteries

6V DC 500mA tip negative

AUDIO OUTPUT

1 Watt RMS

SPEAKER

5 Watts 8 Ohms

HEADPHONE JACK

3.5mm 32 Ohms

FRE UENCY COVERAGE

FM Band: 87.00 - 108 MHz

AM (MW) Band: 520 - 1710 kHz

SENSITIVITY

FM > 5uv

MW > 0.2 mV/m

SELECTIVITY

Wide > 40 dB (100x)

Narrow > 60 dB (1000x)

Note: Specifications are subject to change without notice.

Page 10 CCRadio-EP

Troubleshooting Guide

The CCRadio-EP will not turn on:

1. Be sure that the batteries are installed correctly.

2. Make sure all batteries are good.

3. f using the AC Adapter, make sure that it is plugged fully into the

power jack.

The CCRadio-EP has poor reception on FM:

1. Fully extend and rotate the FM whip antenna.

2. Adjust the band switch to “FM” instead of “FM ST” which requires a

better signal.

3. Check the “EXT/ N ANTENNA” switch on the back of the radio for

the proper setting.

4. Consider trying a more powerful external FM antenna like C. Craneʼs

FM Reflect Antenna.

The CCRadio-EP has poor reception on AM:

1. Rotate the radio for the best reception.

2. Try positioning the TW N CO L FERR TE®AM F NE TUN NG Knob

in the “Normal” position. f the reception still needs improvement,

adjust the knob for best station tuning accuracy.

3. Adjust the MUS C-VO CE switch to VO CE for best AM audio clarity.

4. Move the radio away from electronic devices like computers and TV

sets.

5. Use the radio on batteries. Sometimes interference can be transmit-

ted to the radio over the AC power lines.

6. Concrete, brick, and metal buildings can greatly reduce radio recep-

tion. Try the radio outside. f the reception is improved, add an exter-

nal AM antenna like C. Craneʼs Twin Coil Ferrite®AM Antenna.
