CPWIFISW1

WiFi Smart Switch Manual

Features:

•Connects to home WiFi

•Turn devices on and off remotely through the App

•Manage numerous smart switches and other Tuya compatible smart devices from

one App

•Compatible with Amazon Alexa, Google Assistant & Siri (via Shortcuts)

•Set schedules and timers

•Switch device on automatically when you get home (Beta)

•Share access with other users permanently or for a set time period

•Remove access to other users instantly

•Latching or timed mode

•Group device management

•Built in 433.92MHz receiver for remote controls

Specification:

•Input voltage: 7-32Vac/dc or 5V Micro-USB

•Max current load: 10A

•WiFi standard: 2.4GHz, 802.11 b/g/n

•Standby/max current draw: 80mA/115mA

•Dimensions: 73 x 46 x 30mm

Device setup

1. Download the ‘Smart Life’ App by searching in the mobile App stores or

scanning the following QR codes.

2. Create an account in the App, or if you already have an account just login.

3. Supply power to the WiFi switch and wire the relay output to the device you

are controlling.

Reset

Manual switch

External switch interface

Network indicator

Wiring examples

4. Power on the device.

5. Reset the device by pressing the match button for 5 seconds until the red

network LED indicator is flashing quickly every 0.5 seconds (if the network

indicator is already flashing quickly, skip this step).

Light

Set mode to latching

Gate

Set output to inching

mode - 2 secs

Refer to gate panel

manual for Start terminals

6. Add & connect the device in the App

Tap ‘+’ then ‘Add Device’

After a few seconds the device

will be found, tap ‘Add’

Tap ‘+’

Select a 2.4GHz WiFi network,

enter your password and click

‘Next’.

7. Name the device.

8. When the network is disconnected, the switch will automatically change to

Bluetooth control from the phone. (Must be within range).

9. Click the On/Off button on the App to switch the relay and control the device.

App functions

1. Set the following:

Countdown (delay before the output activates)

Weekly schedules (up to 8 per device)

Circulate (set the device to switch on and off on a loop)

Random

Inching (set the output timed) Set to 2 seconds when connecting to a gate, door, garage, etc.

Tap here to enter

function operation

interface.

1. Countdown

Schedule

Circulate

Random

Inching

2. Relay status

RF remote control setup

3. Rename

Offline notification

Third-party control

Share Device

Create group

Remove device

2. Set the following:

Relay status (when the device is switched back on after losing power)

RF remote control setup

Tap Add

When prompted, press the remote control button you want to add within 10 seconds

The message ‘Add Success’ will be displayed

To delete a remote control, swipe it to the left and tap delete

3. Edit device name & location.

Manage third party control, setup Alexa etc.

Share device with other users.

Create a group to control more than one device by a single tap.

Share device with other users

Other users must have a Smart Life account

Tap ‘Share Device’

Tap ‘Add Sharing’

Tap ‘Share with the Account

Smart Life’.

Enter the email or phone number

of the account you want to share

with and click ‘Done’

Tap on the name of the account

you have shared with

Then you can set a validity

period (if required) or unshare

the device

Create smart scenes and setup Siri

Tap ‘Scene’ then ‘+’ or ‘Create

Scene’

Tap ‘Launch Tap-to-Run’

Tap ‘+’

Tap ‘Run the Device’

Select the appropriate switch

Select the name of switch again,

select ‘ON’ and then tap ‘Save’

followed by ‘Next’

Tap the 3 dots to rename the

scene then tap ‘Save’

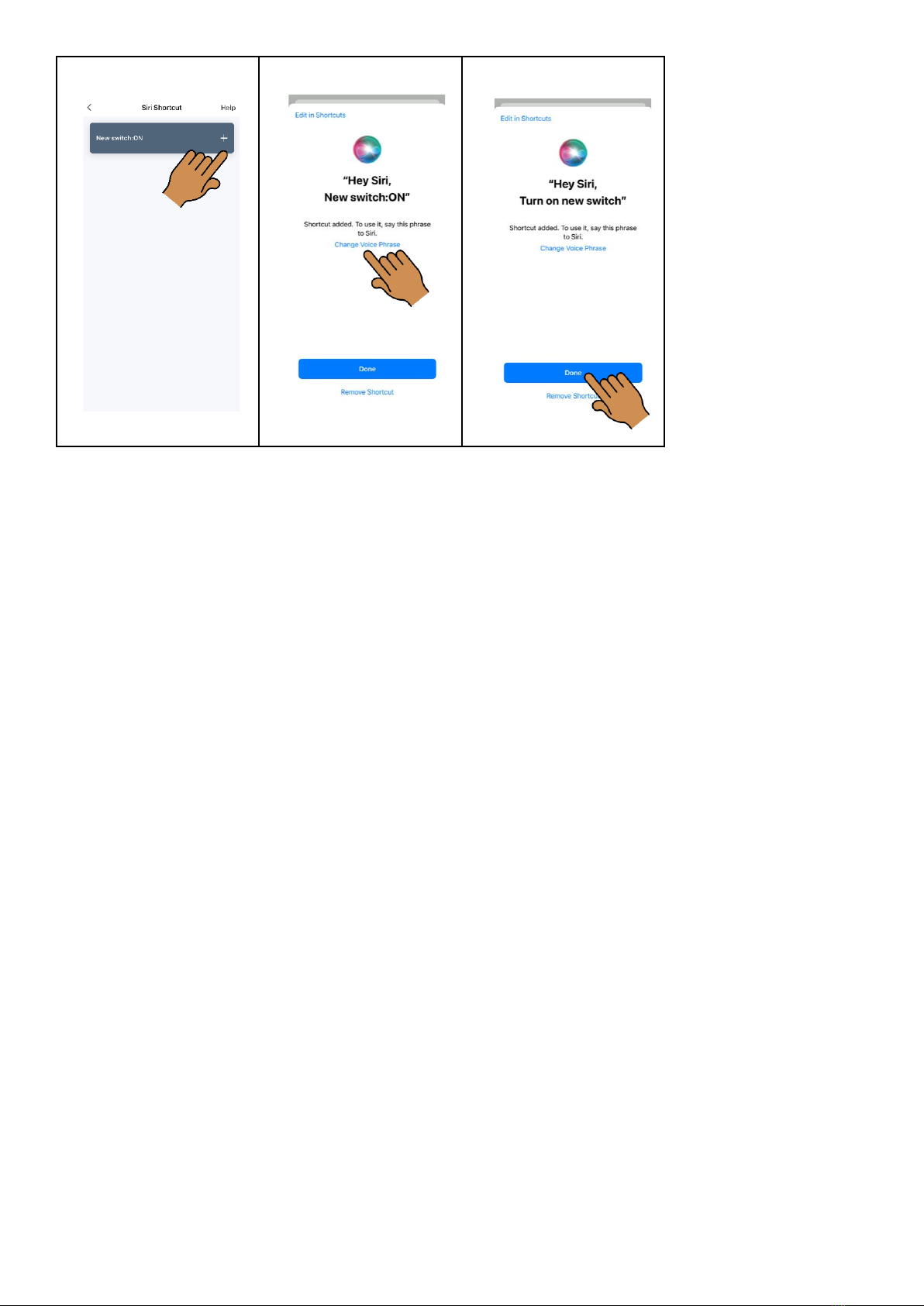

Tap ‘Add to Siri’

Select the scene

Tap ‘Change Voice Phrase’ and

enter the desired phrase

Tap ‘Done’

Please note, to use with Siri on other phones, you must share the ‘Home’ with other accounts, rather

than just the device.

Tap ‘Me’ > ‘Home Management’ > Select the name of the Home > ‘Add Member’

Please also make sure that the ‘Shortcuts’ App is downloaded on the phone.

Setup Alexa

Link Alexa and Smart Life Apps.

You may need to login to

Amazon/Alexa.

In the Alexa App, tap ‘Devices’

then scroll across to ‘All Devices’

Tap the name of the switch

Tap ‘Create a Routine’

Tap the ‘+’

Name the routine. Then tap

‘When this Happens’

Tap ‘Voice’ and enter the

desired voice command. Then

tap ‘Next’

Tap ‘Add Action’

Tap ‘Smart Home’

Tap ‘All devices’

Tap the name of the switch

Tap ‘Power – ON’ then ‘Next’

Save your routine
