CAB AXON 2 Bedienungsanleitung
Original Instructions
AXON 2
MADE IN GERMANY
Labelling System
2 2
Type
Labelling System AXON 2
Edition: 09/2019 - Part No. 9003455
Copyright
This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG.
The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original
intended purpose demand the previous written authorization by cab.
Trademark
Windows is a registered trademark of the Microsoft Corporation.
Editor
Regarding questions or comments please contact cab Produkttechnik GmbH & Co. KG.
Topicality
Due to the constant further development of our products discrepancies between documentation and product can occur.
Please check www.cab.de for the latest update.
Terms and conditions
Deliveries and performances are effected under the General conditions of sale of cab.
Original Instructions
for the following products
Germany
cab Produkttechnik GmbH & Co KG
Karlsruhe
Phone +49 721 6626 0
www.cab.de
USA
cab Technology, Inc.
Chelmsford, MA
Phone +1 978 250 8321
www.cab.de/us
Taiwan
cab Technology Co., Ltd.
Taipei
Phone +886 (02) 8227 3966
www.cab.de/tw
China
cab (Shanghai) Trading Co., Ltd.
Guangzhou
Phone +86 (020) 2831 7358
www.cab.de/cn
France
cab Technologies S.à.r.l.
Niedermodern
Phone +33 388 722501
www.cab.de/fr
Mexico
cab Technology, Inc.
Juárez
Phone +52 656 682 4301
www.cab.de/es
China
cab (Shanghai) Trading Co., Ltd.
Shanghai
Phone +86 (021) 6236 3161
www.cab.de/cn
South Africa
cab Technology (Pty) Ltd.
Randburg
Phone +27 11 886 3580
www.cab.de/za
3
1 Introduction............................................................................................................................................4
1.1 Instructions...............................................................................................................................................4
1.2 Intended Use............................................................................................................................................4
1.3 Safety Instructions....................................................................................................................................5
1.4 Environment.............................................................................................................................................5
2 Installation..............................................................................................................................................6
2.1 Device Overview......................................................................................................................................6
2.2 Setting Up ................................................................................................................................................8
2.3 Connecting...............................................................................................................................................9
2.3.1 Connecting to Power Supply..............................................................................................................9
2.3.2 Connecting to a Computer or Computer Network ..............................................................................9
2.4 Switching on.............................................................................................................................................9
3 Touchscreen Display ...........................................................................................................................10
3.1 Start Screen...........................................................................................................................................10
3.2 Navigation in the Menu ..........................................................................................................................12
4 Loading Material...................................................................................................................................13
4.1 Folding down and up the Applicator.......................................................................................................13
4.2 Loading Media........................................................................................................................................14
4.2.1 Positioning the Media Roll on the Roll Retainer...............................................................................14
4.2.2 Inserting the Media into the Printhead and Fixing the Liner at the Rewinder...................................15
4.2.3 Removing the Wound Liner Roll.......................................................................................................15
4.3 Loading Transfer Ribbon........................................................................................................................16
4.4 Setting the Feed Path of the Transfer Ribbon........................................................................................17
5 Operation..............................................................................................................................................18
5.1 Synchronization of the Paper Feed........................................................................................................18
5.2 Standard Operation................................................................................................................................19
6 Conguration........................................................................................................................................20
7 Cleaning................................................................................................................................................21
7.1 Cleaning Information..............................................................................................................................21
7.2 Cleaning the Print Roller........................................................................................................................21
7.3 Cleaning the Printhead...........................................................................................................................21
8 Fault Correction ...................................................................................................................................22
8.1 Error Display ..........................................................................................................................................22
8.2 Error Messages and Fault Correction....................................................................................................22
8.3 Problem Solution....................................................................................................................................24
9 Technical Data......................................................................................................................................25
10 Licenses................................................................................................................................................26
10.1 EU Declaration of Conformity.................................................................................................................26
10.2 FCC........................................................................................................................................................27
11 Index......................................................................................................................................................28
Table of Contents
4 4
1 Introduction
1.1 Instructions
Important information and instructions in this documentation are designated as follows:
Danger!
Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous
voltages.
!
Danger!
Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury.
!
Warning!
Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury.
!
Caution!
Draws attention to a danger with low risk which, if not avoided, may result in minor or moderate injury.
!
Attention!
Draws attention to potential risks of property damage or loss of quality.
i
Note!
Advices to make work routine easier or on important steps to be carried out.
Environment!
Gives you tips on protecting the environment.
Handling instruction
Reference to section, position, illustration number or document.
Option (accessories, peripheral equipment, special ttings).
Time Information in the display.
1.2 Intended Use
• The device is intended exclusively for printing suitable labels that have been approved by the manufacturer and
applying the labels onto tubes. Any other use or use going beyond this shall be regarded as improper use. The
manufacturer/supplier shall not be liable for damage resulting from unauthorized use; the user shall bear the risk
alone.
• The device is manufactured in accordance with the current technological status and the recognized safety rules.
However, danger to the life and limb of the user or third parties and/or damage to the device and other tangible
assets can arise during use.
• The device may only be used for its intended purpose and if it is in perfect working order, and it must be used with
regard to safety and dangers as stated in that manual.
• Usage for the intended purpose also includes complying with that manual.
i
Note!
This manual describes a labelling system which is already prepared by cab for the customers application.
5
1 Introduction
1.3 Safety Instructions
• The device version for AC power connection is congured for voltages of 100 to 240 V AC. It only has to be
plugged into a grounded socket.
The device version for DC power connection is congured for 24 to 60 V DC.
• Only connect the device to other devices which have a protective low voltage.
• Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting.
• The device may only be used in a dry environment, do not expose it to moisture (sprays of water, mists, etc.).
• Do not use the device in an explosive atmosphere.
• Do not use the device close to high-voltage power lines.
• If the device is operated with the cover open, ensure that people‘s clothing, hair, jewelry etc. do not come into
contact with the exposed rotating parts.
• The device or parts of it can become hot while printing. Do not touch during operation, and allow to cool down
before changing material and before disassembly.
• Risk of crushing when closing the cover. Touch the cover at the outside only. Do not reach into the swivel range of
the cover.
• During operation, rotating parts are freely accessible. Ensure that people‘s clothing, hair, jewelry etc. do not come
into contact with the exposed rotating parts.
• Perform only those actions described in this operating manual.
Work going beyond this may only be performed by trained personnel or service technicians.
• Unauthorized interference with electronic modules or their software can cause malfunctions.
• Other unauthorized work on or modications to the device can also endanger operational safety.
• Always have service work done in a qualied workshop, where the personnel have the technical knowledge and
tools required to do the necessary work.
• There are various warning stickers on the device. They draw your attention to dangers.
Warning stickers must therefore not be removed, as then you and other people cannot be aware of dangers and
may be injured.
• The maximum sound pressure level is less than 70 dB(A).
Danger!
Danger to life and limb from power supply.
Do not open the device casing.
!
Warning!
This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
1.4 Environment
Obsolete devices contain valuable recyclable materials that should be sent for recycling.
Send to suitable collection points, separately from residual waste.
The modular construction of the labelling system enables it to be easily disassembled into its component parts.
Send the parts for recycling.
The electronic circuit board of the device is equipped with a lithium battery.
Take old batteries to collection boxes in shops or public waste disposal centers.
6 6
2 Installation
2.1 Device Overview
3
5
6
7
8
4
1
9
11
2
12
10
1 Cover
2 Margin stop
3 Margin stop
4 Roll retainer
5 Ribbon supply hub
6 Ribbon take-up hub
7 Internal rewinder
8 Print unit
9 Tube applicator
10 Tray
11 Touchscreen Display
12 LED "Power on"
Figure 1 General overview
13
14
15
17
16
18
19
20
21
22
23
13 Ribbon deection
14 Printhead retainer with printhead
15 Guides
16 Allen key
17 Printhead locking lever
18 Label sensor
19 Guide adjusting knob
20 Print roller
21 Dispense plate
22 Rewind assist roller
23 Locking system
Figure 2 Print unit
7
2 Installation

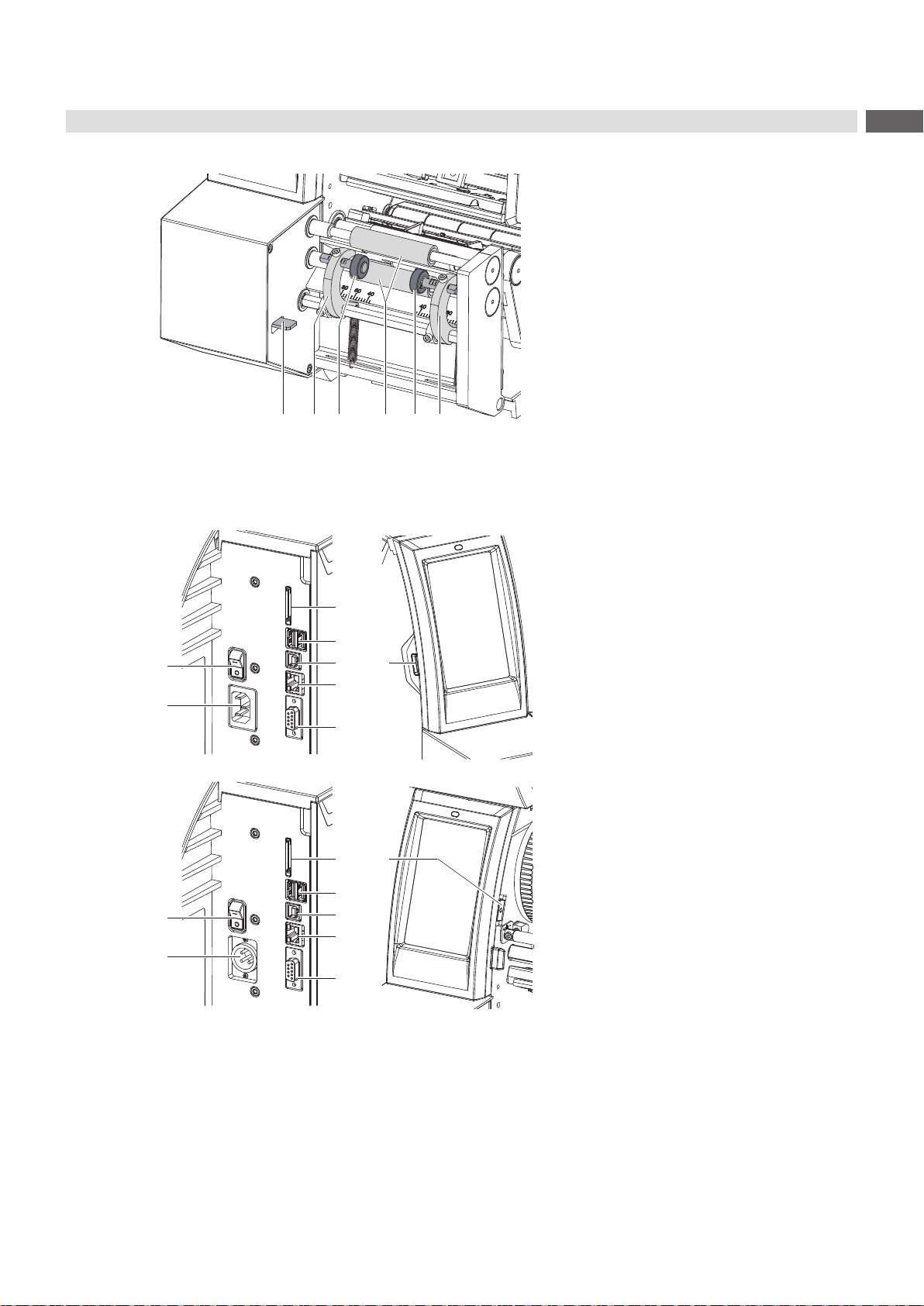

24 2725 2526 26
24 Release lever
25 Swing arm
26 Pressure roller
27 Transport roller
Figure 3 Tube applicator
28
29
32
30
31
34
33 36
28
35
32
30
31
34
33
37
28 Switch ON/OFF
29 Power connector
(devices for 100-240 V AC only)
30 Slot for SD card
31 2 USB host interfaces for keyboard,
barcode scanner, Bluetooth adapter
or WiFi stick
32 USB Hi-speed device interface
33 Ethernet 10/100 Base-T
34 Serial RS-232 port
35 Power connector
(devices for 24-60 V DC only)
36 USB host interface for service key or USB
memory stick
37 USB host interface for WiFi stick
Figure 4 Connections
8 8
2 Installation
2.2 Setting Up
i
Note!
For adjustments and simple installation work, use the accompanying Allen key located in the top section of
the print unit. No other tools are required for the work described here.
i
Note!
Please keep the original packaging in case the printer must be returned.
!
Attention!
The device and printing materials will be damaged by moisture and wetness.
Set up label printers only in dry locations protected from splash water.
Lift the labelling system out of the box.
Check the labelling system for damage which may have occurred during transport.
Remove foam transportation safeguards near the printhead.
Check delivery for completeness.
Contents of delivery:
• Labelling system consisting of label printer and tube applicator
• Tray (optional)
• Power cable (for AC devices only)
• USB cable
• Instructions
• DVD with label software, Windows driver and documentation
Set up the labelling system on a level surface.
Push the tray (1) under the applicator and t it at the axle (2).
1 2
Figure 5 Fitting the tray
9
2 Installation
2.3 Connecting
The standard available interfaces and connectors are shown in Figure 4.
2.3.1 Connecting to Power Supply
2
1
3
1
Figure 6 Connecting to power supply
Devices for 100-240 V AC
1. Check that the device is switched off.
2. Plug the power cable into the power connection socket (2).
3. Plug the power cable into a grounded socket.
Devices for 24-60 V DC
1. Check that the device is switched off.
2. Connect a suitable cable with XLR3 socket at the connector (3).
Pin 1: -
Pin 2: GND
Pin 3: 24 - 60 V
3. Connect the cable to a DC power supply.
2.3.2 Connecting to a Computer or Computer Network
!
Attention!
Inadequate or no grounding can cause malfunctions during operations.
Ensure that all computers and cables connected to the label labelling system are grounded.
Connect the label labelling system to a computer or network by a suitable cable.
For details of the conguration of the individual interfaces Conguration Manual.
2.4 Switching on
When all connections have been made:
Switch the labelling system on at the switch (1).
The labelling system performs a system test, and then shows the system status Ready in the display (11/Figure 1) .
The pressure rollers move in to the put-in position.
10 10
3 Touchscreen Display
The user can control the operation of the labelling system with the control panel, for example:
• Issuing, interrupting, continuing and canceling print jobs,
• Setting printing parameters, e.g. heat level of the printhead, print speed, interface conguration, language and
time of day ( Conguration Manual),
• Control stand-alone operation with a memory module ( Conguration Manual),
• Update the rmware ( Conguration Manual).
Many functions and settings can also be controlled by software applications or by direct programming with a
computer using the printer’s own commands. Programming Manual for details.
Settings made on the touchscreen display make the basic settings of the label labelling system.
i
Note!
It is advantageous, whenever possible, to make adaptations to various print jobs in the software.
3.1 Start Screen
After switching on During printing After print job
Figure 7 Start screen
The touchscreen display is operated directly by touch:
• To open a menu or select a menu item lightly touch the corresponding symbol.
• To scroll in lists slide nger up or down on the display.
Open the menu Repeat the last printed label
Interrupt the print job Cancel all print jobs
Continue the print job Feed a blank label
Release printing of a single label within
a print job including labelling
Table 1 Symbols on the start screen
i
Note!
Inactive symbols are shaded.
Andere Handbücher für AXON 2
1
Inhaltsverzeichnis
Andere CAB Etikettendrucker Handbücher
CAB
CAB MACH4 Bedienungsanleitung
CAB
CAB A Series Bedienungsanleitung
CAB
CAB e4 Bedienungsanleitung
CAB
CAB Gemini Bedienungsanleitung
CAB
CAB Hermes C Series Bedienungsanleitung
CAB
CAB eos 1 Merkblatt
CAB
CAB HS 150 Bedienungsanleitung
CAB
CAB EOS Series Bedienungsanleitung
CAB
CAB SQUIX Bedienungsanleitung
CAB
CAB MACH4 Bedienungsanleitung
CAB
CAB 5426C Bedienungsanleitung
CAB
CAB SQUIX Series Merkblatt
CAB
CAB A+ Betriebsanleitung
CAB
CAB SQUIX Merkblatt
CAB
CAB EOS2 Bedienungsanleitung
CAB
CAB XD4M Bedienungsanleitung
CAB
CAB MACH 4.3S/200B Bedienungsanleitung
CAB
CAB MACH 4.3S/200B Bedienungsanleitung
CAB
CAB XD4M/300 Bedienungsanleitung
CAB
CAB HS Series Bedienungsanleitung
