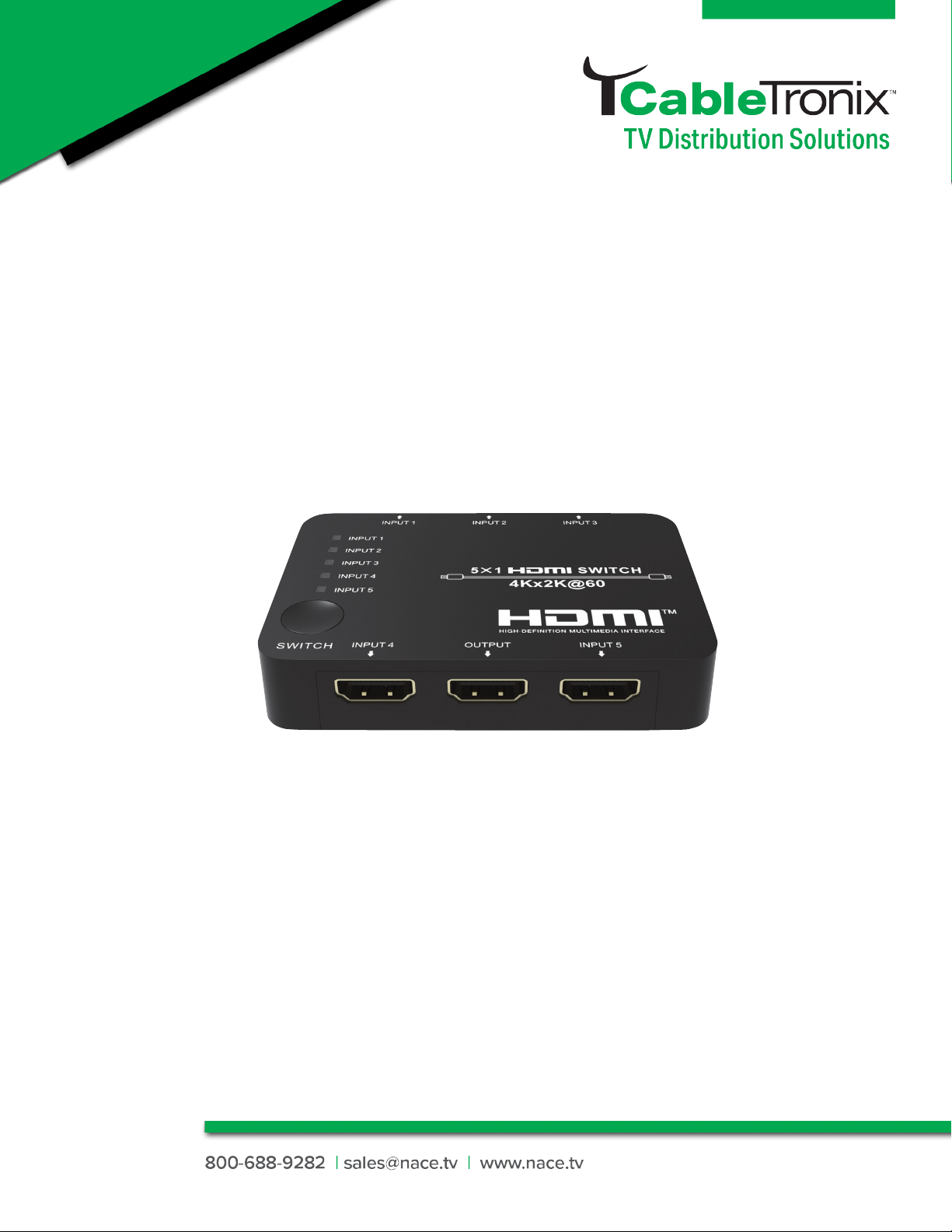

CT-HDVD-5X1-MINI
User Manual
CT-HDVD-5X1-MINI Manual
2
Table of Contents
1.0. Introduction.......................................................................................................................... 3
2.0. Features. ............................................................................................................................. 3
3.0. Package Contents. .............................................................................................................. 3
4.0. Specications. ..................................................................................................................... 4
5.0. Operation Controls and Functions....................................................................................... 5
6.0. Remote Control. .................................................................................................................. 6
7.0. Application Example. ........................................................................................................... 7
8.0. Warranty ...........................................................................................................................8-9
Safety
For optimum performance and safety, please read these instructions carefully before connect-
ing, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
CT-HDVD-5X1-MINI Manual
3
3.0 Package Content
Before attempting to use this unit, please check the packaging and make sure the following
items are contained in the shipping carton:
• 1 x HDMI 5 x1 Switcher
• 1 x IR Receiver Cable
• 1 x 5V USB Power Cable
• 1 x Remote Control
• 1 x User Manual
1.0 Introduction
The 4K HDMI 5 Port Switch can switch any of the 5 HDMI sources to 1 HDMI display. Support-
ed video resolution up to 4K2K@50/ 60Hz YCbCr 4:4:4. This product supports HDR, HDR10,
Dolby Vision and HLG. It supports all 3D video formats. Boasting a low power consumption
and small form factor, this device can be controlled via the front panel button or remote control
included in the box. Fully supports HDCP content protection pass-through.
2.0 Features
• HDCP 2.2/1.x and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• HDR, HDR10, Dolby Vision and HLG are supported
• Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
• Support 3D video format
• Low power consumption
• Support IR remote control and panel button control
• Compact design for easy and exible installation
CT-HDVD-5X1-MINI Manual
4
4.0 Specications
Technical
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4k2k@60Hz
Color Depth 8-bit (4K60Hz)
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
HDMI Audio Formats PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby
True HD, DTS-HD Master Audio
ESD Protection Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Input Ports 5 x HDMI Type A (19 pin female),
1 x IR in 3.5mm Audio Jack
Output Ports 1 x HDMI Type A (19 pin female)
Mechanical
Housing Plastic Enclosure
Silkscreen Color Black
Dimensions 3.4” x 2.34” x 0.74” (87 x 59.5 x 19mm)
Weight 0.13 lbs (60 g)
Power Supply Input: DC 5V/1A
Power Consumption 1.5W
Operation Temperature 32 - 104°F (0 - 40°C)
Storage Temperature -4°F - 140°F (-20 - 60°C)
Relative Humidity 20 - 90% RH (non-condensing)
Warranty 1 year - Can be extended to 3 years
CT-HDVD-5X1-MINI Manual
5

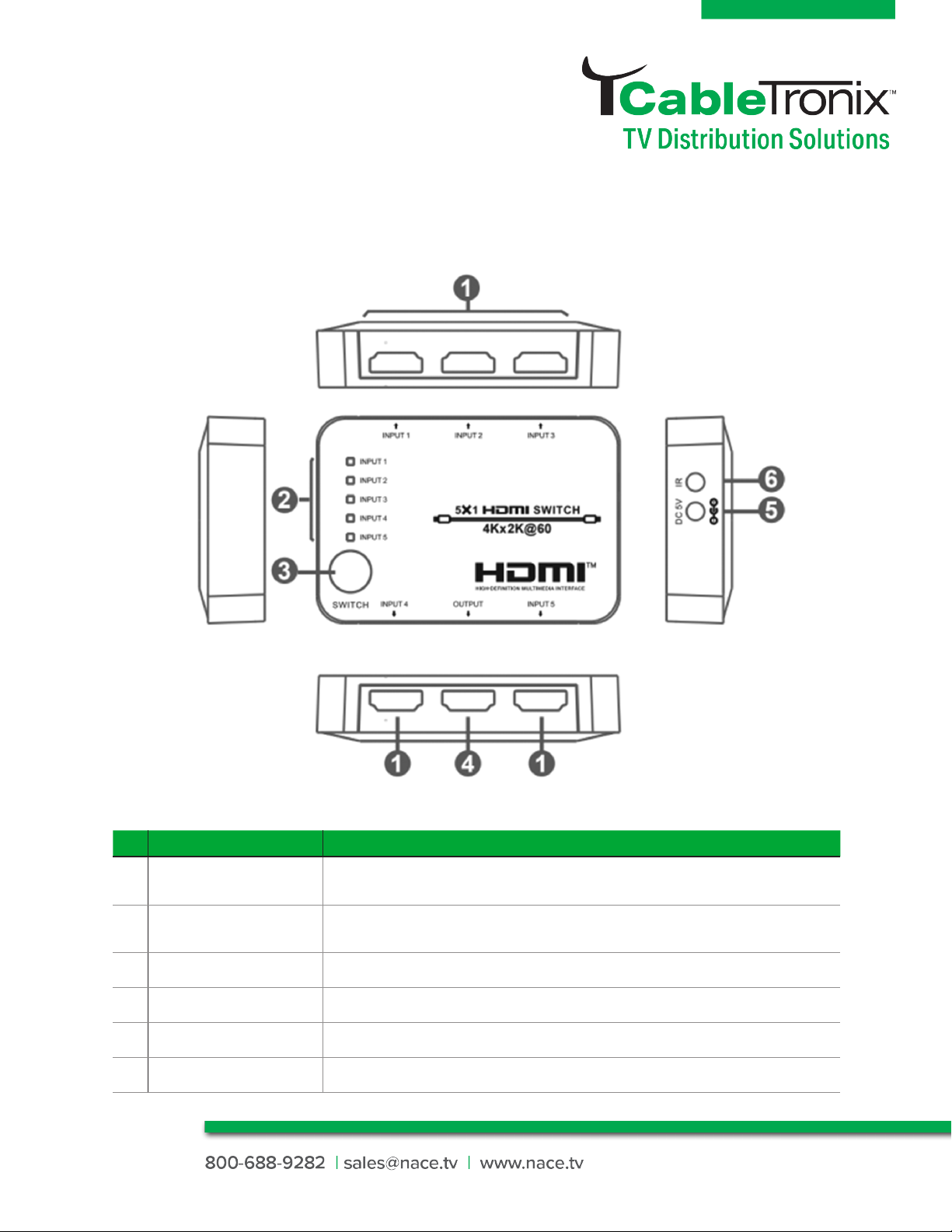

5.0 Operation Controls and Functions
No Name Function Description
1 HDMI INPUT (1/2/3/4/5) Connect to HDMI source devices such as DVD or Blu Ray player with an
HDMI cable.
2 INPUT 1/2/3/4/5 LED The corresponding LED will illuminate when the HDMI input port connects an
active source device.
3 SWITCH button Press this button to switch HDMI source signal for the HDMI OUTPUT.
4 HDMI OUTPUT Connect to one HDMI display device such as HDTV or Monitor with an HDMI cable.
5 DC 5V DC 5V power input interface.
6 IR IN Connect IR Receiver cable to receive the remote control signal.
CT-HDVD-5X1-MINI Manual
6

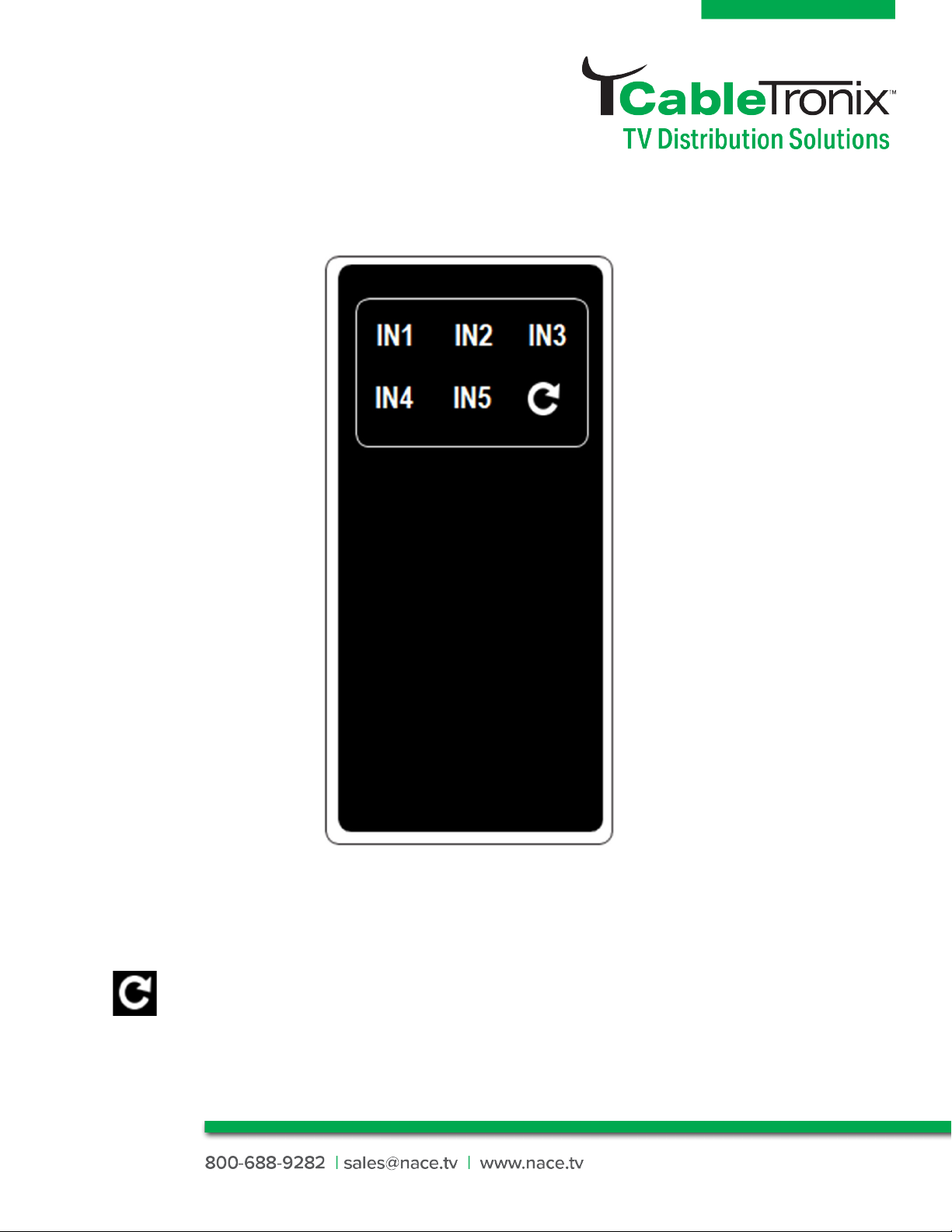

6.0 Remote Control
IN1/IN2/IN3/IN4/IN5: Press IN1/IN2/IN3/IN4/IN5 button to switch HDMI source signal to output
display, and the corresponding LED will illuminate.
Press this button to cyclically select input source to output display.
CT-HDVD-5X1-MINI Manual
7
7.0 Application Example
CT-HDVD-5X1-MINI Manual
8
8.0 CableTronix 1-Year Limited Warranty
CABLETRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is
free from defects in workmanship or material under normal use. This warranty starts on the date
of shipment of the hardware to the Original Purchaser.
During the warranty period, the Company agrees to repair or replace, at its sole option, without
charge to Original Purchaser, any defective component. To obtain service, the Original Purchas-
er must return the item to the Company properly packaged for shipping. All defective products
must be returned to the Company within thirty (30) days of failure. Products must be returned
with a description of the failure and Return Merchandise Authorization (RMA) number supplied
by the Company. To receive a RMA number and a return shipping address on where to deliver
the hardware, call 610-429-1821. The shipping, and insurance charges incurred in shipping to
the Company will be paid by Original Purchaser, and all risk for the hardware shall remain with
the Original Purchaser until such time as Company takes receipt of the hardware. Upon re-
ceipt, the Company will promptly repair or replace the defective unit, and then return said unit to
Original Purchaser, shipping prepaid. The Company may use reconditioned or like-new parts or
units, at its sole option, when repairing any hardware. Repaired products shall carry the same
amount of outstanding warranty as from original purchase. Any claim under the warranty must
include dated proof of purchase or invoice. In any event, the Company’s liability for defective
hardware is limited to repairing or replacing the hardware.
his warranty is contingent upon proper use of the hardware by Original Purchaser and does
not cover: if damage is due to Acts of God (including re, ood, earthquake, storm, hurricane or
other natural disaster), accident, unusual physical, electrical, or electromechanical stress, mod-
ications, neglect, misuse, operation with media not approved by the Company, tampering with
or altering of the hardware, riot, war, invasion, act of foreign enemies, hostilities (regardless of
whether war is declared), civil war, rebellion, revolution, insurrection, military or usurped power
or conscation, terrorist activities, nationalization, government sanction, blockage, embargo,
labor dispute, strike, lockout or interruption or failure of electricity, air conditioning, or humidity
control, Internet, network, or telephone service.
The warranties given herein, together with any implied warranties covering the hardware,
including any warranties of merchantability or tness for a particular purpose, are limited in
duration to one year from the date of shipment to the Original Purchaser. Jurisdictions vary with
regard to the enforceability of warranty limitations, and you should check the laws of your local
jurisdiction to nd out whether the above limitation applies to you.
CT-HDVD-5X1-MINI Manual
9
The Company shall not be liable to you for loss of data, loss of prots, lost savings, special, inci-
dental, consequential, indirect, or other similar damages arising from breach of warranty, breach
of contract, negligence, or other legal action even if the Company or its agent has been ad-
vised of the possibility of such damages, or for any claim brought against your by another party.
Jurisdictions vary with regard to the enforceability of provisions excluding or limiting liability for
incidental or consequential damages. You should check the laws of your local jurisdiction to nd
out whether the above exclusion applies to you.
This warranty allocates risks of product failure between Original Purchaser and the Company.
The Company’s hardware pricing reects this allocation of risk and the limitations of liability
contained in this warranty. The warranty set forth above is in lieu of all other express warran-
ties, whether oral or written. The agents, employees, distributors, and dealers of the Company
are not authorized to make modication to this warranty, or additional warranties binding on
the Company. Accordingly, additional statements such as dealer advertising or presentations,
whether oral or written, do not constitute warranties by the Company and should not be relied
upon.
This warranty gives you specic legal rights. You may also have other rights which vary from
one jurisdiction to another.
