Cables to Go 29550 Bedienungsanleitung
Video Splitter Extender
User’s Manual
Boost and transmit your VGA video
signal to multiple Monitors
#29550- 2 Port
#29551- 4 Port
#29552- 8 Port
User's Manual
Introduction ………………………….
Break the limits of SVGA with a VSE from Cables To Go.
Simultaneously distribute any video signal to up to 8
different video outputs, while maintaining vivid picture
quality. The VSE is powerful, yet easy to use. Superb
high bandwidth circuit enables high-resolution VGA
signals of up to 350MHz to be displayed on multiple
monitors. Connect the cables, and you’re ready to go!
There is no software or complicated interface cards to
install. The VSE not only distributes, but also boosts
your high-resolution video signal up to 210 feet.
Application: ………………………….
zpresentations
zexhibits
zdemonstration
ztrade shows
zmonitor testing and burn-in
zbusiness meetings
Features ………………………………
zDuplicate one VGA input to multiple VGA outputs.
zEffective transmission distance: 65M (210ft)*
zAutomatic power-save when VGA input is lost.
zApplicable to VGA, SVGA and multi-sync monitors.
zCascaded operation for increased VGA outputs.
zCrisp clear VGA images
*With Optional UL-2919 rated VGA cables.
Connection …………………………….
One HDB15 male-to-female (M/F) cable is required to
connect from the Video Splitter Input to a computer's VGA
output. Multiple monitors should be connected to the
Video Splitter's output ports as shown below.

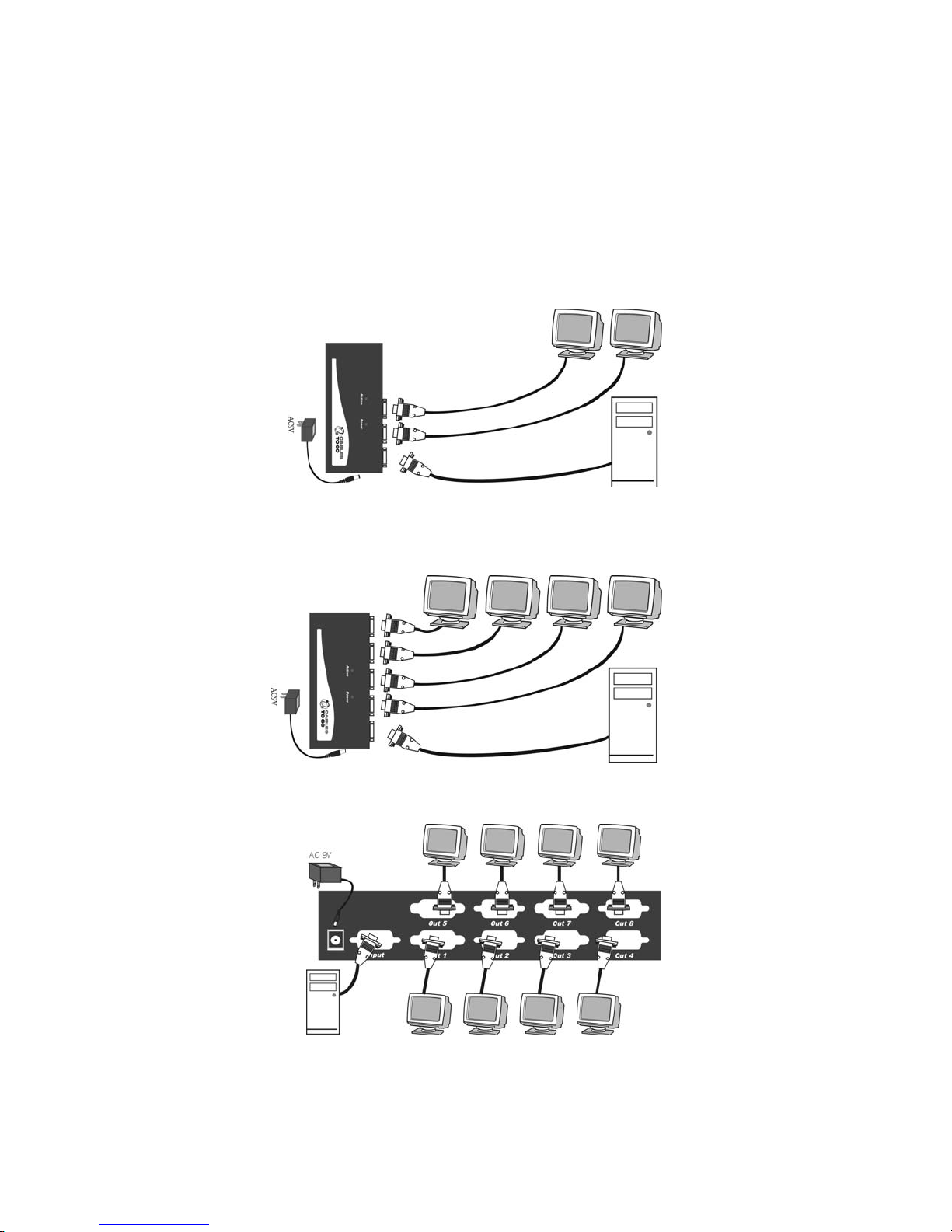

Figure 1 : 29550 Connection
Figure 2 : 29551 Connection
Figure 3 : 29552 Connection
Operation ………………………………
►ACTIVE LED turns on when there is VGA signal at the
Input port.
►POWER LED turns on when the Video Splitter is
powered up by the AC 9V power adapter.
Specifications ………………………...
Function 29550 29551 29552
Number of VGA
output 2 4 8
Signal bandwidth 350MHz 300MHz
Signal type VGA, SVGA, Multi-sync
LED POWER (green) x 1
ACTIVE (amber) x 1
Cable length 65M (210ft) Max.
HDB15 male x 1Connector - Input
-Output HDB15
female x 2 HDB15
female x 4 HDB15
female x 8
Power consumption AC 9V, 600mA, normal operation
10mA, power-save mode
Enclosure Metal
Weight 400g 428g 720g
Dimension (mm) 20 x 85 x 180 40x196 x70
Optional Cables……………………...
Description M/F M/M
6ft PRO SERIES HD15 UXGAMONITOR CABLE 28001 28011
10ft PRO SERIES HD15 UXGAMONITOR CABLE 28002 28012
15ft PRO SERIES HD15 UXGAMONITOR CABLE 28003 28013
25ft PRO SERIES HD15 UXGAMONITOR CABLE 28004 28014
35ft PRO SERIES HD15 UXGAMONITOR CABLE 28005 28015
50ft PRO SERIES HD15 UXGAMONITOR CABLE 28006 28016
75ft PRO SERIES HD15 UXGAMONITOR CABLE 28007 28017
100ft PRO SERIES HD15 UXGAMONITOR CABLE 28008 28018
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S
LIABILITY FOR DIRECT OR INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS
OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL
LOSS WHICH MAY BE CAUSED BY THE USE OF THE
PRODUCT EXCEEDS THE PRICE PAID FOR THE
PRODUCT.
The direct vendor makes no warranty or representation, expressed
or implied with respect to the contents or use of this
documentation, and especially disclaims its quality, performance,
merchantability, or fitness for any particular purpose.
The direct vendor also reserves the right to revise or update the
product or documentation without obligation to notify any user of
such revisions or updates. For further information, please contact
your direct vendor.
All the brand names and registered trademarks are the property of
their respective owners.
1501 Webster Street
Dayton, Ohio 45404
1-800-293-4970
www.cablestogo.com
Copyright 02/2007 Cables To Go
CTG-V29550-100
Printed in Taiwan
PP5-V7100-215
