MiNi HDMI Amplifier Switcher 5×1
１
MINI HDMI Amplifier Switcher
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This is a kind of high performance MINI HDMI Amplifier Switcher. This kind of
HDMI Amplifier Switcher not only has the key-press-switching function, but also
has the IR remote control and intelligent function. That is to say, as soon as the
power supply of the source equipment is switched, this switcher will respond
automatically. In addition, it is equipped with standard IR extender receiver: safe
and convenient.

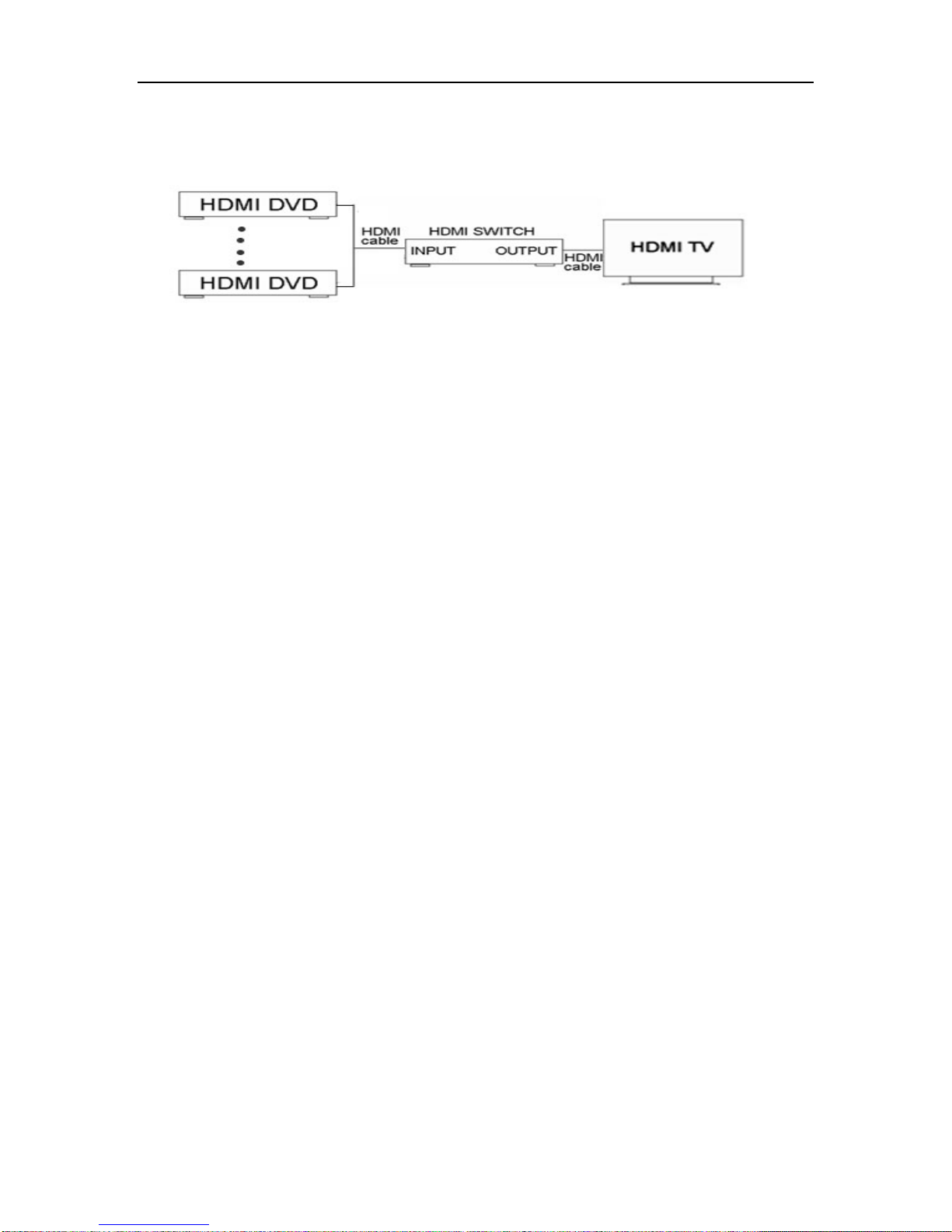

This kind of HDMI Amplifier Switcher routes high definition video (in multiple
resolutions up to 1080p) and digital audio from any one of the several sources to
display units. All inputs accommodate the connections of the high definition video
sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360
etc. The output sends the high definition audio/video signals to a high definition
display.
1.1 INTELLIGENT FUNCTION
1) When supplied with power, this switcher will select the power-on source device
depending on the sequence automatically (input1>inout2>input3>input4>input5)
2) Once the source device is turned on or plugged in (should stay power-on
mode), the switcher will automatically select this source.
3)Once the source device is turned off or plugged out, the switcher will
automatically select the next power-on source depending on the sequence
automatically(input1>inout2>input3>input4>input5 )
Note:
1) When the source devices are on the stand-by mode, its power supply should
be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.
1.2 FEATURES
This MiNi HDMI Amplifier Switcher has many features that enable it to perform in
a superior manner. Among those features you will find:
zMultifunctional on switching : intelligent or mechanical
zIR extender receiver (included)
zIR remote(included)
zSupport HDMI1.3b
zSupport highest video resolution 1080p.
