California Air Tools 4610S Bedienungsanleitung

ULTRA QUIET & OIL FREE

AIR COMPRESSOR

OWNER'S MANUAL

CALIFORNIA AIR TOOLS

4610S

1.0 HP

3.10 CFM @ 40 PSI

2.20 CFM @ 90 PSI

4.6 GALLON STEEL TANK

WWW.CALIFORNIAAIRTOOLS.COM Customer Support 1-866-409-4581

2 Customer Support: 1-866-409-4581
AIR COMPRESSOR
TABLE OF CONTENTS

INTRODUCTION __________________________________2
IMPORTANT SAFETY INSTRUCTIONS _______________3
LOCATIONS OF IMPORTANT LABELS _______________6
AIR COMPRESSOR COMPONENTS__________________7
PRE-OPERATION CHECKLIST ______________________8
Package Contents & Assembly____________________8
Inspect for Damage _____________________________9
Save Packaging ________________________________9
Compressor Location ___________________________9
Electrical Power _______________________________10
OPERATING THE AIR COMPRESSOR _______________10
Introduction __________________________________10
Assembly ____________________________________10
Test Run _____________________________________11
Daily Operation ________________________________11
MAINTENANCE _________________________________12
Draining the Air Tank ___________________________12
Changing the Air Filter__________________________12
Testing for Leaks ______________________________12
Pressure Switch _______________________________12
Cleaning _____________________________________12
STORAGE ______________________________________12
TROUBLESHOOTING ____________________________13
SPECIFICATIONS________________________________14
Electrical Circuit _______________________________14
Air Passage Drawing ___________________________14
WARRANTY ____________________________________15
PRODUCT REGISTRATION________________________17

INTRODUCTION





Thank you for purchasing a California Air Tools, Inc.
Air Compressor.
Please contact us if you have any questions.

Record the model and serial numbers indicated on your
air compressor’s nameplate:
Model No. ________________________________________
Serial No. ________________________________________
Date of Purchase: _________________________________
Store/Dealer: _____________________________________



Customer Support: 1-866-409-4581

AIR COMPRESSOR

How to find a local service center:

Even quality built equipment might need service or repair parts.

Contact the California Air Tools Customer Service Department:

Phone: 1-866-409-4581

Online: WWW.CALIFORNIAAIRTOOLS.COM

Please provide the information below:

Model number and Serial number and specifications shown on the

Model number/Serial number plate.

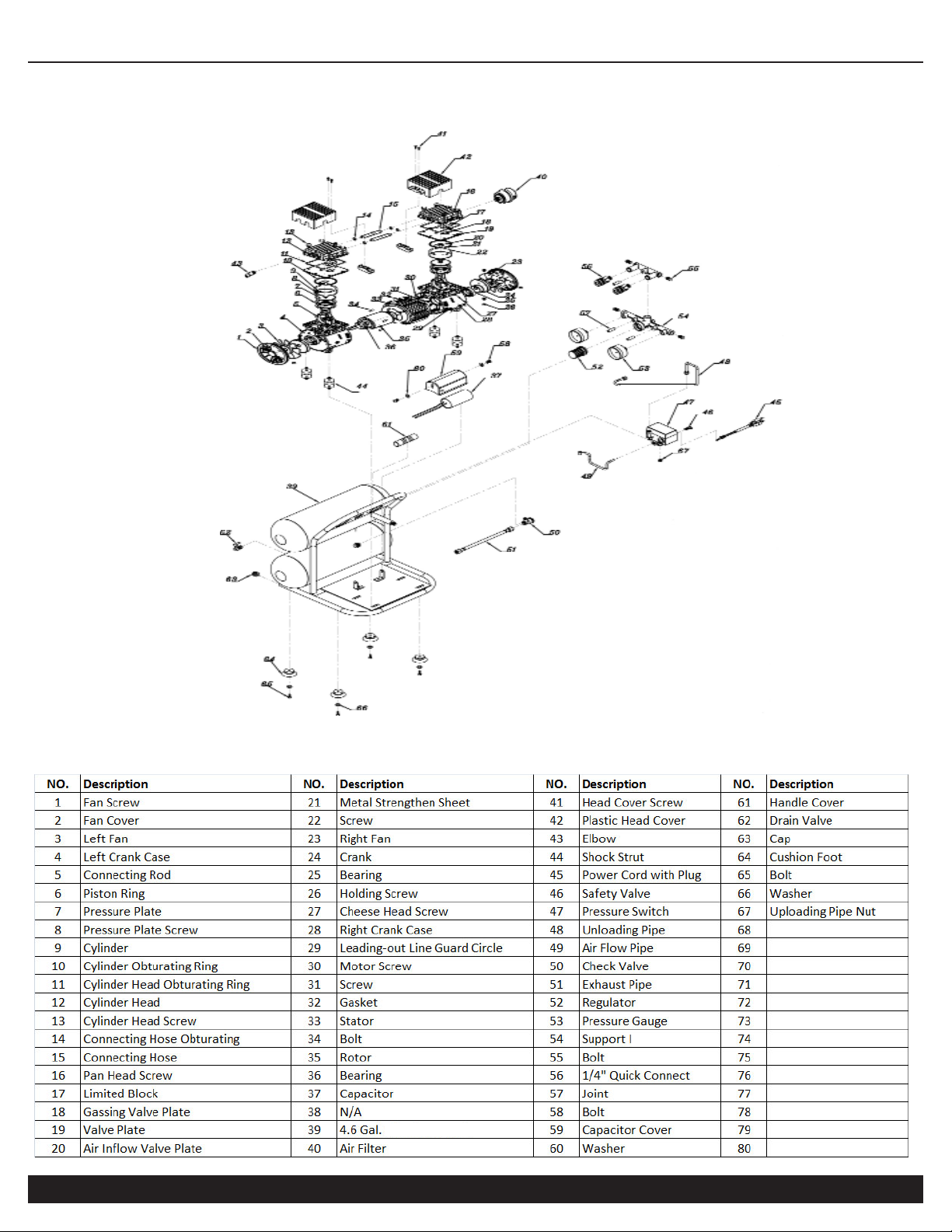

Part number or numbers shown in the parts list section of the

owner’s manual for your air compressor model.

A brief description of the trouble with the air compressor.

Do not return your air compressor for service or parts to the

store/dealer where purchased.

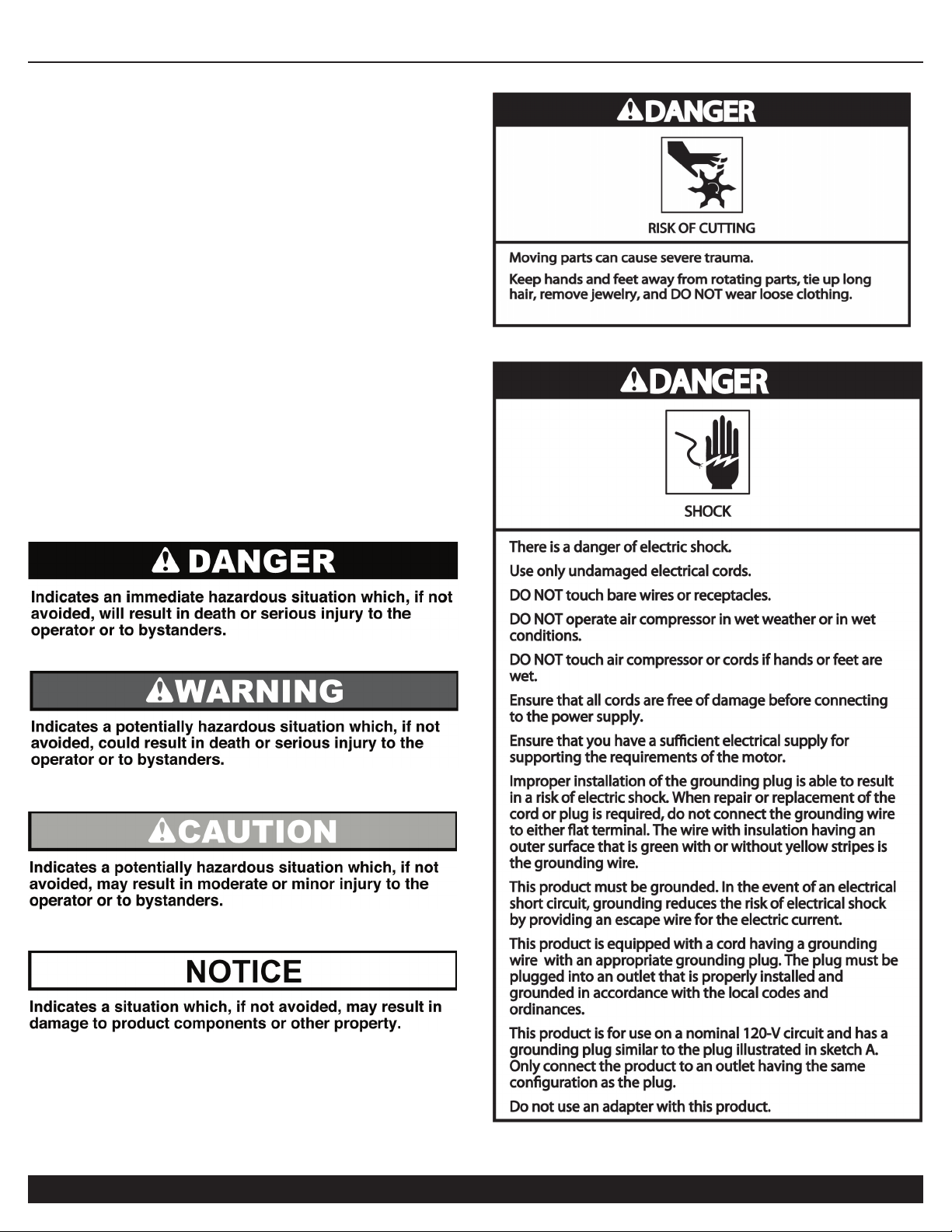

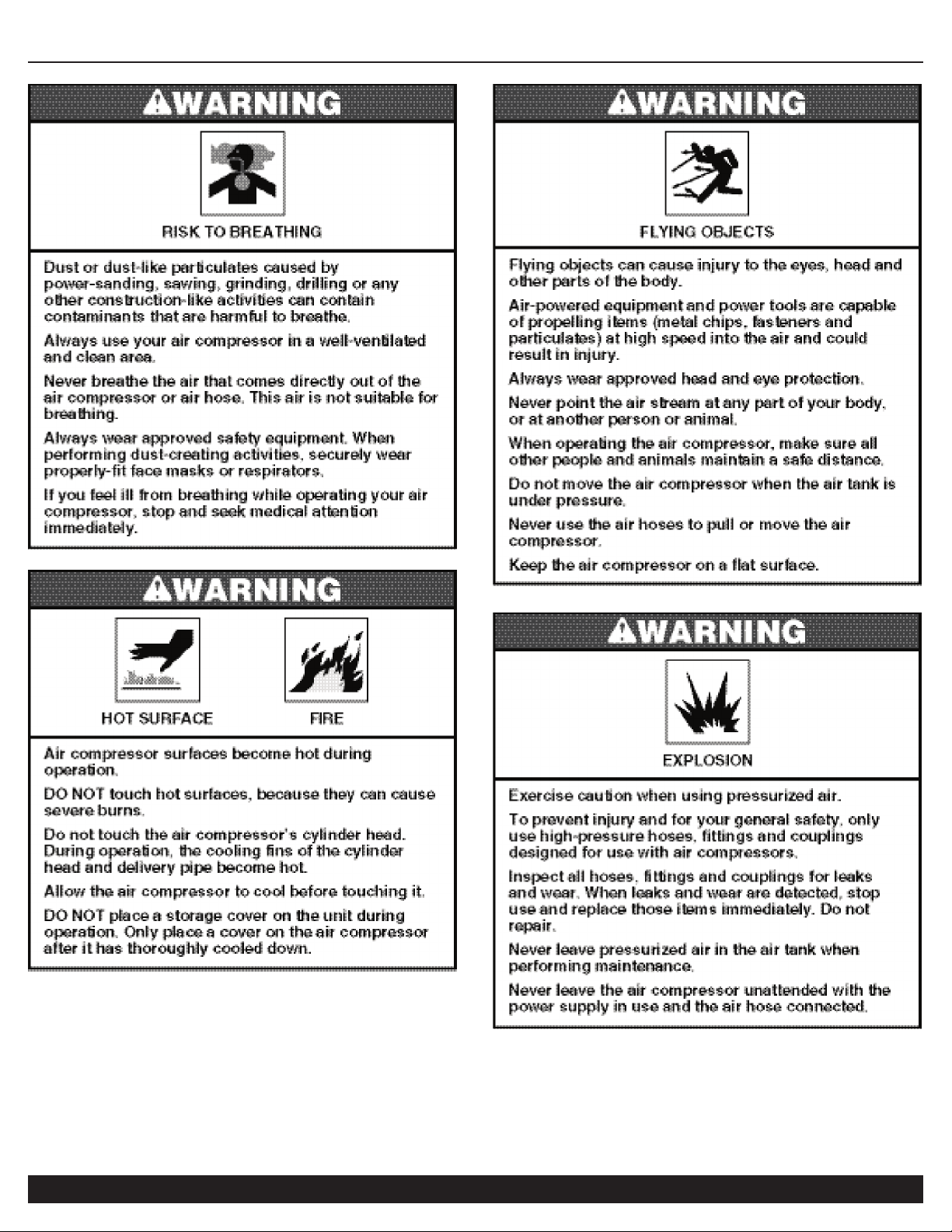

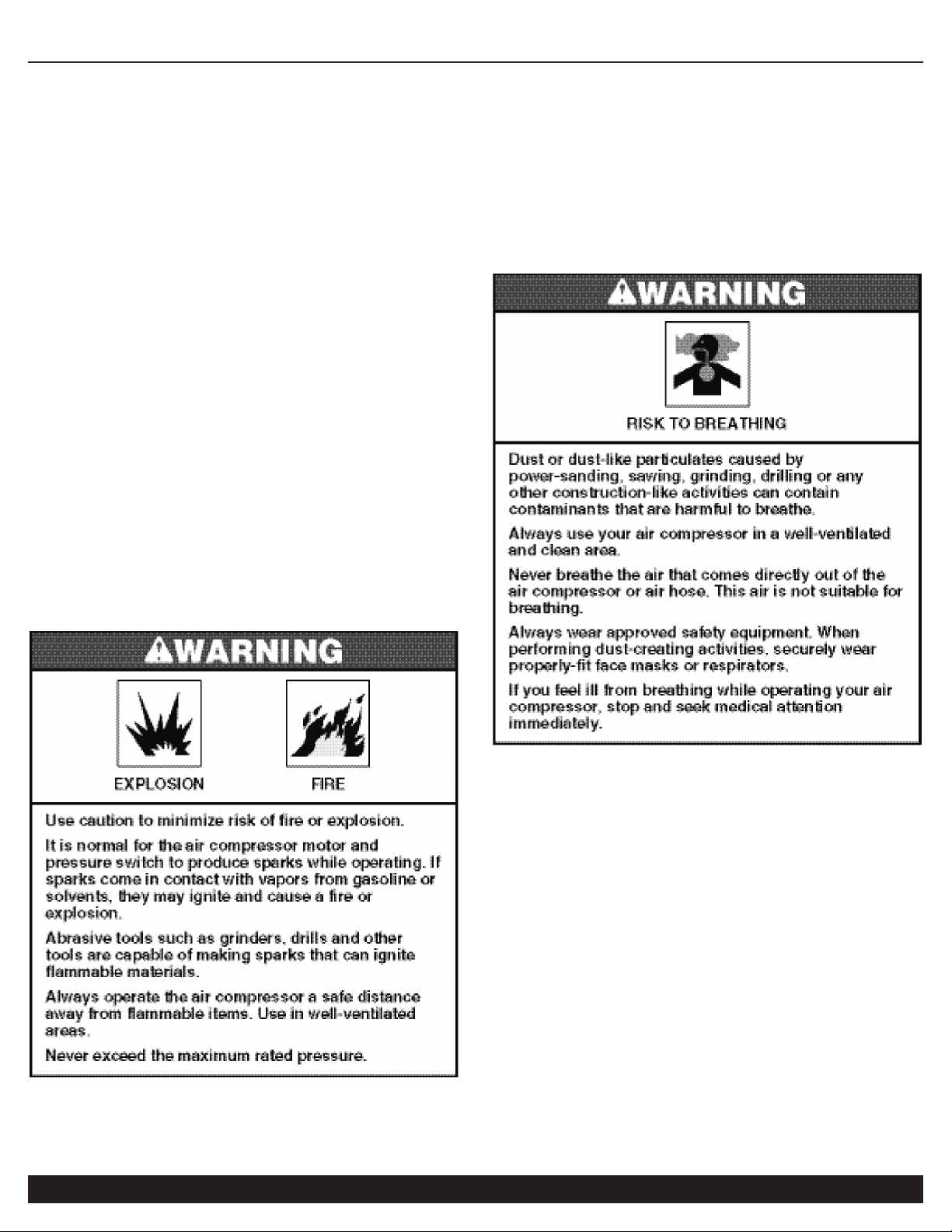

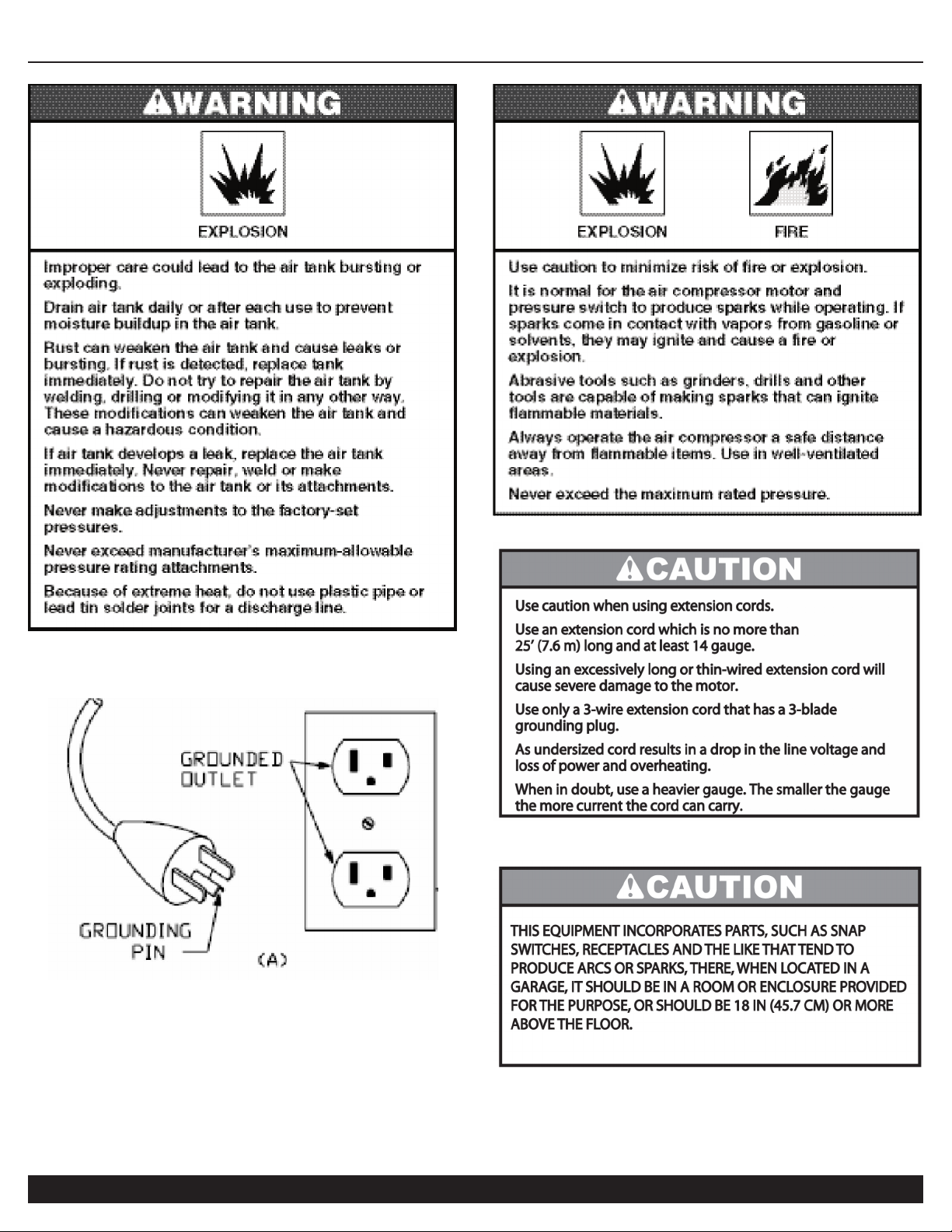

IMPORTANT SAFETY

INSTRUCTIONS

Safety Messages & Signal Words:

4 Customer Support: 1-866-409-4581

AIR COMPRESSOR

Customer Support: 1-866-409-4581

AIR COMPRESSOR

6 Customer Support: 1-866-409-4581

AIR COMPRESSOR

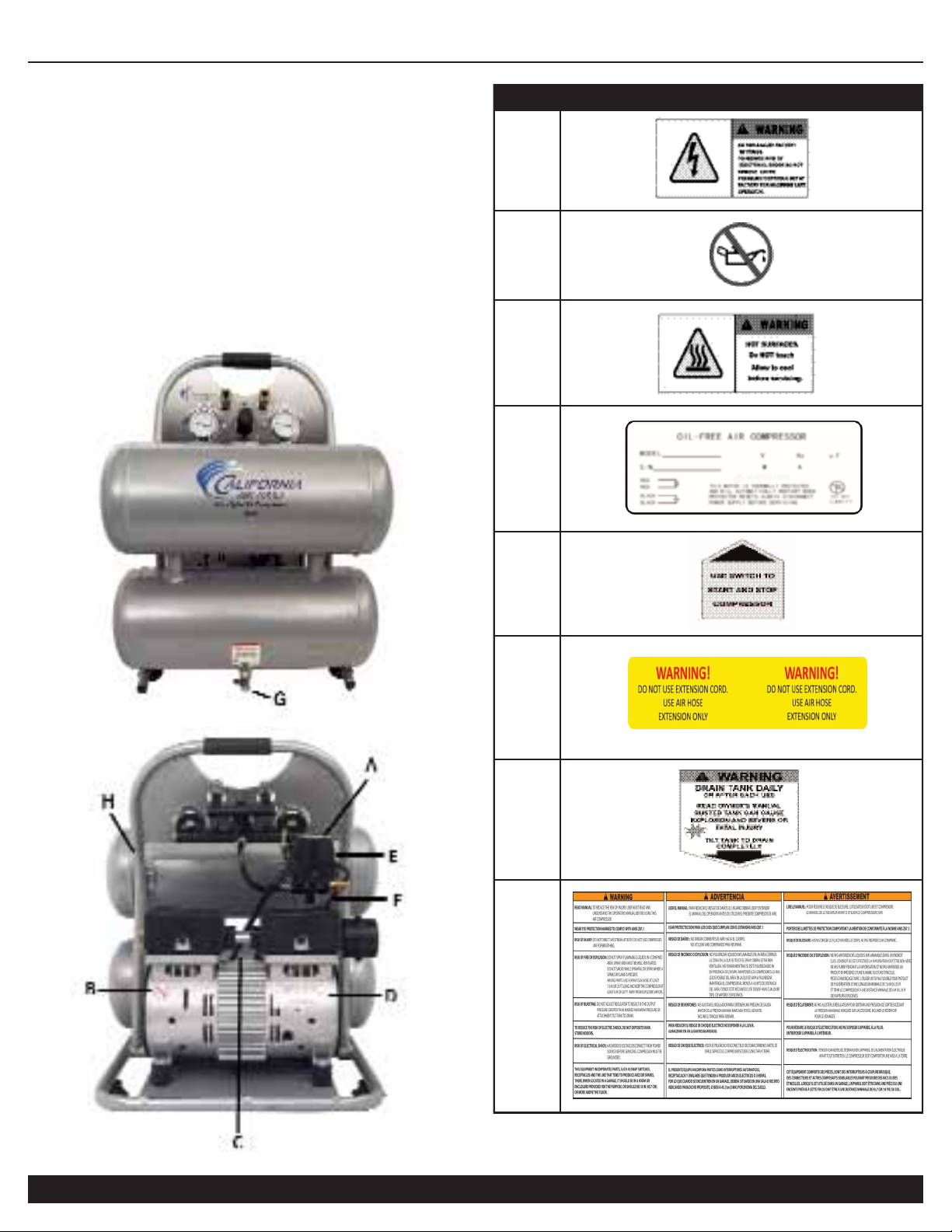

LOCATIONS OF

IMPORTANT LABELS

Read these important labels before operating.

These labels provide important safety and maintenance

information. These labels should be considered as permanent

parts of the air compressor. Should any of these labels become

illegible, damaged or removed, please contact California Air Tools

Customer Service department at 1-866-409-4581 for

replacements.

PRODUCT LABEL

Customer Support: 1-866-409-4581

AIR COMPRESSOR

8 Customer Support: 1-866-409-4581

AIR COMPRESSOR

PRE-OPERATION CHECKLIST

Package Contents & Assembly

Model: 4610S

Package contents:

Air Compressor

Owner's Manual

Air Filter

Assembly:

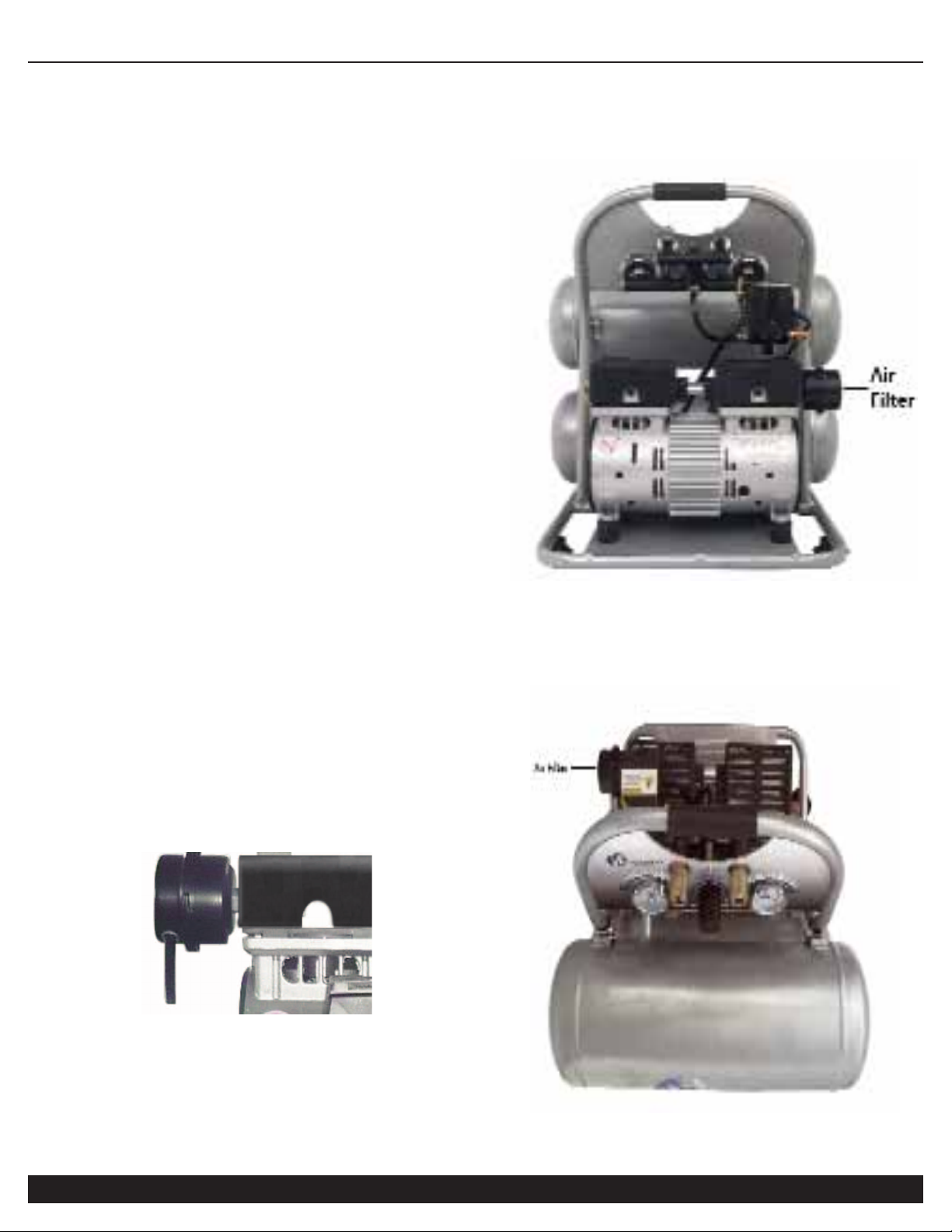

Install the air filter

1. Attach the air filter to the top left side of motor head.

(looking from the front to the back of the air compressor )

Screw the air filter into motor head port that is located under

the Plastic Head Cover

Customer Support: 1-866-409-4581

AIR COMPRESSOR

Inspect for Damage

Before using the air compressor, make sure the air tank is not

damaged, inspect all parts for damage, and check that all pipes

are firmly connected.

Do not use the air compressor if any damage is found. If

damaged, have an authorized service center inspect and test the

air compressor to ensure that is working properly.

Save Packaging

IMPORTANT: Save all outside packaging in case you ever need

to return the product for service or repair.

Compressor Location

Use on Flat Surface

For proper operation, the air compressor must be placed on a flat

surface with an incline no greater than 15 degrees.

Maintain a Clear Area

It is very important that the air compressor is positioned so that

there is adequate airflow around the machine. There must be at

least 2 feet of obstacle-free space surrounding and above the air

compressor.

Use in Areas with Clean Air

For proper operation and to maximize the longevity of the air

compressor, it is very important that the air drawn into the air

compressor is clean. The air compressor should not be used in

areas where dust or particulates are in the air. This will damage

the motor and impair proper operation.

IMPORTANT: Always use the air filter, properly installed.

10 Customer Support: 1-866-409-4581

AIR COMPRESSOR

Electrical Power

Electrical Power Requirements

Before using the air compressor, refer to the serial label for voltage

and amperage requirements. Make sure you have a sufficient

electrical supply for supporting the motor's requirements.

Use a dedicated circuit for the best results.

Low voltage and/or an overload circuit can cause the motor's

overload protection system circuit breaker to trip.

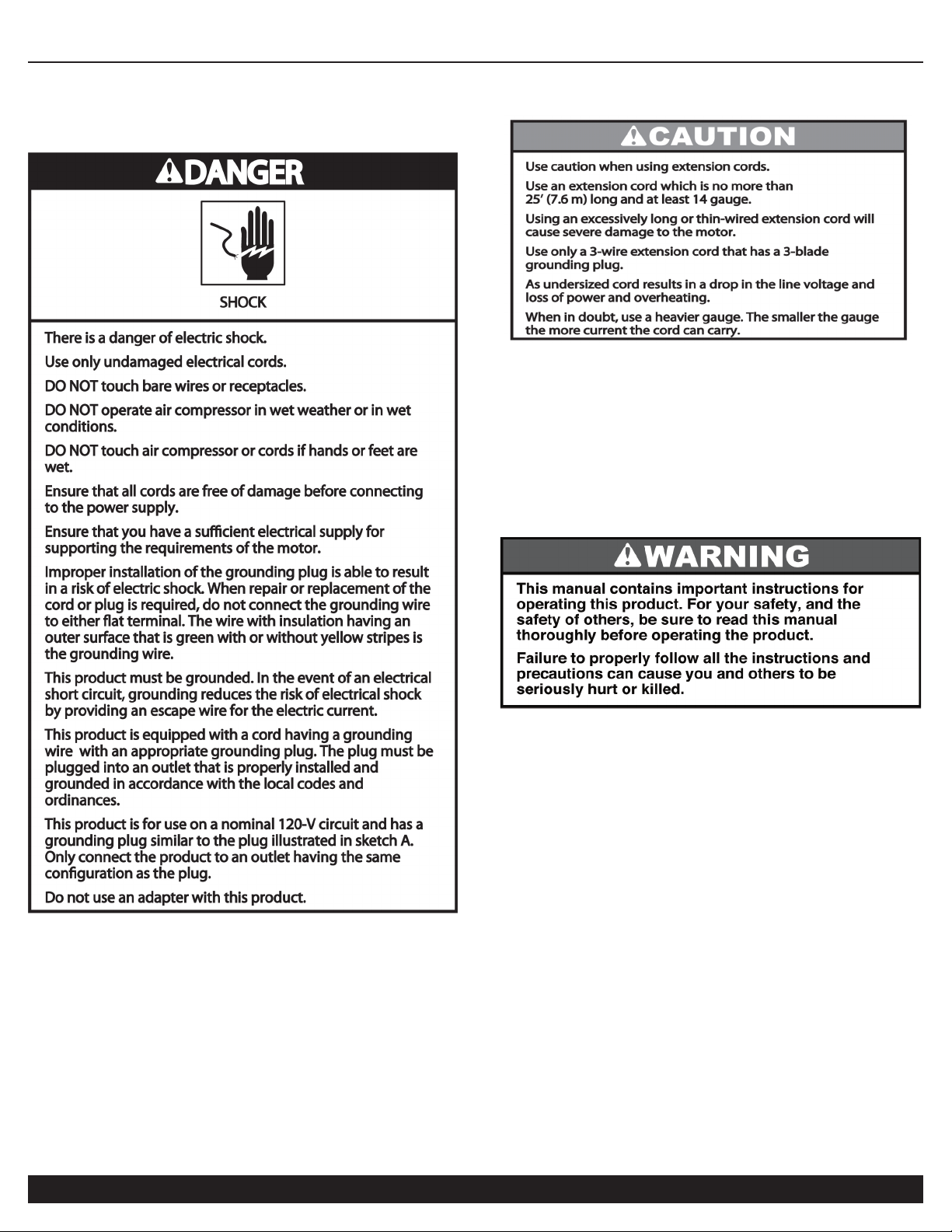

Electrical Extension Cords

Inspect all electrical extension cords to ensure that they are free of

damage.

When using an extension cord, use a heavy-duty cord that is no

more than 25 feet long and at least 14 gauge.Use only a 3-wire

extension cord that has a 3-blade grounding plug.

OPERATING THE AIR

COMPRESSOR

Save this manual for future reference.

Introduction

This air compressor features a compact structure, stable

performance, a high airflow rate, easy operation and maintenance.

Because the air compressor produces no oil in the airflow, it can be

used as an independent air supply machine for situations in which

oil in the airflow is an issue. The motor directly drives the pistons

and is able to function without lubrication for a long period of time.

Assembly

.1. Connect your air supply hose to a 1/4” male universal or

industrial quick connect coupler. Connect the male quick

connect coupler to the female quick connect coupler located on

the air compressor

2. Make sure the drainage valve is off and that the pressure switch

is in the OFF position.

3. Ensure that the power supply you are going to use is operating

normally.

4. Insert the power supply cord into the power supply socket.
