SX-80 Floorstanding Speakers

Manual Generated: 22/11/2023 - 17:00

Table of Contents

SX-80 Floorstanding Speakers 3 ................................................................................................................................................................................

Introduction 4 ................................................................................................................................................................................................................

What's included with the SX-80's? 5 ..........................................................................................................................................................................

Front panel 6 .................................................................................................................................................................................................................

Rear panel 7 ...................................................................................................................................................................................................................

Installation instructions 8 ...........................................................................................................................................................................................

Technical speciﬁcations 10 ..........................................................................................................................................................................................

Frequently asked questions 11 ...................................................................................................................................................................................

Troubleshooting 12 .......................................................................................................................................................................................................

SX-80 Floorstanding Speakers

Last updated: December 7, 2022 03:53. Revision #10116

Users Manual

Introduction

Last updated: January 19, 2023 01:58. Revision #10117

Thank you for purchasing these Cambridge Audio SX-80 ﬂoorstanding loudspeakers. We hope that you enjoy many years of listening pleasure from

them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your ampliﬁer or cabling. Naturally we

particularly recommend ampliﬁcation from the Cambridge Audio range, which has been designed to the same exacting standards as our

loudspeakers. Your dealer can also supply excellent quality speaker cable to ensure your system realises its full potential.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive oﬀers, make sure you register your product at

http://www.cambridgeaudio.com/register

What's included with the SX-80's?

Last updated: January 19, 2023 01:58. Revision #10118

1. 2 x SX-80 Floorstanding Speakers.

2. Installation guide.

3. 4 x plastic foot.

4. 4 x steel spike.

5. 4 x steel washer for spike.

6. Foam bung.

7. 4 x nuts for spike.

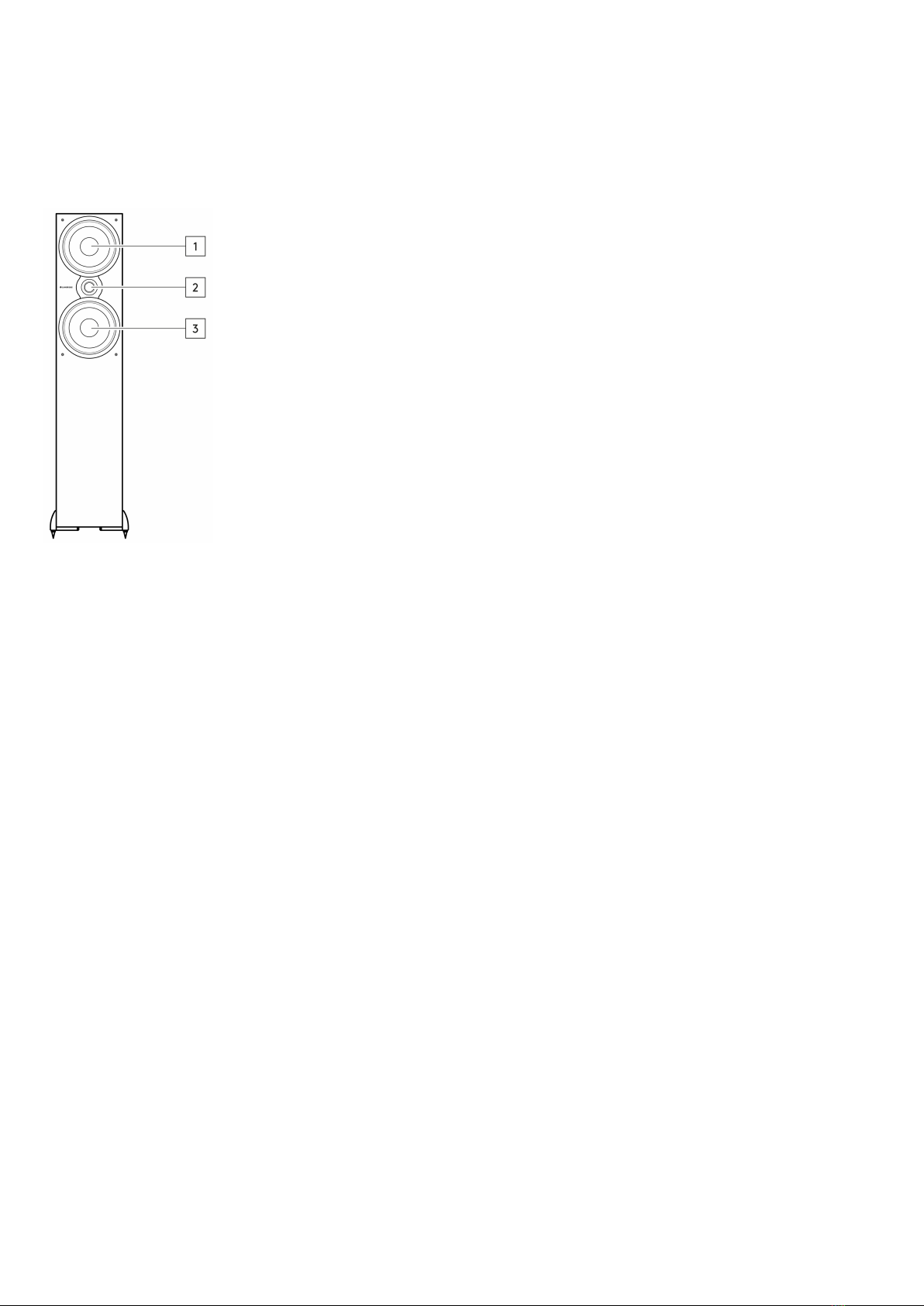

Front panel

Last updated: January 19, 2023 01:58. Revision #10119

1. 6.5" (165mm) woofer.

2. 1" (25mm) silk dome tweeter.

3. 6.5" (165mm) woofer.

Rear panel

Last updated: January 19, 2023 01:58. Revision #10120

1. Bass port.

2. +/- speaker connection terminals.

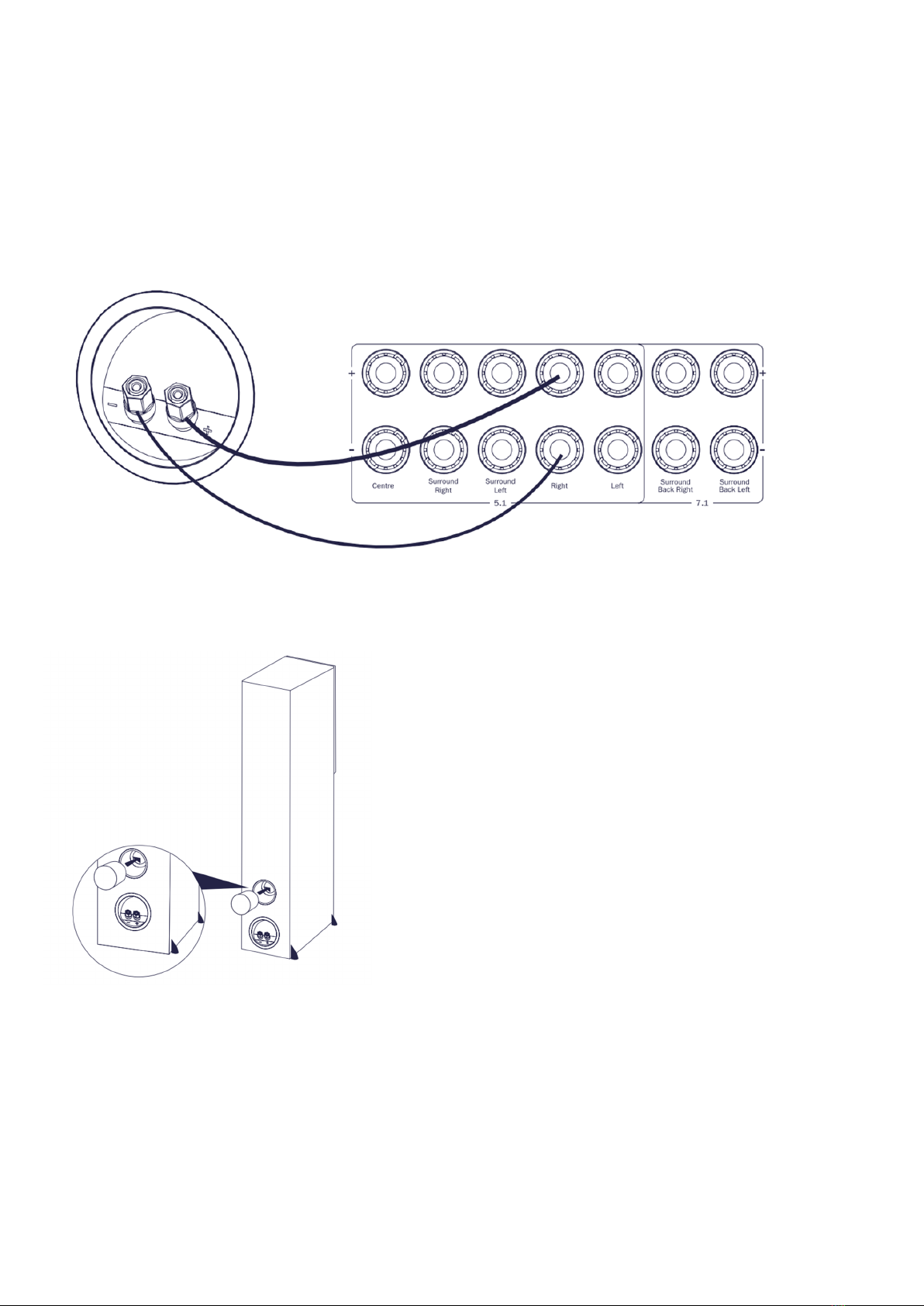

Installation instructions

Last updated: January 19, 2023 01:58. Revision #10121

1. Firstly, using high quality speaker cable connect the SX-80 ﬂoorstanding speakers to the speaker terminals on your ampliﬁer. Ensure that you pay

close attention to match the polarity of each connection.

2. If placed close to a wall you may beneﬁt from using the included foam bass tuning bungs. These can be placed into the rear port of each speaker

to reduce the low frequency output.

3. Finally, when positioning, we would suggest that the distance between speakers and the listening position is equal. However, we would

encourage experimentation until you ﬁnd a solution that works for your space.

Technical speciﬁcations

Last updated: January 19, 2023 01:58. Revision #10122

Sensitivity (SPL)

87dB

Frequency Response

40Hz - 20kHz

Impedance

8 Ohms

Drivers

2 x 6.5” (165mm) woofers.

1 x 1” (25mm) silk dome tweeter.

Recommended Ampliﬁer Power

10 - 100 Watts

Porting

1 Rear

Speaker Dimensions (H x W x D)

950 x 200 x 276mm.

Weight

13.1kg (28.8lbs)
