INSTALLATION MANUAL

001CK0009

001CK0012 FR-001CK0013 FR

English

FA00959-EN

AUDIO ENTRY KIT

Ø60

503



Page 2- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

General Notes

• Read the instructions carefully before beginning the installation and carry

out the actions as specied by the manufacturer.

• The installation, programming, commissioning and maintenance of the

product must only be carried out by qualied technicians, properly trained

in compliance with the regulations in force, including health and safety

measures and the disposal of packaging.

• The installer must ensure that the information for the user, where there is

any, is provided and delivered.

• Before carrying out any cleaning or maintenance operation, disconnect the

devices from the power supply.

• The equipment must only be used for the purpose for which it was

expressly designed.

•The manufacturer declines all liability for any damage as a result of impro-

per, incorrect or unreasonable use.

eventuali danni derivanti da usi impropri, erronei ed irragionevoli.

This product complies with the relevant directives in force.

Decommissioning and disposal. Dispose of the packaging and the device

at the end of its life cycle responsibly, in compliance with the laws in force

in the country where the product is used. The recyclable components are

marked with a symbol and the material's ID marker.

The data and information shown in this manual are to be considered as

subject to changeatanytimeandwithouttheneedforany advancewarning.

Measurements, unless otherwise indicated, are in millimetres.

001DC02EARY

Installation

Open the unit by pressing the lever on the back A.

Remove the casing from the back of the unit.

Attach the back of the unit to a wall box using the screws provided Ba

B. The box must be installed at a suitable height for the user. Do not

over-tighten the screws.

Once connections have been completed, re-assemble the casing to the

back of the unit C.

5789 5

14A

15A

16A

14A

15A

16A

– +

SW10

STD

SW11

INT

SW11

SW3



Page 3- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

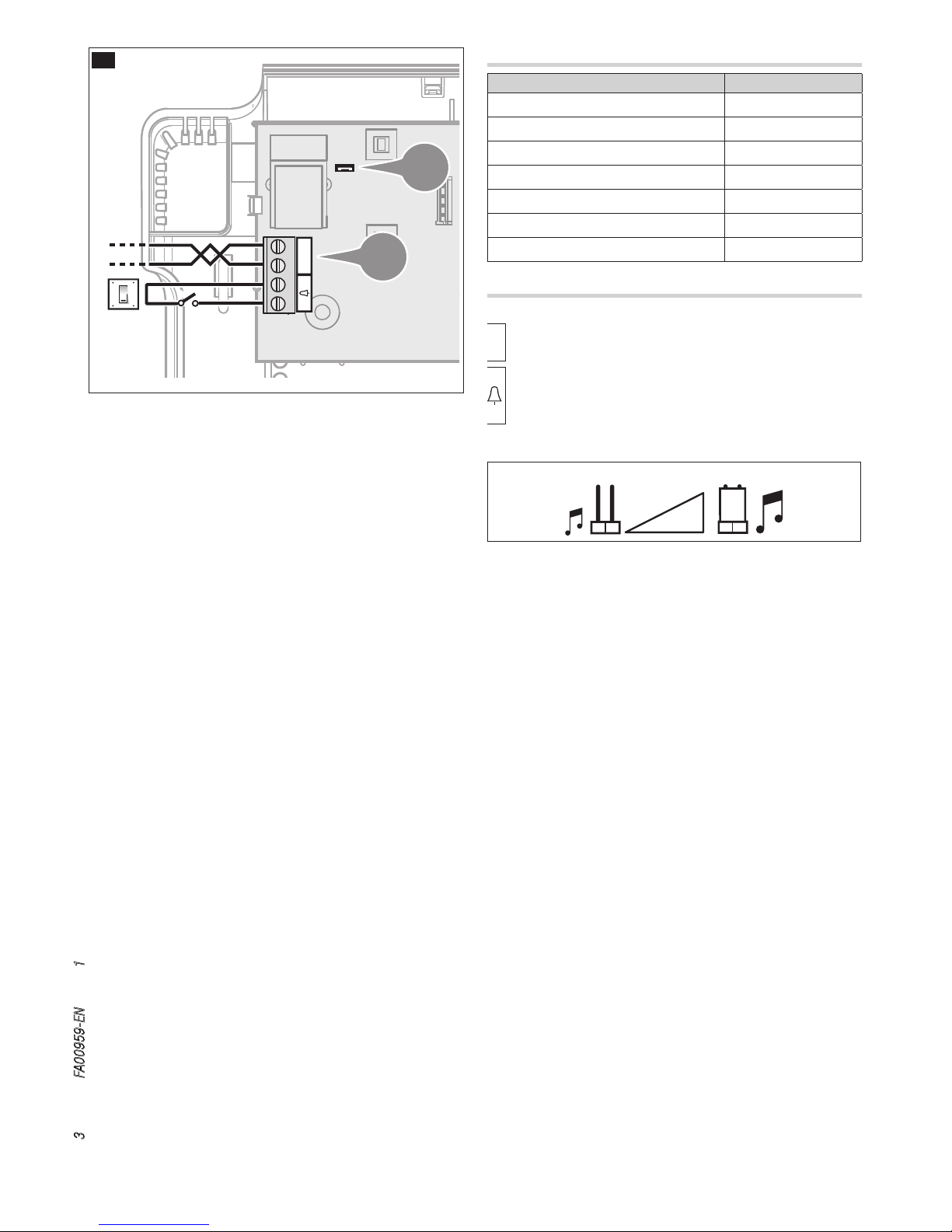

Technical features

Type

001DC02EARY

Power supply from BUS [V DC]

15÷20

Consumption max [mA] 30

Consumption in stand by [mA] <0,5

Single LED consumption [mA]

Storage temperature [°C] -25 ÷ +70

Operating temperature [°C] +5 ÷ +40

IP Rating [IP]

Features D

Terminal board a

B BUS line input

Doorbell

–

Call attenuated 

SW3 SW3

... beep!

A x5

... beep!

A x5

... beep!

A x5

... beep!

A x5

... beep!

A x5

... beep!

A x5

... beep!

A x5

... beep!

A x5

... beep!

A x5





Page 4- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

4- Programming the number of rings

Press button as many times as you want the call to ring (from 1 to 6 rings) h.

Three seconds after the button is last pressed, the selected call is played back with the

chosen number of rings.

To exit programming, hang up the handset i.

☞See the entry panel documentation for call programming.

3- Programming the melody associated with a call from the ﬂoor

To listen to the melodies in sequence, press button e.

To select the melody and exit programming, hang up the handset f.

To select the melody and continue with programming, press button g.

2- Programming the melody associated with a call from the entry panel

To listen to the melodies in sequence, press the button .

To select the melody and exit programming, hang up the handset c.

To select the melody and continue with programming, press the button .

1-Entering programming mode

Lift up the handset and press button A5 times in 5 seconds.

A short beep conrms that you have entered programming mode a.

Melody setting

☞All the programming stages described below must be carried out in sequence:

43,5

7,5 57

106

64,5

145

43,5

7,5 57

106

64,5

145

M2M1

+–

a

Page 5- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

001DC002AC

Installation

The power supplier must ALWAYS be installed horizontally. The device can be

installed on a DIN rail (EN 50022) in an appropriate electric panel.

NOTE. Proper ventilation is required if the power supplier is installed in a

metal container.

Technical features

Type

001DC002AC

Power supply [V AC] 230

Max current demand [A AC]

0,2

Max energy dissipation [W] 10

Nominal power supply [V DC] 18

Nominal current demand [A DC]

1 for 1’

Nominal current demand [A DC] 0.5 for 3’

Storage temperature [°C] -25 ÷ +70

Operating temperature [°C]

0 ÷ +35

IP Rating [IP] 30

Features A

Terminal board a

~Mains

Terminal board 

–

+Power supply 18VDC (*)

(*) The appliance is electronically protected against overloads and short

circuits.

48,5 mm

21 mm

60 mm

85,5 mm

69,5 mm

–

001DC011AC

Page 6- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

001DC011AC

Device description A

The 001DC011AC AC/DC converter is device designed for the installation

of audio receivers and video receivers coupled with a compatible gate

automatism equipped with an accessory output.

With just 4 wires that connect the gate with the audioreceiver/video receiver

kit, the device not only supplies the kit but it also allows you to operate the

gate. Command 2-7 is executed by a clean contact (relay).

Technical features

Type 001DC011AC

Minimum input voltage (V AC) 20

Maximum input voltage (V AC) 25

Output voltage (V DC) 18

Output current (A) 1

Maximum operating relative humidity without

condensation 95

Storage temperature (°C) -25 ÷ +70

Operating temperature (°C) -15 ÷ +50

Features of terminals 2 - 7

Control voltage: 12V - 12.5 mA

Maximum switching voltage: 50V AC or 75 V DC

Maximum switching power: 60VA - 24W

Function of terminals

–18V DC supply output

2Opening command output towards gate

10 Power supply input 20÷25V AC

–Opening command input from entry panel

B C

135

99 30

3.5

6.5

207

135

99 30

3.5

6.5

207



Page 7- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

001CS1PLCO

Wall mounting

With the allen wrench unscrew the blocking screws and remove the plate

A. Fix the given plugs and screw the entry panel Bat the desired height.

Run the hose with the system conductors B.

Extract the plastic terminal cover and wire the connections C.

Once all the connections have been made, re-insert the terminal covers.

For the installation of the accessories refer to the chapter“Button module in-

stallation”. Perform the programmingand adjustment operations ofthe entry

panel as described to the chapter“Programming”. Install the front plate A.

Recessed Installation (optional)

Install the recessed box at the desired height, but in advance, run the hose

with the system conductors through one of the breaking points Da.

During installation of the recessed box it is possible to avoid any deformation

by using the provided spacer D. With the allen wrench unscrew the

blocking screws and remove the entry panel plate A. Introduce the cable

connections in the special hole Band x the entry panel on the frame E;

extract the plastic terminal cover and wire the connections C.

Once the connections have been made and re-insert the terminal covers.

For the installation of the accessories refer to the chapter“Button module

installation”.

Perform the programming and adjustment operations of the entry panel as

described to the chapter“Programming”. Install the front plate A.

G H





Page 8- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

Personalized labels, dimensions

53x33x0,3 mm53x13x0,3 mm

Accessories I

001DC00EGMA11 single button a,

001DC00PLACO01 Wall roof ,

Recessed box 001DC00PLCO03 c,

Recessed frame 001DC00PLACO02 .

Technical features

Tipo 001CS1PLCO

Power supply [V AC] 16-18

Consumption [mA] 250

Consumption in stand by [mA] 100

Storage temperature [°C] -25 ÷ +70

Operating temperature [°C) -15 ÷ +50

IP Rating [IP] 54

Button module installation

Insert the button module as highlightedFpaying special attention to the

top to bottom orientation H.

Remove the glass and write the user names G, paying special attention to

the orientation of the glass H.

BOUT

SW3

PROG RESET

LED PROG

BOUT

SW3

PROG RESET

PROG





Page 9- Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

Features J

Terminal board a

BOUT Riser

+Power supply 16-18VDC

–

Terminal board 

–Earth

Door lock release button (NA)

Solenoid lock

12 V 1 A max

–

PROG key cand PROG LED 

Programming key and LED (see 'Programming' paragraph).

The PROG LED can take on the following states:

O

Slow ashing

Quick ashing

Adjustments e

loudspeaker audio

microphone audio

Solenoid lock 1-10 s. (default 1 s)

BOUT

SW3

PROG

RESET

PROG

M2M1

+–

VLS/300

–

–+

001DC002AC

001DC005AC

BOUT

PROG

SW3

PROG RESET

PROG

SW3

PROG RESET

PROG

>3’’

<6’’

BOUT

PROG





efgbeep

c A

SW3

PROG RESET

PROG

Page 10 - Manual FA00959-EN - vers. 1

- 10/2017- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

Programming the call keys. Lift the receiver (if present) of the extension that you want to programme

ethen press the door lock release and AUX2 fbuttons. On the entry panel, press the call

key to associate with the internal extension g: an acoustic signal will conrm that the setting was

stored. Hang up the receiver again, if necessary hand continue, repeating the same operations for

the other extensions.

Entering Programming Mode. Press the PROG akey for at least 3 seconds and then release it

(within 6 seconds), as soon as the LED PROG lights up and the key back lighting ashes as illustrated

in gure . Failure of the PROG LED to light up, indicates a malfunction. Check the connections and

re-access the programming mode.

Programming of the Key Type. Press the rst key of the entry panel in the position indicated c/

cA until the backlighting LED stops ashing and remains lit.

Programming

The kit is pre-conﬁgured to manage a single call originating from a single entry panel. One or more receivers answering the same call can be

added, by following the below“Call button programming”procedure.

Initial programming

001DC005AC

001DC002AC

Connection example K

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere CAME Gegensprechanlage Handbücher

CAME

CAME BPT PEC Bedienungsanleitung

CAME

CAME XTS 7IP WH WIFI Bedienungsanleitung

CAME

CAME Wi-Fi PLX V Technisches Datenblatt

CAME

CAME XTS 7IP WH WIFI Bedienungsanleitung

CAME

CAME ENTROTEC Entroview+ Bedienungsanleitung

CAME

CAME AGT V Bedienungsanleitung

CAME

CAME XTS 7 WH WIFI Bedienungsanleitung

CAME

CAME ENTROTEC PRO-DC4 Bedienungsanleitung

CAME

CAME AGT V Technisches Datenblatt

CAME

CAME ENTROTEC ED5 Bedienungsanleitung

CAME

CAME 001DC02ENIGMA Bedienungsanleitung

CAME

CAME Entrotec Entroview Bedienungsanleitung

CAME

CAME PLX A Bedienungsanleitung

CAME

CAME Bpt TARGHA GSM VR1 Bedienungsanleitung

CAME

CAME KIT AGT V + LITHOS Bedienungsanleitung

CAME

CAME QBESetUp Betriebsanleitung

CAME

CAME 001DC00EGMA11 Bedienungsanleitung

CAME

CAME PLACO-C Bedienungsanleitung

CAME

CAME 001CK0010 Bedienungsanleitung

CAME

CAME PLACO-VC Bedienungsanleitung

CAME

CAME VRK01 Bedienungsanleitung

CAME

CAME AGT A200K Bedienungsanleitung

CAME

CAME VK01 Bedienungsanleitung

CAME

CAME BPT KIT FREE DVC Series Bedienungsanleitung

Beliebte Gegensprechanlage Handbücher anderer Marken

Bticino

Bticino LINEA 3000 Bedienungsanleitung

MSI

MSI MSI-140 Bedienungsanleitung

golmar

golmar Stadio Plus Bedienungsanleitung

CyberData

CyberData 011211 series Handbuch

Vidos

Vidos duo M1021 Bedienungsanleitung

Vimar

Vimar ELVOX 7539/E Bedienungsanleitung

SSS Siedle

SSS Siedle BTSV 850-03 Bedienungsanleitung

Dahua

Dahua VTO Series Bedienungsanleitung

Elvox

Elvox 5651 Bedienungsanleitung

Videx

Videx VIDEOKIT Series Bedienungsanleitung

Rocom

Rocom Doortello Business FW T2.05W2.04 Bedienungsanleitung

Viking

Viking E-35-EWP Bedienungsanleitung

Safeguard Supply

Safeguard Supply LRA-EX1000 Bedienungsanleitung

SSS Siedle

SSS Siedle BFCV 850 Series Bedienungsanleitung

GRD

GRD MAX V2 Bedienungsanleitung

Alecto

Alecto ADI-250 Bedienungsanleitung

Aiphone

Aiphone IE-8MD Bedienungsanleitung

Perel

Perel EDB4 Bedienungsanleitung
