CAME AGT V Bedienungsanleitung

AGT V - AGT V BF

USER MANUAL

FA0 1 37 7 - EN

Page 2- Manual FA01377-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

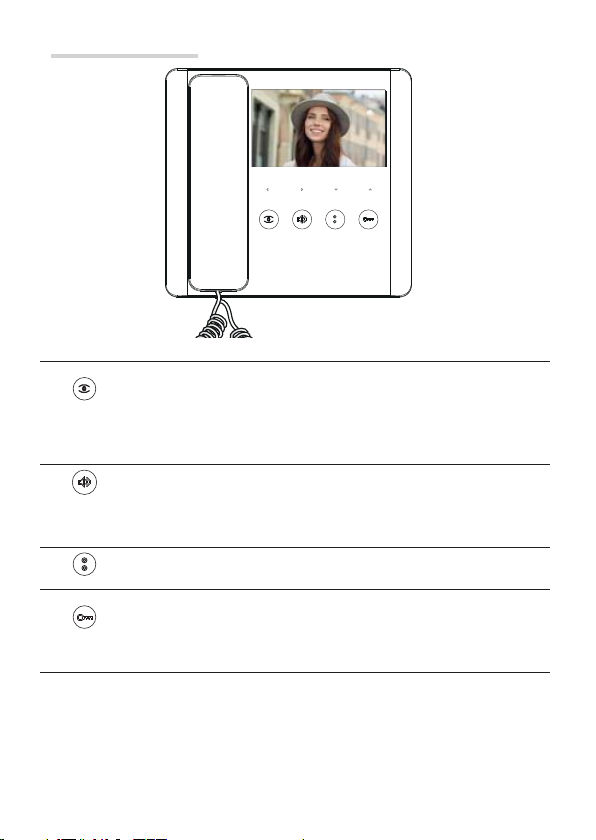

Functions of the keys

Activation and selection of entry panel.

The function is available only when the line is free.

Enable/Disable the automatic door opener function if pressed for more

than 3 seconds. The status of this function is indicated by the led near

the key

Repeatedly pressing it adjusts the volume of the ringtone: low, medium,

high, o (red LED on).

In conversation activating the key excludes the microphone until it is

activated again or the communication ends.

Auxiliary 2 / Porter call

AUX2 LED: signals a request to be called back by the porter

Door release/open-gate command if pressed for > 3 seconds (if the

function is enabled).

Door release LED: ﬂashes when calling/ ﬁxed when the open-gate

function is active.

Use soft, dry or slightly damp cloths to clean the terminal; do not use any chemical

products.

Page 3- Manual FA01377-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Basic functions

Call in progress.

Answering a call.

Active communication.

Open the door for the calling entry

panel.

End the call.

MASTER

SLAVE

Page 4- Manual FA01377-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Self-connection

Press the key to activate video

communication with the entry panel.

With multiple video entry panels, pressing

the button all the video entry panels

will be displayed in succession.

Video bouncing

In the event of a simultane-

ous call on several exten-

sions all will ring, but the

video will be activated only

in the receivers conﬁgured

as "MASTER".

It is however possible to

transfer the display to a

"SLAVE" receiver by press-

ing the key .

Lift the handset to start au-

dio communication with the

entry panel.

CONTACT ME

ALARM!

ONTACT ME

Contact me

Page 5- Manual FA01377-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Porter functions

The functions described in this chapter are only available in systems with a porter

switchboard/porter desk.

Notiﬁcation of call by the porter

When the LED turns on, it indicates

that the porter wishes to be called back.

The LED turns o when communicating

with the porter.

Alarm signalling The activation of an alarm contact

connected to the dedicated input of the

receiver, activates the sending of a signal

to the porter and this is notiﬁed on the

receiver through an intermittent acoustic

signal for about 10 seconds.

Request to be called back by the porter

If properly conﬁgured, press the button

to send a message to the porter that

you wish to be called back.

Open-gate function/status

Where allowed by the system and correctly

conﬁgured, you can send an operator

opening/closing command by pressing and

holding the key. The LED next to it

indicates the operator status.

☞The function must be activated on the

receiver when the call is being associated

during system programming

> 3s

Page 6- Manual FA01377-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Door status function

Where the system is enabled accordingly, the LED next to the button indicates the current

status of the door.

The function is active during the steps that involve communicating with the entry panel and

the signal refers to the entrance associated with the entry panel.

Automatic door-release function

This function is especially useful for

businesses as it allows you to open the

entrance automatically once the call button

has been pressed on the entry panel.

Press and hold the button for more

than 3 seconds to enable/disable the

function.

The LED next to the button switches on

to indicate that the function has been

enabled.

☞No communication is activated and the

call ends automatically.

Page 7- Manual FA01377-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

Decommissioning and disposal. Dispose of the packaging and the device at the end of its life

cycle responsibly, in compliance with the laws in force in the country where the product is used.

The recyclable components are marked with a symbol and the material's ID marker.

THESE INSTRUCTIONS MUST BE ATTACHED TO THE APPLIANCE, THE DATA AND INFORMATION SHOWN HEREIN ARE TO BE

CONSIDERED AS SUBJECT TO CHANGE AT ANY TIME AND WITHOUT THE NEED FOR ANY ADVANCE WARNING.

These keys are used to adjust the brightness, contrast and colour of

the display when the video is active.

Touch any key to access the menu.

Press brieﬂy to adjust the parameter, pressing

continuously allows a quick adjustment.

Press to scroll through the parameters.

Wait for a few seconds to exit the menu.

Adjustment of brightness, contrast and colour
