CAME BPT PEC Bedienungsanleitung

Door Entry System

Indoor Receiver

PEC

USER MANUAL

English

FB00855-EN

Page 2- Manual code FB00855-EN - ver. 1-

07/2017

Function of buttons

Adjustment of ringtone volume (high-medium-O).

Red LED on = ringtone o.

Activation/Deactivation of communication.

Blue LED on = active communication.

Door lock release (blue LED).

In systems designed to accommodate this signal, during a call from an entry

panel, the permanently lit LED indicates that the door is open.

Intercom 1 (blue LED)

Intercom 2 (blue LED)

Auxiliary 1 (blue LED).

The function may also be available when there is no active communication,

where the system permits it

Auxiliary 2 / Concierge call (blue LED).

The function may also be available when there is no active communication,

where the system permits it.

Only use soft, dry or slightly damp cloths to clean the terminal; do not use any chemical

products.

This product complies with the relevant directives in force.

Decommissioning and disposal. Dispose of the packaging and the device at the end of its life

cycle responsibly, in compliance with the laws in force in the country where the product is used.

The recyclable components are marked with a symbol and the material’s ID marker.

THE DATA AND INFORMATION SHOWN IN THIS MANUAL ARE TO BE CONSIDERED AS

SUBJECT TO CHANGE AT ANY TIME AND WITHOUT THE NEED FOR ANY ADVANCE WARNING.

MEASUREMENTS, UNLESS OTHERWISE INDICATED, ARE IN MILLIMETRES.

Page 3- Manual code FB00855-EN - ver. 1-

07/2017

Standard functions

Answering a call.

Active communication.

Opening the door of

the entry panel that is

calling.

Ending the

communication

1 2

Page 4- Manual code FB00855-EN - ver. 1-

07/2017

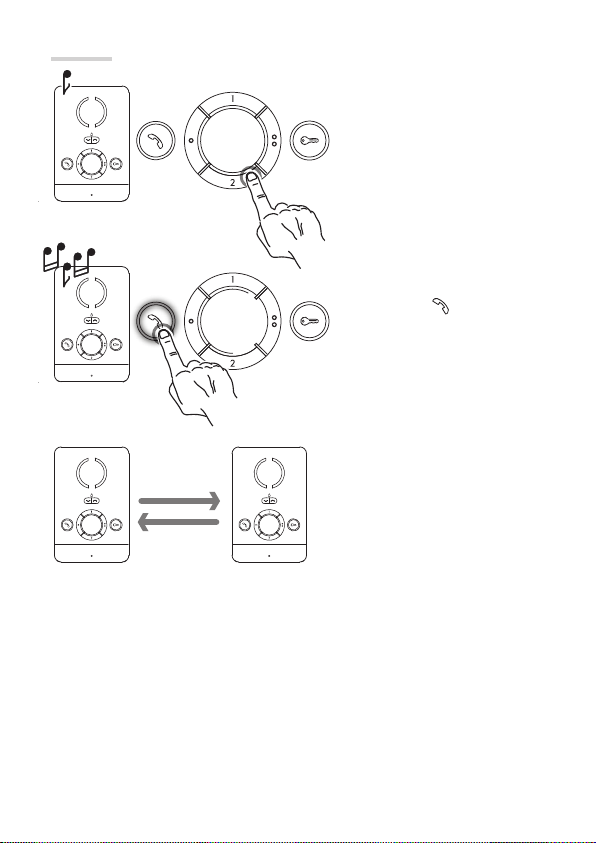

Intercom

Select the extension that you

want to call; the line free tone

indicates that the call has been

forwarded.

3 successive beeps indicate

that it is not possible to make

calls because the line is busy.

The receiver being called rings.

Press the key on the

receiver that is called to

activate the communication.

Internal receivers 1 and 2 are

in communication.

During a conversation

between extensions, a

call from an entry panel is

signalled to the receivers by

a beep that is repeated every

5 seconds.

Page 5- Manual code FB00855-EN - ver. 1-

07/2017

Call transfer

With an active

communication, select

the extension you wish to

transfer the call to; the line

free tone indicates that the

call has been forwarded.

The receiver being called

rings.

Press the key on

the receiver that is

called to activate the

communication.

Internal receivers 1 and 2

are in communication, the

entry panel is waiting.

Press the key on

receiver 1 to end the

communication with the

entry panel and transfer the

call to receiver 2.

The receiver that receives

the call can also transfer it.

call n2

CALL ME

call n2

CALL ME

Page 6- Manual code FB00855-EN - ver. 1-

07/2017

Call from concierge notification

☞Function available only on systems with concierge's desk.

Request for call to concierge

☞Function available only on systems with concierge's desk.

An unanswered call from

the concierge's desk is

marked by the Aux2 LED

lighting up.

The notiﬁcation goes out

when communication with

the concierge begins.

Pressing the Aux2 button

sends a request for call

back to the concierge.

X 5

beep

X 5

beep

Page 7- Manual code FB00855-EN - ver. 1-

07/2017

Setting melodies

☞All the programming stages described below must be carried out in sequence:

1- Going into Programming.

Press button 5 times in 5 secs 1.

A short beep conﬁrms that you have entered

programming mode.

2- Programming the melody associated with a

call from the entry panel.

To listen to the melodies in sequence, press key 2.

To select the melody and exit programming, press

key 3.

To select the melody and continue with programming,

press key 4.

3- Programming the melody associated with a

call from the front door.

To listen to the melodies in sequence, press key 5.

To select the melody and exit programming, press

key 6.

To select the melody and continue with programming,

press key G.

4- Programming the number of rings for the call.

Press key 8 as many times as you want it to ring

(from 1 to 6 rings). Three seconds after the last press

of the key the call selected for the chosen number of

rings will be played back.

To exit programming, press key I.

☞See the entry panel documentation for call

programming.

CAME S.p.A.

Via Martiri Della Libertà, 15

31030 Dosson di Casier - Treviso - Italy

tel. (+39) 0422 4940 - fax. (+39) 0422 4941

Page 8- Manual code FB00855-EN - ver. 1-

07/2017
