Campomatic C3620P Bedienungsanleitung

NAME OF PARTS

(

)

! Timer Wash

@ Select Switch

# Water Inlet Porl

$ Door Wash

% Tub

Accessories

7 Cover Safety

^ Strainer

& Pulsator

* Valve Selector

( Timer Spin

) Door Spin

8 Drain Hose Assembly

1 Inner Cover

2 Overflow Filter

3 Basket Spin

4 Base

5 Power Cord

6 Leg (4EA)

INSTALLATION

Electrical Connection

• This unit is designed to operate from an adequate supply mentioned at the

rating label sticked to the rear of it.

• In case of 3-core cord: The power cord plug must be connected to an earthed

3-pin power point within reach of the power cord.

• In case of 2 conductor power cord:Connect the grounding wire to a water faucet

etc. Make sure that the power cord is unplugged during ground work.

• Do not connect the grounding wire end to a gas tube.

• In the power cord is damaged, it should be replaced by a repair shop appointed

by the manufacturer, because special purpose tools are required.

Connection of Hoses

• Attach the drain hose to the drain outlet at the

rear of the base under and secure with the

clamp provided. Hang the “U” Shaped outlet of

the drain hose on the edge of a sink.

• Attach the water intake hose to the water inlet

located at the left-hand side of the control panel.

Press fit the other end of the hose to either a hot

or cold water tap as required (Fig. 1).

• The opening must not be obstructed by carpeting when the washing machine is

installed on a carpeted floor.

OPERATING INSTRUCTIONS

Preparing the Wash

•Sort the clothes into groups-whites, colourfast, non-colourfast, delicates,

lint free, lint producers, etc., and wash according to the laundry guide below.

• Clothes with worn patches or tears should first be mended. Empty out all

pockets and close all side fasteners. Treat bad stains prior to washing.

Prior to Washing

• Remove the plastic cover safety from the spin basket.

• Check that wash timer knob is set to position “0” and that the valve selector is

set to “WASH.RINSE”.

• Also check that overflow filter is correctly positioned.

• Encure the drain hose is in its correct position (see lnstallation).

• Inlet power cord plug into the power point and switch on.

To Wash

• Place the wash load and detergent in the wash tub. Refer to “Preparing the

Wash” and “Points to Remember”

• Set the valve selector to “WASH.RINSE”.

• Turn the water tap on fill the tub of your washing machine to the level recom-

mended in the laundry guide.

• Set the selector switch to the position recommended in the laundry guide.

WATER INTAKE HOSE

WATER INLET

Figura 1.

Caution: This unit is made of poly

propylene, use a water below 50˚C.

OPERATING INSTRUCTIONS

• Set the wash timer to the wash period recommended in the laundry guide. Your

machine will now wash for the period selected.

• When the wash period expires, set the valve selector to the drain position and

the wash timer to 3-5 minutes to discharge the water.

To Rinse in the Wash Tub

• Set the valve selector to the “WASH.RINSE” position.

• Turn the water tap on.

• When the rinse water becomes clear, turn off the water tap.

• Set the valve selector the drain position and the wash timer knob 3-5 minute

position to discharge the water.

Spin Drying

• To open the inner safety lid of the spin bowl, lift up the outer lid, then pull the

catch forward and lift upward.

• Transfer either the full wash load or portion to the spin bowl commencing with

small articles. Ensure that the clothes are evenly distributed.

• Place the removable spin mat over the load to be dried and push lightly down-

ward. (To contain delicated articles within the spin bowl).

• Close the inner safety lid, then the outer lid.

• Set the spin timer to the time recommended in the Laundry Guide. The spin

bowl will spin for the time selected, then stop (at position “0”).

• To remove or reposition clothes during the spin dry cycle, open and inner lids.

In this case, the spin bowl will automatically stop as a brake is applied when

the outer lid is opened. To restart, close both lids.

If required, rest the spin timer.

Note: Before rinsing, the wash load may be transferred to the spin bowl to

spin dry for 1 minutes(approx.) to remove excess suds (see spin

Drying). On completion, transfer the wash load to the wash tub for

rinsing.

Note: The pump is turned on when the water reaches approxed 7cm above

level 2. It is then turned off when the water returns to level 2. It is

operated automatically so that the water level maintains level 2 and

approx. 7cm above level 2.

Caution: Ensure that the spin bowl completely stops before reaching in

to remove the wash load. Be especially caretul of children.

Note: The pump motor will operate when the spin dry timer is set, irrespec-

tive of whether the outer lid is closed or opened.

OPERATING INSTRUCTIONS

Simultaneous Washing and Spin Drying

• Three motors are fitted to cover washing, spin drying and drainage. This ar-

rangement enables spin drying of a previous wash load washing of a new

wash load to be simultaneously effected.

• To do this set the controls for both “wash” and “spin” modes (see “TO WASH”

and “SPIN DRYING”).

Laundry Guide

Size of Degree Water

Type of Wash Water of Water Temperature Wash Spin

Febric Load Level Soiling Action Wash Cycle Period Period

Fast Full High (2) Heavy

Coloured Normal Hot 50˚C 5-10 mins 3-5 mins

Cotton and Half & Low (1) Normal Max.

Linens Less Light

Nylon Full High (2) Normal Normal 4-5 mins.

and P.P Half & Low (1) Light Soft Warm 40˚C 2-3 mins. 2 mins.

Less

Delicates Half & High (2) Normal Soft Warm 40˚C 2-3 mins. 1-2 mins.

Less to Light

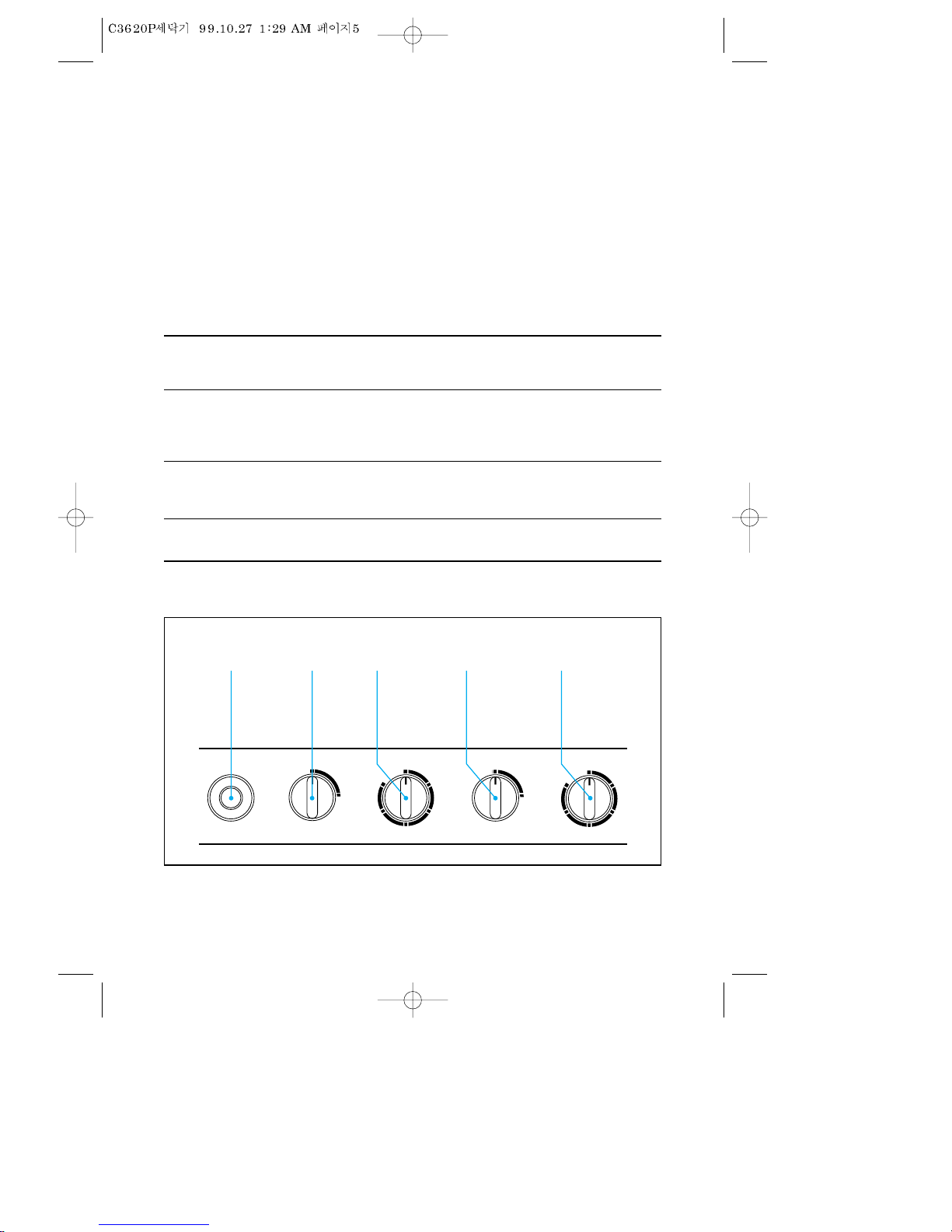

Control Panel

3 5

0WASH RINSE

DRAIN

WATER INLET WASH SELECTOR WASH TIMER SPIN TIMER

VALVE SELECTOR

(PUMP CONTROL)

OPERATING INSTRUCTIONS

Emptying

• Set the valve selector knob to

“DRAIN” and the wash timer 3-5

minutes.

• The machine will now empty.

• Switch off the electricity at the power

point.

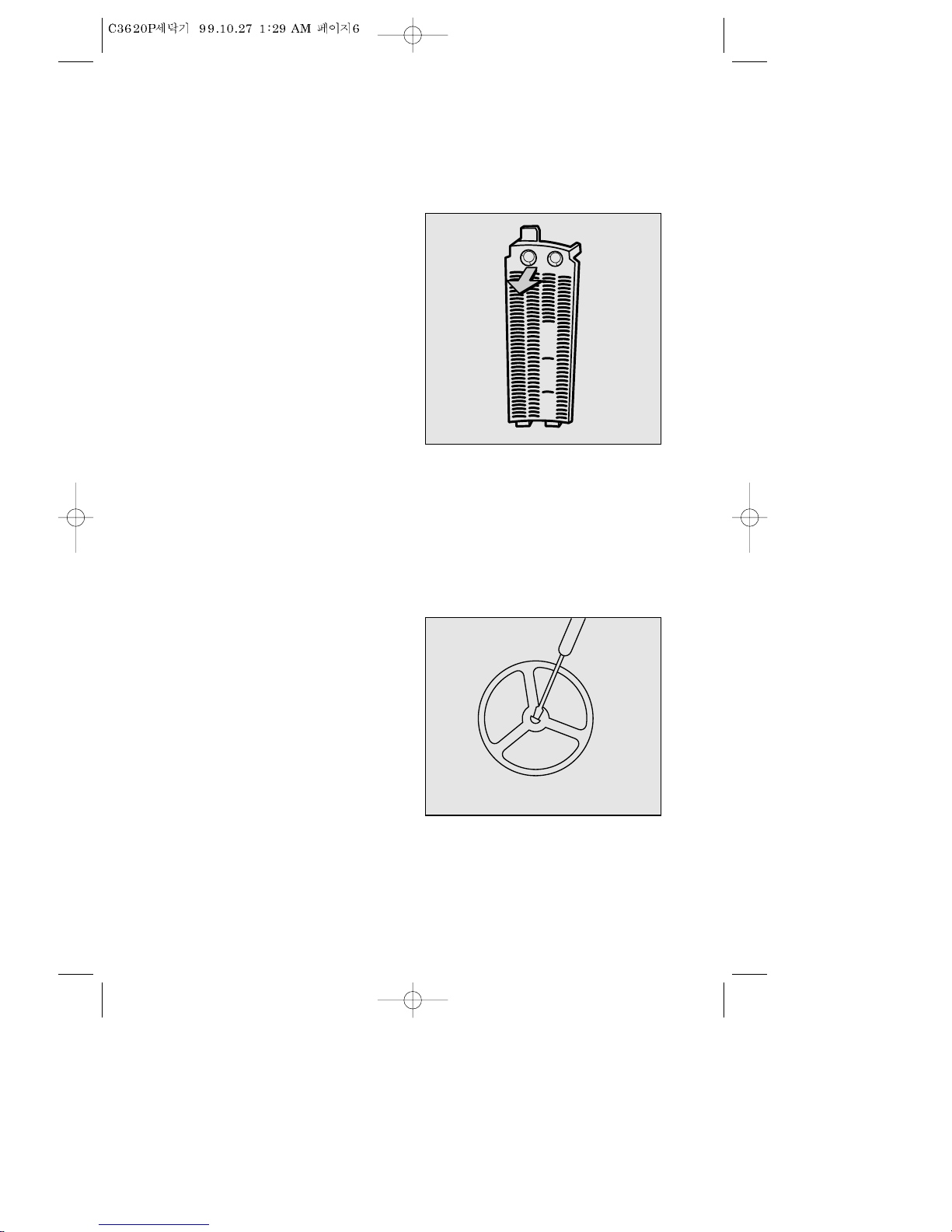

Over flow Filter

•The overflow filter is located at the

water rinse outlet of the wash tub and

should be cleaned by hand after each

use, while the lint is wet. This is im-

portant.

• To detach, place fingers in the finger

holes of the filter and pull out (Fig. 2).

• Rinse under the tape to remove lint,

etc., and push back into place.

Drain Strainer

• Remove the drain strainer from the bottom of the tub using a sharp tool such

as §^driver.

• Wash off the lint stuck in the strainer.

• Re-install the strainer.

Pulsator

• Should it be necessary to remove the

pulsator, say to free an.

•Obstruction, first remove the screw

securing the pulsator to the motor

shaft (Fig. 3).

• Use the tool which is supplied with the

pulsator.

•Free the obstruction and refit the

pulsator.

Ensure that the screw is securely

tightened.

Figure 2.

Figure 3.

POINTS TO REMEMBER

• Avoid using excessive amounts of bleach, soap powder or detergent. Use the

amount recommended by the respective manufactures.

• If the machine is installed in areas subject to freezing temperatures, ensure that

it is completely drained after use.

• To reset to the OFF position (“0”), turn anticlockwise.

• When washing delicates e.g., silks, fine nylons, lace, etc., its is advisable to place

them in a mesh bag to prevent the possibility of damage.

• Do not wash lint attraching fabrics with lint producers, e.g., black socks or dark

coloured jumpers with white fluffy towels, napkins, etc.

• Avoid placing a wet wash load on the control panel.

BEFORE YOU CALL FOR SERVICE

There may be times when you suspect your washing machine requires main-

tenance. Before calling for a service engineer, please check the following

points, to save unnecessary cost. You may be pleasantly surprised that an

apparent malfunction can be easily rectified by following the chart below.

If your washing machine will not start, check whether:

• The house circuit breaker is tripped or a fuse is blown.

• The cord is firmly connected to the power point or the power is not switched

on. (Check with a small table lamp or toaster, etc.)

• Something is preventing the pulsator from rotating.

• The wash timer is set.

If the spin dryer will not operate, check whether:

• The inner lid and outer spin bowl-lids are closed.

• The spin dry timer is set.

If there is excessive noise, check whether:

• Something is touching the pulsator as it rotates.

• The machine is placed on a level surface.

• The wash load in the spin bowl is excessively unbalanced during the spin cycle.

• An article is lodged between the spin bowl and tub.

MAINTENANCE AFTER USE

Wash Day Maintenance

At the end of each wash day:

• Switch off the electricity at the power point.

• Check that both timers are set to the OFF position (“0”).

• Wipe off spillage from wash powder, etc., and generally wipe over the tub and

base under with a clean damp cloth.

• Remove the hose from water tap.

* Design and specifications subject to change without notice.

HOW TO FIX LEG TO BASE-HOLE FOR

INSTALLATION

• When you install this unit, be sure to

assemble LEGS(4EA) to base

under (Fig. 4).

• Place this unit on its rear side on a

carton to prevent damage to the body.

•Insert the leg(4EA) into the base

under hole as it was. By first inserting

its two hooks.

• Turn right and screw on leg.

•Make the allows of leg and base

under face with each other at each

corner.

HOOK (2EA)

1. Inserting

2. Turn right

3. Screw on.

Caution: After installing, DO NOT REMOVE LEGS.

Figure 4.

WASHER-SPINDRYER

INSTRUCTION MANUAL

Model No.: C3620P

§Thank you for selecting this washer-spindryer.

§Before operating this unit, please read these instructions completely.

§When you install this unit, be sure to assemble to base under.
