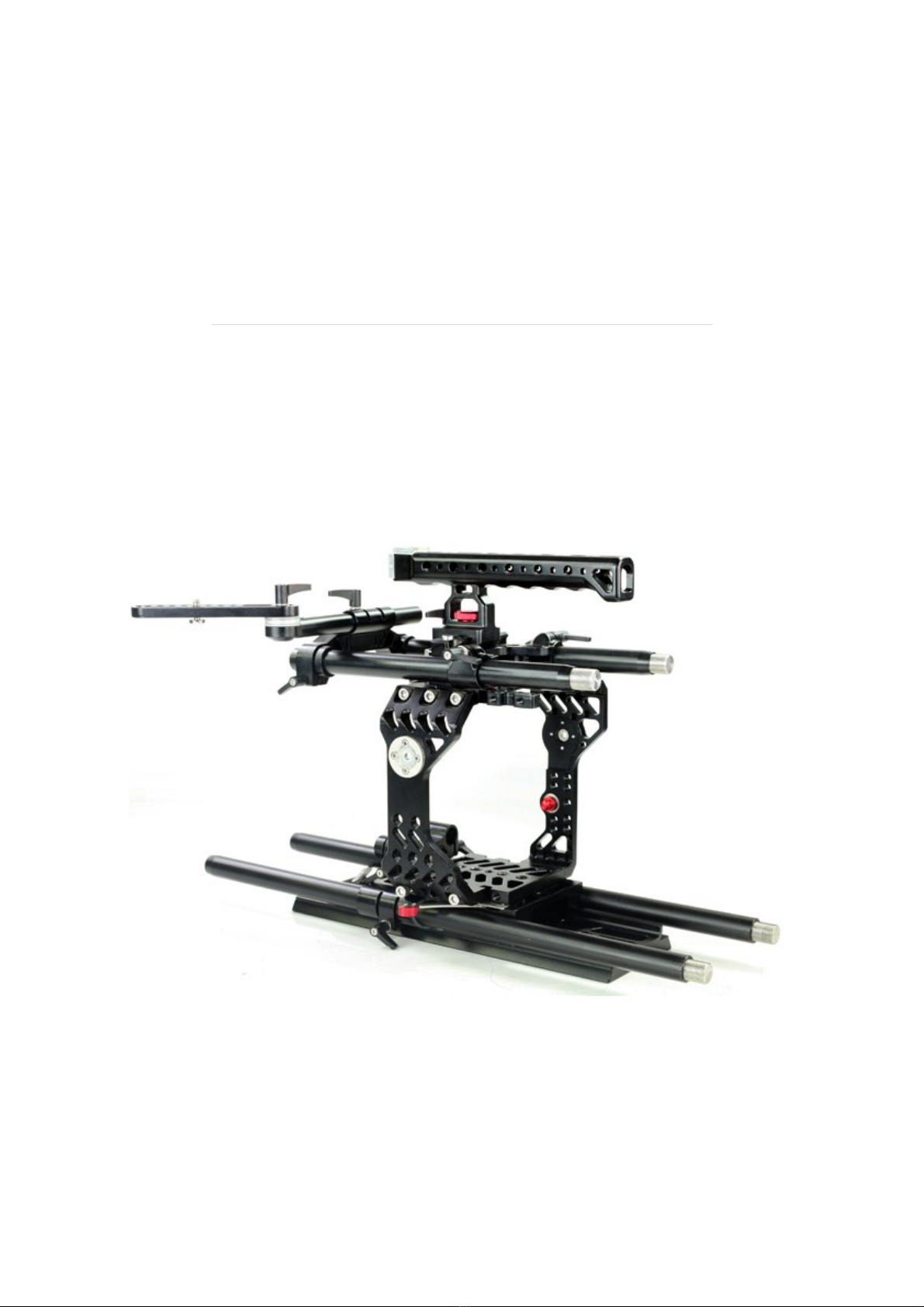

Camtree Hunt CH-RS-CD Bedienungsanleitung
Cage for Red scarlet -Arri Standard
(CH-RS-CD )
CAMTREE HUNT
INSTRUCTION MANUAL
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by
the applicable copyright statutes or in wring by the Publisher.
Camtree Hunt Cage for Red scarlet –Arri Standard 2
INTRODUCTION
The Camtree Hunt Camera Cage for Red Scarlet is constructed by precision machined anodized
aluminum to strengthen the quality of your shoot by producing good professional pictures.
Magnicent nish and custom design provides a very strong and versale foundaon for
conguring your camera with excellent funconality. You can quickly switch between shoong
slls and shoong video with it. It will provide you amazing results at aordable price.

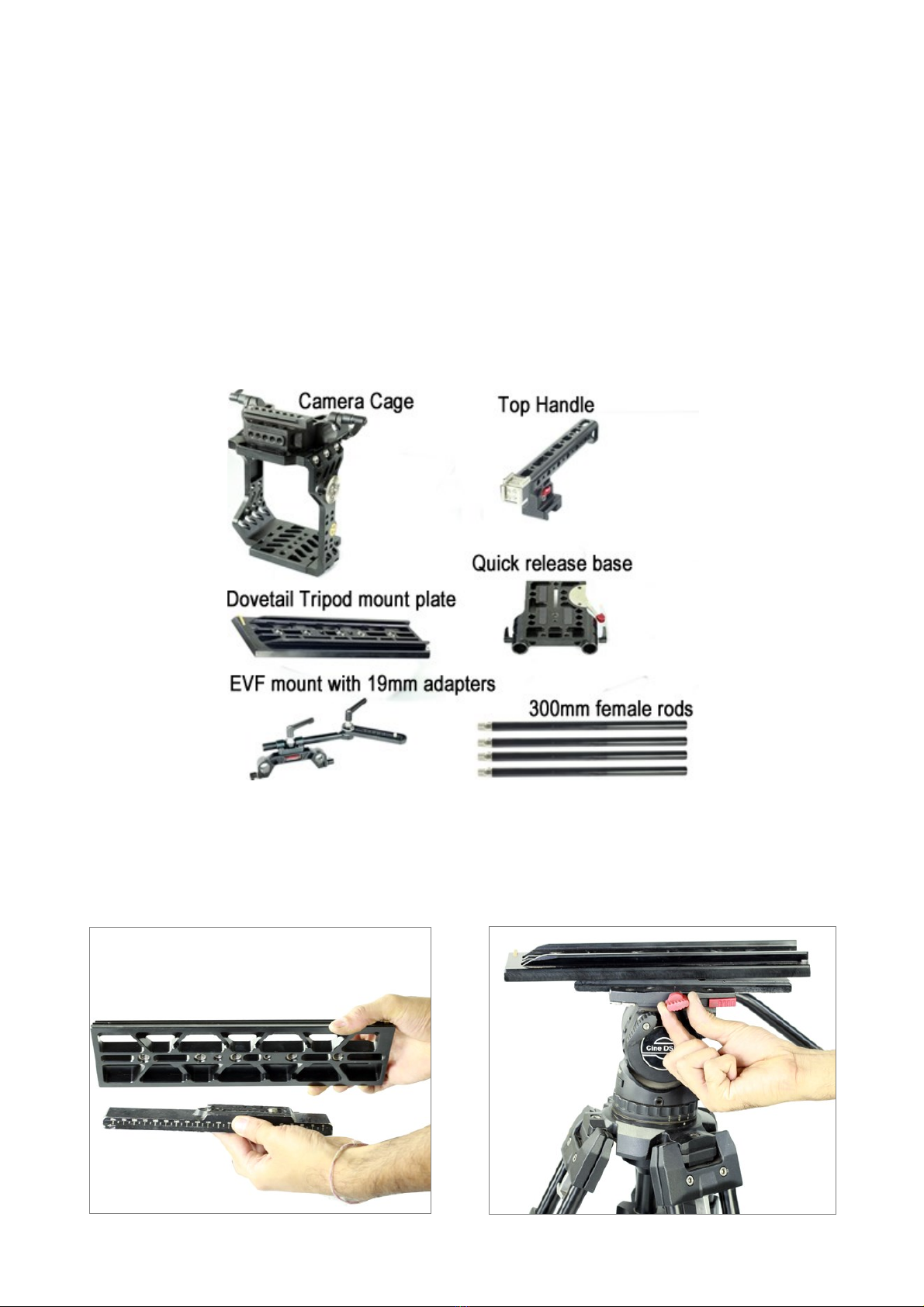

IN THE BOX
Please inspect the contents of your shipped package to ensure you have received all that is
pictured and listed below.
Aach dovetail tripod mount plate to your tripod plate and ghten with the help of screw
driver, then mount tripod plate onto tripod and secure with provided knob.
ASSEMBLING YOUR CAMERA CAGE FOR RED SCARLET-ARRI STANDARD
Camtree Hunt Cage for Red scarlet –Arri Standard 3
Now aach quick release base with the base of camera cage, ghten with the screw driver
to secure.
Insert your camera into camera cage carefully, adjust it to your camera properly and ghten
through the base with the help of screw driver.
Slide in your camera setup onto dovetail mount plate, lock the base with the help of
provided lever on the quick release base.
Lever on quick
release base
Camtree Hunt Cage for Red scarlet –Arri Standard 4
Insert 300mm female rods to quick release base and ghten with the knob.
Horizontally slide in top handle to cage top, ghten the knob and secure all the connecons
to ensure slip free connecon.
Using same approach insert 300mm
rods to cage top and secure.
Camtree Hunt Cage for Red scarlet –Arri Standard 5
Now insert EVF mount with 19mm adapter to front of rails, secure the knob as shown
below. Then mount EVF (not included) onto the EVF holder.
YOUR CAMTREE HUNT CAGE FOR RED SCARLET - ARRi STANDARD
ALL DRESSED UP AND READY TO GO
(SHOWN WITH OPTIONAL ACCESSORIES)
WARRANTY
We oer a one year warranty for our products from the date of purchase.
We will repair or replace your product, free of charge, in the event of a defect in materials or
crasmanship obtained during normal use or handling based on the user manual. Please note
that we will not cover any shipping costs for returning the product to us. If any VAT or import
dues are applied to the return, we will also charge these costs to the customer.
The warranty does not include, by the way of example, damage caused by products that we do
not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,
Camtree Hunt Cage for Red scarlet –Arri Standard 6
or service by anyone other than our company.
We are not liable for incidental or consequenal damages resulng from the use of the unit or
occurring due to any breach of this warranty.
Replacement parts of the product will be provided at nominal cost (covering the cost price of the
replacement parts only) to the customers aer the Warranty Period has expired. We will cover
the complete cost of sending replacement parts within the warranty period. Aer that, nominal
cost of the product & Actual shipping cost will be charged.
Do not send the unit to us without rst geng a response and geng the approval to send back
the item.
In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our
best to help you out.
For any other assistance you can reach us via email.
