Canada Docks Access Platform Leitfaden

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 1

CanadaDocks

#2 & #3 Phillips Drill Bit with

Drill

Locking Pliers

Measuring Tape

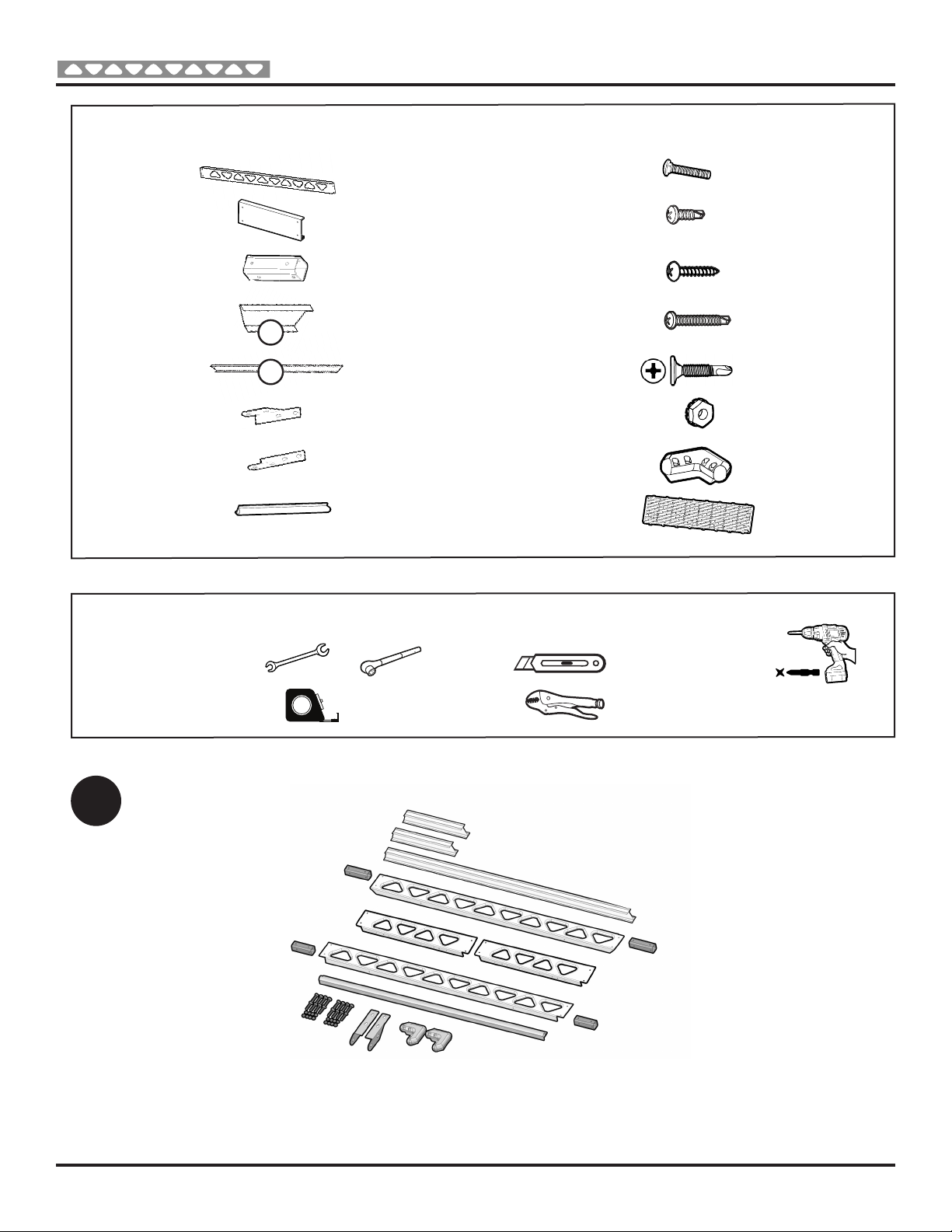

TOOLS REQUIRED:

INCLUDED IN KIT:

Utility Knife

Phillips Drill Bit is included with the kit

X16

X24

9/16” Wrench or

9/16” Socket with Ratchet OR

Layout your access platform on a at area for assembly.

ACCESS PLATFORM INSTALLATION & ASSEMBLY(2x8)

95”

EPT2

SSTUB

T8 CB35S

ST075

STR1

STF075

NL38

CBR1

J24

J95

APB1

APB2

PBR8

DK1X4 X4

ST2 X32

24”

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 2

CanadaDocks

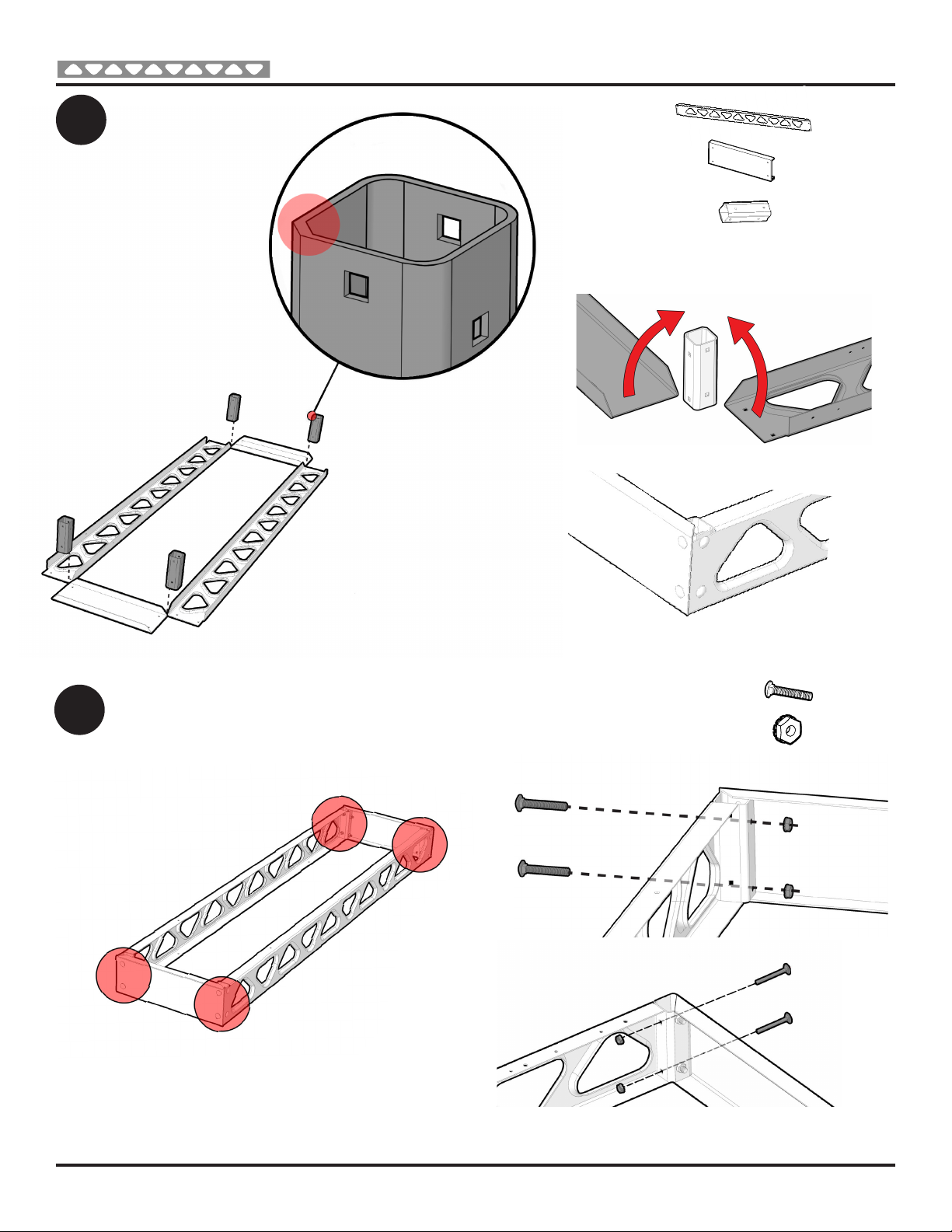

SSTUB

* Model number depends on the length of the legs used for the dock.

2X2

3CB35S X16

X16

NL38

EPT2

SSTUB

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 3

CanadaDocks

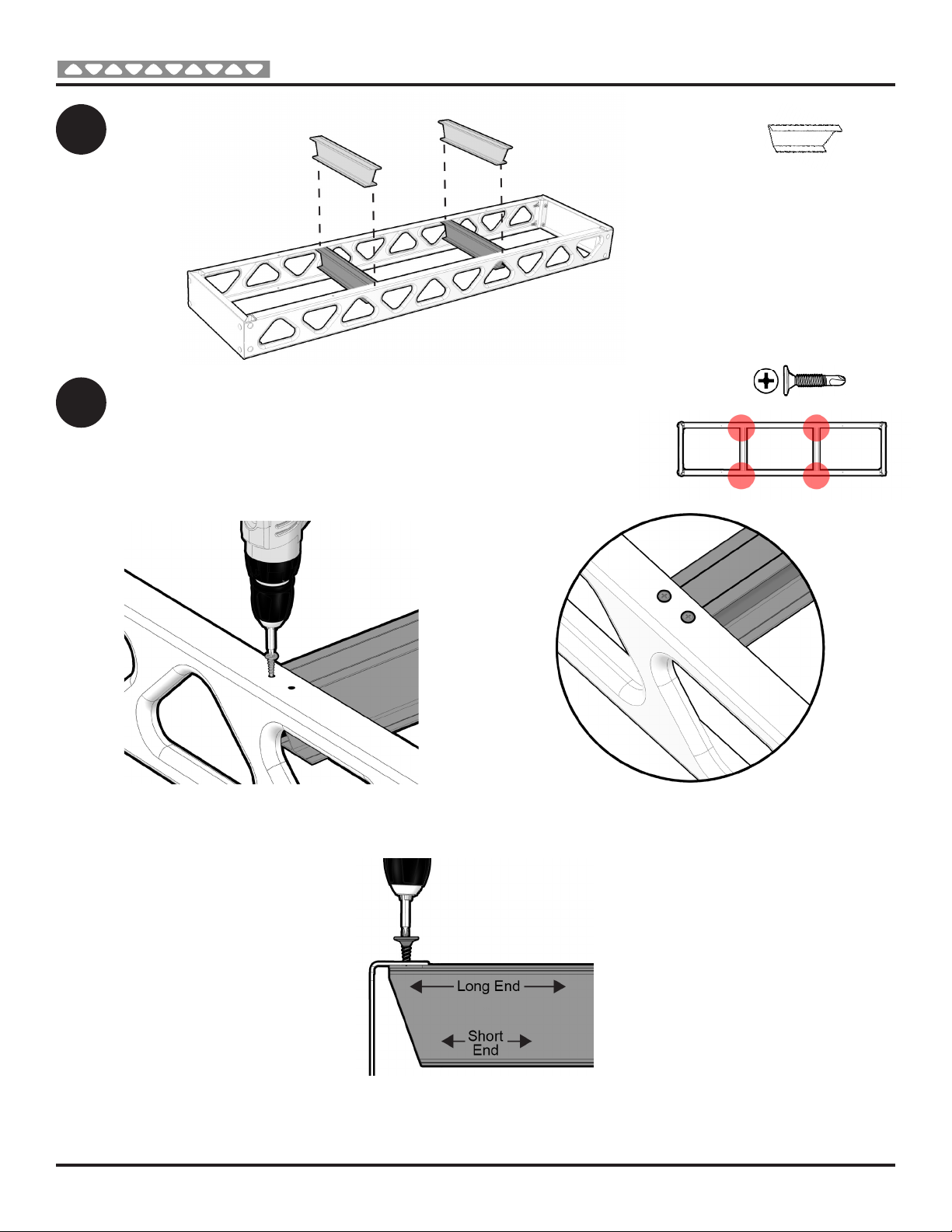

Place and fasten two screws side by side

on each end of the joist.

Ensure the long end of the joist is

facing upwards when placing joists.

STF075 X8

J24 X2

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 4

CanadaDocks

95”

J95

7X1

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 5

CanadaDocks

Place and fasten two screws side by side

from each other on each end of the joist.

Put screws on intersection

Ensure the long end of the joist is

facing upwards when placing joists.

STF075 X4

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 6

CanadaDocks

PLEASE NOTE: It is suggested to use a 4” or longer Philips #3 Bit for fastening joist intersections.

CLAMP INTERSECTION FASTEN INTERSECTION WITH SCREWS

FASTEN TWO SCREWS DIAGONAL FROM ONE ANOTHER

At each joist intersection clamp both overlapping joists together. Place two screws at the bottom

ange of the top joist in a diagonal pattern (see image above). Intersection locations for dock types

are shown on the chart above.

STF075 X4

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 7

CanadaDocks

11 ST2 X32

DK1x4 X4

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 8

CanadaDocks

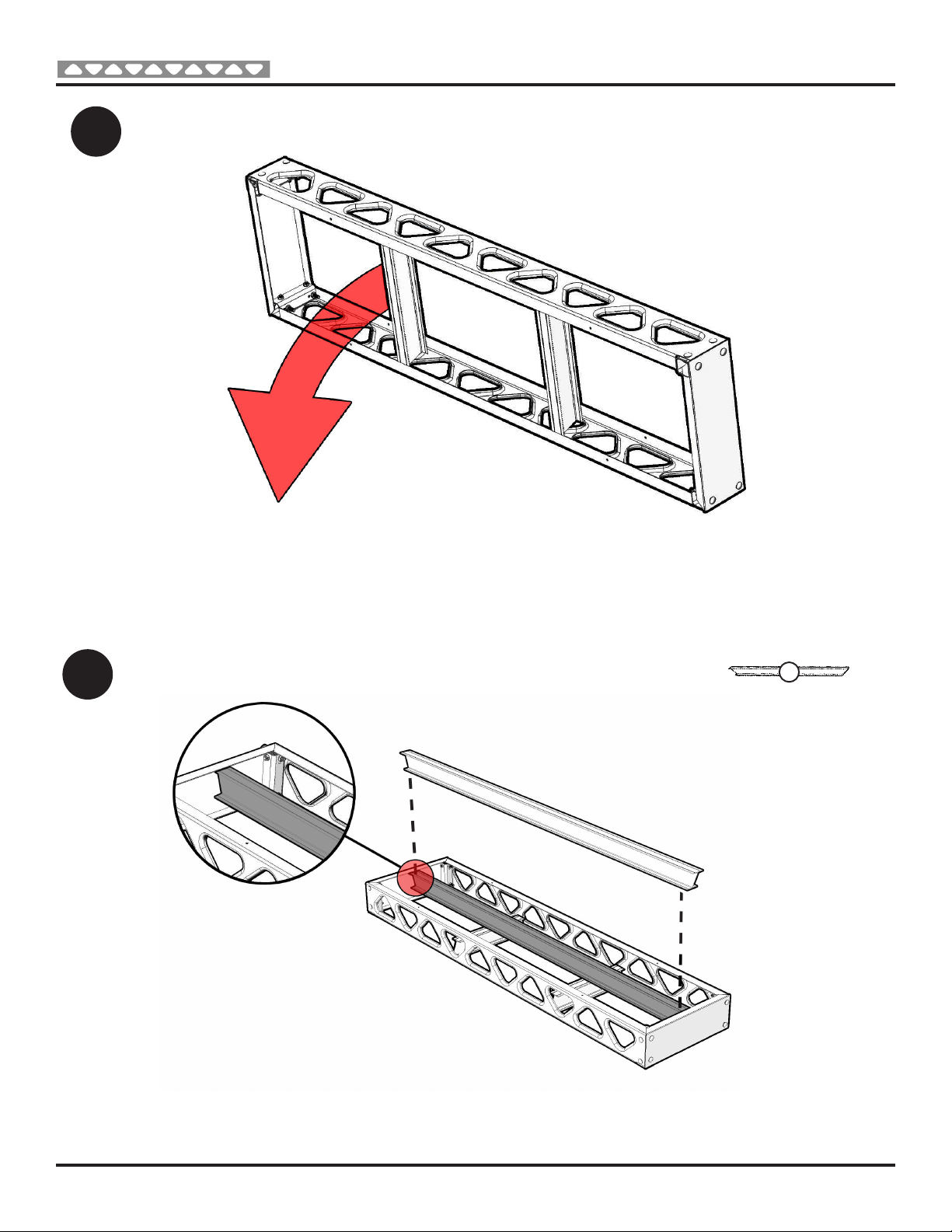

Loosen nuts.

Place 2nd sheet of Thruow™ decking(DK1x4) unto the access platform frame. Align with edges of the access platform

frame and the 1st sheet of Thruow™decking(DK1x4).

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 9

CanadaDocks

APB1 APB2

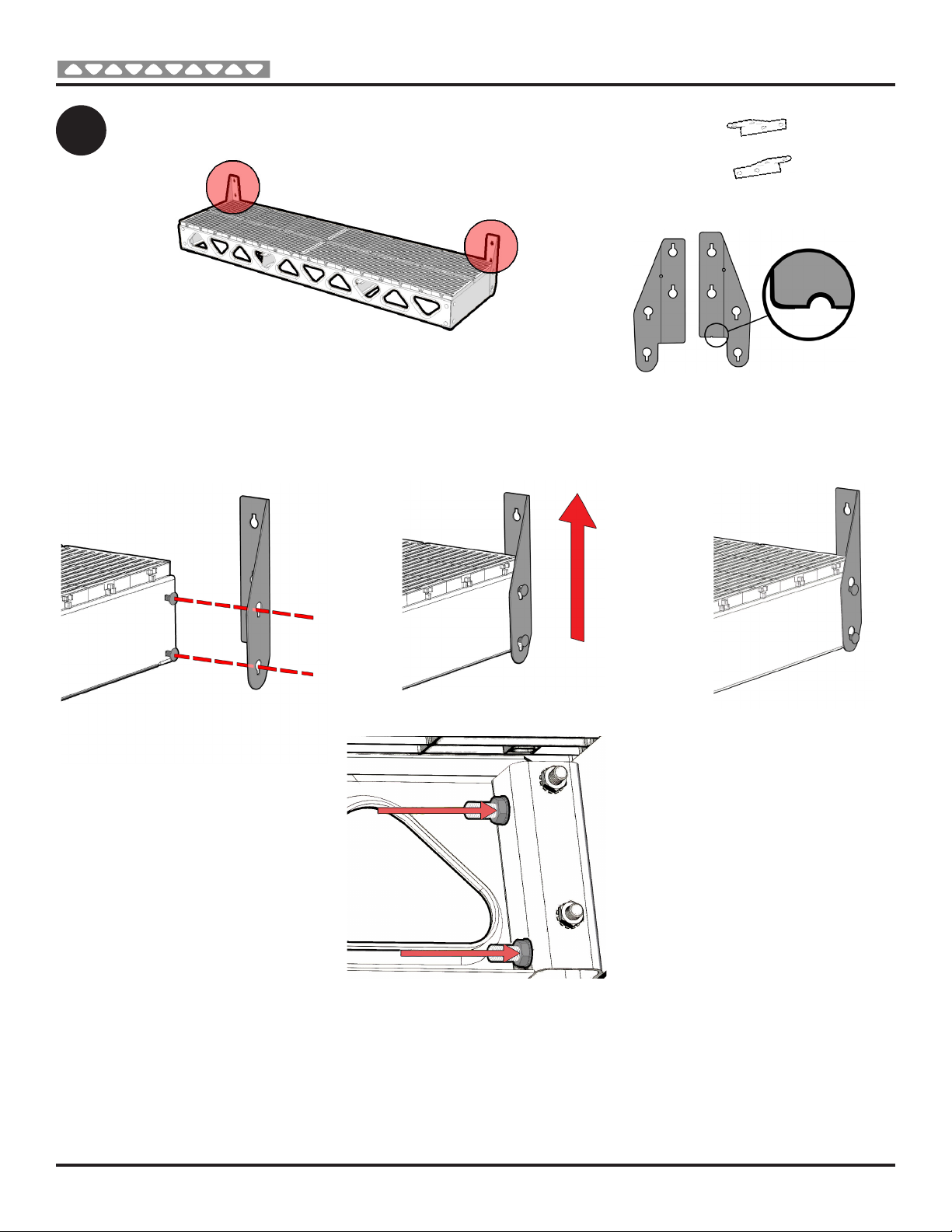

The right sided bracket is indicated by

the second cut-out on the bottom of the corner.

Fit the bracket over the the carriage bolts(CB35S), see above image. Pull the bracket upwards until the carriage bolt heads slip

into the narrow slots of the bracket. Fasten the existing nuts and retighten the carriage bolts in this position. Perform this Step

for brackets located on both ends of the access platform (See above image).

APB2

APB1

Rev 01 09/19/22

CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca | Page 10

CanadaDocks

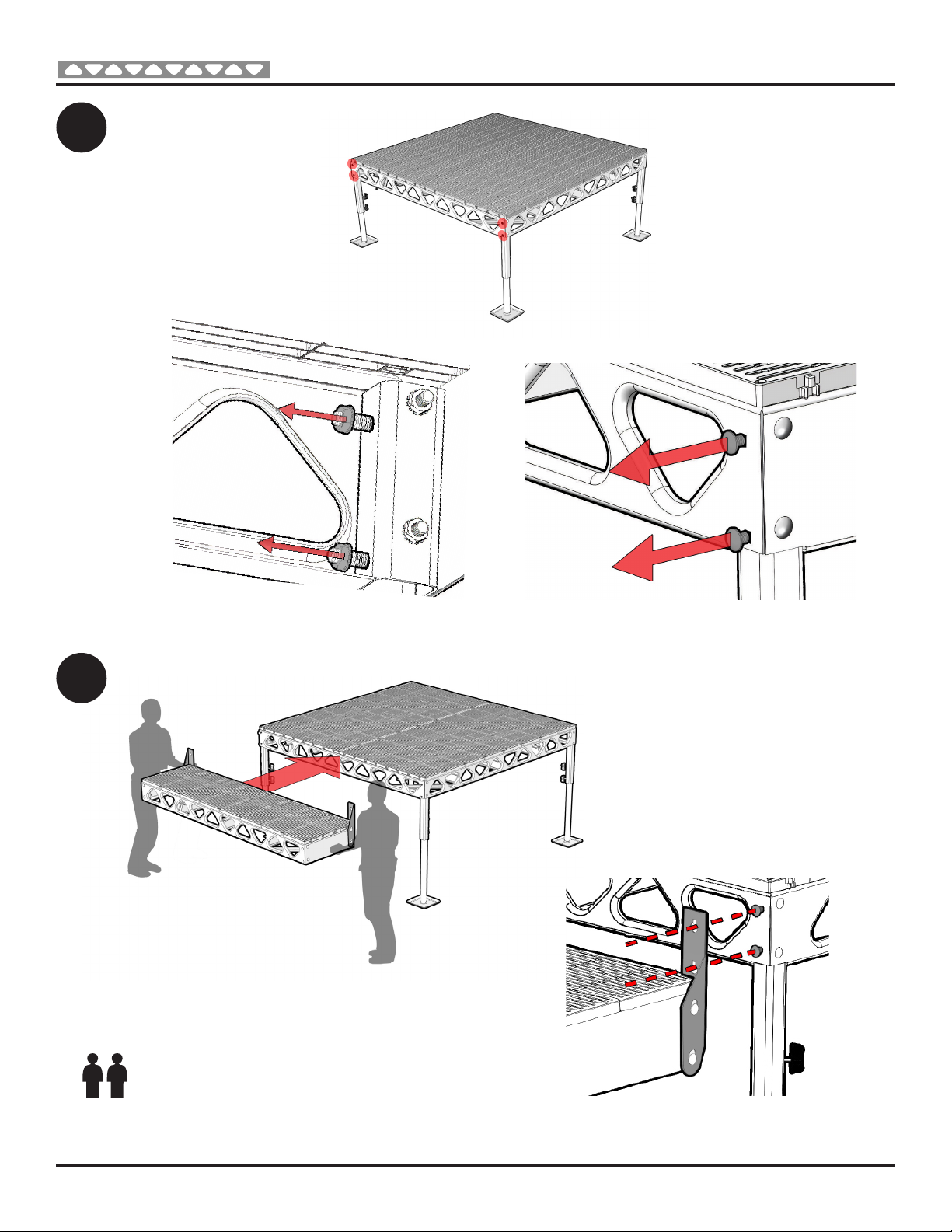

Using two people connect the access platform by hooking the bracket onto the two loose bolts. Do this for both brackets

located on both ends of the access platform.

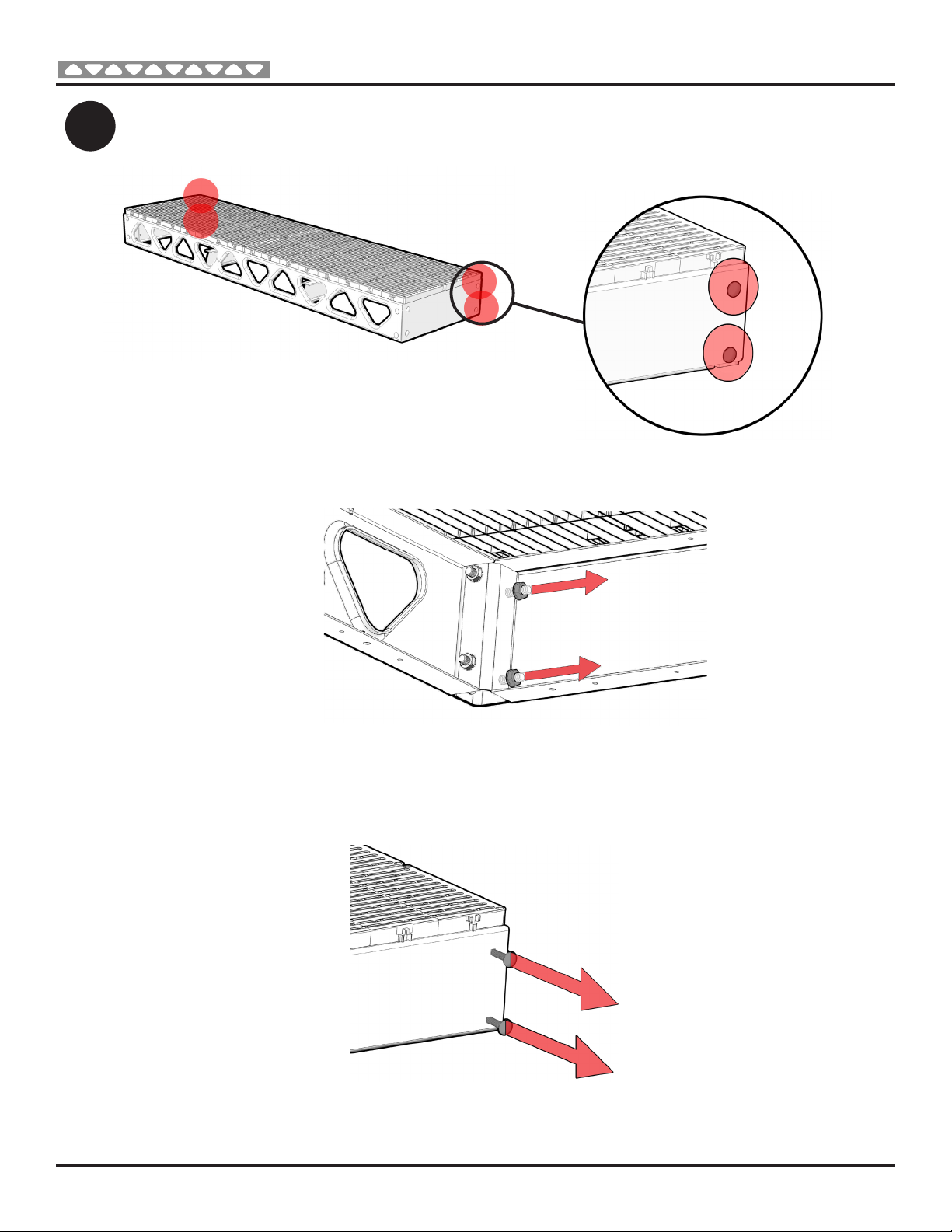

Loosen nuts.

Access platform to be

placed on this side of the dock.
