INSTALLATION INSTRUCTIONS

Gmk10025

AS4553:2008 Please leave instructions with the owner

Par t No: F3771

Revision A - 2010

Cannon

For service to this appliance or spare

parts contact the CANNON distributor:

email: service@sampfordixl.com.au

Phone: 1300 727 421

Fax: 1300 727 425

PLEASE READ THIS MANUAL

BEFORE INSTALLING AND

USING THIS PRODUCT.

DON’T RISK YOUR

APPLIANCE WARRANTY

ONLY A LICENSED PERSON

WILL GIVE YOU A

COMPLIANCE CERTIFICATE,

SHOWING THAT THE WORK

COMPLIES WITH ALL THE

RELEVANT STANDARDS.

AND ONLY A LICENSED

PERSON WILL HAVE

INSURANCE PROTECTING

THEIR WORKMANSHIP FOR 6

YEARS.

SO MAKE SURE YOU USE A

LICENSED PERSON TO

INSTALL THIS APPLIANCE

AND ASK FOR YOUR

COMPLIANCE CERTIFICATE

TO ENSURE THE

MANUFACTURERS

APPLIANCE WARRANTY WILL

BE HONOURED.

Date installed: ...............................................................................................

Compliance Certificate No .............................................................................

Installed by: ...................................................................................................

Freestanding kit

to suit

Fitzroy Inbuilt heaters

Freestanding kit

Should you require assistance or further information please contact your Cannon distributor.

Read these instructions in conjunction

with heater installation instructions

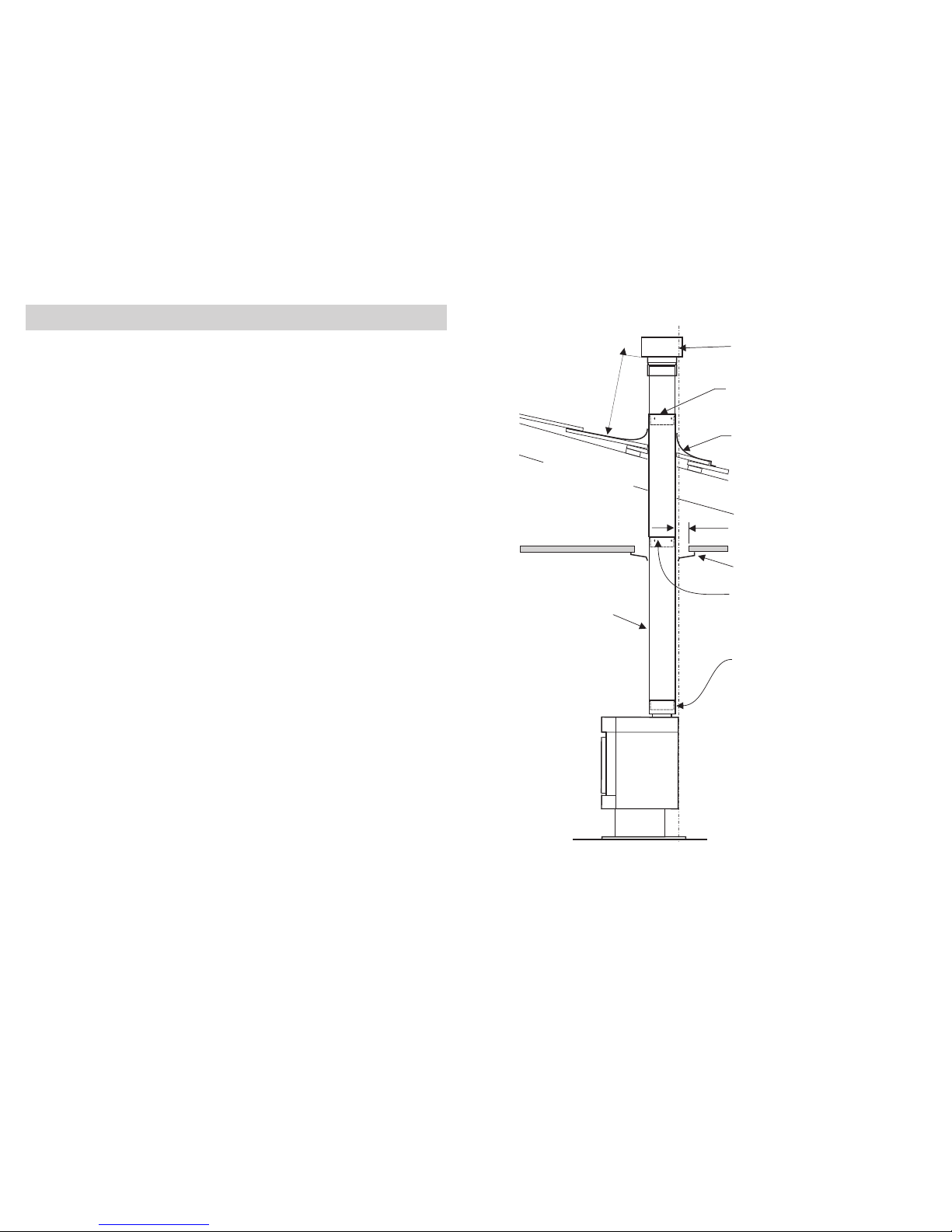

Figure 9

Figure 9 shows Flue system in position. For more detail, refer to heater

installation booklet supplied with heater or contact Sampford IXL (contact details on

the rear of this booklet).

25 mm MINIMUM CLEARANCE

TO COMBUSTIBLE MATERIAL

MAINTAIN 25 mm MINIMUM

CLEARANCE BETWEEN FLUE

AND COMBUSTIBLE

MATERIALS.

500 mm

MINIMUM

125 mm FLUE COWL

APPROVED TO AG 604

IF THE COUPLING IS ABOVE

ROOF LEVEL SEAL JOINT

WITH SILICONE TO PREVENT

WATER INGRESSION

FLASHING TO PROVIDE A

WATERTIGHT SEAL

CEILING RING

FLUE SPIGOT ADAPTER

UPPER LENGTH FITS INSIDE

LOWER LENGTH. RIVET FLUE

JOINS.

RIVET 6 PLACES EACH JOIN

NOTE:

FIT A MINIMUM OF TWO LENGTHS

(1.74 M) OF VERTICAL FLUE

BEFORE FITTING ANY 45° BENDS.

IF BENDS ARE USED, THEY MUST

FIT INSIDE THE FLUE ON

DOWNWARDS ENDS.

USE NO MORE THAN TWO 45°

BENDS IN THE TOTAL FLUE RUN

AND MAINTAIN AT LEAST 250 mm

OF STRAIGHT FLUE PIPE

BETWEEN THE BENDS.

125 mm DIA

FLUE PIPE.

Contents

Mounting heater in freestanding body

Pg 2-4

Minimum clearances

Pg 4

Gas and Electrical connections

Pg 4

Flue installation

Pg 5-6

Mounting heater in freestanding body

1. Remove cross brace on freestanding

body (keep screws).

2. Remove components packaged within for

transport (These components are

wrapped for protection).

3. Reach down into the base of the pedestal

and unscrew the transit screws holding

the freestanding body to the pallet.

4. Position the heater near installation area.

5. Locate the internal ducting

assembly amongst the components

removed from inside the

freestanding body (Figure 2).

6. Remove the rear inspection cover,

gaskets and flue spigot from the

internal ducting assembly (keep

screws).

This Flue and Cowl system shall be installed only by an authorised person and in

accordance with the manufacturers installations (below), local gas fitting regulations,

municipal building codes, AS 5601 Gas Installations and any other statutory

regulations.

METHOD

1. Inspect Flue components for any obvious damage.

2. Position heater in final position and prepare ceiling and roof cutout positions

using a string line from heater flue outlet. See Figure 9. Ensure that the ceiling

ring clears the cornice once installed, similarly a notch can be made in the

cornice as long as clearances to combustible materials are maintained.

3. Fit flue adaptor into heater flue outlet.

4. Install flue lengths in turn, fitting upper flue length inside the lower flue length.

Secure each join with three rivets.

5. Fit ceiling ring over flue at appropriate time, secure to ceiling by bending tabs

over ceiling material.

6. Slide the Flue Cowl over the outside of a 125mm diameter flue. Do not insert

Flue Cowl past the swage point. Ensure a min of 500mm distance from cowl to

roof surface. See Figure 8.

7. Install suitable flashing at roof junction to provide watertight seal between flue

and roof surface. See Figure 9.

8. Check flue system for alignment and that the Flue Cowl is venting normally.

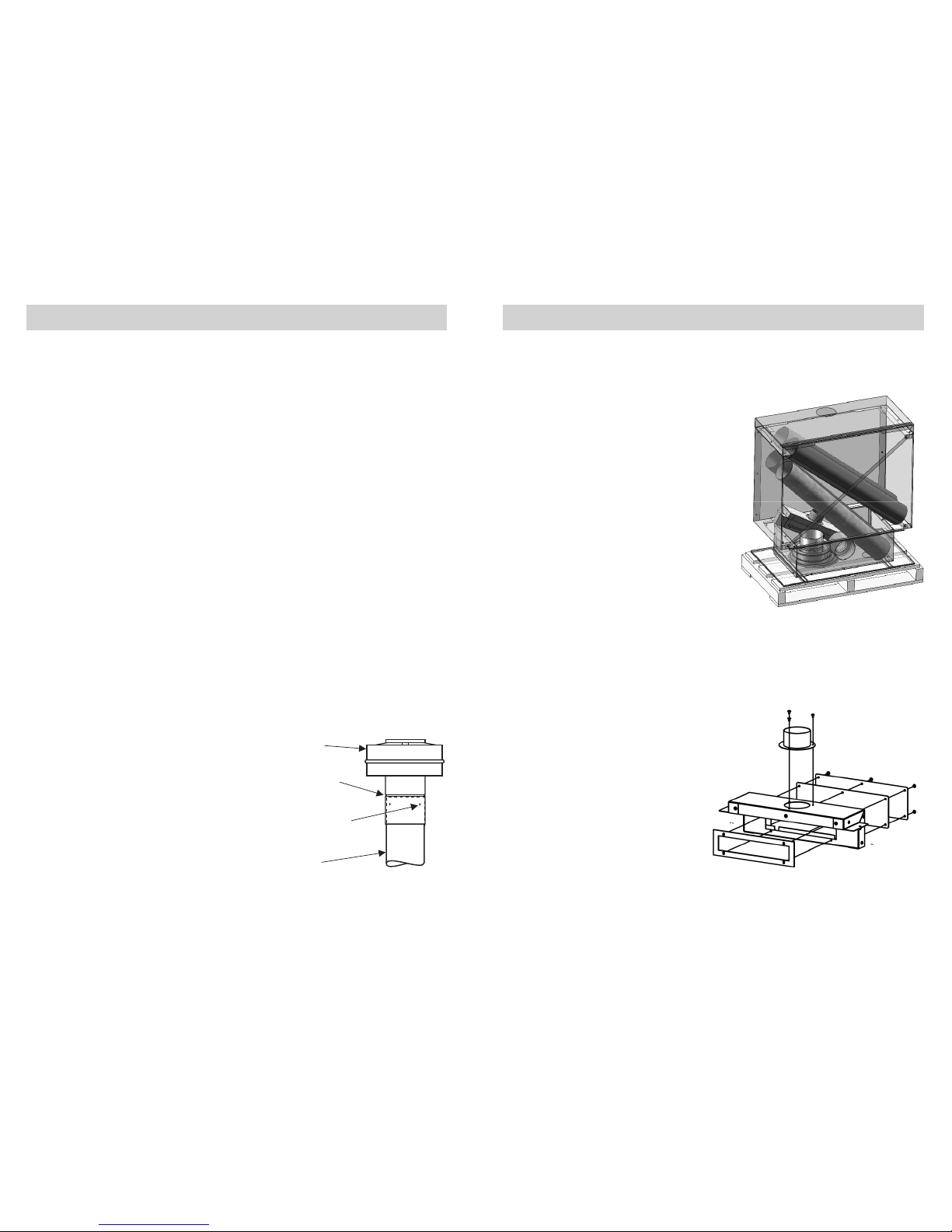

Swage.

(Insert flue pipe

to this point only)

125mm Cowl

Rivet or Tek screw.

(3 places,

NOT supplied)

125 mm DIA

Flue pipe.

FIGURE 2.

Cowl installation.

Flue installation

Figure 1

Figure 2

Figure 8

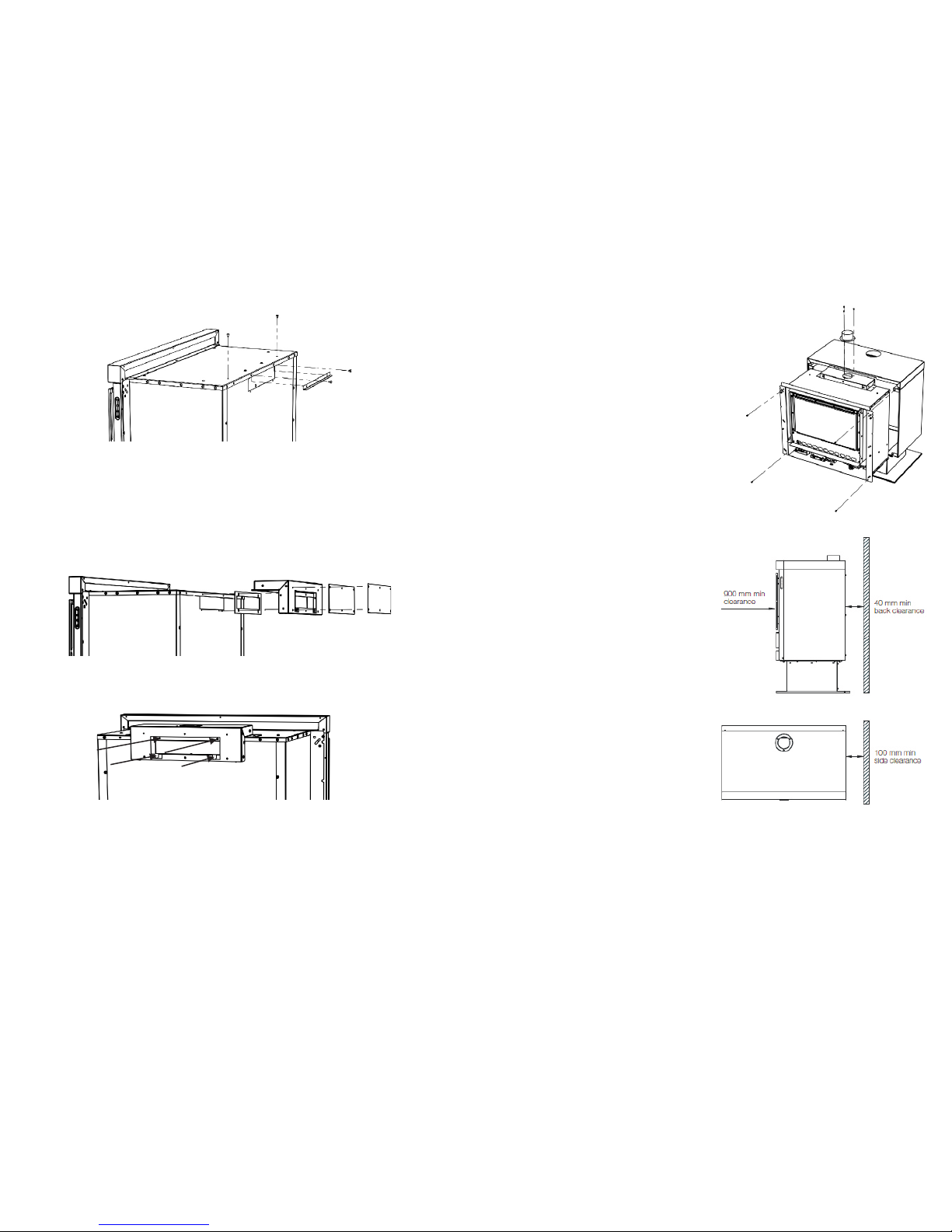

9. Screw four screws through inspection hole at the points shown to secure duct

(Figure 5).

10. Replace two screws removed in step 8 are now replaced to hold the duct.

7. Remove the two screws holding the flue flange on the back of the heater, and

take off the flange. Also remove two screws from the top panel of the heater

(Figure 3).

8. Attach the internal ducting assembly to the rear of the heater in the order shown in

Figure 4. Make sure that the gaskets are in place and secured appropriately.

11. Lift and slide heater into the freestanding

body (Figure 6).

12. Secure the heater by screwing the four

retaining screws through the front flange

and into the freestanding body. Re-attach

the flue spigot using the same three screws

that were previously removed.

13. Position the heater in the desired

position making sure to leave at least

minimum clearances as shown in

Figure 7.

Gas and Electrical connections

Refer to the heater installation instructions for gas and electrical connections.

A hole can be made in the floor directly under the heater for gas connection.

Similarly an electrical connection can also be made within the pedestal. Ensure that

hardwired units have an appropriate isolation switch. If a unit is connected through a

powerpoint ensure that the switch is in an accessible position.

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7
