Cantek P630HV Anwendungshandbuch

Operations & Parts

Manual

www.cantekamerica.com

Please ensure you have your serial number available when contacting us for parts or service.

Cantek America Inc. | 1.888.982.2683 | Parts: [email protected] | Service: [email protected]om

P630HV

SINGLE SURFACE PLANER

OPERATING INSTRUCTIONS

Before operating the unit, please read this manual thoroughly, and

retain it for future reference.

OWNER'S RECORD

The model and serial numbers of your set are located at the

front.Record the serial number in the space provided below. Refer

to these numbers whenever you call upon your dealer

regardingthis product.

MODEL NO._______________________

SERIAL NO._______________________

TABLE OF CONTENTS

Specifications ............................................................................................................................................................................................................. 2

Features Of Your 24"Planer .................................................................................................................................................................................. 3

Dimensions ................................................................................................................................................................................................................. 4

General Safety Instructions .................................................................................................................................................................................. 5

Additional Safety Rules For Your Planer ......................................................................................................................................................... 6

Unpacking And Clean-UP ..................................................................................................................................................................................... 7

Installation Instructions ......................................................................................................................................................................................... 8

Installing ...................................................................................................................................................................................................................... 8

Grounding Information And Power Connections ....................................................................................................................................... 8

Adjustments And Operation ............................................................................................................................................................................... 9

Work Table .................................................................................................................................................................................................................. 9

Table Rollers ............................................................................................................................................................................................................ 10

The Depth Of Cut .................................................................................................................................................................................................. 10

Cutterhead ............................................................................................................................................................................................................... 11

Infeed Roller, Chipbreaker, Pressure Bar, Outfeed Roller and Tension Adjustment Of Infeed And Outfeed Rollers ... 12

Feed Speed Control ............................................................................................................................................................................................. 13

Feed Drive System ................................................................................................................................................................................................ 13

Maintenance .................................................................................................................................................................................................... 14-15

Trouble Shooting ........................................................................................................................................................................................... 16-17

Wiring Diagram............................................................................................................................................................................................... 18-19

Parts Lists ........................................................................................................................................................................................................... 20-52

SPECIFICATIONS

ELECTRICS:

Planer Motor ........................................................................................................................................................................... 10HP 3PH 30AMP

Feed Motor ................................................................................................................................................................................... 1HP 3PH 3AMP

Table Lift Motor ...................................................................................................................................................................1/2HP 3PH 1.5AMP

Total Required Amperage .................................................................................................................................................................... 34.5AMP

CAPACITY:

Max. Width Of Stock ......................................................................................................................................................... 630mm (24-13/16")

Max. Thickness Of Stock .................................................................................................................................................. 300mm (11-13/16")

Max. Depth Of Cut ........................................................................................................................................................................... 8mm (5/16")

Min. Length(uncutted) ....................................................................................................................................................... 220mm (8-11/16")

CUTTERHEAD:

Number Of Knives ............................................................................................................................................................................................ 4pcs

Diameter ..................................................................................................................................................................................... 98mm (3-27/32")

Cutting Circle ............................................................................................................................................................................ 102mm (4-1/64")

Speed ........................................................................................................................................................................................................ 5500R.P.M

TABLE SIZE:

Width....................................................................................................................................................................................... 685mm (26-31/32")

Length ....................................................................................................................................................................................... 870mm (34-5/16")

FEED ROLLERS:

Infeed (One Sectional) Dia. ............................................................................................................................................................... 76mm (3")

Outfeed (Two Solid) Dia. ........................................................................................................................................................... 60mm (2-3/8")

Table Roller (Two Smooth) Dia. ......................................................................................................................................... 68mm (2-11/16")

Feed Rate (Variable Speed) ............................................................................................................................................... 19 FPM to 39 FPM

MACHINE SIZE (LxWxH) .................................................................................... 1247mm x 865mm x 1249mm (49"x34"x49")

PACKING SIZE (LxWxH) ............................................................................ 1320mm x 1020mm x 1320mm(52"x41-1/8"x52")

NET WEIGHT ..................................................................................................................................................................... 820KGS (1804LBS)

GROSS WEIGHT .............................................................................................................................................................. 920KGS (2024LBS)

STANDARD EQUIPMENT

1. Two rollers, table with micro-metric adjustment. 8. Digital counter.

2. Variable feed speed system with 1HP motor. 9. Lifting table on four strong screws.

3. Power table, rise and fall with 1/2HP motor. 10. Magnetic switch.

4. Segmented infeed roller. 11. Dust extraction hood.

5. Sectional chipbreakers. 12. Adjusting tools & operations manual.

6. 4-Knife cutterhead. 13. Main motor: 10HP 3PH 220/440V 60cycle

7. Easy operation knife setting gage. 14. Cast iron frame.

FEATURES OF YOUR 24" PLANER

1. Dust Hood

2. Top Cover

3. Thickness Micro

Adjustment

4. Frame Cover

5. Right Side Cover

6. Power Indicator

Light

7. Emergency Stop Button

8. Digital Scale And

Control

9. Table Raising Button

10. Start Button, Planer

11. Start Feeding Button

12. Work Table

13. Control Panel

14. Limit Block, Width

15. Table Roller

16. Wiring Terminal Box

17. Table Roller

Adjustment Handle

18. Machine Base

19. Access Door

20. Variable Speed

Dial

21. Table Roller

Adjustment Lock

22. MM/INCH Scale

DIMENSIONS

Packing: outside measurement Base Dimension

GENERALSAFETY INSTRUCTIONS

1. Keep Guards In Place: Safety guards must be kept in place and in working order.

2. Remove Adjusting Keys And Wrenches:Before turning on machine, check to see that the keys, chucks and

adjusting wrenches are removed.

3. Reduce The Risk Of Unintentional Starting: Make sure switch is in the off position before plugging in the

machine.

4. Do Not Force Machines:They will do a job better and safer at the rate for which they were designed.

5. Use Right Tool: Do not force a machine or an attachment to do a job for which it was not designed.

6. Secure Work:Use clamps or a vise to hold work when practical. It's safer than using your hand and it frees both

hands to operate machines.

7. Maintain Machines With Care:Keep machines sharp and clean for the best and safest performance. Follow

instructions for lubricating and changing accessories.

8. Disconnect Machines From Power:Before servicing or when changing accessories such as bits, blades,

cutters, etc.disconnect from power.

9. Use Recommended Accessories:Consult the owner's manual for recommended accessories. The use of

improper accessories may cause risk of injuries.

10. Check Damaged Parts: Check for alignment of moving parts, binding of moving parts, breakage of parts,

mounting, and any other conditions that may affect the machine's operation. A guard or other part that is

damaged should be properly repaired or replaced.

11. Turn Power Off: NEVER LEAVE MACHINE RUNNING UNATTENDED. Do not leave machine until it comes to a

complete stop.

12. Keep Work Area Clean: Cluttered areas and benches invite accidents.

13. Do Not Use In Dangerous Environment: Do not use power machinesin damp or wet locations, or expose

them to rain. Keep work area well lighted.

14. Keep Children Away: All visitors should be kept at a safe distance from the work area.

15. Make Workshop Child Proof:Use padlocks, master switches, and remove starter keys.

16. Wear Proper Apparel: Loose clothing, gloves, neckties, rings, bracelets or other jewelry may get caught in

moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.

17. Always Use Safety Glasses And Dust Masks: Use face or dust mask if cutting operation is dusty. Every day

eyeglasses only have impact resistant lenses, they ARE NOT safety at all times.

18. Never Stand On Machine: Serious injuries could occur if a moving part is unintentionally contacted.

ADDITIONAL SAFETY RULES FOR YOUR PLANER

1. This machine has been designed with as many safety features as humanly possible, however, always remember

that a planer is only as safe as its operator.

2. Before starting the planer, be sure to check the following:

A. Table must be completely free of all foreign matter.

B. Cutterhead knives MUST be inspected before each operation. Check for tightness in cutterhead and make

certain knives are not fractured in any place. Flying knives are DANGEROUS.

C. Check knives for sharpness.

3. Check material thickness and depth of cut desired. NEVER overload planer, or try to cut beyond its capacity.

4. As material is fed into machine, stand to side of board near switch (never directly behind)."Kick-back" is caused

by improper grip of lumber by infeed roll and chipbreaker, can cause serious injury.

5. NEVER stand directly behind or work behind machine when it is running. Direction of cutterhead rotation

usually throws chips or any foreign material from rear of machine.

6. In case it is necessary to stop material as it is through machine, switch off feed system and turn machine off.

WAIT until cutterhead has completely stopped before lowering table to remove material. Attempted removal

while cutterhead is turning may cause "Kick-back".

7. NEVER horse around a running planer. "Play"should absolutely be forbidden as 9 out of 10 accidents are the

results of carelessness and playing with machine as though it were atoy.

8. Always stop machine for adjustment of when leaving immediate area. Disconnect power source when working

on or around any moving parts.

9. CAUTION-Kickback can result and board flies from machine with high velocity. When sectional infeed rolls and

chipbreakers are installed, it is possible to feed several narrow boards through machine.

10. Use only factory authorized replacement parts and knives.

11. Keep all guards in place at all times.

12. Extra care should be taken when running short pieces, but with another piece of material of equal thickness and

stand ASIDE.

13. Do NOT tie strings to the table elevating screws or remove the protective rubber boots. The screws will be rusty

and plastic embeds on the screws. Failure to comply with the above warnings may cause personal injury and/or

damage to the machine.

UNPACKING AND CLEAN-UP

To ensure maximum performance from your planer, clean it properly, and install it accurately before use. As soon as

you receive the planer, we recommend you follow the procedures:

1. Inspect packing crate for damage in transit. Record damage and report it immediately to shipper.

2. Open crate and check that machine arrived in good condition. If not, let the distributor know immediately.

3. Before lifting machine, remove all bolts from its shipping base.

4. Transport machine to location with a hand truck or dolly.

5. ** IMPORTANT **

REMOVE THE PROTECTIVE COATING FROM THE TABLE, TABLE ROLLERS, FEED ROLLERS, CUTTERHEAD

AND LOOSE ITEMS PACKED WITH THE MACHINE.

6. The coating may be removed with a soft cloth moistened with Kerosene.

NOTE: DO NOT USE ACETONE, GASOLINE, OR LACQUER THINNER FOR THIS PURPOSE

7. DO NOT use solvents on plastic parts; they will dissolve plastic.

8. ** CAUTION **

CARE MUST BE TAKEN WHEN CLEANING THE CUTTERHEAD. The knives are in the cutterhead and are very

sharp.

9. For lifting, please refer to Fig. 1

Fig. 1

INSTALLATION INSTRUCTIONS

IMPORTANT(PALESE READ CAREFULLY)

Installing

Mount machine securely to solid, even base foundation. Concrete base mounting preferred. Locate in clean, dry, well

lighted and well ventilated building if possible. With machine in position, test table surface lengthwise and crosswise

with machinist level. Place metal shims under low corners. Check that all four corners are supported.

Grounding Information And Power Connections

1. ** IMPORTANT **

Before connecting to the power source, be sure that the voltage is the same characteristics as tied on terminal

box.

RUNNING ON WRONG VOLTAGE WILL INJURY THE MOTOR

2. The necessary wiring to the power source should be completed by a competent electrician.

For personal safety, this machine must be properly grounded. Base of machine should be grounded to central

grounding system.

3. NOTE: After wiring into the power source, run motor without load to check the direction of rotation.

4. Please refer to Fig. 2, Fig. 3 of Control Panel and Connections To Power source.

CONTROL PANEL

Fig. 2 Fig. 3

CONNECTION TO POWER SOURCE NOTE: SELECT WIRE SIZE TO MEET TOOL

REQUIRED AMPERAGE OF

34.5AMP/220V

17.25AMP/440V

ADJUSTMENTS AND OPERATION

Disconnect machine from the power source before adjusting this machine.

OPERATING ADJUSTMENTS.

WARNING: Before checking adjustments, always make sure the planer is disconnected form the power source.

Work Table

The work table is mounted on the frame and is raised or lowered on four screws mounted on thrust bearings. The

work table is raised or lowered by 1/2HP motor power control or micro adjustment. The work table MUST BE parallel

to the cutterhead. This can be checked by lowering the work table to permit placing a small square block between

the work table and the cutterheadat the extreme right side of the table. Raise the table with the handle until the block

just touch the cutterhead and move the block to the left side of the table and check the cutterhead. If the table is not

parallel to the cutterhead, perform the adjustment procedures as follow:

1. Disconnect the machine from the power source.

2. Remove the boot (C) for access to screw,

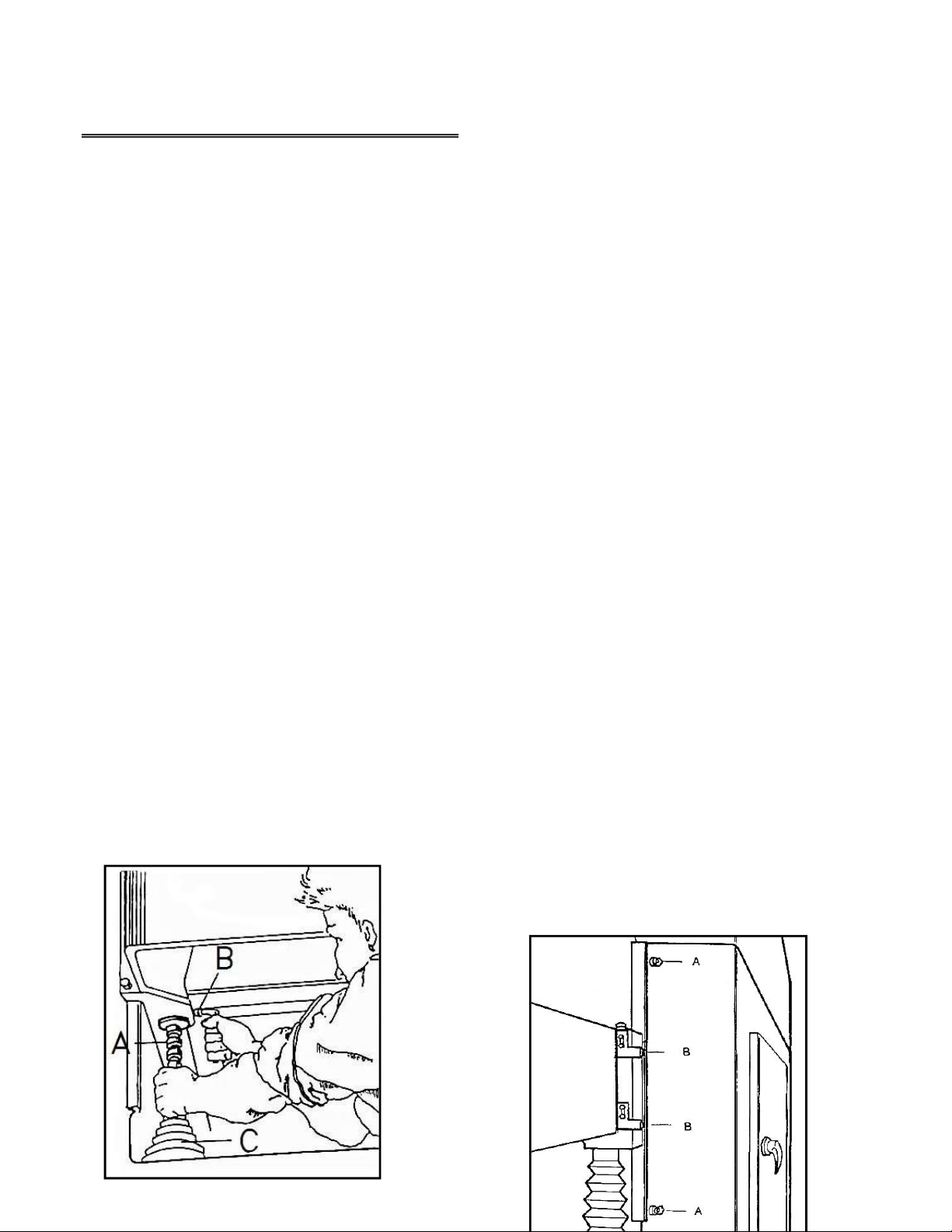

3. Loosen lock bar (A) and turn acme screw (B) in clockwise direction, then adjust it to accurate position as shown

in Fig. 4.

Limitation for work table raising or lowering, there is a limit switch (A) for each direction of table movement. The

power table switches off to prevent damage in maximum high and low position as shown in Fig. 5 (B) is a limit block,

micro-switch block.

(A) Limit switch

(B) Limit switch stop

NOTE: The most accurate way to check cutter alignment with table parallel is with the use of a dial indicator

mounted on a surface gage.

Fig. 4

A. Lock Bar

B. Rubber Dust Boot

C. Acme Screw

Inhaltsverzeichnis

Andere Cantek Hobel Handbücher

Cantek

Cantek P24HV Anwendungshandbuch

Beliebte Hobel Handbücher anderer Marken

Felisatti

Felisatti PF180/1500 Bedienungsanleitung

DeWalt

DeWalt DW 1150 Leitfaden

Triton

Triton TRP UL Kurzanleitung

Melbourne

Melbourne MTC-49407 Bedienungsanleitung

VARO

VARO POWERplus POW1520 Bedienungsanleitung

Powermatic

Powermatic 209 Service-Handbuch

Skil

Skil 1565 Bedienungsanleitung

Makita

Makita 1051D Bedienungsanleitung

Scheppach

Scheppach Plana 3.0 Montageanleitung

Grizzly

Grizzly G1033X Bedienungsanleitung

Stanley

Stanley STPP7502 Bedienungsanleitung

Palmgren

Palmgren 84115 Bedienungsanleitung

Draper

Draper PT610V Bedienungsanleitung

Makita

Makita PC5000C Bedienungsanleitung

Berner

Berner BP 40-82 C Bedienungsanleitung

Grizzly

Grizzly G0603X Bedienungsanleitung

King Industrial

King Industrial CT-381FX Bedienungsanleitung

FXA

FXA FXAJD8220 Bedienungsanleitung
