1. Description.

The WSD12-4D is a datalogger with 4 input channels to acquire, linear deformation values coming from 1 to 4 resistive

potentiometers and temperature, with storage functionality of samples acquired.

2. Configuration.

Using WineCapManager software, for each channel, the measure acquired can be selected as showed in the following table:

Channel 1

Channel 2

Channel 3

Channel 4

Temperature

Proportional

Potentiometric

Where:

•Temperature: datalogger reports the case internal temperature or the temperature acquired by an external transducer

(NTC10K-FR). The transducer selection (internal/external) is performed using jumpers.

•Proportional: datalogger reports a proportional value (from 0% to 100%) related to full-scale of potentiometer installed,

indipendently by the stroke.

•Potentiometric: datalogger reports the mechanical stroke of the installed potentiometer expressed in mm. Full-scale is

configurable for each channel using WineCapManager software.

To properly configure the device:

•Connect the datalogger to PC using the provided USB cable. Datalogger’s led will flash RED/GREEN.

•Execute WineCapManager software, create a new database, open it and wait for datalogger acknowledgement and

automatic connection.

Picture 1 - Product Image

Picture 2 - Possible configurations

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

2/11

Once the connection is established, datalogger’s led flashes in GREEN, meantime on WineCapManager main page real time

channels data appears (as shown in the following image):

From the “Sensor” drop-down menu (or clicking with right button on sensor’s row) select “Properties” to access at the device’s

configuration page (Pic. 4):

Therefore, select “Tools” and click on “InfoReq” button:

The “Advanced sensor properties” panel opens, from which some different parameters for each channel can be modified.

•Channel type (selectable from drop-down menu) can have following values:

a. temperature (only for the first channel);

b. proportional (all channels), acquires the linear transducer’s movement value expressed in percentage

(0 ÷ 100.00%);

c. deformation (all channels), acquires the linear transducer’s movement value expressed in mm.

Picture 3 - WineCapManager - Main page

Picture 4 - WineCapManager - Sensor menu

Picture 5 - WineCapManager - Tools panel

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

3/11

•Scale factor.

Modifies resolution and consequently the transducer’s dynamic range.

The correct value to be inserted is the external linear transducer’s full scale, expressed in mm, divided per 10,000.

For example, if the full scale value of a linear transducer is 25mm, the value to be inserted in the “Scale factor” field is

25/10,000=0.0025.

This parameter influences only “Deformation” measures type; for other measures type this parameter is, however,

initialized to “0,01”.

•Scale offset.

Allows adding a constant value to all measures; this value depends from the transducer’s type used. If not necessary must

contain “0”.

Once parameters are modified, they must be saved on the device clicking on “Write” button. A message pop-up appears warning

about consequences of writing operation as the device’s flash memory erase. Click on “Yes” to confirm operation.

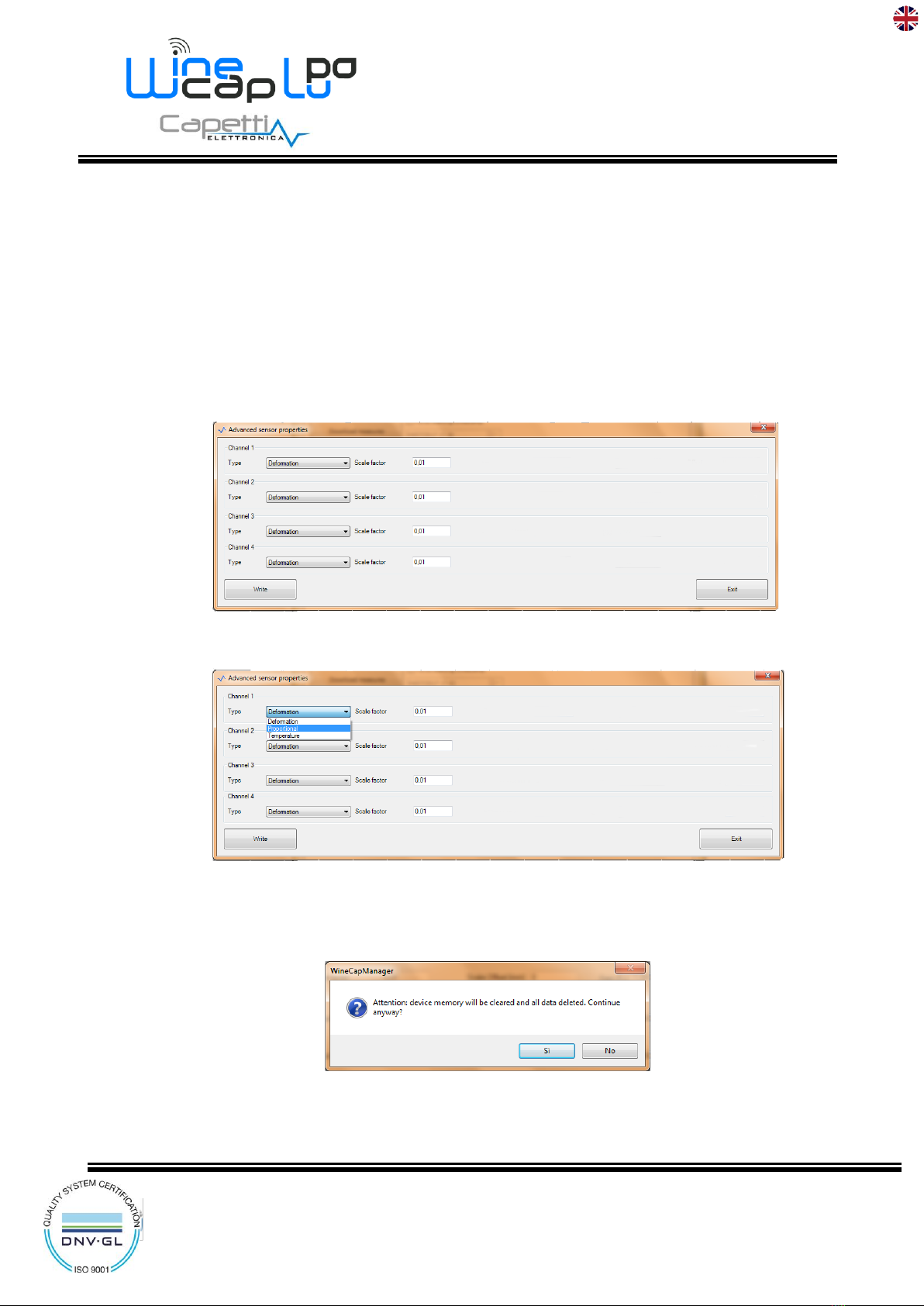

Picture 6 - WineCapManager - Advanced sensor properties

Picture 7 - WineCapManager - Channel type selection

Picture 8 - WineCapManager - Configuration alert

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

4/11

A new pop-up appears confirming the successful writing operation:

ATTENTION: Whenever the full scale value is changed, the "REACTIVATE" command must be given to the datalogger

3. Device preset and use mode.

a. Wireless Mode:

No setup operation is needed. Typically the system is configured from factory so the device is already associated to the system

basestation. The device is in STANDBY mode (refer to Picture 13 - Status table - Radio signal quality) for which is necessary to start it

with the TEST command (refer to Installation procedure.).

Otherwise, in case the device is in FACTORY RESET mode (refer to Picture 13 - Status table - Radio signal quality), that means it's

ready for connecting to an existing system, in order to associate it, make reference to the “WineCap System - User Manual R29”

software manual. Is necessary to use the "WineCapManager" software on the PC connected to the basestation that will be

coupled with the device.

b. USB Logger Mode:

For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the

“WineCapManager” running on it is necessary in order to modify the device 's operation mode. The sampling interval must be

set with the device in "STAND-ALONE" (refer to Stand-alone USB datalogger installation.) mode and automatically, the device 's clock

is aligned with the PC's clock, in order to assure the temporal reference of the sample.

Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key.

(refer to Stand-alone USB datalogger installation.). More details on device 's connection/disconnection through the USB cable are

available on the WineCap System - User Manual R29 manual.

c. On field transition from USB to Wireless datalogger:

This transition is practicable in field, during the sampling period, using the wireless network association command. When the

association is done, the datalogger becomes a wireless datalogger and, besides sending new measures to the basestation,

starts a download process towards the same basestation of the measures acquired during the stand alone period (refer to

Picture 14 - Stand-alone datalogger status).

Picture 9 - WineCapManager - Confirmation pop-up

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

5/11

4. Wireless device user interface.

The user interface consists of a “virtual” button that can be activated using the WineCapKey and of a two-coloured led.

To give a command, user must approach the WineCapKey to the device’s sensible area and keep it in that position.; the following

picture (Picture 11 - WineCapKey positioning) shows device’s sensible points.

Picture 10 - Device positioning

Picture 11 - WineCapKey positioning

LED

WineCapKey

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

6/11

The following COMMAND table describes the available commands:

Flash count

Command

Description

1 flash

STATUS

Shows the device STATUS. As answer the led perform a flash sequence as

reported in the “STATUS” table. If the device is performing the TEST (refer to TEST

command) this command stops it.

2 flashes

TEST

Enter in TEST mode and transmits status and measurements every 5 seconds. If

the device is in STANDBY mode or it is out of radio range, this command forces

the connection procedure to the WSN and the return to the operative mode. The

TEST stops after 120 seconds. During TEST the led continuously shows the

STATUS to monitor the received radio signal quality.

CAUTION: Measures acquired during TEST phase are NOT saved.

3 flashes

ENROLL

Association to the network: must be used when the device has not yet been

included in a network, starts the entry and association procedure to the

basestation (refer to “WineCap System - User Manual R29”).

4 flashes

+ 4 flashes

STANDBY

Temporary device deactivation: the device is stopped. The sampling process and

the radio are/is turned off losing the connection to the network. To reactivate, a

TEST command is necessary. The STANDBY command must be given twice to

confirm it: at the first sequence the led flashes alternating RED and GREEN lights,

waiting for the second confirm sequence within 15 seconds. At the command

execution the led flashes as the STANDBY status (refer to “WIRELESS MODE STATUS

Table”).

5 flashes

+ 5 flashes

FACTORY

RESET

The device performs the memory deleting procedure and goes in STOP status. All

samples, configuration and wireless network data associated are LOST. To

reactivate the device a new association and configuration procedure is necessary

(ENROLL command). Also in this case, the FACTORY RESET command must be given

twice to confirm it. At the command execution the led flashes as the

“PROBE/DATALOGGER NOT ASSOCIATED” status refer to “WIRELESS MODE STATUS

Table”).

5 flashes

+ 3 flashes

LOGGER

NO WSN

As the previous command but performs only the WSN deleting procedure and

disassociate from the basestation. The device enter in LOGGER STAND ALONE

mode: data are kept and the sampling activity CONTINUES with previous setup.

Command must be given with 2 sequences: 5 flashes and then 3 flashes. At the

command execution wait for the device reboot. At the STATUS command,

“LOGGER” will be the answer (refer to “STAND-ALONE MODE STATUS Table”). A new

association (ENROLL command) is possible to a new basestation.

5. Enrolling the device.

Not necessary if performed in factory before delivery.

Enroll the device to the network referring to the “WineCap System - User Manual R29”. In case the device is already enrolled but in

STANDBY status, a TEST command must be issued (refer to Picture 12 - Commands table).

6. Installation procedure.

After installing the basestation in appropriate place in charge, (refer to “WineCap System - User Manual R29”), be sure that the device is

enrolled to the basestation and activated.

Head for the environment to be monitored. On the way, to check the quality of the radio coverage, use the "Field Measurer"

function.

This function is activated issuing the TEST (refer to Picture 12 - Commands table)command: position the WineCapKey in the spot

indicated in Picture 11 - WineCapKey positioning and wait for two AMBER flashes, then remove the WineCapKey from device. The

"Field Measurer" function lasts enabled for two minutes.

To issue commands to the device, place the WineCapKey where indicated.

Once the WineCapKey is detected, the led periodically emits AMBER flashes with a 2 seconds cadence.

Picture 12 - Commands table

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

7/11

For each flash, a different command is associated; to confirm the command the WineCapKey must be removed from the sensible

area immediately after the number of flashes corresponding at the desired command. The TEST corresponds to the second pulse

and activate the "Field Measurer" function.

The device will give back the radio signal quality through led flashes:

WIRELESS MODE STATUS Table

Flash count - Wireless mode

Status/Radio signal quality

5 green flashes

Excellent

4 green flashes

Good

3 green flashes

Fair

2 amber flashes

Sufficient

1 red flash

Insufficient

1 red flash 2” long

OUT OF RANGE

Network searching

2 red flashes 2” long

STANDBY

Short-long-short red

flashes series

FACTORY RESET

Device not enrolled

Optimize reception selecting the best position: small movements can help.

If the signal is absent or insufficient at the install point, a WR12 router should be put between (refer to “WineCap System - User Manual

R29”). The WR12 router itself must be located in a position where the signal level is at least sufficient.

The network will reconfigure itself automatically; the signal will be good again when the device synchronizes with the WR12 router.

The link will not be reconfigured until completely lost by the device. Because of this, in some cases it could be necessary to force

the operation. In such cases, put the device in STANDBY mode, then run the TEST again (refer to “WineCap System - User Manual R29”).

NOTE: The display equipped datalogger (WD04T) is recommended, to verify the signal quality during devices installation.

7. Stand-alone USB datalogger installation.

Install the datalogger in appropriate place.

If the sampling process has not yet been activated you can start it through the WineCapKey.

Bring it closer to the sensitive point, wait for 2 flashes (TEST) (refer to Picture 12 - Commands table) and remove. The datalogger begins

sampling according to your settings through your PC.

Through the WineCapKey is possible to ask for the current status, bring it close to the datalogger for 1 flash (STATE) and remove it.

STAND-ALONE MODE STATUS Table:

Flash count - Stand-alone mode

STATUS

1 green flash 2 seconds long

ACTIVE

2 red flashes 2 seconds long

STANDBY

Sequence of red flashes: short, 2

seconds long, short

FACTORY RESET

INVALID datalogger clock!

PC connection required

Picture 13 - Status table - Radio signal quality

Picture 14 - Stand-alone datalogger status

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

8/11

8. Shutting off/Reactivating the device.

If the device is shut off and left unused for a long time, you can issue the STANDBY command (refer to Picture 12 - Commands table). Its

corresponds to the command number 4 and must be issued twice to confirm the operation.

Position the WineCapKey in the spot indicated in Picture 11 - WineCapKey positioning and wait for four AMBER flashes, then

remove the WineCapKey from device.

Verify that the device asks for confirmation of STANDBY command with alternate GREEN/RED flashing, then position again the

WineCapKey and wait for four flashes again. The device will confirm the STANDBY status lighting the RED led for 2 seconds twice.

To reactivate the device the TEST command must be issued.

9. Transducer’s connection layout.

Picture 15 - Connections layout

Arrow indicates the moving versus of the potentiometer’s indicator which corresponds to measure growth reported by datalogger.

4 potentiometers connection

External NTC connection

*Jumper must be inserted in “NTC INT” position

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

9/11

10. Technical Information.

Power supply

8.5A/h - 3.6V type “C” lithium internal battery

Battery life (*)

Up to 10 years

(samples every 60 minutes and radio signal quality at least sufficient)

Measures acquired (4 input channels

•Linear Deformation

•Proportional measure

•Temperature

Sampling interval (*)

Selectable from one minute to 24 hours (10 minutes default)

Datalogger capacity

64,000 samples (for each channel)

Working temperature

•Operative: -30°C ÷ +60°C

•Warehousing: -40°C ÷ +70°C

Radio frequency

ISM 868MHz

Radio coverage

Up to 6Km in line of sight

(can be extended using WR12 battery powered routers)

Sealing

IP65

Dimensions

90x160x50mm

Weight

450g

Case material

ABS

Mounting

4 points

Connections

Wireless/USB

Cable external diameter

4mm minimum - 8mm maximum

Copper wire section

0.05 ÷ 2.5mm² / ÷ 14 AWG

Temperature - Transducer type

NTC10KΩ

Temperature - Measure range

-30°C ÷ +60°C

Temperature - Measure accuracy

•± 0.5°C Range -30°C ÷ 0°C

•± 0.2°C Range 0°C ÷ +60°C

Temperature - Measure resolution

0.01°C

Proportional measure - Transducer type

Potentiometer

Proportional measure - Measure range

0 ÷ 100%

Proportional measure - Measure resolution

0.01%

Linear deformation - Transducer type

Potentiometer

Linear deformation - Measure range

Configurable using WineCapManager -From 1mm up to 1,000mm

Linear deformation - Measure accuracy

0.1% analog input - Refer to potentiometer’s technical sheet

Linear deformation - Measure resolution

12bit

* battery life may be influenced by fieldwork conditions, sampling interval and system configuration.

** radio coverage reachable using up to 32 WR12 routers (maximum 16 for each path) between the device and the basestation.

WSD12-4D

User Manual

WA0389E_WSD12-4D_User Manual_R10

V4.7

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

10/11

11. Mechanical dimensions.

Picture 16 - Mechanical dimensions

Andere Handbücher für Winecap WSD12-4D

Inhaltsverzeichnis

Andere Capetti Elettronica Datenlogger Handbücher

Capetti Elettronica

Capetti Elettronica MWLI-MB Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD15IIDIST Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica Wine cap WSD10TGII Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD15TIDR Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WLRD00TH Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD02T-T1K Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD12-VW Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD12PS-4AI Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD12-2DI Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD00THCOP Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-DD Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCapKey WSD02T-KK Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD12-THEE Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica MWDG-GSM Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica Winecap Lupo WSD15TIIDRO Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD12-VW Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD00T Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD10DGII Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-IIDR Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD15TIIDR Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-CO Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WSD10TII Bedienungsanleitung

Capetti Elettronica

Capetti Elettronica WineCapKey WSD12T-KK Bedienungsanleitung

Beliebte Datenlogger Handbücher anderer Marken

TESTO

TESTO 176 Bedienungsanleitung

HT Italia

HT Italia XL421 Bedienungsanleitung

HBM

HBM SOMAT XR CX22B-R Bedienungsanleitung

Agtrix

Agtrix 380i Bedienungsanleitung

Hobo

Hobo H8 Pro Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech PCI2320 Bedienungsanleitung

Athena

Athena GET SL1 Bedienungsanleitung

Motec Systems

Motec Systems C185 Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech USB2832 Bedienungsanleitung

Rotronic

Rotronic HygroLog HL20 Bedienungsanleitung

MRC

MRC DW-6092 Bedienungsanleitung

Racelogic

Racelogic VBOX LapTimer Bedienungsanleitung

Edu-Logger

Edu-Logger 900-240 Bedienungsanleitung

Elma

Elma DT173 Bedienungsanleitung

MadgeTech

MadgeTech PRTemp140 Technisches Datenblatt

Comet

Comet U0121M Bedienungsanleitung

pico Technology

pico Technology PT-104 Bedienungsanleitung

Soil Instruments

Soil Instruments GTecLink Bedienungsanleitung
