Capetti Elettronica Winecap BOX-PPS Bedienungsanleitung

BOX-PPS

User Manual

WA5087E_BOX PPSM1_User Manual_R01

V4.6

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

1/4

1. Description.

The BOX PPSM1 power supply kit is made by a 10 W polycrystalline photovoltaic panel with a mounting bracket, fixed to a plastic

case in which the MWDG-GSM basestion is housed. The case contains also GSM/GPRS and WSN antennas, the battery charger, a

12V 9Ah sealed lead acid battery and a 2.6A switching power supply to assure a dual power supply.

The kit is designed to supply enough power to guarantee a daily data sending to the Service Center www.winecap.it using the GSM

connection in normal climatic conditions, also during winter.

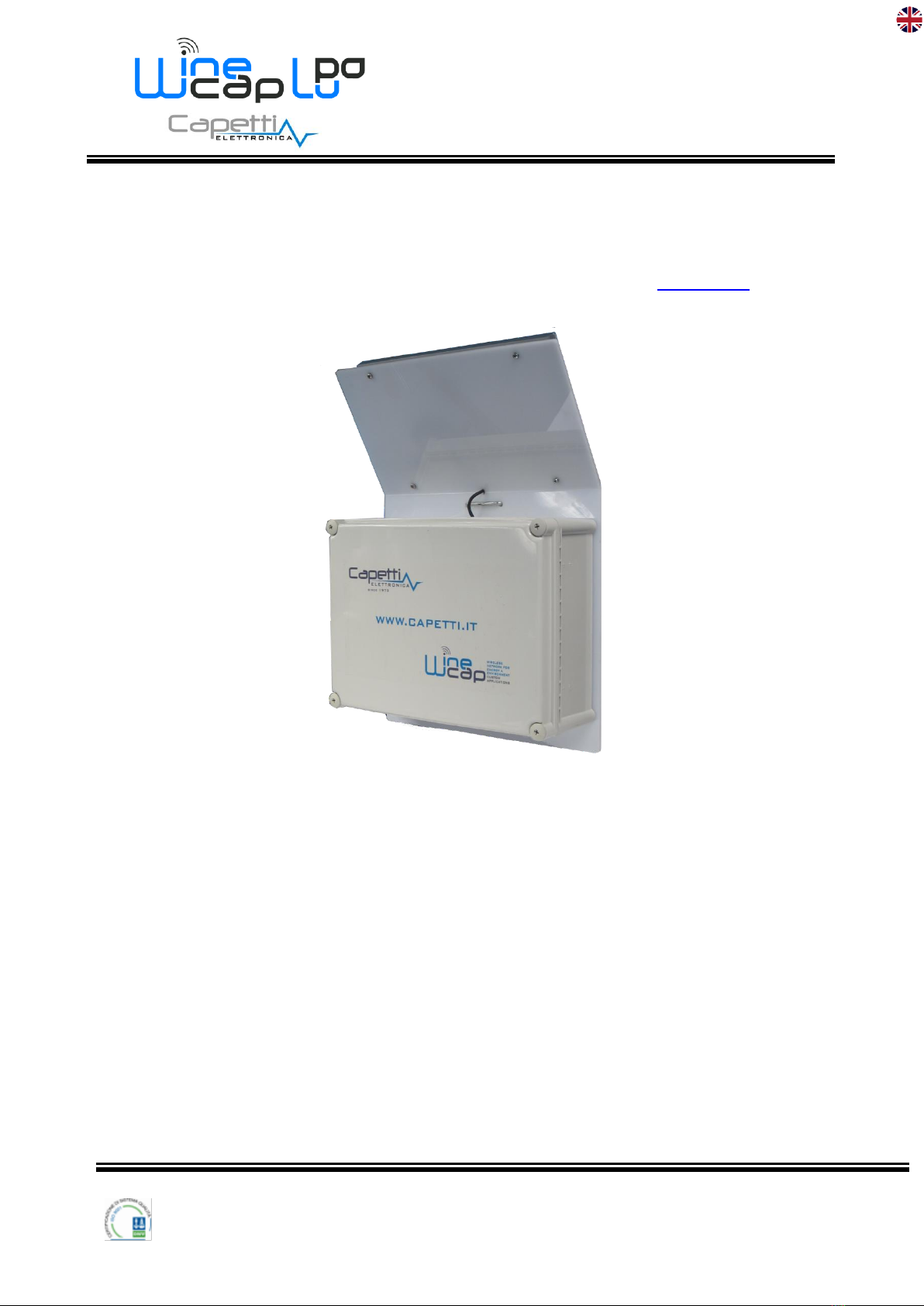

Picture 1 - Product Image

BOX-PPS

User Manual

WA5087E_BOX PPSM1_User Manual_R01

V4.6

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

2/4

2. How to install.

For best results, also during winter, the solar panel must be installed facing SOUTH and the box must be placed vertically to hold

the solar panel inclination to 60°.

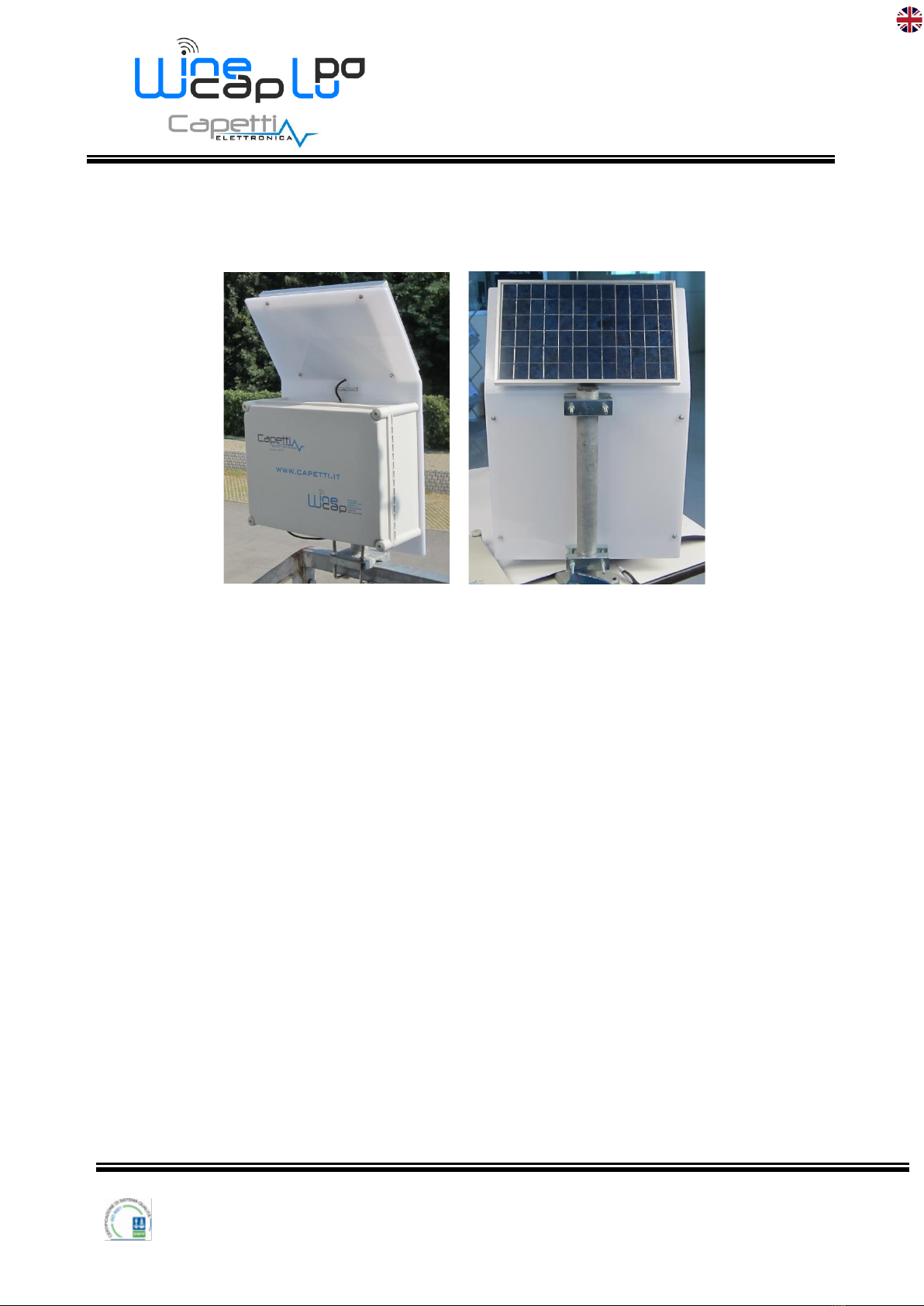

Picture 2 - Installation layout

BOX-PPS

User Manual

WA5087E_BOX PPSM1_User Manual_R01

V4.6

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

3/4

3. Technical Information.

Box material

ABS

Bracket material

Opaque polycarbonate

Box dimensions

382x282x131mm

Bracket dimensions

384x545x5mm

Collar pitch

minimum: 52mm - maximum: 60mm

6A-12/24V charge controller - Nominal working voltage

12/24V

6A-12/24V charge controller - Maximum current

6.6A

6A-12/24V charge controller - Sealing

IP22

6A-12/24V charge controller - Dimensions

85x98x34mm

6A-12/24V charge controller - Weight

108g

6A-12/24V charge controller - Ambient temperature

from –25 to +50°C

6A-12/24V charge controller - Self-consumption

6mA

Battery - Type

Lead-calcium

Battery - Features

9Ah-12V

Battery - Case material

ABS

Photovoltaic panel - Nominal power

10W

Photovoltaic panel - Vmp

17.9V

Photovoltaic panel - Imp

0.56A

Photovoltaic panel - Voc

22.41V

Photovoltaic panel - Isc

0.61A

Photovoltaic panel - Dimensions

33.7x20.5x1.5cm

Photovoltaic panel - Weight

0.80Kg

Switching power supply - Outputs

Switching power supply - Output voltage

13.8V

Switching power supply - Output current

2.6A

Switching power supply - Output type

•Fixed

•Adjustable

Switching power supply - Nominal power

35.9W

Switching power supply - Input voltage

•85V (minimum)

•100÷240VAC (nominal)

•264V (maximum)

Switching power supply - Isolation voltage

3kV

Switching power supply - Case

Metallic

Switching power supply - Terminal type

Clamp in a row

Switching power supply - Efficiency

83%

Switching power supply - Medium time between two

faults (MTBF)

523,300h

Switching power supply - Ripple and noise (V)

120mV

Switching power supply - Operating temperature

•-20°C (minimum)

•+60°C (maximum)

Switching power supply - Dimensions

99x97x36mm

BOX-PPS

User Manual

WA5087E_BOX PPSM1_User Manual_R01

V4.6

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

4/4

4. Reference standards.

EN 61010 -1

For electromagnetic compatibility

EN 61000 - 3 - 2

EN 61000 - 3 - 3

EN 300 220 -2

EN 301 489 - 03

EN 61000 - 6 -1

This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts

the use of substances in the manufacturing of electronic devices.

The “WEEE” logo on the label indicates that this product is compliant with the "WEEE" EC Directive.This

symbol (valid only in the European Union countries) indicates that the product it is applied to, MUST NOT

be discarded with ordinary household or industrial waste, but must be sent to an authorized reception

point. The end user should contact the device provider, either the manufacturer or the reseller, in order

to agree a collection and disposal process, after having checked the terms and conditions of sale.

The features shown may be subject to change without notice.

IT190200000111
