Car-Interface r.LiNK CI-RL5-MIB2-E Bedienungsanleitung
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
r.LiNK Video-inserter
CI-RL5-MIB2-E
Video-inserter with 1 video input and 1 rear-view camera input
Compatible with
VW vehicles
with Composition Color Infotainment
Seat vehicles
with Media System Touch Color Infotainment
Skoda vehicles
with Radio Swing Infotainment
Product features
Video-inserter for factory-infotainment systems
1 CVBS video-input for after-market device (e.g. USB-Player, DVB-T2 tuner)
1 CVBS rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the Interface compatibility of vehicle and accessories
1.3. Connectors –Video interface (daughter PCB)
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Installation –VW and Seat
2.3.1. Opening the factory monitor (not Skoda vehicles!)
2.3.2. Connection –50pin ribbon cables
2.3.2.1. Warning notes, concerning the installation of ribbon cables
2.3.3. Closing the monitor’s rear-side
2.3.4. Reassembly - head unit, monitor and daughter PCB
2.4. Installation –Skoda vehicles
2.4.1. Opening the factory monitor
2.4.2. Connection –50pin ribbon cables
2.4.2.1. Warning notes, concerning the installation of ribbon cables
2.4.3. Reassembling –Skoda monitor and head unit
2.4.4. Fixing –daughter PCB
2.5. Cable connection - daughter PCB
2.6. After-market rear-view camera:
2.7. Connection –video inputs
2.8. Connection - external keypad
3. Interface operation by external keypad
4. Picture settings by pusbuttons menu adjustment
5. Specifications
6. Frequently asked questions
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page3
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.

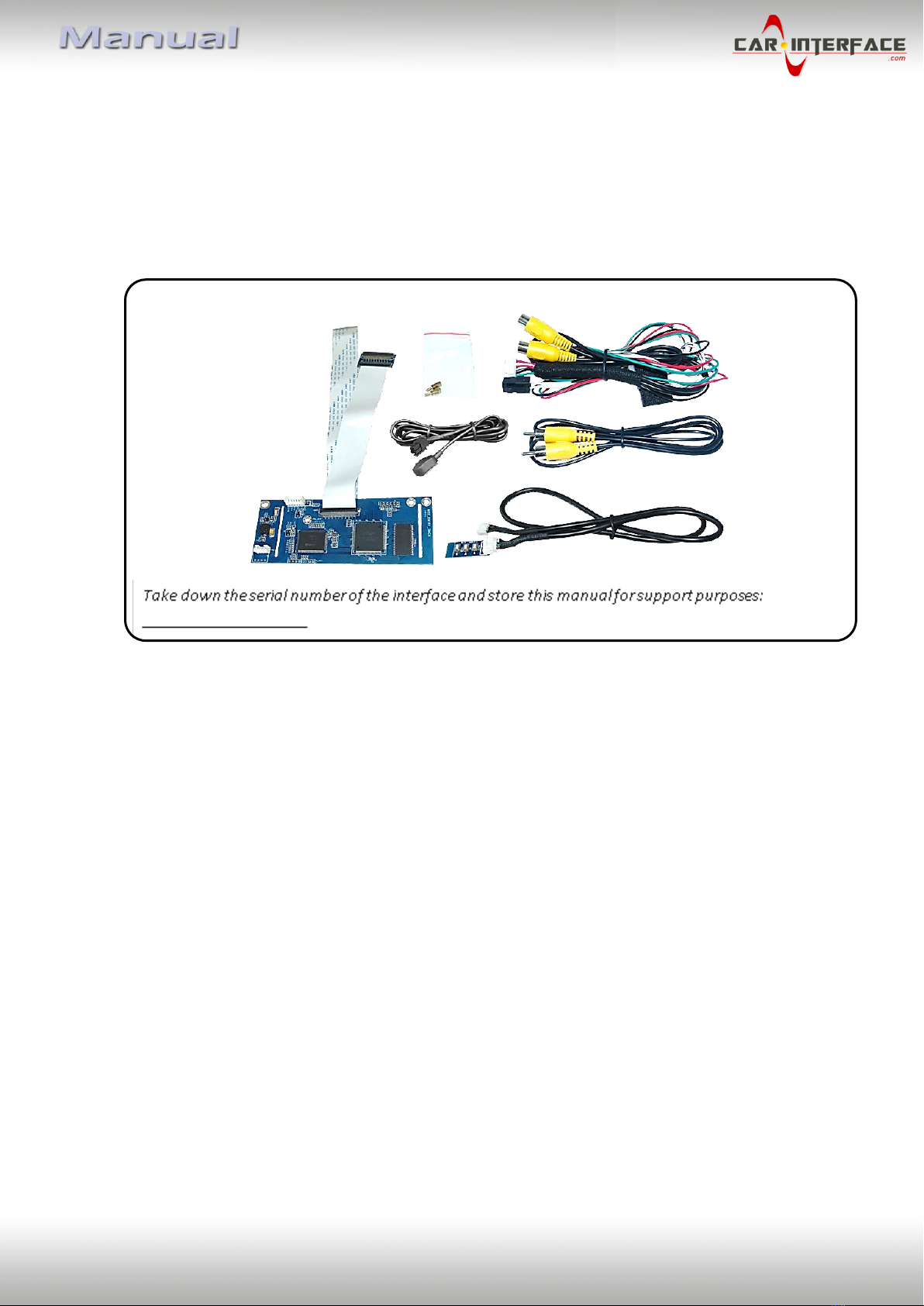

1.1. Delivery contents
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page4
Compatibility
brand
Compatible vehicles
Infotainment systems
Seat
Ibiza (6P) model years since 2016
Leon3 (5F) model years since 2013
Toledo4 (KG) model years since 2016
MIB2 Entry - Media System Touch Color –
with 5inch monitor
Skoda
Fabia3 (NJ) model years since 2014
Octavia3 (5E) model years 2012-2017
Rapid (NH1) model years since 2016-
Superb3 (3V) model years 2015-2017
Yeti (5L) model years 2015-2016
MIB2 Entry - Radio Swing - 5 inch color
monitor and SD-slot without CD-drive
VW
Beetle (5C) model years since 2015-
Caddy (2K) model years since 2016-
Golf7 Sportsvan model years 2014-2017
Multivan (T6) model years since 2015
Polo5 (6C) model years 2014-2016
Scirocco3 (13) model years since 2016
Sharan (7N) model years since 2016
Touran (5T) model years 2016-2017
MIB2 Entry - Composition Color (Only LG
HU) - 5 inch monitor and CD-drive above
monitor or without CD-drive.
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For sound use the possibly existing factory audio-AUX-input or a FM-
modulator.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back, an additional electronic part is required.
1.2. Checking the compatibility of vehicle and accessories
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page5
1.3. Anschlüsse - Video-interface (daughter PCB)
The video-interface (daughter PCB) converts the video signals of connected after-market
sources in a factory monitor compatible picture signal which is inserted in the factory
monitor, by using separate trigger options.
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle to “Sleep-Mode”. In case it does not succeed,
disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page6
2.1. Place of installation
The daughter PCB shell be connected inside the factory monitor and externely fixed on the
head unit’s upper side, by using enclosed screws and spacers.
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page7
2.2. Connection Scheme
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page8
2.3. Installation –VW and Seat (Skoda vehicles: refer to the according chapter!)
2.3.1. Opening the factory monitor
Turn out both screws at the outer side of the top part of the head unit (red arrows)
and both screws at the bottom part of the head unit (red arrows). Remove the head
unit from the monitor and lay it aside.
Turn out the 7 screws (red arrows) at the rear side of the monitor and remove the
metal sheet to set free the mainboard’s ribbon cable base with the factory picture
signal cable.
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page9
2.3.2. Connection - 50pin ribbon cables
Fold upwards the black hinge of the factory ribbon cable base to unlock the original
brown colored 50pin ribbon cable of the factory PCB.
Carefully pull out the original 50pin ribbon cable in arrow direction.
Note: The original short ribbon cable is made by stiff material. To avoid any breakage it
mustn’t be folded back to much, either while the installation nor with the final assembly.
Connect the daughter PCB’s 50pin ribbon cable „CAR-IN“to the previously become
free 50pin ribbon cable base of the factory PCB. Make sure that the connector pins
are faced to the platinum.
After a check of its perfect position, close the ribbon cable base’s lock by folding
downwards the black hinge, to fix the connection again.
Version 08.05.2019 MIB-Entry-5inch (180514) CI-RL5-MIB2-E
Page10

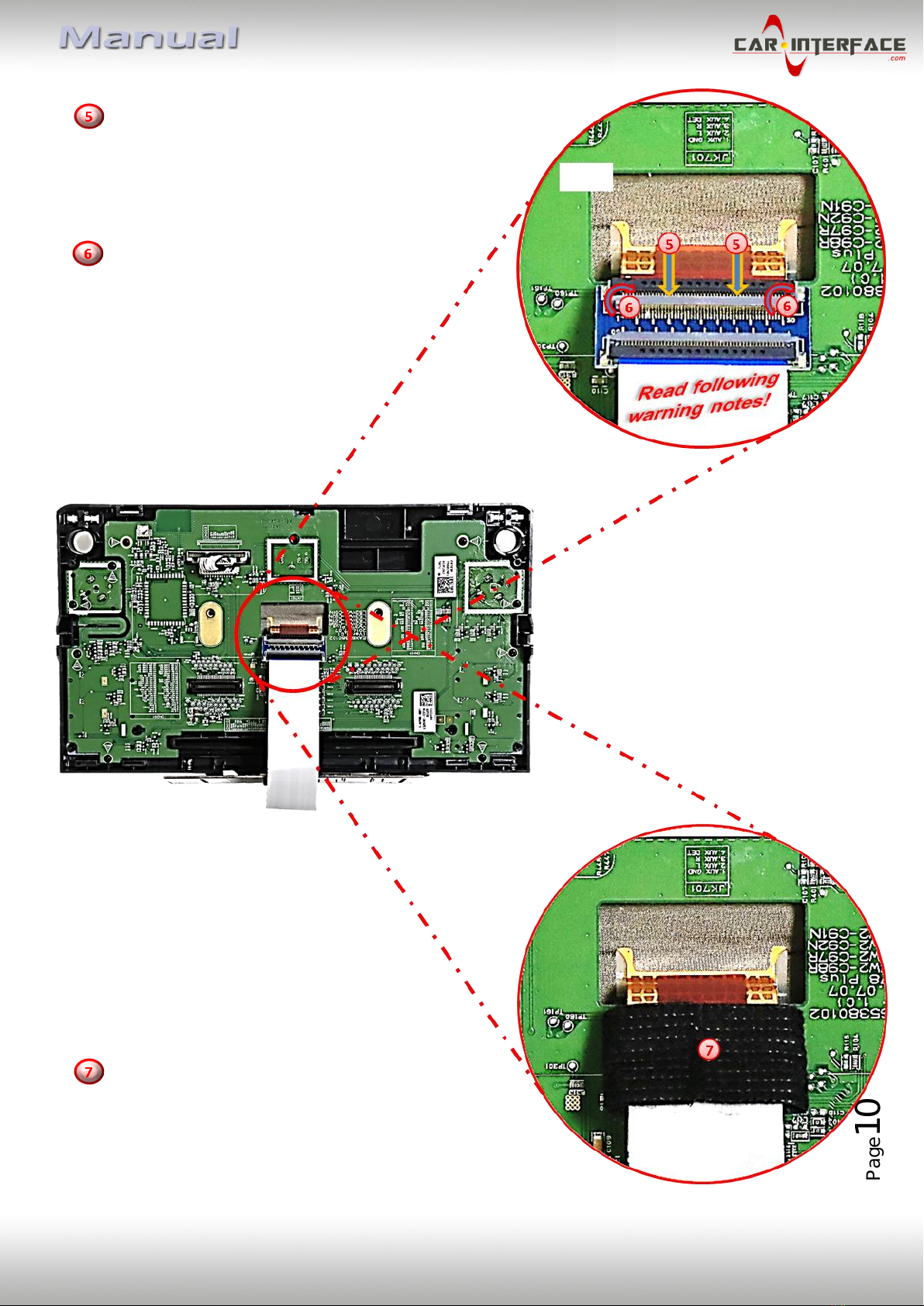

Carefully lead the monitor’s brown colored 50pin
ribbon cable into the preassembled ribbon cable merger
of the daughter PCB’s 50pin ribbon cable “PNL-OUT”.
Make sure that the connector pins are faced to
the merger’s platinum.
After a check of its perfect position, close the
ribbon cable merger’s lock, by folding back
the black hinge, to fix the connection again.
To avoid any kind of vibration-caused short circuits
after the connection, it’s necessary to isolate both
sides of the merger with some kind of smooth issue
tape as shown in the picture beside.
