Car Solutions MB2007-PAS Bedienungsanleitung

BENZ LVDS PAS

(BENZ SQUARE)

(VIDEO Interface)

MODEL MB-PAS-140708

DATE 2015.09.16

Car-Solutions.com

www.car-solutions.com

[email protected]

Main Spec.

1. Input Spec. (MULTI VIDEO INTERFACE)

- 2 x A/V Input (External video source).

- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)

- 1 x Analog RGB Input (Navigation System output)

- 1 x GVIF Input. (Car Command System)

2. Output Spec.

- 2 x CVBS Output (Video out for Installing Headrest Monitor)

- 1 x Audio L/R Output.

- 1 x GVIF Output (LCD Operation)

3. Power Spec.

- Input Power : 8VDC ~ 24VDC

- Consumption Power : 12Watt, Max

4. Switch Input mode

- Possible to select CAR model while switching mode by DIP S/W

- By button on the Commander in the car via CAN

Car-Solutions.com

www.car-solutions.com

[email protected]

External Appearance

RGBPOWER/CAN A/VNAVI

LEDDIP S/W

PROGRAM IMAGELCD-IN

LCD-OUT

Car-Solutions.com

www.car-solutions.com

[email protected]

Connector Pin Assignment

*POWER Connect

1. Battery (Yellow)

2. Battery (Yellow)

3. Rear-Camera Detect (Brown)

4. Front-Camera Detect (Blue)

5. CANL-IN(Brown)

6. CANH-IN(Green)

7. CANL-OUT(Blue)

8. CANH-OUT(Violet)

9. CAN-L(White)

10. CAN-H(Orange)

11. NC

12. NC

123

2 24

13. NAVI-VCC (Red)

14. GND (Black)

15. REAR-VCC (Red)

16. GND(Black)

17. FRONT-VCC (Red)

18. GND (Black)

19. TX

20. RX

21. GND (Black)

22. MODE (Green)

23. GND (Black)

24. GND (Black)

*NAVI Connect

①R DATA (Red)

②G DATA (Green)

③B DATA (Blue)

④SYNC (White)

⑤GND (Black)

⑥DVBT IR (Green)

⑦DVD IR (Orange)

①②③④⑤⑥⑦

Car-Solutions.com

www.car-solutions.com

[email protected]

Product Composition

Power Cable 1 EA

Interface 1 EA A/V Cable 1 EA

OSD Board 1 EA

RGB NAVI Cable 1 EA

LVDS-IN Cable 1 EA

LVDS-OUT Cable 1 EA

Car-Solutions.com

www.car-solutions.com

[email protected]

Product Composition Option

Option : RGB Cable 1 EAOption : Sub Board 1 EA Not for sale : HDMI Cable 1 EA

Car-Solutions.com

www.car-solutions.com

[email protected]

DIP S/W Setting

* ON : DOWN , OFF : UP * DIP S/W Example

PIN FUNCTION DIP S/W Selection

1 NAVI ON : Not Used

OFF : Used

2 DMB ON : Not Used

OFF : Used

3 DVD ON : Not Used

OFF : Used

4 HDMI ON : Not Used

OFF : Used

CAR type SEL Right Picture

W204, C class 5” size

W204, C class 7” size

W212, E class 5.8” size

W212, E class 7” size

X204, GLK class 7” size

W221, S class 8” size

Car-Solutions.com

www.car-solutions.com

[email protected]

I-DRIVE Control

I-Drive Control : : C, E, GLK class

Push Short : Channel DOWN

Push Long : Change the mode

Push Long : SCAN

Push Short : Channel UP

NAVI AV1 AV2

OEM

Car-Solutions.com

www.car-solutions.com

[email protected]

I-DRIVE Control

I-Drive Control : S class

Push Short : Back to OEM Mode

Push Long : Change Mode

NAVI

AV1

AV2

OEM

Car-Solutions.com

www.car-solutions.com

[email protected]

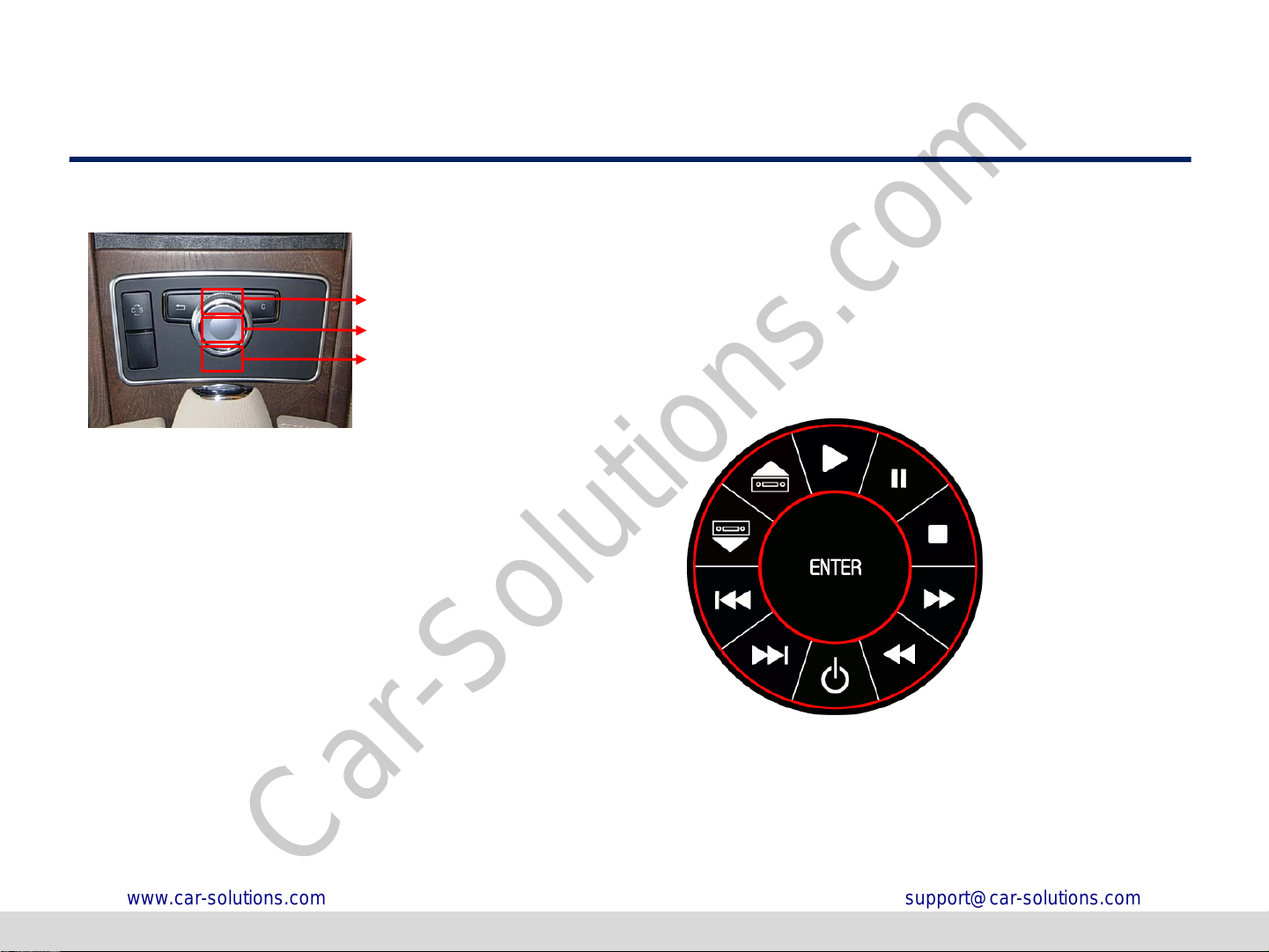

I-DRIVE Control

DVD UI control

ENTER

Icon image Move to right

Push Long : DVD UI ON, Push Short : Enter the Icon

Icon image Move to right

PLAY

PAUSE

STOP

BACK FF

POWER

DISK-UP

DISK-DOWN

Car-Solutions.com

www.car-solutions.com

[email protected]
