3 IN 1 GAME TABLE

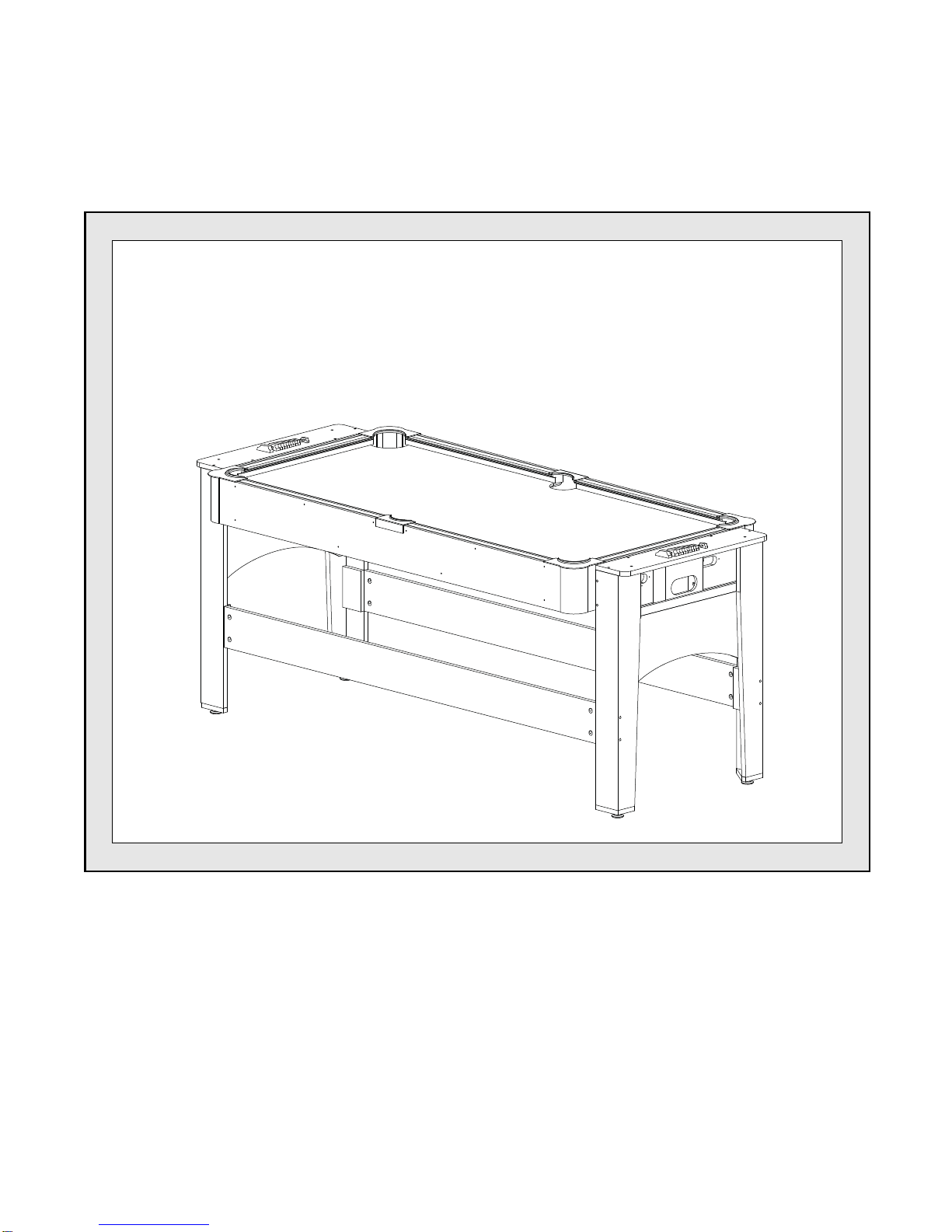

NG1022M Triple Threat 3-in-1 Game Table
1
Thank you for your purchase of our product.
We work around the clock and around the globe to ensure that our
products maintain the highest possible quality. However, in the rare
instance that your product is defective or missing parts, contact
Challenger Manufacturing at 800-759-0977 to submit parts requests
or warranty claims. Please read the warranty information at the back
of these assembly instructions for further details.
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS IN
ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
Thank Y
3 in 1 Game Table
1
2

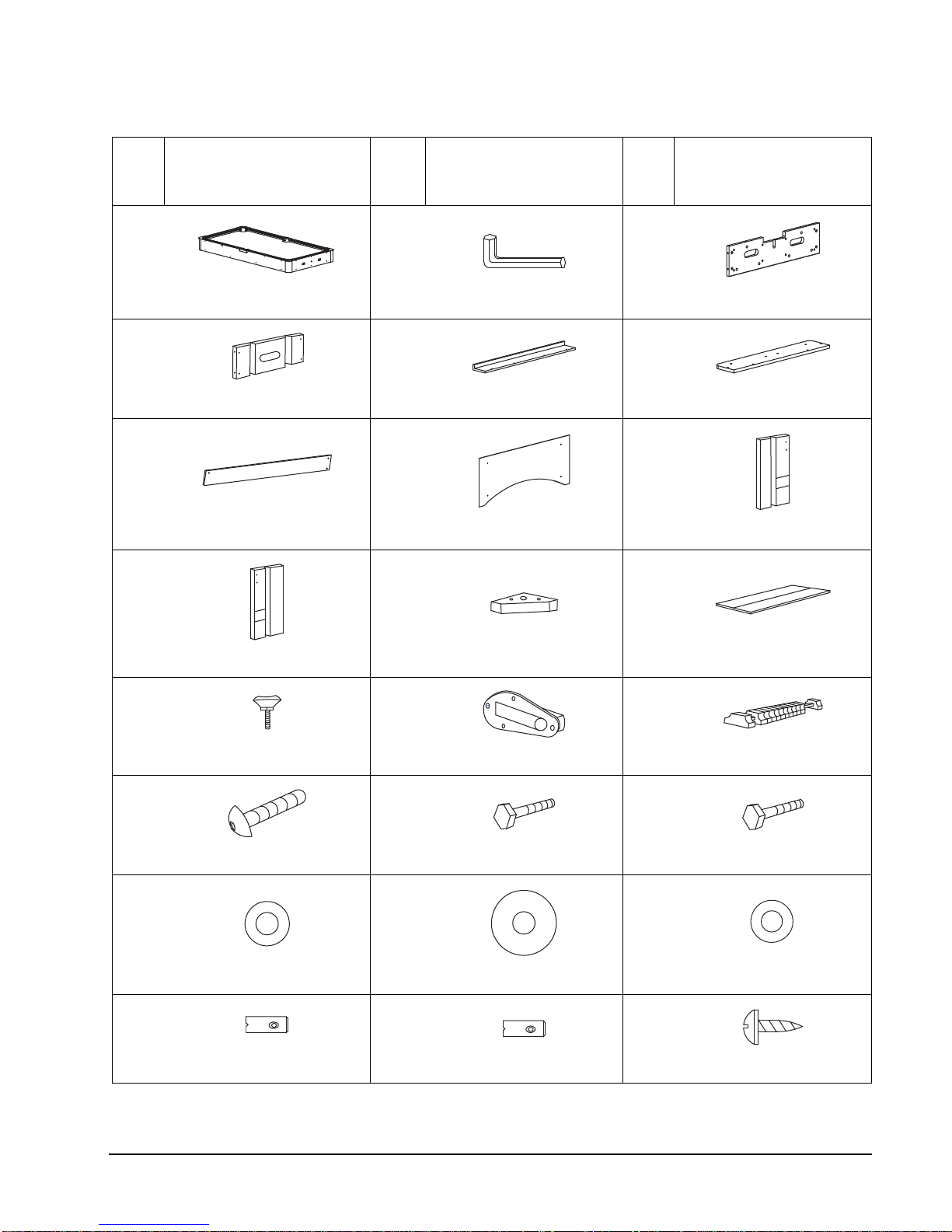

Parts Identifier
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
1Cabinet
Order No. 2-256
2
Qty.
1Allen Wrench
Order No. 2-116
3
Qty.
2
End Panel
Order No. 2-257
4
Qty.
2Catcher Box
Order No. 2-258
5
Qty.
2
Ball Return Board
Order No. 2-259
6
Qty.
2Top End Panel
Order No. 2-260
7
Qty.
2Leg Brace
Order No. 2-261
8
Qty.
2
Leg Panel
Order No. 2-262
9
Qty.
2
Left Leg
Order No. 2-263
10
Qty.
2Right Leg
Order No. 2-264
11
Qty.
4Leg Base
Order No. 2-265
12
Qty.
1Table Tennis Surface
Order No. 2-267
13
Qty.
4Leg Leveler
Order No. 2-268
14
Qty.
4Lock Pin
Order No. 2-266
15
Qty.
2Slide Scorer
Order No. 2-269
16
Qty.
81/4" x 1-3/4" Allen Key Bolt
Order No. 2-270
17
Qty.
85/16" x 5-1/2" Hex Bolt
Order No. 2-271
18
Qty.
21/2" Hex Bolt
Order No. 2-117
19
Qty.
21/2" Washer
Order No. 2-107
20
Qty.
21/2" Plastic Washer
Order No. 2-272
21
Qty.
85/16" Washer
Order No. 2-273
22
Qty.
81/4" Barrel Nut
Order No. 2-12
23
Qty.
85/16" Barrel Nut
Order No. 2-179
24
Qty.
10 T4 x 1/2" Screw
Order No. 2-31
3 in 1 Game Table
Parts Identifier
3

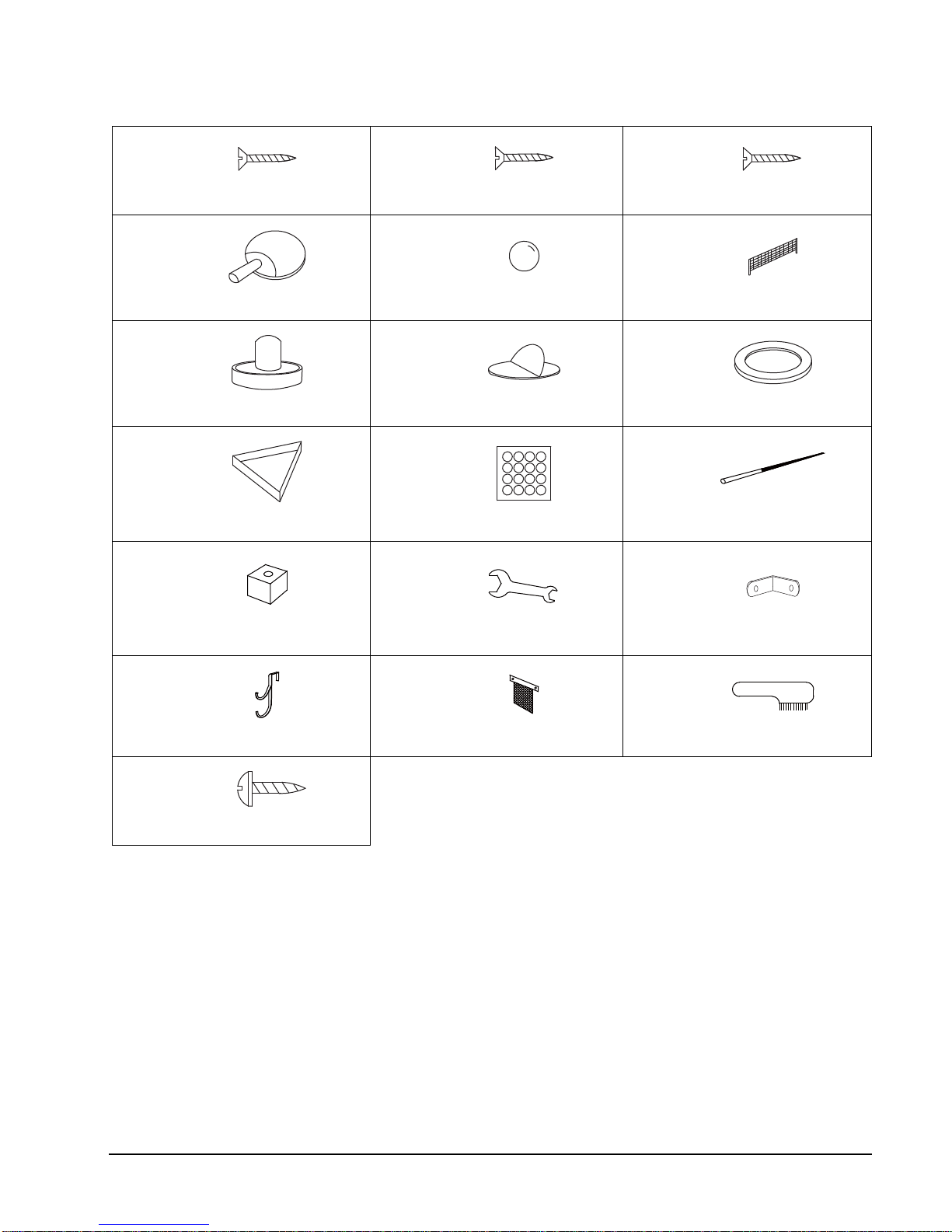

Parts Identifier
25
Qty.
44 F4 x 2" Screw
Order No. 2-274
26
Qty.
4F4 x 1" Screw
Order No. 2-134
27
Qty.
16 F3 x 1/2" Screw
Order No. 4-124
28
Qty.
2 Table Tennis Paddle
Order No. 2-275
29
Qty.
2Table Tennis Ball
Order No. 2-276
30
Qty.
1 Table Tennis Net with Posts
Order No. 2-277
31
Qty.
2Hockey Pusher
Order No. 2-18
32
Qty.
2Hockey Felt
Order No. 2-19
33
Qty.
2Hockey Puck
Order No. 2-20
34
Qty.
1Triangle
Order No. 2-278
35
Qty.
1Billiard Balls
Order No. 2-279
36
Qty.
2Cue Stick
Order No. 2-66
37
Qty.
2Chalk
Order No. 2-24
38
Qty.
1Wrench
Order No. 2-280
39
Qty.
12 L Steel Bracket
Order No. 2-281
40
Qty.
2Cue Holder
Order No. 2-282
41
Qty.
1Storage Organizer
Order No. 2-283
42
Qty.
1Brush
Order No. 2-284
43
Qty.
24 T4 x 5/8" Screw
Order No. 3-224
3 in 1 Game Table
Parts Identifier
4
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Check
inside any tubes or sleeves. Save all packing material until the
product is fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.
Tools Required • Open End Wrench (#38)
• Allen Wrench (#2)
• Phillips Screwdriver (not included)
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.
3 in 1 Game Table
5
Assembly Tips
Make sure you understand the following before you begin to assemble your game table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You may need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing, contact Customer
Service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier pages.
Games
This game table includes the equipment and game pieces for Air Hockey, Pool and Table
Tennis. The rules for these games are not discussed in this manual.
3 in 1 Game Table
6

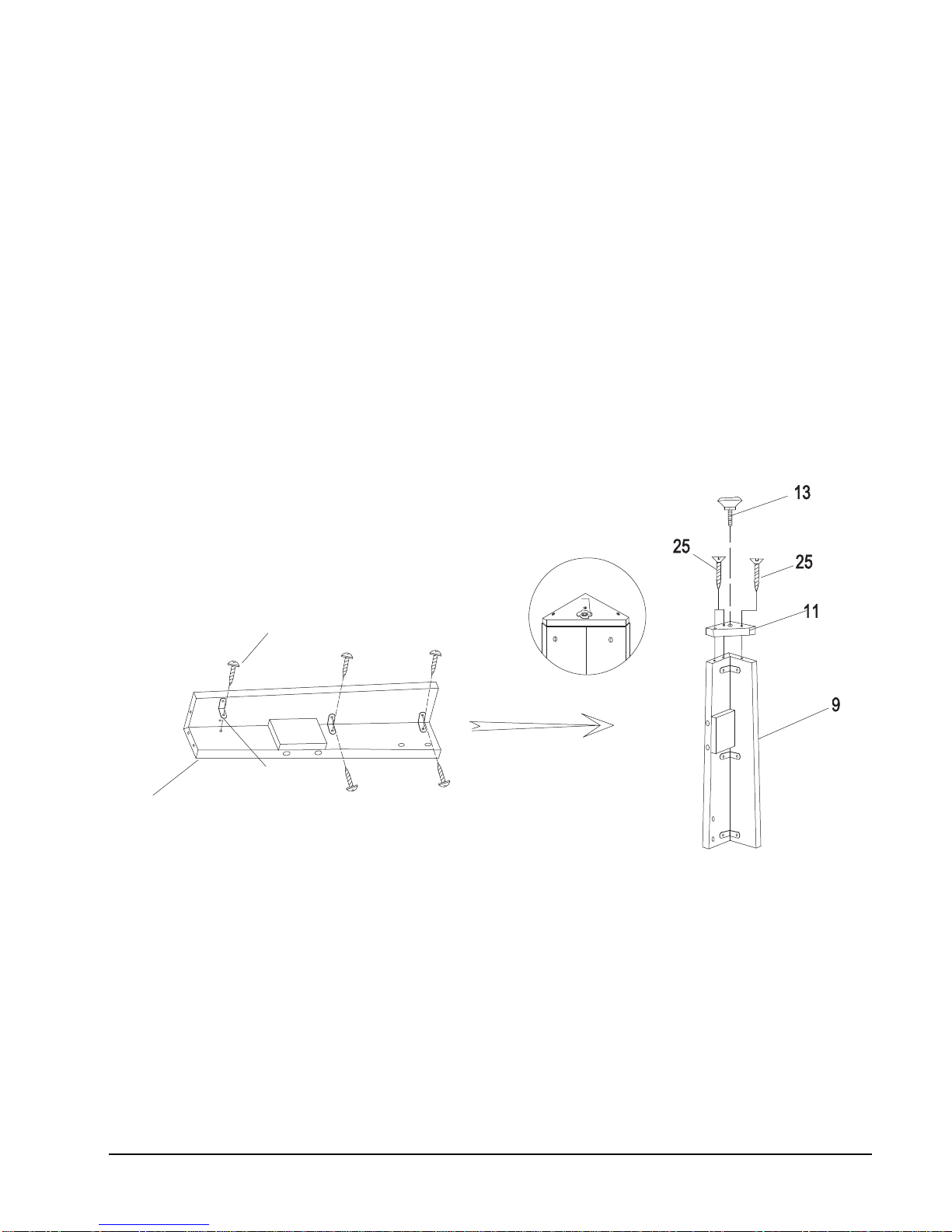

STEP 1 - ASSEMBLE THE LEGS
1. Select one of the leg pieces (#9 or #10) and lay it flat on the floor. Do not bend the hinge
in the leg backwards. Damage to the outer surface will occur.
2. Position three of the “L” shaped steel brackets (#39) on one side of the leg. Use three
screws (#43) to attach the brackets to the leg. Close (fold) the leg and use three screws
(#43) to secure the brackets. Tighten the screws.
3. Place a leg base (#11) at the bottom and insert three screws (#25) into the holes. The
pressed in nut must be facing out away from the leg.
4. Tighten the screws.
5. Screw a leg leveler (#13) half way into the leg base.
6. Repeat for the remaining three legs.
The nut side must
The nut side must
be facing upwards
be facing upwards
43
43
39
39
9
3 in 1 Game Table
7

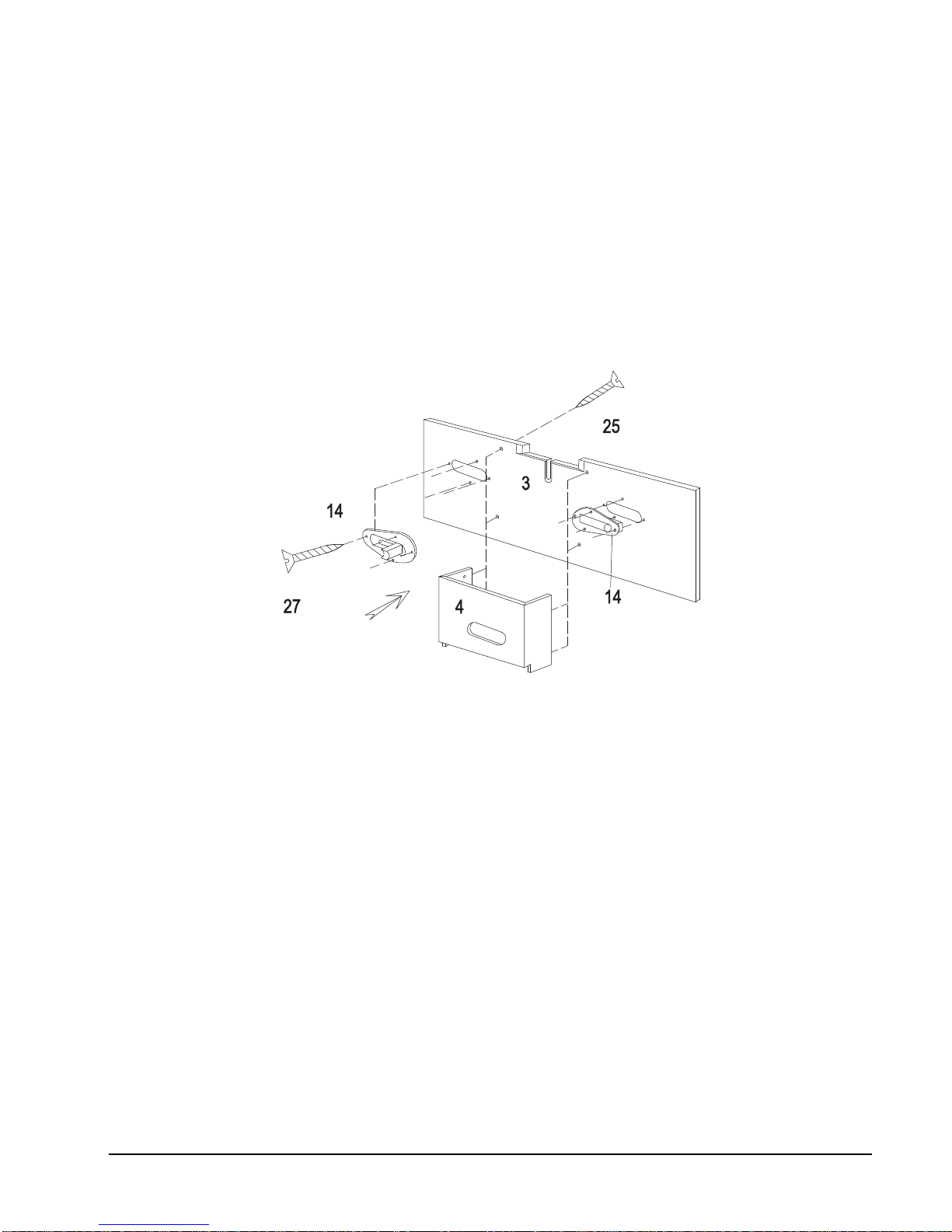

STEP 2 - ATTACH THE TABLE LOCKS AND CATCH BOX
1. Insert the table locks (#14) into the end panel (#3). Use four screws (#27) to secure each
one.
2. Hold the catch box (#4) in position. Insert four screws (#25) from the back side of the end
panel.
3. Tighten the screws.
4. Repeat for second end panel
8
STEP 3 - ASSEMBLE BALL RETURN BOARD
1. Attach the ball return boards (#5) to the bottom of the end panels (#3). Use four screws
(#25) per ball return board.
2. Tighten the screws.
3 in 1 Game Table
9

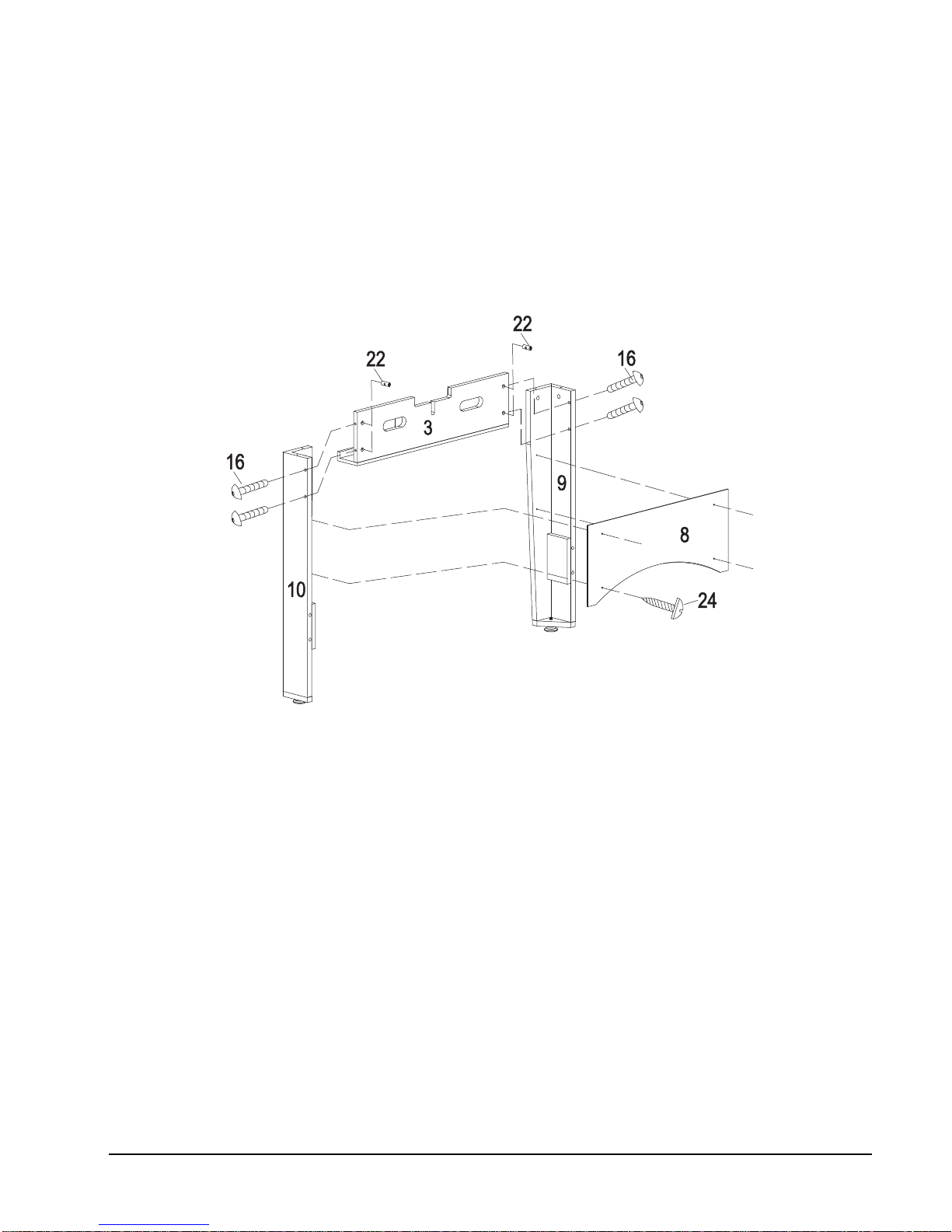

STEP 4 - ASSEMBLE LEGS TO END PANELS
1. Insert four barrel nuts (#22) into the left and right holes of an end panel (#3). Attach a left
leg (#9) and a right leg (#10) to an end panel (#3) using two bolts (#16) per leg.
2. Attach a leg panel (#8) to the legs and secure it using four screws (#24) per leg panel.
3. Repeat steps 1 and 2 to assemble the other apron and legs.
3 in 1 Game Table
