Carrier TRANSICOLD eSolutions Supra 60 Series Leitfaden
Trailer & Rail Refrigeration
TM
eSolutions Telematics Option
Supra 60 Series Units
Installation and Commissioning
Manual
62-12110 Rev. A
© Carrier Corporation, 2020 Printed in U. S. A - February 2020
TM
eSolutions Telematics Option
Supra 60 Series Units
Installation and Commissioning
Manual
Manual Revision History 62-12110
Rev. Date Reason for Release
01/22/2020 Initial Release
A 02/13/2020 Add specific connector and pin location for 950MT (pages 5, 6, 7)
Table of Contents
1
Installation Instructions ............................................................................................................................. 1
1.1
Parts ................................................................................................................................................. 1
1.2
Tools ................................................................................................................................................. 1
1.3
Schematics ....................................................................................................................................... 2
1.4
Installation ......................................................................................................................................... 3
1.5
Options ........................................................................................................................................... 17
2
Field Commission the eSolutions Module ............................................................................................... 18
2.1
Commissioning Cable ..................................................................................................................... 18
2.2
Configuration Setup on a Laptop .................................................................................................... 18
2.3
Commissioning the Unit .................................................................................................................. 20
2.4
Decommission a Unit ...................................................................................................................... 28
3
Wire Harness Connector Pinout ............................................................................................................. 29
1 Installation Instructions
Unit may start automatically at any time even if the switch is in the OFF position. Use proper lockout/tagout
procedures before inspection/servicing. All unit inspection/servicing by properly trained personnel only.
1.1 Parts
Table 1–1 Supra Installation Parts List
Quantity Part Number Part Description
12-00770-00 3G eSolutions Module
12-00843-00 4G eSolution Module
1 02-00311-02 Dielectric Grease
68-08585-00 eSolutions Module Bracket
68-08689-01 eSolutions Module Bracket (950/960 units only)
1 12-00844-00 Antenna / Bracket
4 34-60068-25 M6 Captive Head Screw 25mm
2 34-60324-30 M6 Round Head Screw with Thread Lock Compound
4 34-00944-05 M5 Flat Washer
4 34-01184-05 M5 Nylock Lock Nuts
122-03130-00 eSolutions Harness
10 58-00079-02 Wire Tie
10 58-05100-00 Sta-Strap, 8"
4 34-06051-104 Rivnut, M6
10 58-00701-07 1/4" Button Plug
1 22-03090-00 Power Harness
1 22-02336-02 5 Amp Fuse
1
1
NOTE
In order for eSolutions to communicate with the Summit Micro use in the
Supra product line, an EPROM with DataTrak™ must be installed. As of
January 2020, the latest part number for the EPROM is 12-00648-3D8.
1
62-12110
1.2.1 Stripping Wire
Any wire stripping that is required shall be done with approved hand strippers. Below are two examples
of approved hand strippers:
Figure 1.1 - Wire Strippers
1.2.2 Crimping
Hand crimp connections shall be made with proper tool. One such example is below.
Figure 1.2 - Hand Crimper
1.2.3 Heat Shrink
Glue lined heat shrink tubing shall always be carefully applied. Heat shall be added slowly as
excessive temperatures can cause damage to low melting point insulation
Check by visual inspection to make sure that there are glue rings presented all the way around
both ends of the heat shrink tube as the indication of good seals.
Splitting of heat shrink tubing due to over-temperature or over-shrinking is not allowable.
Charring of the heat shrink tubing is also not allowable.
Heat shrink tubing shall not be used in areas where there is vibration as it results in some loss
of flexibility of the harness.
1.3 Schematics
The eSolutions wiring schematic and installation diagrams can be found in Section 3
1.2 Tools
The following tools are required for units that need bracket and harness mounting holes drilled into the frame:
•Right Angle Drill
•Drill bit: 0.397" (size X) for Rivnut holes
•Drill bit: 0.266" (size H) for push-in wire tie holes
•Rivnut installation tool
•Red glyptol varnish (07-00479-00). Used to protect the battery charger or alternator connection required
for units without the 1RP plug.
2
62-12110
1.4 Installation
Unit may start automatically at any time even if the switch is in the OFF position. Use proper lockout/
tagout procedures before inspection/servicing. All unit inspection/servicing by properly trained
personnel only.
1. Remove negative battery cable, lock out standby power if equipped
2. Remove roadside skin, condenser grille and top cover if equipped.
3. Install the mounting bracket and eSolutions module as follows:
a. Place bracket 68-08632-00 under the control box as shown in Figure 1.3 below.
Supra 950 and 960 Units
Figure 1.3 - Control Box Removed from Frame for Clarity
Drill three
0.397” holes
Supra 550, 650, 750, 850 and 60 Series Units
Bracket
68-08632-00
Bracket
68-08689-01
3
62-12110
b. Mark the three mounting holes.
c. Remove the plate and prepare to drill the holes from the outside of the control box.
d. Drill three 0.397” (Drill size X) holes in the bottom of the control box. Remove any burrs from
drilling out of the control box.
e. Install three Rivnuts (34-06051-104) into the three holes.
f. Attach the mounting plate to the control box using three 34-01341-25 bolt
g. Install the eSolutions module to the mounting plate on the bottom of the control box using three
M5 Nylock nuts (34-01184-05) and flat washers (34-00944-05).
h. Position the 24-pin connector towards the rear of the unit and the two antenna connections
towards the front.
NOTE
Before drilling holes for the mounting plate, make sure no wires are in the area where the drill will
breakthrough to the inside of the box.
For Supra 5,6,7,8 units
le
cap)
Back
Front
Back
Front

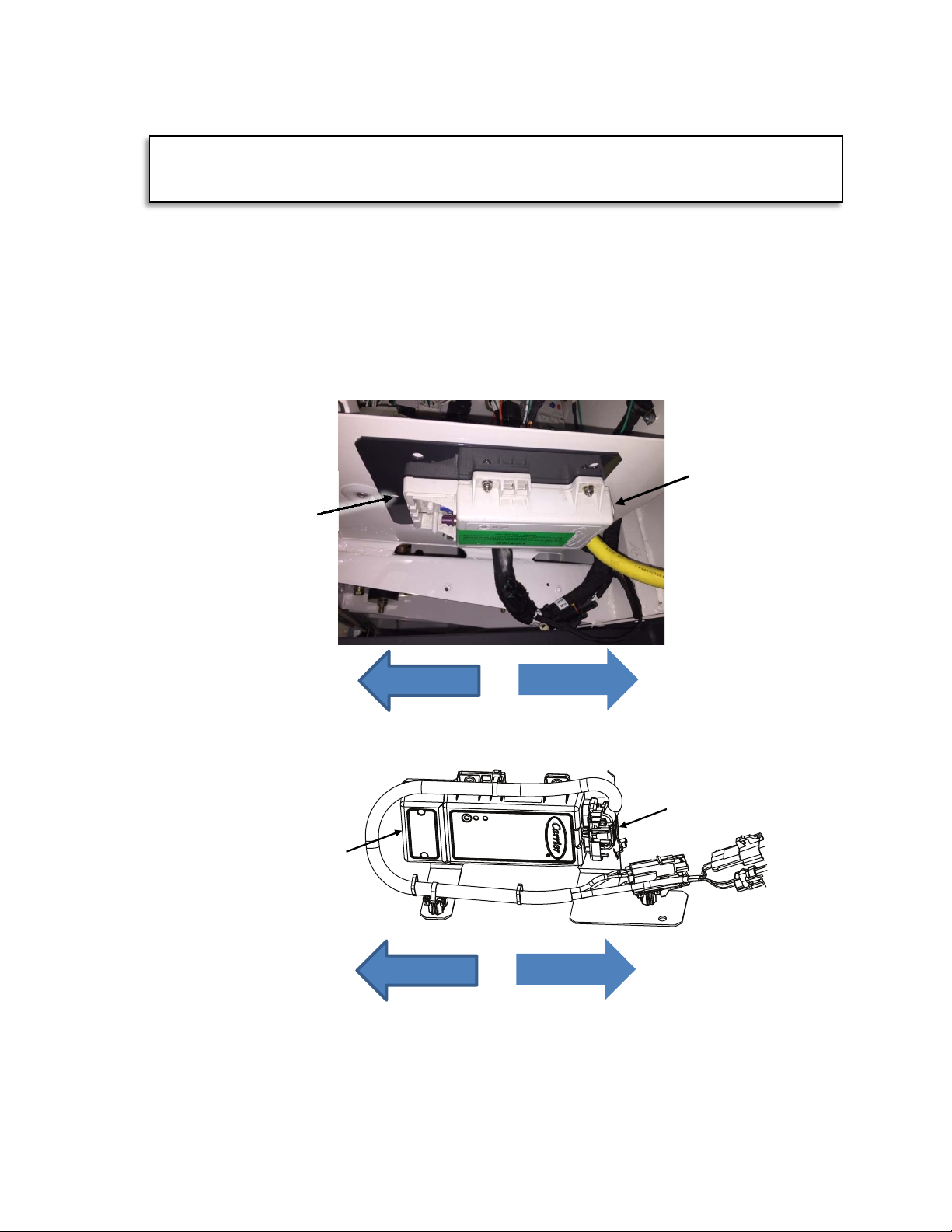

Figure 1.4. - eSolutions Module Antenna Connection
For Supra 950MT and 960
eSolutions module
antenna connection
side (shown with the
antenna protective cap)
eSolutions module
(3G - 12-00770-00;
4G 12-00843-00)
antenna connection side
(shown without the antenna
protective cap)
24-pin connector
4
62-12110
24-pin connector
