Carrier 42CJR024-723 Bedienungsanleitung

42CJR024-723 / 38CJR024-723

42CJR018-723 / 38CJR018-723

42TAR024X-723 / 38TAR024X-723

42TAR018-723 / 38TAR018-723

SERVICE MANUAL

AIR CONDITIONER

SPLIT WALL TYPE

42HNR024-713 / 38HNR024-713

42HNR018-713 / 38HNR018-713

FILE NO. SVM-05010-2

18 Class

(Heat pump model)

24 Class18 Class

(Cooling only model)

Revised Aug, 2005

CONTENTS

1. SPECIFICATIONS

2. CONSTRUCTION VIEWS

2-1 Indoor Unit (42CJR024-723, 42TAR024X-723, 42TAR018-723)

2-2 Outdoor Unit (42CJR018-723, 42HNR018-713, 42HNR024-713)

2-3 Outdoor Unit (38CJR024-723, 38TAR024X-723, 38TAR018-723, 38HNR024-713)

2-4 Outdoor Unit (38CJR018-723)

3. WIRING DIAGRAM

3-1 42CJR024-723 / 38CJR024-723, 42TAR024X-723 / 38TAR024X-723

3-2 42CJR018-723 / 38CJR018-723

4. SPECIFICATION OF ELECTRICAL PARTS

4-1 Indoor Unit (42CJR024-723, 42CJR018-723, 42TAR024X-723, 42TAR018-723)

4-2 Indoor Unit (42HNR024-713, 42HNR018-713)

4-3 Outdoor Unit (38CJR024-723, 38TAR024X-723)

4-4 Outdoor Unit (38CJR018-723)

5. REFRIGERATION CYCLE DIAGRAM

5-1 42CJR024-723 / 38CJR024-723, 42TAR024X-723 / 38TAR024X-723

5-2 42HNR024-713 / 38HNR024-713

5-3 42CJR018-723 / 38CJR018-723

6. CONTROL BLOCK DIAGRAM

7. OPERATION DESCRIPTION

7-1 Outline of Air Conditioner Control

7-2 Description of Operation Circuit

7-3 High-Temperature Limit Control

7-4 Low-Temperature Limit Control

7-5 Defrost Operation

7-6 Auto Restart Function

3-442HNR018-713 / 38HNR018-713

3-542HNR024-713 / 38HNR024-713

4-5 Outdoor Unit (38TAR018-723)

4-6Outdoor Unit (38HNR024-713)

FILE NO. SVM-05010

– 1–

5-442TAR018-723 / 38TAR018-723

5-542HNR018-713 / 38HNR018-713

6.1 42CJR024-723, 42CJR018-723, 42TAR024X-723, 42TAR018-723

6.2 42HNR024-713, 42HNR018-713

3-342TAR018-723 / 38TAR018-723

2-5Outdoor Unit (38HNR018-713)

4-7Outdoor Unit (38HNR018-713)

7-7Filter Check Lamp

–2–

9. TROUBLESHOOTING CHART

9-1 Troubleshooting Procedure

9-2 Basic Check Items

9-3 Primary Judgement

9-4 Self-Diagnosis by Remote Control (Check Code)

9-5 How to Diagnose Faulty Parts

9-6 Troubleshooting for Indoor Unit

9-7 Troubleshooting for Wiring (Interconnect cable and Serial Signal Wire)

9-8 Troubleshooting for P.C. Board

9-9 Troubleshooting for Remote Control

10. PART REPLACEMENT

10-1 Indoor Unit

10-2 Outdoor Unit (38CJR024-723, 38TAR024X-723, 38TAR018-723)

10-3 Outdoor Unit (38CJR018-723)

11. EXPLODED VIEWS AND PARTS LIST

11-1 Indoor Unit (E - Parts Assy)

11-2 Indoor Unit

11-3 Outdoor Unit (38CJR024-723, 38TAR024X-723)

11-4 Outdoor Unit (38TAR018-723)

10-4 Outdoor Unit (38HNR024-713)

10-5 Outdoor Unit (38HNR018-713)

FILE NO. SVM-05010

11-5 Outdoor Unit (38CJR018-723)

11-6 Outdoor Unit (38HNR024-713)

11-7 Outdoor Unit (38HNR018-713)

8. INSTALLATION PROCEDURE

8-1 Safety Cautions

8-2 Installation Diagram of Indoor and Outdoor Units

8-3 Installation

8-4 Indoor Unit

8-5 Outdoor Unit

8-6 How to Set Remote Control Selector Switch

8-7 Others

– 3 –

1. SPECIFICATIONS

MODEL 42CJR024-723 / 38CJR024-72342TAR024X-723 / 38TAR024X-723

ITEM Cooling

Capacity kW 220V 240V 220V

6.40 6.45 6.40

Phase 1∅

Power source V 220 – 240 220

Hz 50

Power consumption W2420 25102250

Power factor %989295

220V240V220V

R unning current A 0.3/10.90.3/11.1 0.3/10.5

Indoor/Outdoor

Starting current A67

Moisture removal lit/h 2.7

Noise Indoor (H/M/L) dB 45/41/37

Outdoor (220 – 240V) dB 56-57 56

Refrigerant Name of refrigerant R22

Rated amount kg 1.70

Refrigerant control Capillary tube

Gas side size mm ∅15.88

Connection type Flare connection

Liquid side size mm ∅6.35

Interconnection Connection type Flare connection

pipe Maximum length m15*1

(One way) 25*2

Maximum height m10

difference

INDOOR UNIT 42CJR024-72342TAR024X-723

Height mm 298

Dimensions Width mm 998

Depth mm 208

Net weight kg 13

Evaporator type Finned tube

Indoor fan type Cross flow fan

High fan m3/h 900

Air volume Medium fan m3/h 750

Low fan m3/h 625

Fan motor output W 30

Air filter Honeycomb woven filter with PP frame

OUTDOOR UNIT 38CJR024-72338TAR024X-723

Height mm 690

Dimensions Width mm 880

Depth mm 310

Net weight kg 58

Condenser type Finned tube

Outdoor fan type Propeller fan

Airflow volume m3/h 3380 3560 3380

Fan motor output W 65

Compressor Model PH400X3CS-4KT1

Output W 1800

Safety device IOL

Louver type Automatic louver

Usable outdoor temperature range °C21 ~ 43

FILE NO. SVM-05010

Note *1 Chargeless pipe

*2 Maximum pipe

– 4 –

MODEL 42CJR018-723 / 38CJR018-72342TAR018-723 / 38TAR018-723

ITEM Cooling

Capacity kW 220V 240V 220V

5.20 5.255.10

Phase 1∅

Power source V 220 – 240 220

Hz 50

Power consumption W1920 2000 1560

Power factor %928698

220V 240V 220V

Running current A 0.2/9.25 0.2/9.50 0.3/6.94

Indoor/Outdoor

Starting current A42 42

Moisture removal lit/h 2

Noise Indoor (H/M/L) dB 42/39/35

Outdoor (220 – 240V) dB 51 52 56

Refrigerant Name of refrigerant R22

Rated amount kg 1.17 1.47

Refrigerant control Capillary tube

Gas side size mm ∅12.7 ∅15.88

Connection type Flare connection

Liquid side size mm ∅6.35

Interconnection Connection type Flare connection

pipe Maximum length m15*1

(One way) 20*2

Maximum height m8

difference

INDOOR UNIT 42CJR018-72342TAR018-723

Height mm 298

Dimensions Width mm 998

Depth mm 208

Net weight kg 13

Evaporator type Finned tube

Indoor fan type Cross flow fan

High fan m3/h 750 900

Air volume Medium fan m3/h 667

Low fan m3/h 543

Fan motor output W 30

Air filter Honeycomb woven filter with PP frame

OUTDOOR UNIT 38CJR018-72338TAR018-723

Height mm 550 690

Dimensions Width mm 780 880

Depth mm270310

Net weight kg 4151

Condenser type Finned tube

Outdoor fan type Propeller fan

Airflow volume m3/h 21202200 3380

Fan motor output W 42 65

Compressor Model PH340X3C-4KT1 PH290X2C-4FT1

Output W1500 1700

Safety device IOL

Louver type Automatic louver

Usable outdoor temperature range °C21 ~ 43

FILE NO. SVM-05010

45/39/33

Note *1 Chargeless pipe

*2 Maximum pipe

– 5–

FILE NO. SVM-05010

MODEL

42HNR024-713

42HNR018-713

38HNR024-713

38HNR018-713

ITEM Cooling

Heating Cooling Heating

Capacity kW

220 V 240 V

220 V

240 V

220 V 240 V

220 V

240 V

6.30 6.30

6.80

6.90 5.05 5.05

5.80

5.90

Phase ∅1

Power source V 220 −240

Hz 50

Power consumption W

2430 2510 2390 2490 1920 2040 1800 1950

Power factor % 96 92 94 90 95 88 94 86

220 V 240 V 220 V 240 V 220 V 240 V 220 V 240 V

Running current A0.3/

0.3/

0.2/

Indoor/Outdoor 11.2 11.1 11.2

11.28

9.0 9.5 8.5 9.3

Starting current A

Moisture removal lit/h 2.5 2.0

Noise Indoor (H/M/L) dB 45/41/37 42/39/35

Outdoor (220 −240V) dB

56-57

57-58

52-53 53-54

Refrigerant Name of refrigerant R22

Rated amount kg 1.75 1.17

Refrigerant control Capillary tube

Gas side size mm ∅15.88 ∅12.7

Connection type Flare connection

Liquid side size mm ∅6.35

Interconnection Connection type Flare connection

pipe Maximum length m15*1

(One way) 25*220*2

Maximum height 10 8

difference

INDOOR UNIT 42HNR024-71342HNR018-713

Height mm 298

Dimensions Width mm998

Depth mm220

Net weight kg 13

Evaporator type Finned tube

Indoor fan type Cross flow fan

High fan m3/h 900

750

800

Air volume Medium fan m3/h 750

790

667

708

Low fan m3/h 625

667

543

584

Fan motor output W 30

Air filter Honeycomb woven filter with PP frame

OUTDOOR UNIT 38HNR024-71338HNR018-713

Height mm 690 538

Dimensions Width mm880 830

Depth mm 310 300

Net weight kg

6154

Condenser type Finned tube

Outdoor fan type Propeller fan

Airflow volume m3/h 3380 3560 2105 2310

Fan motor output W 65

Compressor Model 2JS386D5BB02 2JS350D5A02

Output W

1800

1700

Safety device

IOL, Td Sensor IOL, Td Sensor

Louver type Automatic louver

Usable outdoor temperature range °C 21 ~ 43

−10 ~ 24

21 ~ 43 −10 ~ 24

298

998

208

Note *1 Chargeless pipe

*2 Maximum pipe

Note : 2

Charge refrigerant according to the table below.

extra refrigerant

*2NeedtochargeOver 15 mup to 25 m(30 g/m)

Over 15 mup to 20 m(20 g/m)

extra refrigerant

Refrigerant 42CJR024-723 / 38CJR024-72342CJR018-723 / 38CJR018-723

42TAR024X-723 / 38TAR24X-723

42HNR024-713 / 38HNR024-713

42TAR018-723 / 38TAR18-723

42HNR018-713 / 38HNR018-713

*1 No need to charge 15 m or less 15 m or less

Note : 1

•Capacity is based on the following temperature conditions.

Temperature Condition JIS B8615-1

Cooling Heating

Indoor unit inlet air temperature

(DB) 27°C20°C

(WB) 19°C12°C

Outdoor unit inlet air temperature

(DB) 35°C7°C

(WB) 24°C6°C

FILE NO. SVM-05010

– 6–

– 7–

2. CONSTRUCTIONVIEWS

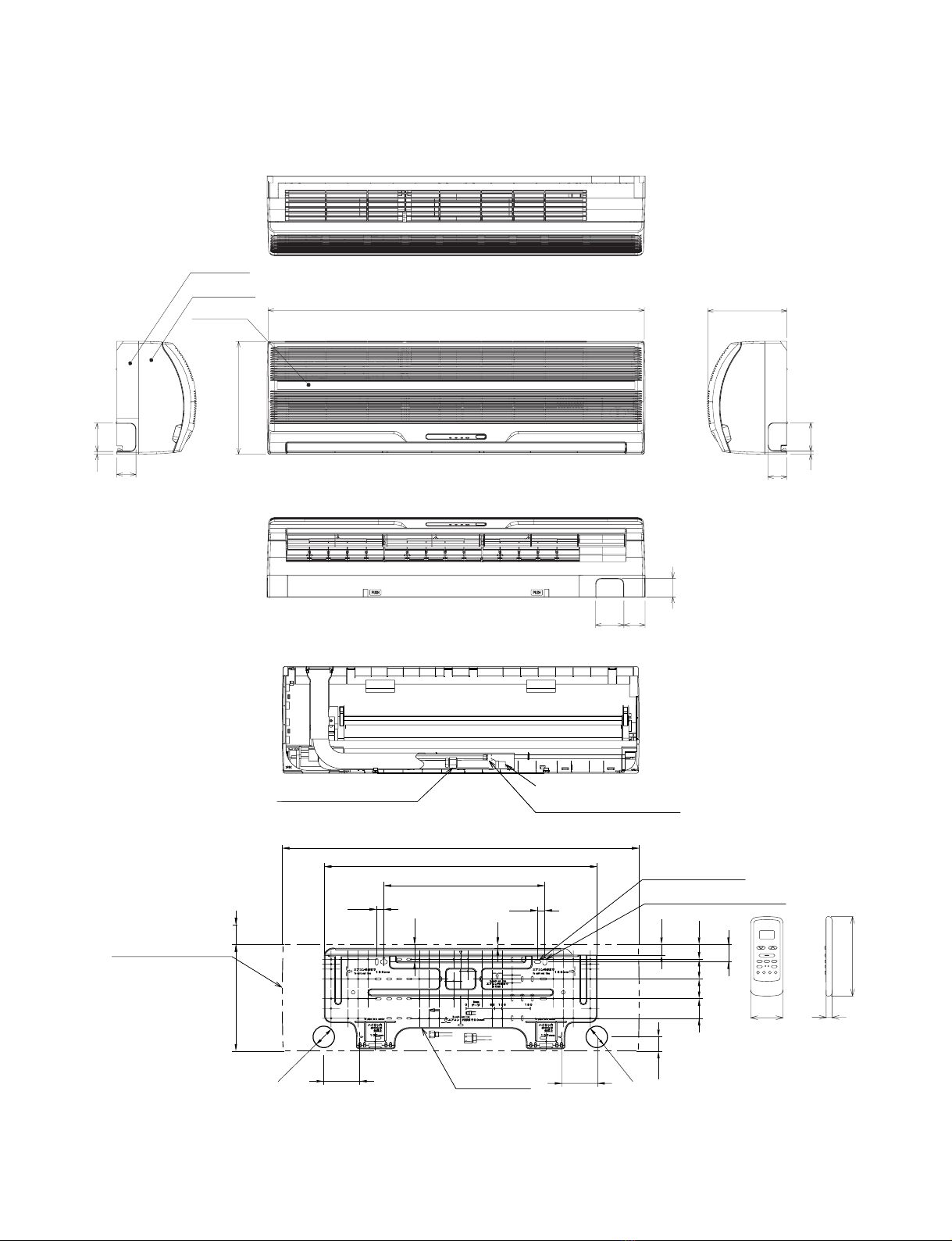

2-1.Indoor Unit (42CJR024-723,42TAR024X-723,42TAR018-723)

55 or more

100

450

100

75 65

998

208

850

298

775

998

298

763.5

5555 55 41

Knock out system Knock out system

Connecting pipe (0.39 m)

(Flare ∅15.88)

Drain hose (0.54 m)

Connecting pipe (0.49 m)

(Flare ∅6.35)

(For stud bolt ∅6)

(For stud bolt ∅8 −∅10)

∅65

Installation

Plate outline

Minimum distance

to ceiling

Outline of indoor unit

∅65

Wireless remote control

54 16

135

Back body

Front panel

Grille inlet

FILE NO. SVM-05010

– 8–

2-2.Outdoor Unit (42CJR018-723, 42HNR018-713, 42HNR024-713)

55 or more

100

450

100

75 65

998

208

850

298

775

998

298

763.5

5555 55 41

Knock out system Knock out system

Connecting pipe (0.39 m)

(Flare ∅12.7)

Drain hose (0.54 m)

Connecting pipe (0.49 m)

(Flare ∅6.35)

(For stud bolt ∅6)

(For stud bolt ∅8 −∅10)

∅65

Installation

Plate outline

Minimum distance

to ceiling

Outline of indoor unit

∅65

Wireless remote control

54 16

135

Back body

Front panel

Grille inlet

FILE NO. SVM-05010

– 9–

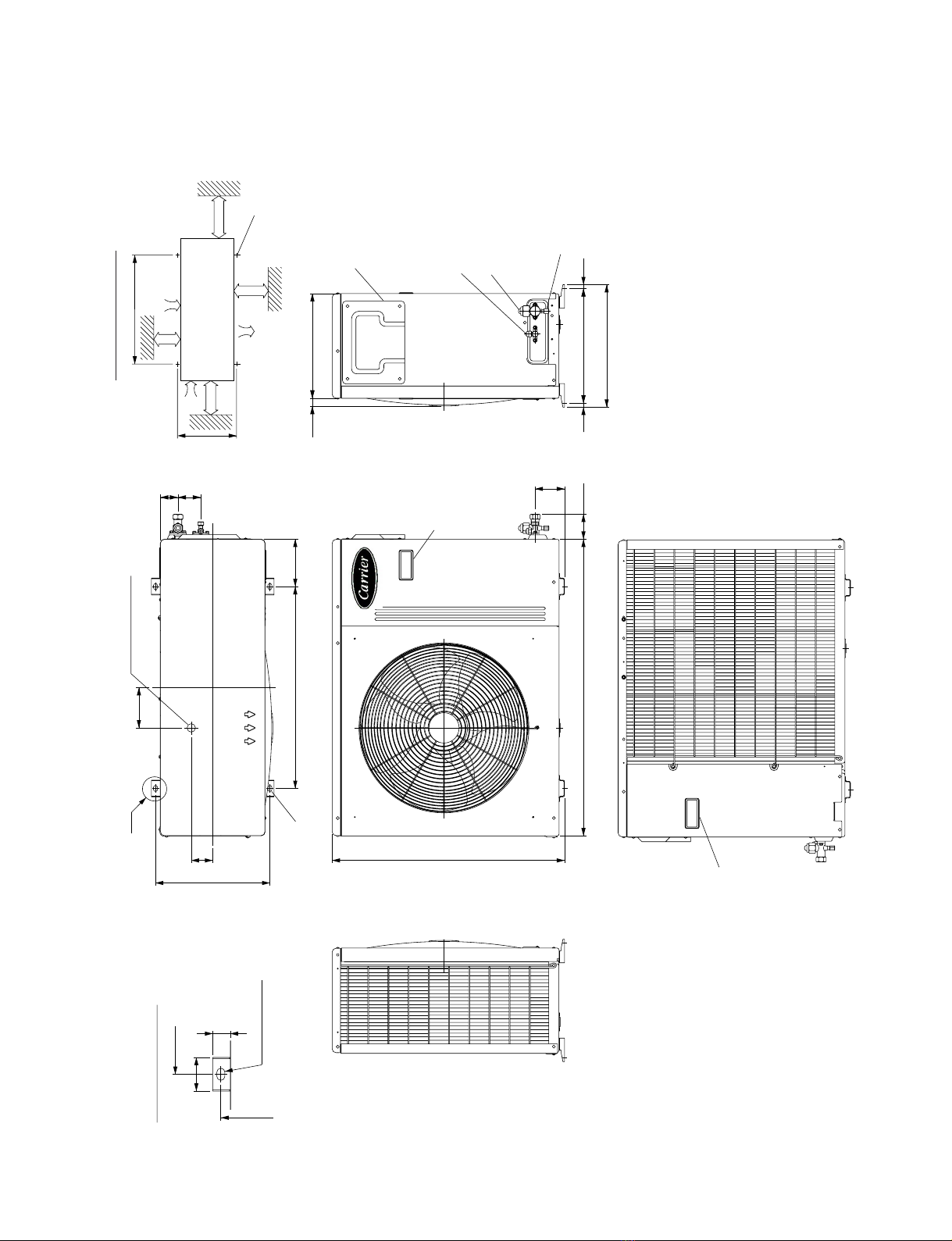

2-3.Outdoor Unit (38CJR024-723,38TAR024X-723,38TAR018-723,38HNR024-713)

120

63.8

340

600

690

880 74

140

310

340

340 (pitch) 12

364

∅12x18 hole

ADetail Drawing

∅25 Drain outlet

Handle

Installation dimension

600

100 or

600 or

Air outlet

Air inlet

Electric

Parts cover

Liquid side

(Flare ∅6.35)

Gas side

(Flare ∅15.88)

Service Port

600

340

Handle

4-∅12x18

for ∅8 −∅10

anchor bolt

4-∅12x18 holes

(for ∅8 −∅10 anchor bolt)

FILE NO. SVM-05010

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Carrier Klimaanlage Handbücher

Carrier

Carrier CRSOUBLN001A00 Bedienungsanleitung

Carrier

Carrier 42ADF025 Bedienungsanleitung

Carrier

Carrier 24APA7 Performance Bedienungsanleitung

Carrier

Carrier 42EP Handbuch

Carrier

Carrier PA4S Bedienungsanleitung

Carrier

Carrier Comfort series Bedienungsanleitung

Carrier

Carrier MODULINE 37HS Bedienungsanleitung

Carrier

Carrier Comfort 24ACB3 Bedienungsanleitung

Carrier

Carrier 09BB Bedienungsanleitung

Carrier

Carrier 00EFN900003000A Bedienungsanleitung

Carrier

Carrier 40MFC Bedienungsanleitung

Carrier

Carrier 50BYN006 Abmessungen und Installationsanleitung

Carrier

Carrier 38MVC Bedienungsanleitung

Carrier

Carrier 40QA024-060 Abmessungen und Installationsanleitung

Carrier

Carrier 42BH Series Bedienungsanleitung

Carrier

Carrier Fan Coil 42B Bedienungsanleitung

Carrier

Carrier 38GRQB12-3 Bedienungsanleitung

Carrier

Carrier AIR-COOLED CONDENSIGN UNIT 38AK007 Abmessungen und Installationsanleitung

Carrier

Carrier 38GJ Series Originalbetriebsanleitung

Carrier

Carrier 48TC series Bedienungsanleitung

Carrier

Carrier Comfort 24ACA3 Bedienungsanleitung

Carrier

Carrier 38EB Abmessungen und Installationsanleitung

Carrier

Carrier 558J Series Installations- und Benutzerhandbuch

Carrier

Carrier 1995 Betriebsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
