CAS NC-100 Bedienungsanleitung

NC Series

Crane Scale

OWNER’S MANUAL

CONTENTS

PRECAUTIONS 4

PREFACE 6

NAMES AND FUNCTIONS 6

1. OVERALL VIEW 6

2. DISPLAY 6

3. KEY FUNCTIONS 7

OPERATIONS 7

1. POWER ON 7

2. ZERO OPERATION 7

3. TARE OPERATION 8

4. UNIT CONVERSIONS 9

ERROR MESSAGES 9

1. ERROR 1 9

2. ERROR 3 9

3. OVER LOAD 10

4. ERROR BEEP 10

THE PROGRAMS 10

1. TO SELECT MOTION BAND 10

2. TO SELECT DIGITAL FILTER 11

3. TO SELECT AUTO-POWER OFF INTERVAL 11

4. TO SET E.L. ON OR OFF 12

BATTERY OPERATION 13

1. CHARGE 13

2. BATTERY OPERATING TIME 14

3. LOW BATTERY("BAT.") SIGNAL 14

REMOTE CONTROL 14

1. REMOTE CONTROLLER OPERATION 14

2. REPLACING BATTERY IN REMOTE CONTROLLER 14

ASSEMBLE AND DISASSEMBLY 15

SPECIFICATIONS 16

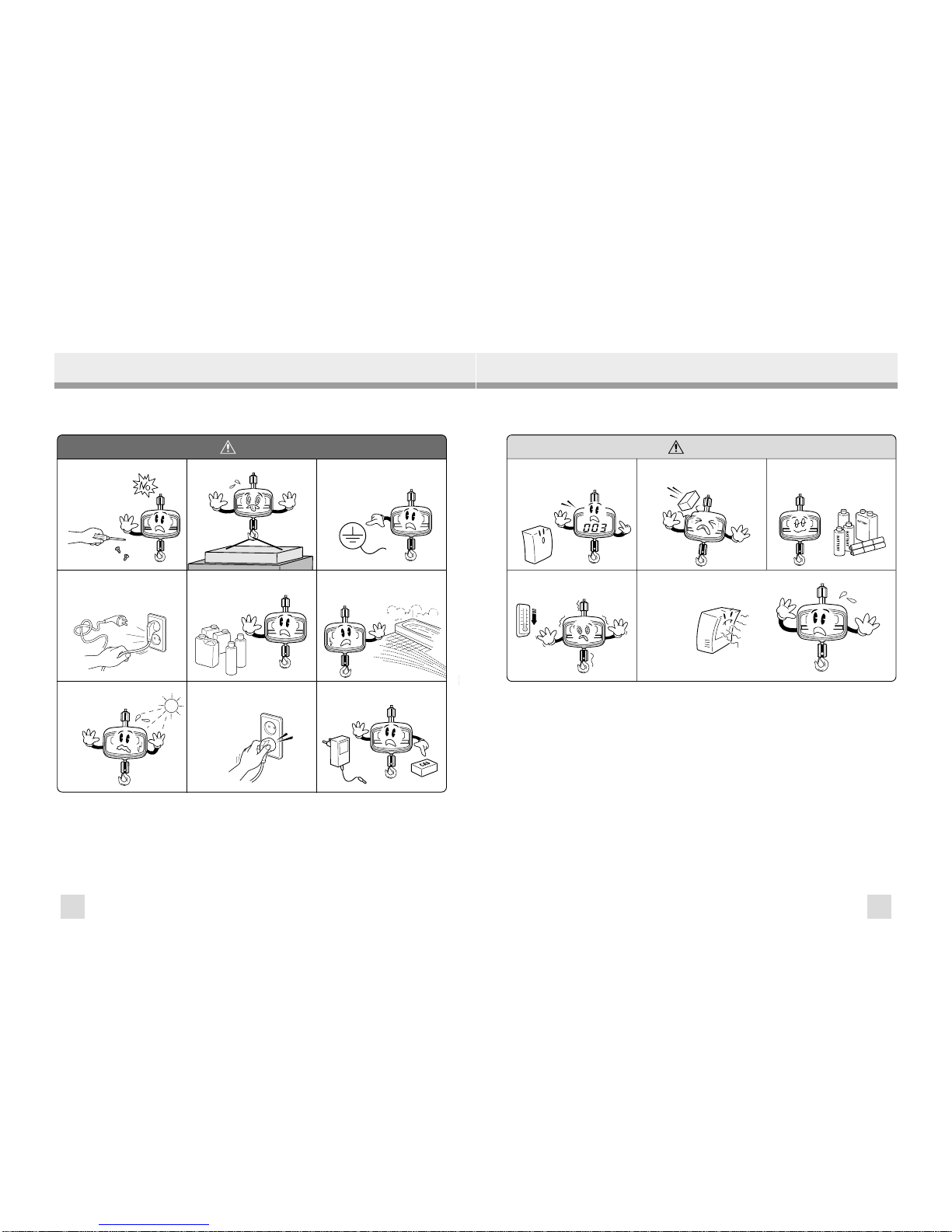

PRECAUTIONS

Do not disassemble the scale.

When any damage or

defect occurs, contact

your CAS authorized

dealer immediately for

proper repair.

Do not overload beyond the maximum

weight limit.

Do not pull the plug by its cord when

unplugging. Damaged cord could cause

electric shock or fire.

Avoid placing the scale near heater

or in direct sunlight.

Scale must be grounded to minimize

electricity static. This will minimize

defect or electric shock.

Use proper Adapter. Incorrect adapter

could damage the scale. Insert plug firmly to wall outlet to

prevent electric shock.

To reduce electric shock or incorrect

reading, Do not spill water on the scale

or place it in humid condition.

Warning

To prevent from fire occurring, Do not

place or use the scale near

flammable or corrosive

gas.

For consistent and accurate reading,

maintain periodical check by your

CAS authorized dealer.

Avoid sudden shock to the scale.

Internal mechanism could be damaged.

Place the scale on firm and temperature

consistent environment.

Attention

Keep the scale away from other

electromagnetic generating devices.

This may interfere with accurate

reading.

Take the battery out when scale is not in

use for long time. Leakage from the

batteries is hazardous.

PREFACE

NAMES AND FUNCTIONS

Thank you for purchasing our CAS NC SERIES.

These series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy these

high quality reliable CAS products.

We believe that your needs will be satisfied and you will have proper reliability.

This manual will help you with proper operation and care of the CASTON .

Please keep it handy for future reference.

1. OVERALL VIEW

KEY BOARD

HOOK

JOINT RING ASSY

DISPLAY WINDOW

NAME

PLATE

FRONT VIEW REAR VIEW

SEALING

BOLT

ON/OFF

S/W

OFF

JACK

RUBBER

2. DISPLAY

ZERO LAMP : It shows zero state. When the scale is loaded,

the lamp will be turned off.

TARE LAMP : It is lit when the tare weight entered.

BAT. LAMP : It is lit when battery needs to be exchanged.

EXTERNAL POWER OPERATION LAMP : It is lit when DC 12V

adaptor supplies power to scale.

RECHARGE END LAMP : It is lit when being recharged and turn off

when recharge finishes.

3. KEY FUNCTIONS

ZERO

TARE

Turns power on or off.

Zero the scale when the zero point is drifted.

Subtracts tare weight gross weight.

Select kg or lb.(Capture and display weight)

KEYS FUNCTIONS

OPERATIONS

1. POWER ON

Press "ON/OFF" key.

2. ZERO OPERATION

Press "ZERO" key when the zero point is drifted.

SPEC PLATE

3. TARE OPERATION

Load tare on the hook.

Press "TARE" key.

"0" is displayed, and the tare is subtracted.

4. UNIT CONVERSIONS

Place an item to be weight on the hook.(GRAM MODE)

Remove tare on the hook.

Press "TARE" key.

The tare weight is cleared appers in the display window.

Remove weight on the hook.

Press "kg/lb" key.(POUND MODE)

Place an item to be weight on the hook.

ERROR MESSAGES

1. ERROR 1 Over-range error of an initial zero.

Make the hook empty.

2. ERROR 3 The scale needs calibration.

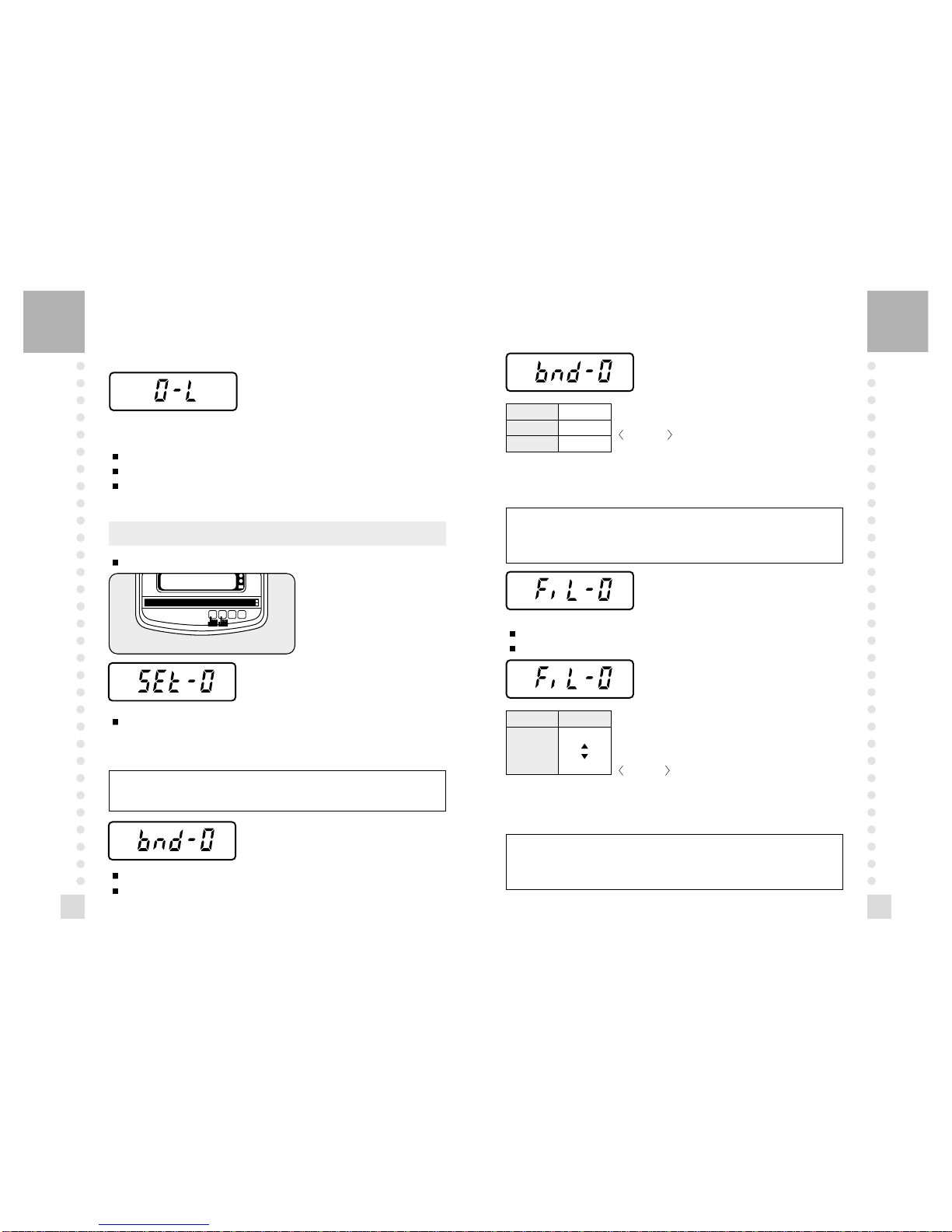

3. OVER LOAD When a load is over the limit weight

of a scale.

LIMIT WEIGHT=CAPACITY+6D

4. ERROR BEEP

When pressing "ZERO" key while TARE is used.

When pressing "ZERO" or "TARE" key while a scale is not stable.

When pressing "ZERO" key while ZERO RANGE OVER happens.

To increase the number, press "ZERO" key.

To set this entry and go to the next, press "kg/lb"(HOLD) key.

To increase the number, press "ZERO" key.

To set this entry and go to the next, press "kg/lb"(HOLD) key.

1. TO SELECT MOTION BAND

THE PROGRAMS

Turn power on pressing "ZERO" key.

Press "kg/lb" (HOLD)key.

is displayed.

(See TABLE 1)

is displayed.

(See TABLE 2)

TABLE 1

(* D=INTERVAL)

MOTION BAND IS THE RANGE THAT MAKES A SCALE HANDLE

AN UNSTABLE WEIGHT AS A STABLE WEIGHT IN.

2. TO SELECT DIGITAL FILTER

DIGITAL FILTER IS THE FUNCTION THAT MAKES DISPLAY

SPEED FASTER OR SLOWER ON THE USING CONDITION.

THE HIGHER VALUE IS THE LOWER SPEED.

3. TO SELECT AUTO-POWER OFF INTERVAL

AUTO POWER OFF IS THE FUNCTION THAT MAKES POWER

DOWN WHEN A SCALE IS NOT OPERATED BY USER TO SAVE

BATTERY POWER.

01D

15D

2 10D

TABLE 2

0 NONE

1 FASTER

7 SLOWER

To increase the number, press "ZERO" key.

To set this entry and go to the next, press "kg/lb"(HOLD) key.

Press "kg/lb"(HOLD) key.

The scale returns to NORMAL MODE.

is displayed.

(See TABLE 3)

TABLE 3

0 NONE

1 3 min

2 6 min

3 9 min

(See TABLE 3)

TABLE 4

OFF always

ON weighing and stable

ON weighing

ON always

4. TO SET E.L. ON OR OFF

E.L BACK LIGHT IS THE FUNCTION THAT MAKES THE

DISPLAY PANEL VISIBLE IN THE DARK BY LIGHTING

ELECTRIC LUMINANCE DEVICE.

BATTERY OPERATION

1. CHARGE

The rechargeable battery located inside the NC-series scale must be

charged using the voltage which don't exceed 10% of the voltage

indicated on the adapter.

If the voltage for charge exceed the above limit, the battery would

be damaged.

Check if an output voltage is DC 12V 1.5A.

Remove ADAPTOR JACK COVER of REAR PANEL and connect

adaptor with an scale like the following figure.

When an adaptor is linked with an scale, RED LAMP and

GREEN LAMP are ON.

Charging method.

Quick charge : Charge the battery until the green lamp is ON.

(Quick charging time : approximately 2 hours)

Standard charging method : Charge the battery for about 6 hours

after the green lamp is ON.

Note : If you use the quick charge, the battery is not charged fully.

(charged to the 70% of full charge)

To charge fully, use the standard charge.

2. BATTERY OPERATING TIME

The discharge time is dependent on the charging method and

power source.

In generally, if you use the battery continuously, the discharge

time is as follows.

with E.L. 16~22hours.

without E.L. 37~50hours.

Caused by repeated use, the discharge time can be decreased.

If the scale is not used for long time after charging the battery,

the discharge time is decreased. To restore the discharge time,

repeat the procedure of charge and discharge(if battery is

discharged the "BAT" lamp on the LCD will be displayed) for

2 or 3 times.

3. LOW BATTERY("BAT.") SIGNAL

To protect over-discharge of BATTERY, "BAT" LAMP is lit when

battery has to be charged.

A scale turns power off automatically an fixed period after "BAT"

is ON.

1. REMOTE CONTROLLER OPERATION

"ON/OFF" key : Power ON/OFF.

"ZERO" key : Make the scale stable to "0" while the zero point is drifted.

"TARE" key : Store the tare weight.

"kg/lb" key : Select kg or lb mode.

"HOLD" key : Capture and display weight.

OPERATION LAMP : Blinks once when keys are pressed.

2. REPLACING BATTERY IN REMOTE CONTROLLER

BATTERY SPEC.

VOLTAGE : 1.5V 2

SIZE : AA SIZE(14.5 50.5m/m)

BATTERY

NOTE ON REPLACING BATTERIES.

Place batteries in correct polarity(+)(-)direction.

Do not use new batteries with the used.

REMOTE CONTROL

ASSEMBLE AND DISASSEMBLY

DEVICE PIN

HOOK

LOAD PIN

SPECIFICATIONS

MODEL

MAXIMUM CAPACITY

INTERVAL

FUNCTION

DISPLAY COLUMN

DISPLAY TYPE

DISPLAY DESIGNATORS

MAX TARE

WEIGHING TYPE

OPERATING TEMPERATURE

OPERATING POWER

POWER SOURCE

POWER CONSUMPTION

NET WEIGHT

NC-100 NC-200 NC-500 NC-1

100kg 200kg 500kg 100lb 250lb 1000lb

(200lb) (400lb) (1250lb) (40kg) (125kg) (400kg)

0.05kg 0.1kg 0.2kg 0.05lb 0.1lb 0.5lb

(0.02lb) (0.2lb) (0.5lb) (0.02kg) (0.05kg) (0.2kg)

ON/OFF, TARE, ZERO, kg/lb CONVERTING(HOLD)

5DIGIT

L.C.D TYPE

ZERO, TARE, BAT.

FULL TARE

LOAD CELL TYPE

-10

°C

~ +40

°C

DC 12V(1.5A)

AC 110/120 /220/240 V, 50/60Hz

0.25W

5.5kg

MEMO
