Cashinotech CSN-A2 Bedienungsanleitung

CSN- A2 Micro panel thermal printer

1 /2 6

CSN-

CSN- A2

A2 Micro

Micro

Micro panel

panel

panel thermal

thermal

thermal printer

printer

Version 1.1

CSN- A2 Micro panel thermal printer

2 /2 6

Content

Chapter 1 Introduction

..............................................................................................................

Features

.............................................................................................................................

Chapter2 Specifications

..........................................................................................................

2.1 Printer outline and out dimension

...........................................................................

2.2 specifications

..............................................................................................................

2.3 printer installation

......................................................................................................

2.4 Interface connectio n

..................................................................................................

Chapter 3 Operation specifications and print test

.............................................................

3.1 Operation specifications

...........................................................................................

3.2 Print ing test

.................................................................................................................

Chapter4 Using attention

........................................................................................................

Chapter5 ESC/POS PRINTING COMMAND SET

...........................................................

5.1 Set of Command

........................................................................................................

5.2 Command D etail

......................................................................................................

5. 2.1 P rint C ommands

..........................................................................................

5. 2.2 Line spacing setting command

...................................................................

5. 2.3 Char a cter Setting Commands

....................................................................

5. 2.4 Bit Image Command

....................................................................................

5. 2.5 Key control command

..................................................................................

5.2. 6 Init command

................................................................................................

5.2. 7 Status Command

.........................................................................................

5.2. 8 Bar Code Command

....................................................................................

5.2. 9 Control Parameter Command

....................................................................

APPENDIXA CODE PAGE

................................................................................................

APPENDIXB International characters

..............................................................................

CSN- A2 Micro panel thermal printer

3 /2 6

Chapter

Chapter 1

1 Introduction

Introduction

Features

Low-noise direct thermal printing method

Printer control panel built-in ANK character or GB18030 Chinese character,

thoroughly remove the uncommon words of anguish

Fast printing speed, low noise

can support Max.39MM(diameter) paper roll , that is big g est pap e r roll of the same

models.

Optional serial interface (RS-232C, TTL) /parallel port

rich of graphics / curves / characters print function

Easy paper loading structure

Support 5V-9V wide power voltag e

Chapter2

Chapter2 Specifications

Specifications

2.1

2.1 Printer

Printer

Printer outline

outline

outline and

and

and out

out

out dimension

dimension

outline dimension : 111W*65D*57H mm

Front opening Size: 103 W*57 H mm

embedded depth: 50 mm

the Max diameter of paper roll :39 mm

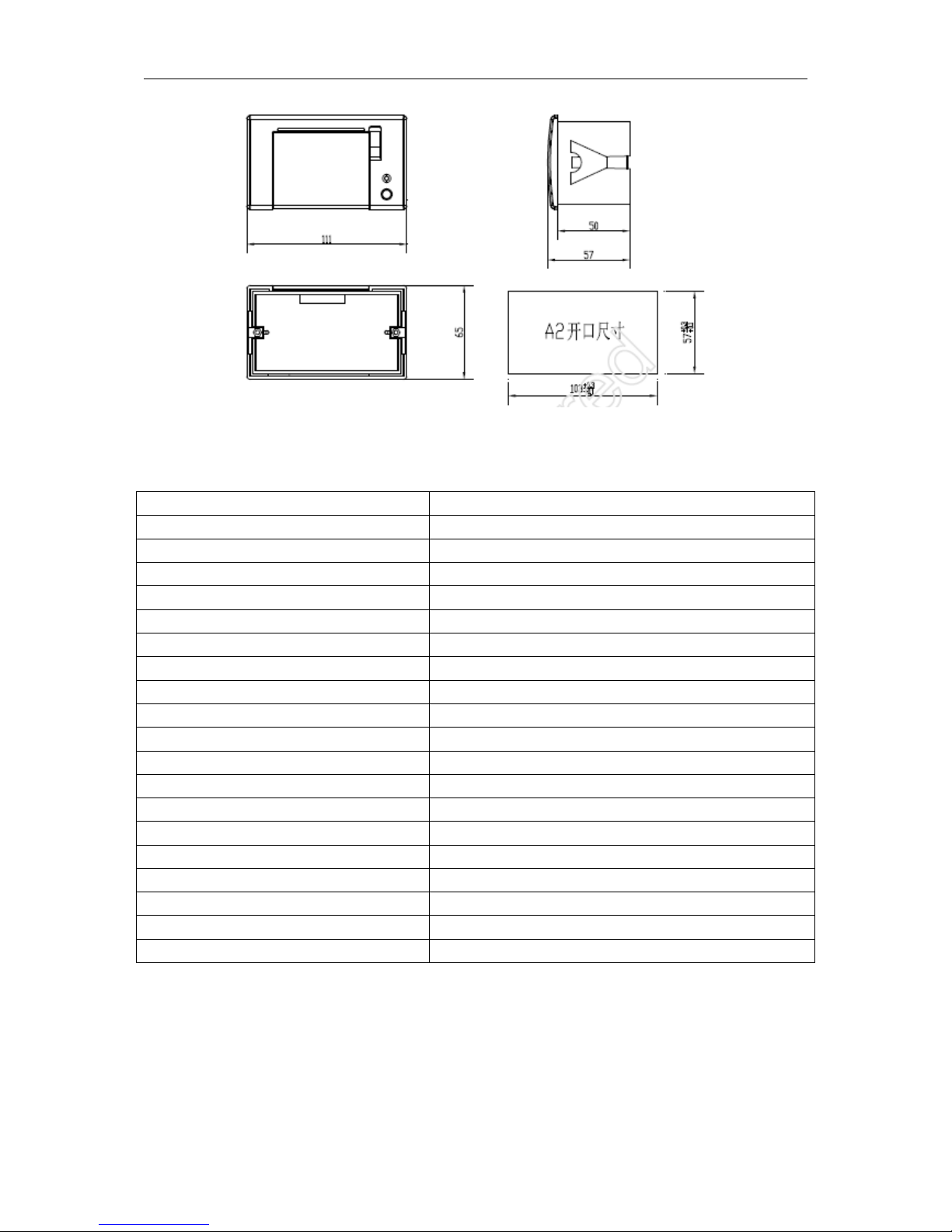

Outline is as follows :

CSN- A2 Micro panel thermal printer

4 /2 6

2.2

2.2 specifications

specifications

Item S pecifications

PRINT METHOD thermal direct line printing

Paper loading method easy paper loading

paper width 57mm

print width 48mm

resolution ration 8dots/mm(384dots/line)

life of printing head 50km

printing speed 60mm/sec.; Max.:80MM/sec.(voltage 8.5V ）

character size 12x24dots,or24x24dots

Chinese character fonts GB18030,12x24dots,or24x24dots

outline dimension

（

WxHxD mm)

111mmx65mmx57mm

installation(WxH mm) 103mmx57mm

emb e d d ed depth 50mm

paper roll sp e cification (wid t h : 57mm ; Max . D iameter : 39mm)

interface Serial (RS-232C,TTL)/parallel

input power DC5V-9V

operating temperature

C~50

storage temperature -20 °C~60 °C

operating humidity

C~80

storage humidity 10 °C~90 °C

CSN- A2 Micro panel thermal printer

5 /2 6

2.3

2.3 printer

printer

printer installation

installation

Put the panel printe r into the front of the device as per Fig.1 and Fig.2 , and then install

fixed block and screwi n g as per Fig.3

Note: have 1 to 6mm variation in thickness.

2.4

2.4 Interface

Interface

Interface connectio

connectio

connectio n

The user have option of RS232 ,TTL, and LPT interface

T he define of the PIN of the interface for RS232,TTL as the following:

1 GND ，Ground

2 NULL

3 VH ，input voltage ，5V-9V

4 GND ，Ground

5 RXD ，receive data

6 TXD ，send data

CSN- A2 Micro panel thermal printer

6 /2 6

T he define of the Pin of LPT interface as below :

1 GND ，Ground

2 VH ，input voltage ，5V-9V

3 +5V ，input voltage (general condition,only use +5Vm VH not input )

4 the define of the Pin of LPT interface as below :

1 . STROBE

2-9 . DATA0-DATA7

10 . ACKNLG

. BUSY

12 . PE paper out

13 . SLCT selection

14 . AUTO FEED auto change line

15 . ERROR

16 . INIT

17 . SLCT IN

18-26 . GND

CSN- A2 Micro panel thermal printer

7 /2 6

Chapter

Chapter 3

3 Operation

Operation

Operation specifications

specifications

specifications and

and

and print

print test

test

3.1

3.1 Operation

Operation

Operation specifications

specifications

A．the instruction of indicator light

Power on, the indicator light will flash 3 time, interval 1sec, it say the startness is OK ,

and then the instructions for the indicator light as below:

Flash 1 times : At ordinary times during normal working condition

Flash 2 times: Not detect printer

Flash 3 times: lack of paper, and remind users to change new paper roll e

Flash 5 times: Printing machine heating slice overheating

B . key instruction

The key on the panel printer is FEED key

C . how to change new p a per roll e r

Before changing , turn up the switch , and put into the paper roll e r

3.2

3.2 Print

Print ing

ing

ing test

test

Powe r on, press the [feed ]key, for a while , relax the key, it will print out one testing

sample .

Power on, press key per time, it w i ll feed the paper .

CSN- A2 Micro panel thermal printer

8 /2 6

Chapter4

Chapter4 Using

Using

Using attention

attention

4.1 Please notice, the ESD wrist ring and the humidity manufa c tures ETC, when using

the printer,to protect the inner el e ctronic parts of the printer from the damage of

ESD,because the TPH of the Printer and photoelectric sensor are ESD Sensitive

parts.

4.2 For protecting plastic shaft,Don ’ t smear any oil or others on the rubber parts

4.3 Don ’ t touch the TPH, TPH having the palm oil,will induce the usage of the printer.If

any oil or others in the TPH,pl ease using an alcohol cotton stick clean the area

between plastic shaft and printer head at once.PS,Don ’ t strike the TPH.

4.4 Due to the printer is easy-paper structure,you need pick up the rubber stick only

push the rubber stick.So,if the paper jam,push harder will cause the rubber stick

gearwheel damaged.so pl ease don ' t push the paper harder , pl ease do open the cover

and re-fill the paper .

4.5 The temperature of the TPH protection must be below 65 ℃,if you print

contin u ously,Because the exterior of the temperature of the IC protection & motor

can ’ t not over 90 ℃to protect the motor thread ring.

4.6 Pl ea s e use the good quality paper,because the sens i tive of the paper will

inf l uence print effect,meanwhile,rough paper will inc r ease the excessive wear to the

printer head, and reduce the life of the printer .

CSN- A2 Micro panel thermal printer

9 /2 6

Chapter5

Chapter5 ESC/POS

ESC/POS

ESC/POS PRINTING

PRINTING

PRINTING COMMAND

COMMAND

COMMAND SET

SET

5.1

5.1 Set

Set

Set of

of Command

Command

Type Command Name

Command

LF Print and line feed

HT JMP E to the next TAB position

FF Print the data in buffer

ESC FF

Print the data in the buffer and locate to the next black

mark

ESC J n Print and Feed n dots paper

ESC d n Print and Feed n lines

ESC = n Toggle the printer online or offline

Line spacing

Command

ESC 2 Select default line spacing

ESC 3 n Set line spacing

ESC a n Select justification

nL nH Set the left blank margin with dots

ESC B n Set the left blank char number

Character

Command

ESC ! n Select print mode(s)

GS ! n Set or Canc el the double width and height

ESC E n Set or Canc el bold font

ESC SP n Set the space between chars

ESC SO Turn double width on

ESC DC4 Turn double width off

ESC { n Turn upside-down printing mode on/off

GS B n Turn inverting printing mode on/off

ESC - n Set the underline dots(0,1,2)

ESC % n Select/Cancel user-defined characters

ESC & Define user-defined characters

ESC ? Canc el user-defined characters

ESC R n Select and internation al character set

ESC t n Select character code table

Bit Image

Command

ESC * Select bit-image mode

GS * Define downloaded bit image

GS / Print downloaded bit image

GS v Print the bitmap with width and height

DC2 * Print the bitmap

DC2 V Print MSB bitmap

DC2 v Print LSB bitmap

Init Command ESC @ Initialize printer

Status

Command

ESC v n Transmit paper sensor status

ESC u n Transmit peripheral device status

GS a n Enable/Disable Automatic Status Back(ASB)

CSN- A2 Micro panel thermal printer

10 /2 6

Bar Code

Command

GS H

Select printing position of human readable characters

GS h Set bar code height

GS x n

Set bar code left position

GS w Set bar code width

GS k

Print bar code

Board Para

Command

ESC 7 n1 n2 Set printing para. Heat & break time, max heat dot

DC2 # n

Select print de n sity

DC2 T Printing test page

5.2

5.2 Command

Command

Command D

D etail

etail

TCB thermal printer control board use ESC/POS command set.

The printing command is descri b ed as followed format:

CMD Function

Format : ASCII : List by ASCII characters

Decimal : LIST BY DECIMAL CHARACTERS

Hexadecimal : List by hexadecimal characters

Description : Command function description

Example : Command use example

5. 2.1

2.1

2.1 P

P rint

rint

rint C

C ommands

ommands

LF Print and line feed

Format: ASCII : LF

Decimal: 10

Hexadecima l : 0A

Description: LF prints the data in the print buffer and feeds one line.

When the print buffer is empty, LF feeds one line.

HT Jump to the next TAB position

Format: ASCII : HT

Decimal: 9

Hexadecima l: 09

Description: TAB position is 8 chars position.

FF Print the data in buffer and locate to the next black mark

Format: ASCII : FF

Decimal: 12

Hexadecima l: 0c
