CAR-2010 Series

Communication Appliance

User′s Manual

Revision: 1.2

This certificate of conformity of CAR-2010 series with actual required safety standards in

accordance with 89/366 ECC-EMC Directive and LVD 73/23 ECC

This product meets all safety requirements per UL60950 standard.

CAR-2010 Series User’s Manual

Table of Contents

Chapter 1 Introduction..........................................................................................................3

1.1 About This Manual...........................................................................................................3

1.2 Manual Organization .......................................................................................................3

1.3 Technical Support Information.........................................................................................3

1.4 Board Layout...................................................................................................................4

1.5 System Block Diagram ....................................................................................................4

1.6 Product Specifications ...............................................................................................................5

1.7 LED Signaling Standard..............................................................................................................7

Chapter 2 Getting Started ....................................................................................................8

2.1 Included Hardware ..........................................................................................................8

2.2 Before You Begin ............................................................................................................8

2.3 Hardware Configuration Setting.......................................................................................9

2.4 The Chassis ..................................................................................................................11

2.5 Open the Chassis..........................................................................................................12

2.6 Install a Different Processor...........................................................................................12

2.7 Remove and Install DIMM .............................................................................................14

2.8 Remove and Install Compact Flash Card ......................................................................16

2.9 Remove and Install Battery............................................................................................16

2.10 Install HDD....................................................................................................................17

2.11 Ear Mount Kit Installation...............................................................................................20

2.12 Remove EZIO / LCD......................................................................................................21

2.13 Remove Power Supply..................................................................................................22

2.14 Remove main board......................................................................................................23

2.15 Use a Client Computer ..................................................................................................24

Chapter 3 BIOS Setting ......................................................................................................26

CAR-2010 Series User’s Manual

Revision History

Version

Date

Author(s)

Description

1.0

14/09/2009

Benson

Initial Release

1.1

26/05/2010

Benson

Add Rack Mount Instructions

Change INC phone number and web site

1.2

26/10/2010

Ken

Add USB connector definition

CAR-2010 Series User’s Manual

Chapter 1 Introduction

1.1 About This Manual

This manual contains all required information for setting up and using the CAR-2010 series.

CAR-2010 provides the essential platform for delivering optimal performance and functionality in

the value communications appliance market segment. This manual should familiarize you with

CAR-2010 operations and functions. CAR-2010 series provide up to four on-board Ethernet

ports to serve communication applications like Firewall, requiring four Ethernet ports to connect

external network (internet), demilitarized zone and internal network.

CAR-2010 series overview:

Supports LGA 775 Conroe-L series CPU(MAX 35W)

Up to 4GB support un-buffered DDR3 1066

Two USB ports and two COM ports

Two SATA connectors for SATA Hard disk

PCI-E architecture with totally four x1 PCI-E interfaces

One PCI-E x8 Golden finger GF reserved for proprietary daughter card in R/M

Provides absolute high flexibility of customized I/O configuration

1.2 Manual Organization

This manual describes how to configure your CAR-2010 system to meet various operating

requirements. It is divided into three chapters, with each chapter addressing the basic concept

and operation of this system.

Chapter 1: Introduction. This section describes how this document is organized. It includes brief

guidelines and overview to help find necessary information.

Chapter 2: Hardware Configuration Setting and Installation. This chapter demonstrated the

hardware assembly procedure, including detailed information. It shows the definitions

and locations of Jumpers and Connectors that can be used to configure the system.

Chapter 3: Operation Information. This section provides illustrations and information on the

system architecture and how to optimize its performance.

Any updates to this manual, would be posted on the web site: http://www.cas-well.com

1.3 Technical Support Information

Users may find helpful tips or related information on Caswell’s web site: http://www.cas-well.com A

direct contact to Caswell’s technical person is also available. For further support, users may also

contact Caswell’s headquarter in Taipei or local distributors.

Taipei Office Phone Number: +886-2-77058888

CAR-2010 Series User’s Manual

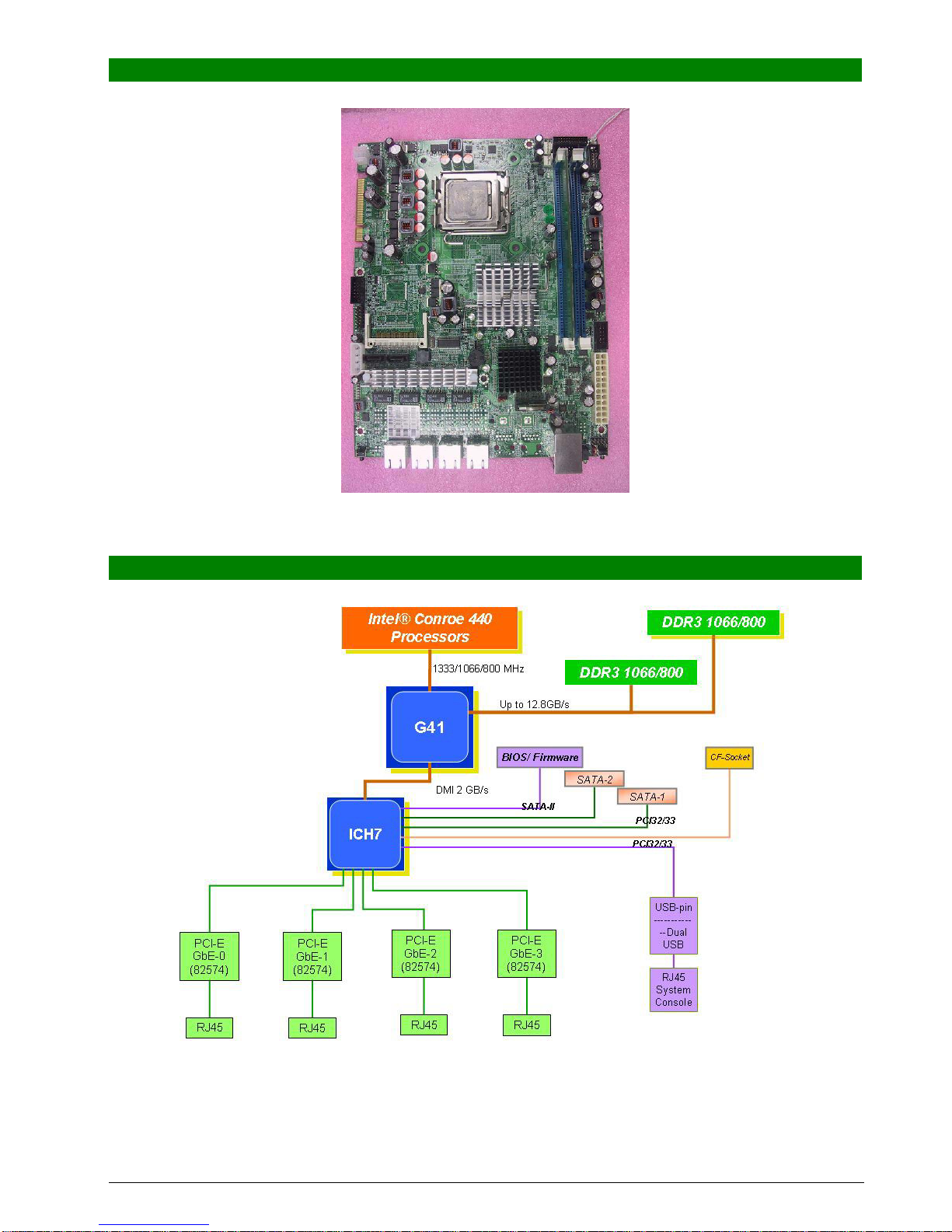

1.4 Board Layout

Figure 1-1 Board Layout of CAR-2010 M/B

1.5 System Block Diagram

Figure 1-2 CAR-2010 Basic Block Diagram

CAR-2010 Series User’s Manual

1.6 Product Specifications

1. # Feature Detailed Description

1 CPU Intel LGA 775 Conroe-L series CPU(MAX 35W)

2 CPU Board CAPB-3000VR with Intel® G41 / ICH7R chipset

Board size: 248 mm / 9.8” (L) x 193 mm / 7.6” (W)

3 System

Memory

2 DIMM slots.

Supports un-buffered DDR3 1066

Up to 4GB

4 Power

Supply

Full range ATX PSU with total 100Wpower output will be required.

Certification: CE, UL, 3C

Dimension: 81.5 x 150 x 40.3 mm

5 Ethernet1 Six PCI-E (x1) Gigabit Ethernet port based on Intel 82574 in

two bypass segments from ICH7R.

6 SATA & IDE

Interfaces



Two SATA Interfaces on board

One IDE channel from ICH7R supports one Compact Flash

Socket.

7 Front Panel

6 RJ-45 connector for PCI-E (x1) GbE interfaces

Hardware Reset Button

System LED: Power, Data access.

Bypass LED



Ethernet LED: For every Ethernet interface there should be

LEDs for link status and speed of LAN-ports.

8 Rear Panel AC power inlet

On/Off switch

Fan opening for system ventilation.

9 Golden finger 

One PCI-E x8 GF reserved for proprietary daughter card in

R/M

10 Dimension W:443mm/17.4” x D:292mm /11.5” x H: 44mm /1.73” (1U)

11 Environmental

requirement

Operating Storage

Acoustics < 55dB --

Temperature 5°C to 35°C -20°C to 75°C

Relative

Humidity

10 to 90% RH 5 to 95% RH

Shock

0.5 Sine shock,

10G peak, 10 +/- 3

ms on (X,Y,Z) axis

Vibration

0.5G (Peak) /

5~500 Hz, 2hours

at each of Z axis

(Packaged) Sine

Wave,2.0G / 5~500 Hz,

2hours at each axis(X,Y,Z)

Transportation

(Packaged) 0.5 sine shock,

50G peak on each surface.

CAR-2010 Series User’s Manual

# Feature Detailed Description

Drop (Packaged) H= 1.2M

Random

Vibration

(Packaged) Sine

Wave,2.8G / 5~500 Hz,

1hours at each axis(X,Y,Z)

Note 1: For system stability and performance, please install Fedora Core 4 (2.6.11-1.1369) and Intel 82574 driver

version e1000e-0.5.8.2 and add Linux kernel option on boot loader

Note 2: For Linux kernel 2.4 distribution, add kernel option on boot loader “hda=noprobe hdb=noprobe”

This parameter should increase the SATA HDD performance

For example: kernel /boot/vmlinuz-2.6.9-42.0.3.ELsmp ro root=LABEL=/ rhgb quiet had=noprobe hdb=noprobe

Note 3: For Linux kernel 2.6 distribution add kernel option on boot loader “ all-generic-ide”

For example: kernel /boot/vmlinuz-2.6.9-42.0.3.ELsmp ro root=LABEL=/ rhgb quiet all-generic-ide

==> "all-generic-ide", this option will let kernel identify the device on IDE bus, and enable DMA

Note 4: For system stability, when execute software reset, system will delay 2~3 seconds; when execute

hardware reset, system will cut off the power 1~2 seconds, the foregoing situation is normal.

Because of chipset limitations

* If system populated 2 DIMM sockets with double-side memory modules, the system may randomly

occurs unstable performance.

CAR-2010 Series User’s Manual

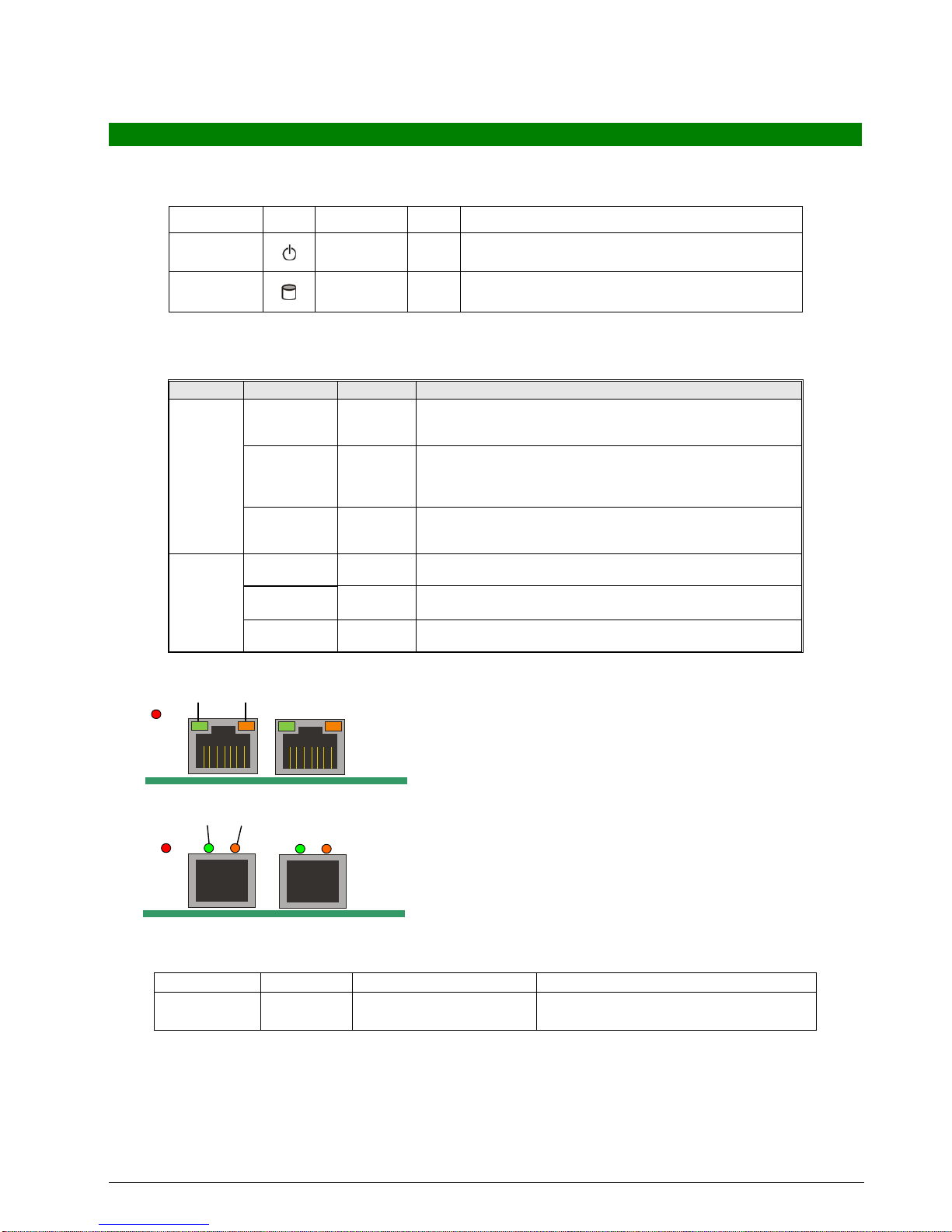

1.7 LED Signaling Standard

1. Power and Data-access LED

Lettering Symbol Function Color Signaling

PWR Power status Green Off – No power, system off.

On – Power good, system on.

Data Access Data Access Red Off – no data access through IDE or SATA channel

On – data is in transition through IDE or SATA channel

2. Ethernet LED

Label

Color

Indication

Status

ACT/LINK

Green

Others

1. The Ethernet port is receiving power.

2. Good linkage between the Ethernet port and its supporting

hub.

Off

1.The adapter and switch are not receiving power.

2.No connection between both ends of network cable.

3.The drivers of Ethernet have not been loaded or does not

function correctly.

Green

Others

Flashing

The adapter is sending or receiving network data. The

frequency of the flashes varies with the amount of network

traffic.

SPEED

Yellow On

ACT/LNK LED must on then this LED show the operating at

1000 Mbps. If ACT/LINK is off and this function will be disable.

Green On

ACT/LNK LED must on then this LED show the operating at

100 Mbps. If ACT/LINK is off and this function will be disable.

Off

ACT/LNK LED must on then this LED show the operating at 10

Mbps. If ACT/LINK is off and this function will be disable.

3. Bypass LED

LED Status

green

red

off

Bypass

Mode/Status

normal

mode

bypass mode, triggered

by WDT expiring

power off, in normal or bypass

mode which is defined by customer

Bypass

LED

ACT/Link

LED

Speed

LED

Bypass

LED

ACT/Link

LED

Speed

LED

Copper Ethernet Interface

Fiber/SFP Ethernet Interface

CAR-2010 Series User’s Manual

Chapter 2 GettingStarted

This section describes how the hardware installation and system settings should be done.

2.1 Included Hardware

The following hardware is included in package:

CAR-2010 Communication Appliance System Board

One null serial port cable

2.2 Before You Begin

To prevent damage to any system board, it is important to handle it with care. The following

measures are generally sufficient to protect your equipment from static electricity discharge:

When handling the board, use a grounded wrist strap designed for static discharge elimination

and touches a grounded metal object before removing the board from the antistatic bag. Handle

the board by its edges only; do not touch its components, peripheral chips, memory modules or

gold contacts.

When handling processor chips or memory modules, avoid touching their pins or gold edge

fingers. Restore the communications appliance system board and peripherals back into the

antistatic bag when they are not in use or not installed in the chassis.

Some circuitry on the system board can continue operating even though the power is switched

off. Under no circumstances should the Lithium battery cell used to power the real-time clock be

allowed to be shorted. The battery cell may heat up under these conditions and present a burn

hazard.

WARNING!

1. "CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE

ONLY WITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER.

DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS"

2. This guide is for technically qualified personnel who have experience installing and

configuring system boards. Disconnect the system board power supply from its power

source before you connect/disconnect cables or install/remove any system board

components. Failure to do this can result in personnel injury or equipment damage.

3. Avoid short-circuiting the lithium battery; this can cause it to superheat and cause burns if

touched.

4. Do not operate the processor without a thermal solution. Damage to the processor can occur

in seconds.

5. Do not block air vents. Minimum 1/2-inch clearance required.

CAR-2010 Series User’s Manual

2.3 Hardware Configuration Setting

2.3.1 CAR-2010 System Board Jumper

In general, jumpers on CAR-2010 system board are used to select options for certain

features. Some of the jumpers are configurable for system enhancement. The others are

for testing purpose only and should not be altered. To select any option, cover the jumper

cap over (Short) or remove (NC) it from the jumper pins according to the following

instructions. Here NC stands for “Not Connected”.

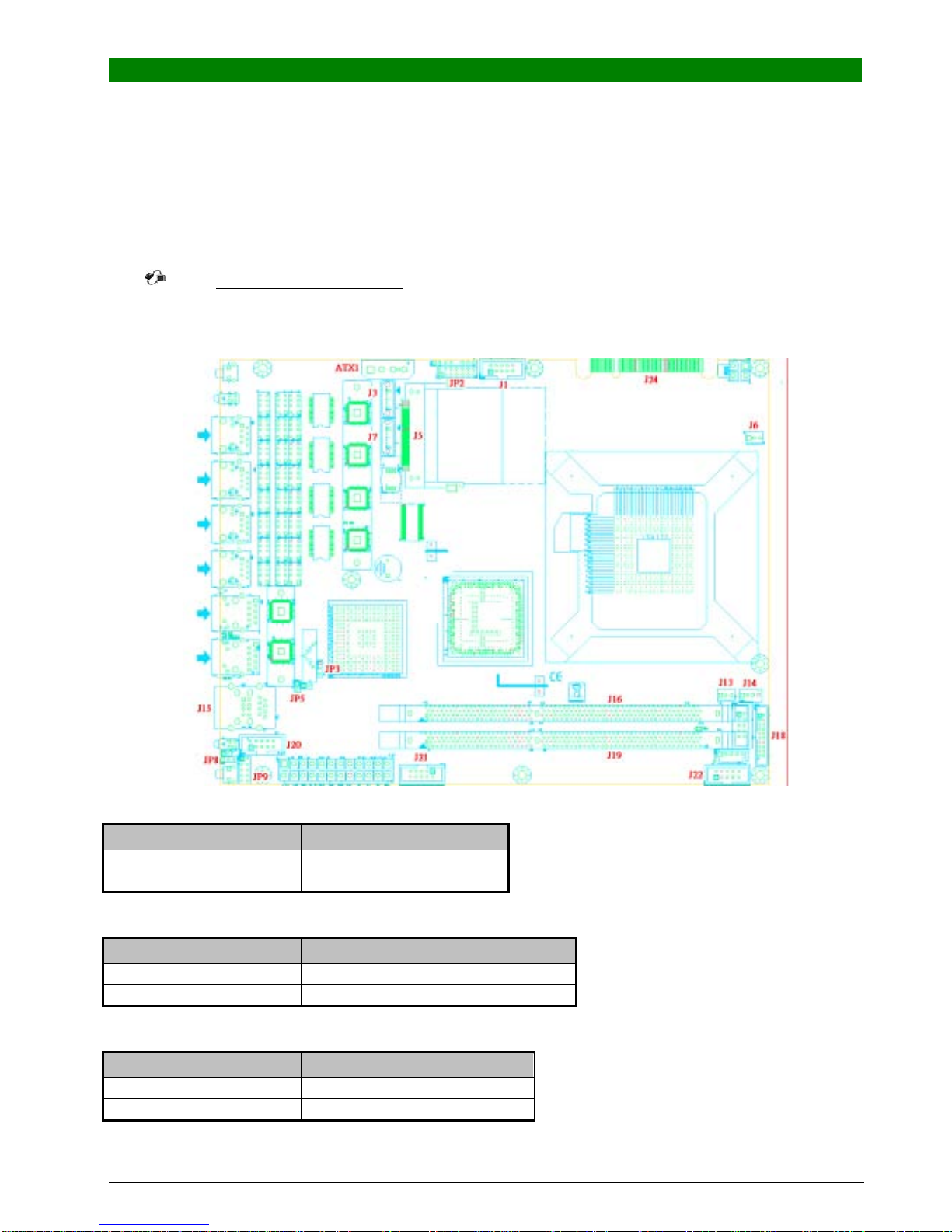

Location of Jumpers

CAPB-3000VR ZR0 jumper setting: (default setting:”*”)

JP8:GPIO Voltage Select

JP8

Function

1-2 Short

+5v *

2-3 Short

+3.3v

JP5:Watch Dog Timer(WDT) Select

JP5

Function

Short

Enable WDT Function *

Open

Disable WDT Function

JP3: CMOS Clear

JP3

Function

1-2 Short

Normal Operation *

2-3 Short

Clear CMOS Contents

Inhaltsverzeichnis

Andere Caswell Server Handbücher

Caswell

Caswell CAR-5050 Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
