Install CatEyeSYNC™
SYNCWearable™ is capable of the following when used with the
CatEyeSYNC™ smartphone app.
• Synchronize on/off operations with other CatEyeSYNC™-
compatible lights
• Synchronize modes and flashing timing with other
CatEyeSYNC™-compatible lights*
•
Synchronize Kinetic mode operation
(when connected to compatible models)
•
Configure light settings, check remaining battery level, and
receive notifications via the app
* Excluding headlights
If using an iPhone If using an Android smartphone
* Downloading and using the app incurs communication fees.
A Wi-Fi connection is recommended.
* For the latest information on compatible smartphones, see
“CatEyeSYNC™ Compatible Devices”.
* This manual describes how to perform operations using the
light only. For information on operations using CatEyeSYNC™,
refer to the “CatEyeSYNC™ instruction manual”.
* Pairing with CatEyeSYNC™ is required to synchronize the lights.
3
Checking package contents
Light unit
+ Clip bracket
USB cable
(MICRO USB)
Rubber band and hook
Before Initial Use
This unit is shipped with small charge to check the light.
Be sure to charge it before use, according to the instructions
“How to Charge” (Page 3) and “Cautions on recharging”
(Page 7).
How to Charge
1. Connect the light unit to your PC or a com-
mercial USB battery charger using the USB
cable.
The indicator turns on and charging starts.
4
12
Charge jack cover
USB cable
To PC or
USB battery charger
Standard
charging time
Approx. 2.5 h (USB2.0)
Indicator
Steady red light :
Charging
Off :
Charging is completed
Flashing red light :
Remaining battery low
* When your PC is in sleep state, the unit cannot be charged.
* Use a USB battery charger of 500mAh (USB2.0) or more.
The cartridge can be fast-charged with high capacity USB
battery charger.
2. Once charging is complete, be sure to dis-
connect the USB plug.
* Charging time is approximate values, and will vary de-
pending on the environmental and usage conditions.

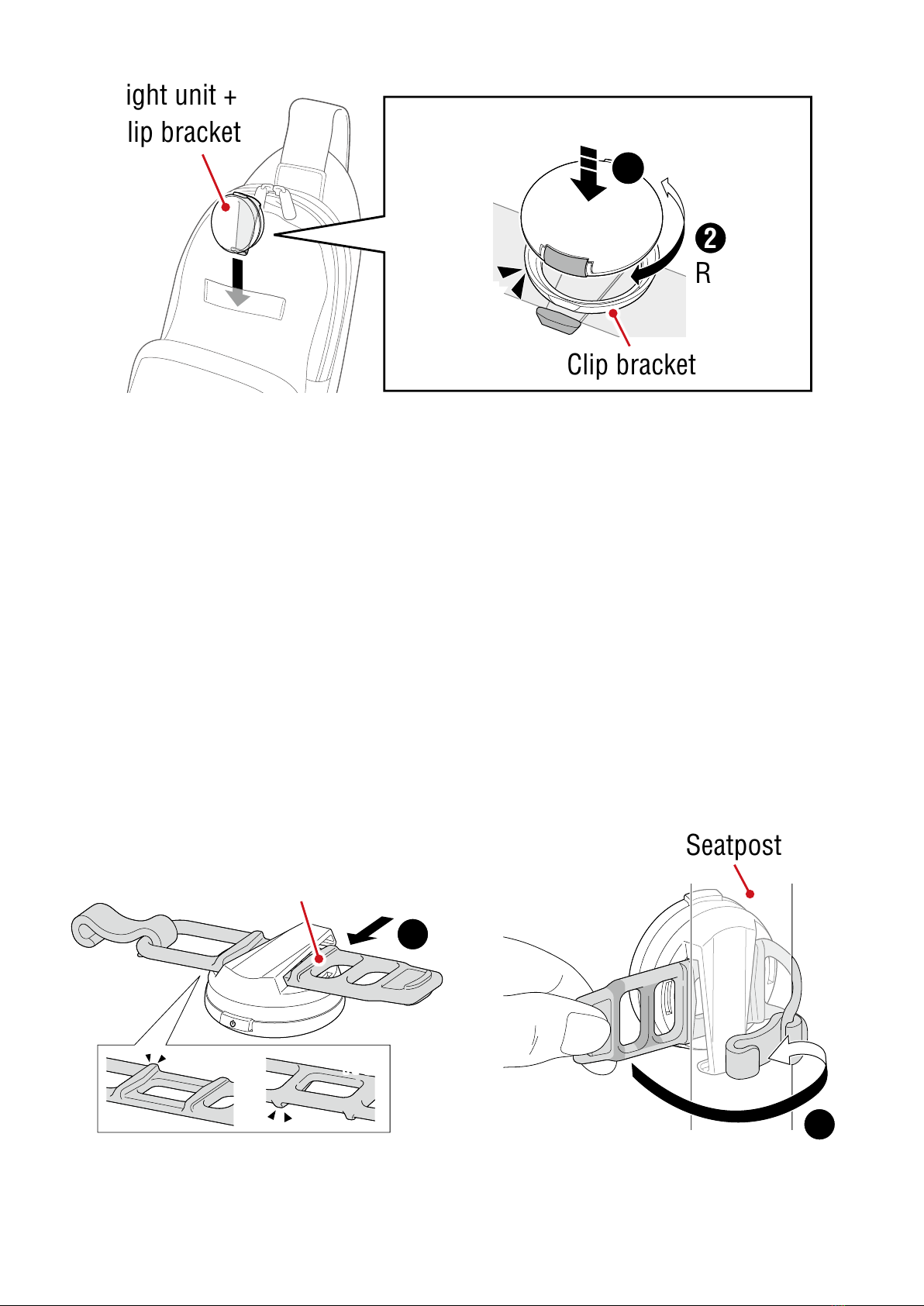

How to Mount
How to attach to a backpack or jersey pocket
5
Light unit +
Clip bracket
1
2
Install
Remove
Click
Clip bracket
1. Confirm the jack cover of the light unit facing
the clip bracket tab, and snap the unit on the
bracket.
2. Remove the unit from the bracket by turning
the unit to the left or right.
How to mount to a bicycle
OK NO
1
2
Rubber band and hook
Seatpost
Mountable diameter range:
Approx. ø22 – ø32 mm
6
Switch Operation
Press the switch to turn the light on/off or to select the mode.
ONOFF
*2
High 30 lm
(Approx. 1.5 hours)
Low 2 lm
(Approx. 18 hours)
Daytime HyperFlash
50 lm
(Approx. 25 hours)
Flashing 50 lm
(Approx. 45 hours)
Group Ride 50 lm
(Approx. 12 hours)
Rapid 50 lm
(Approx. 16 hours)
Switch
Press and hold
Click
*2 When turning the light on, it lights up in the mode that was
used last time. (Mode memory function)
Battery auto-save function
When the remaining battery power is low,
the lighting mode changes to slow flashing.
Charge the light as soon as possible. (Flashing red light)
Indicator
7
Appendix
Warning!!!
• Check periodically to ensure that the light unit is attached
securely. Do not use a damaged rubber band.
• Always attention to the remaining battery power by check-
ing the indicator periodically while using.
Caution!
• Stop your bicycle to operate the switch.
• Do not place it within children’s reach.
•
This unit is not totally waterproof. Please wipe and dry it com-
pletely after using in rain. Otherwise, it may cause failure.
• If the light unit or parts become dirty with mud, etc., clean
with a soft cloth which is moistened with mild soap. Never
apply paint thinner, benzine or alcohol; damage will result.
Lithium-ion batteries
Cautions on recharging
• Avoid charging in direct sunlight or in a vehicle parked
under direct sunlight, and make sure to charge only when
the ambient temperature is between 41°F and 104 °F (5 and
40°C).
8
• Before charging, be sure that no dust or other foreign objects
attach to the USB plug.
• Do not subject the light to vibrations while charging.
•
Once charging is complete, be sure to disconnect the USB plug.
Cautions in use
• Charging, discharging, and storing in high temperatures
will cause the rechargeable battery to deteriorate faster.
Do not place the light inside a vehicle or near a heater.
• If the illumination time is significantly reduced even after
proper charging, the rechargeable battery may be nearing
the end of its service life. Dispose of the battery as de-
scribed in “Cautions for dispose”.
Cautions on storage
Cool and dry storage is recommended. For long period storage,
it is important to charge the battery 30 minutes every 6 months.
Cautions for dispose
When disposing of the light unit, remove the internal recharge-
able battery and dispose of it according to local regulations.
Communication
Interference occurs in the following places and/or environments,
which may result in incorrect operation.
• Near TVs, PCs, radios, or motors or in cars or trains.
9
• Near railroad crossings, along railway tracks, around tele-
vision transmitting stations and radar bases, etc.
• Used with other wireless devices or certain battery-pow-
ered lights.
Frequency Band: 2.4 GHz Radiated Power: -4.6 dBm
Hereby, CATEYE Co., Ltd. declares that the radio equipment type
SL-NW100 is in compliance with Directive 2014/53/EU. The full
text of the EU declaration of conformity is available at the follow-
ing internet address: cateye.com/doc
This device complies with Industry Canada’s RSS-210. Opera-
tion is subject to the condition that this device must not cause
harmful interference and must accept any interference, including
interference that may cause undesired operation of the device.
Firmware
If a new SYNCWearable™ firmware version is available, a notifi-
cation from the CatEyeSYNC™ smartphone app will be displayed.
To update the firmware, connect the light to a PC using the in-
cluded USB cable. For details, see the manual linked in the app
or the instruction manual on our website.
Specifications
Battery
Rechargeable lithium-ion polymer battery 300 mAh
Charge Micro USB plug
10
Operating time
High : Approx. 1.5 hours
Low : Approx. 18 hours
Flashing : Approx. 45 hours
Rapid : Approx. 16 hours
Group Ride : Approx. 12 hours
Daytime HyperFlash : Approx. 25 hours
* Average runtime at 20˚C.
Approximate illumi-
nation times based
on 60 operations of
the Kinetic mode in
1 hour
High : Approx. 1.4 hours
Low : Approx. 6 hours
Flashing : Approx. 7 hours
Rapid : Approx. 5 hours
Group Ride : Approx. 5 hours
Daytime HyperFlash : Approx. 6 hours
Standard charging
time Approx. 2.5 hours
Temperature range Charging : 41˚F – 104˚F (5˚C – 40˚C)
Operating : 14˚F – 104˚F (-10˚C – 40˚C)
Recharge/
discharge number
of times
About 300 times
(until the rated capacity drops to 70%)
Dimensions/weight
1-51/64” x 1-47/64” x 25/32” (45.5 x 44 x 20 mm)
/ 0.74 oz (21 g)
* The specifications and design are subject to change without notice.
Spare / optional parts
5442620
Rubber band and hook
(WA100)
