1 Introduction

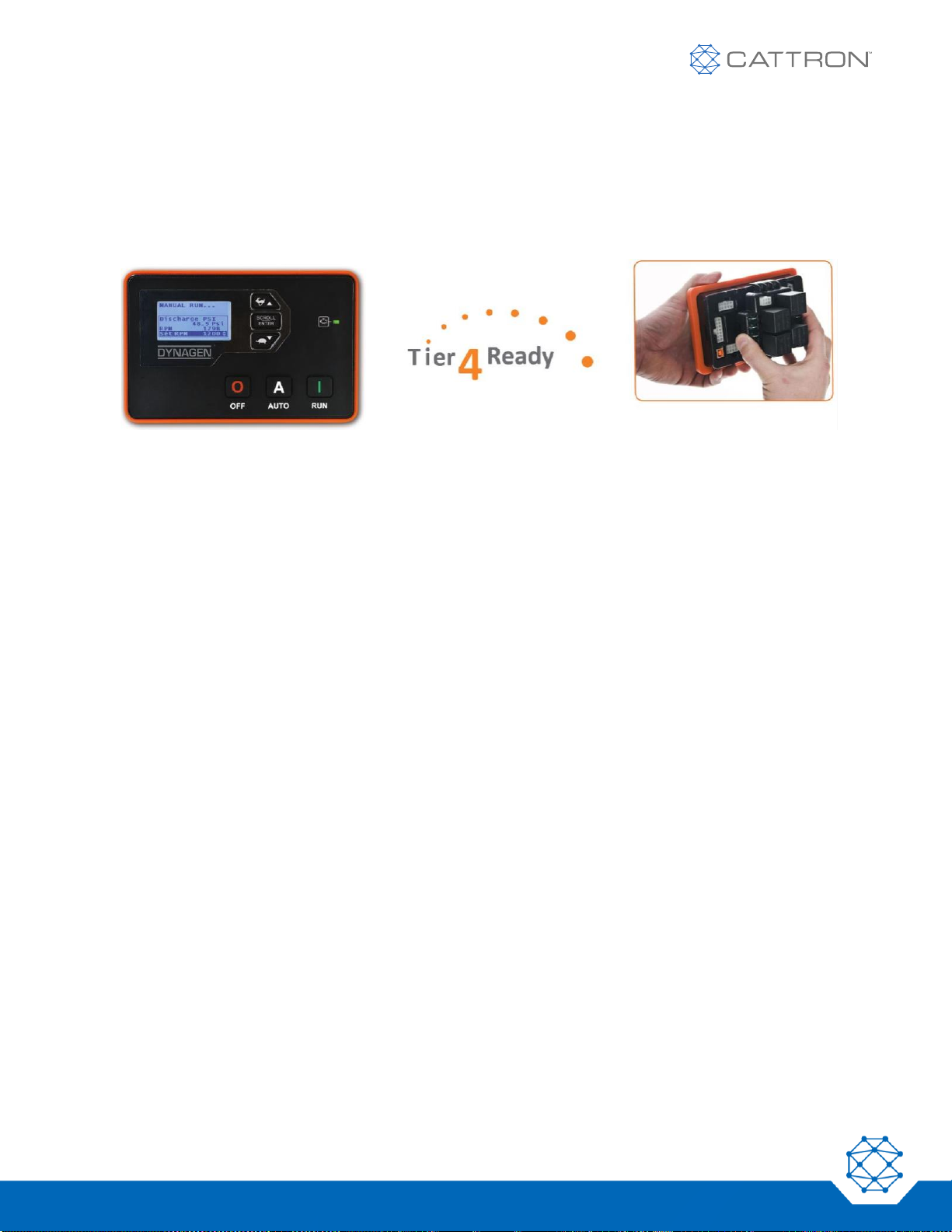

The TOUGH Series controllers are designed to provide complete control, protection, AC metering, and engine

instrumentation for both standard and electronic engines. The module is easily configured using either the front

panel buttons or our RapidCore Configurator software. TOUGH Series controllers are ideally suited for severe

duty applications where reliability is critical, such as mobile and stationary generators.

Features and Functions:

•Five-Year Warranty

•SAE J1939 CANbus Protocol

•RPM via J1939, Magnetic Pickup or Generator

•Speed control offset for electronic engines

•AutoStart on low battery and other sensors

•Trim feature for AC monitoring and sensors

•Maintenance counter

•Exerciser Clock

•150 Event Log

•Conformally coated for protection against moisture

•Gasket for water ingress protection resistance

•Free RapidCore Configurator Software

•Fast and rugged installation clips

•Passcode protected

•Automatic shutdowns and warnings

•Manual and remote start options

•Momentary Start/Stop inputs

•Pre-heat and many other configurable timers

•Accepts common senders (VDO, Datcon, S&W)

•Custom senders configurable with RapidCore Configurator Software

DynaGenTM TOUGH SeriesTM TE410 - EN

User Manual

9M02-9249-A001-EN

Revision A

Displays:

•

Engine Temperature

•

Oil Pressure

•

Fuel Level

•

Engine Speed

•

AC Metering

•

Battery Voltage

•

Real Time Clock

•

Engine Hours

•

Time to Maintenance

•

J1939 DTCs + Custom Text

•

Custom Senders

•

Warnings and Failures

1.1 Specifications

The TOUGH Series controllers were rigorously tested to ensure durability, reliability and functionality. The

following specifications are a brief summary of the standards to which the controller has been tested. For

complete details on the testing performed, please contact Cattron at www.cattron.com.

Testing Specifications

Specification

Rating

Electrical Transients

SAE1113-11

Thermal Shock and Cycling

SAE1455

Vibration Profiles

SAE1455

Electric Static Discharge

SAE1113-13: SAE1113-13: +/-8 kV Direct Discharge

+/-15 kV Air Gap Discharge

UL 6200 recognized component. Contact Cattron at

www.cattron.com for UL conditions of acceptability.

Physical Specifications

Specification

Rating

Operating Temperature

-40 to +158 °F (-40 to +70 °C)

LCD Viewing Temperature

-4 to +158 °F (-20 to +70 °C)

(Optional heater available, contact Cattron at www.cattron.com)

DynaGenTM TOUGH SeriesTM TE410 - EN

User Manual

9M02-9249-A001-EN

Revision A

Specification

Rating

Weight

Weight w/RelayPak

0.83 lb (0.38 kg)

1.32 lb (0.60 kg)

Dimensions:

-controller (no gasket)

-controller with gasket

-controller with gasket and RelayPak

4.17”x 6.50”x 1.38”(10.59 cm x 16.51 cm x 3.51 cm)

4.41”x 6.79”x 1.38”(11.20 cm x 17.25 cm x 3.51 cm)

4.41”x 6.79”x 3.33”(11.20 cm x 17.25 cm x 8.46 cm)

Electrical Specifications

Specification

Rating

Operating Voltage

5.5 ~ 36 VDC

Standby Current (Minimum)

Auto Mode: 60 mA @ 12 VDC, 38 mA @ 24 VDC (back lighting

off)

Off Mode: 80 mA @ 12 VDC, 45 mA @ 24 VDC (back lighting off)

Actual consumption could be more depending on connected

sensors and other I/O.

Switched Inputs

+Battery, Ground, Open, Closed

Switched Outputs

+Battery @ 1 A Max

Low Resistance Sensors

0 ~ 750 Ω

High Resistance Sensors

0 ~ 7,500 Ω

Universal Sensors

0 ~ 750 Ω, 0 ~ 7,500 Ω, 0 ~ 5 VDC, 4 ~ 20 mA

Magnetic Pickup

10 ~ 10,000 Hz at 1 ~ 50 VAC

AC Voltage (Line-To-Line)

UL Approved Range: 50 ~ 600 VAC True RMS, Accuracy: 2%

Full Scale

Non-UL Range: 50 ~ 670 VAC

Do not connect more than 600 VAC to the controller for UL

approved installations, or 700 VAC for locations where UL is not

required.

AC Current

0 ~ 5 A (Current Transformer), Accuracy: 1% Full Scale

Communications

SAE J1939 (Tier II, III, IV)

External Sensor Power

TG410 only: 5 VDC at a max load of 200 mA

DynaGenTM TOUGH SeriesTM TE410 - EN

User Manual

9M02-9249-A001-EN

Revision A

2 Installation

Generator systems contain high voltage circuitry, and precautions should be taken to protect against electrical

shock. Failing to power down and lock out equipment can cause damage, injury or death.

WARNING

WIRING OF THIS CONTROLLER SHOULD BE PERFORMED BY QUALIFIED ELECTRICIANS

ONLY.

AVERTISSEMENT

LE CÂBLAGE DE CE CONTRÔLEUR NE DOIT ÊTRE EFFECTUÉ QUE PAR DES ÉLECTRICIENS

QUALIFIÉS.

CAUTION

HIGH VOLTAGE MAY BE PRESENT AT THE CONTROLLER.

ATTENTION

UNE HAUTE TENSION PEUT ETRE PRESENTE AU NIVEAU DU CONTROLEUR.

The following general electrical safety precautions should be followed:

•Do a thorough inspection of the area before performing any maintenance

•Keep fluids away from electrical equipment

•Unplug connectors by pulling on the plug and not on the cord

•Use fuses where appropriate

•Ensure all equipment is properly grounded

•Provide support to wires to prevent stress on terminals

CAUTION

TO ENSURE PROPER AND SAFE OPERATION, CAUTION MUST BE TAKEN AT THE

INSTALLATION SITE TO MAKE SURE IT IS FREE FROM EXCESSIVE MOISTURE, FLUCTUATING

TEMPERATURE, DUST AND CORROSIVE MATERIALS.

ATTENTION

POUR GARANTIR UN FONCTIONNEMENT CORRECT ET SUR, IL FAUT PRENDRE DES

PRECAUTIONS SUR LE SITE D'INSTALLATION POUR S'ASSURER QU'IL SOIT EXEMPT

D'HUMIDITE EXCESSIVE, DE FLUCTUATIONS DE TEMPERATURE, DE POUSSIERE, ET DE

MATERIAUX CORROSIFS.

DynaGenTM TOUGH SeriesTM TE410 - EN

User Manual

9M02-9249-A001-EN

Revision A

Choose a mounting surface with the least amount of vibration and not more than 0.125”(3.175 mm) thick.

The following steps outline the mounting procedure:

1. Choose a suitable mounting location based on the criteria above.

2. Create a rectangular cut-out in the panel that is a minimum 3.9”(99 mm) high and 6.2”(158 mm) wide.

3. Place the controller into the panel cut-out so that the LCD screen and buttons are facing out.

4. Place the mounting clips into the designated slots on the top and bottom of the controller.

5. Tighten the screws on the clips until the controller is snug against the panel. Do not over-tighten. The

bottom of the screws should angle very slightly away from the controller.

6. If applicable, snap the RelayPak (RP100) to the back of the controller. Place one side of the RP100’s

tabs into the slot on the back of the controller and, without pushing on the relays, snap the other tab into

place.

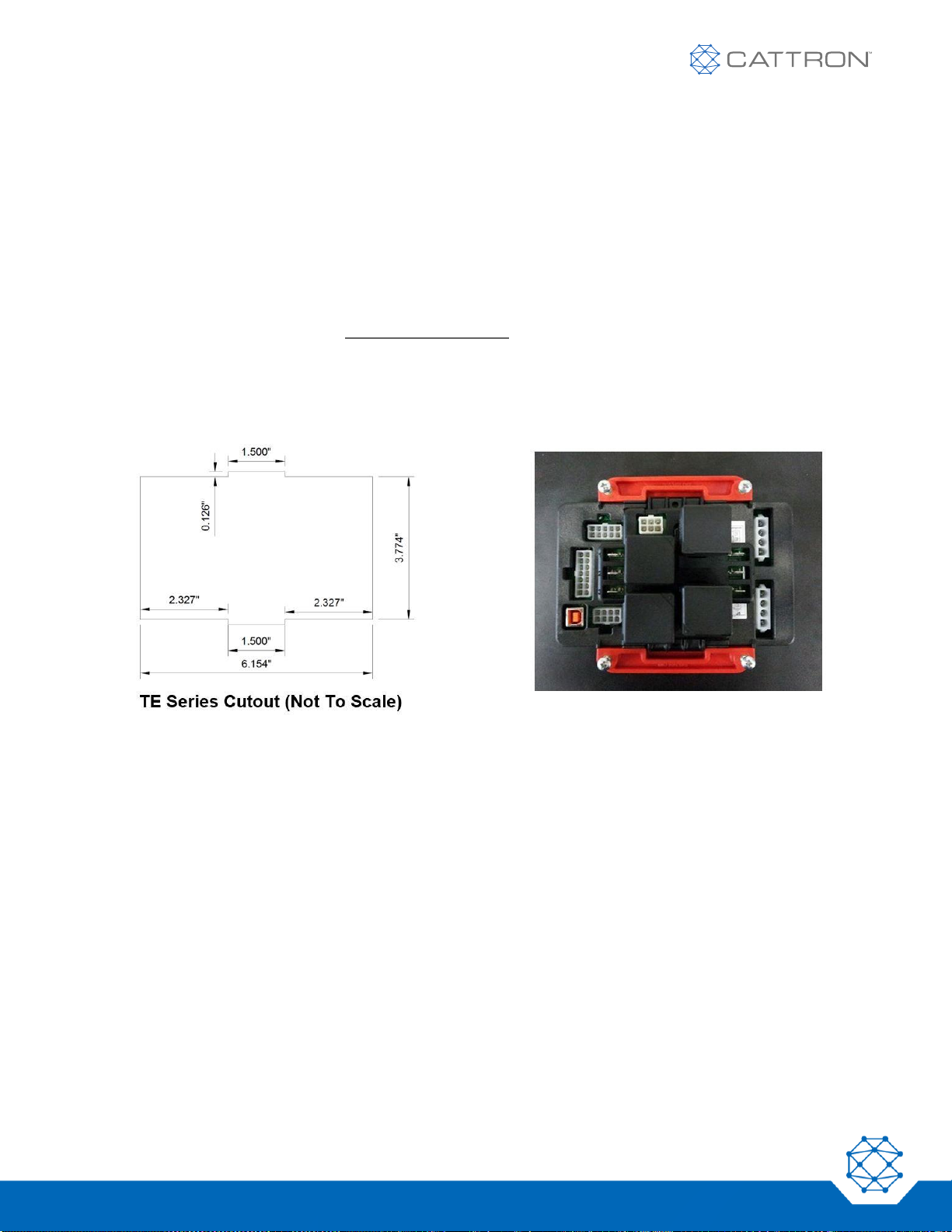

The following figures show the TE Series cut-out dimensions and an image of the controller.

2.1 General Wiring Notes

The following important wiring guidelines should be followed:

•Use a minimum of 18 AWG wire for all connections

•Battery Positive (+Battery) and Battery Negative connections on the controller should be run directly to

the positive and negative terminals on the battery to prevent voltage drops from negatively impacting the

controller

•Limit the wire length to 20 ft (6.1 m) to any I/O on the controller (e.g., Switched Input, Switched Outputs,

AC Sensing and Analog Inputs)

The TOUGH Series contains a TVS to protect the I/O and internals from a transient on the main battery (the

battery from which the controller is powered). If you have I/O connected to other batteries or power supplies,

those I/O must contain their own voltage transient protection. Otherwise, the I/O and/or controller can be

damaged if the transient exceeds the maximum rated voltage of the I/O. A device that provides this kind of

protection is known as a TVS or a varistor.

Inhaltsverzeichnis

Andere Cattron Controller Handbücher

Cattron

Cattron SCU32 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
