T-RX™ User Guide
Version 1.0
Product Information 3
What's in the box? 4
Charge your T-RX™ internal battery 5
How it works? 5
How to set up? 5
How do I connect the external antenna? 5
How do I adjust the screen brightness? 5
How do I calibrate the T-RX™ touchscreen? 5
How do I change the battery? 6
Getting Technical 6
Connector Info 6
ARINC 429 Connector Pinout 7
LED Indicators 8
GUI 101 8
T-RX™ Radio Standard Tests 9
VOR Test Options 9
ILS Test Options 10
Localizer Test Options 11
Glideslope Test Options 12
Marker Beacon Test Options 13
VHF Comm Test 14
T-RX™ Pulse Standard Tests 15
Transponder Mode A/C 16
FUTURE GUI Updates 16
Hardware Specifications 16
RF Specifications 17
Troubleshooting 19
FAQ 19
Contact Us 20
2

T-RX™ User Guide

Version 1.0

Product Information  

T-RX™ is a rugged portable tablet with a large color sunlight-readable touch-screen display, with an

extended life battery, and internal or external antenna that allows aircraft maintainers to quickly and

easily test various aircraft avionics systems with ease.

T-RX™ is available in three variants. The standard tests for each variant are listed below, however, the

T-RX™ Radio and Pulse are capable of adding additional optional tests to suit your needs. Simply

contact CCX Technologies Inc. to order your additional optional tests.

T-RX™ Radio

VOR Generation

Receiver sensitivity and bearing accuracy.

ILS

Instrument Landing System components.

Localizer

Receiver sensitivity and deviation.

Glideslope

Receiver sensitivity and deviation.

Marker Beacon

Receiver sensitivity and deviation.

VHF Comm Generation

Receiver sensitivity, transmitter power, frequency, and modulation.

Antenna SWR

Measures VSWR in VOR/LOC, Glideslope, Marker, VHF Comm, ELT,

ADS-B and Transponder bands.



T-RX™ Pulse

Transponder Mode A/C

Power, Frequency, Receiver Sensitivity, SLS, Mode A code and Mode C

altitude.

Transponder Mode S

Power, Frequency, Receiver Sensitivity, SLS, Mode A code and Mode C

altitude, Mode S parameters.

ADS-B 1090

Power, Frequency, Receiver Sensitivity, SLS, Mode A code and Mode C

altitude, Mode S parameters, Extended Squitter, ADS-B OUT

parameters.



3

T-RX™ User Guide

Version 1.0

T-RX™ RP+

Includes all of the features of the T-RX™ Radio, T-RX™ Pulse and the optional tests below.

Optional Tests

DME

Receiver sensitivity, transmitter power, frequency, distance, and velocity.

ELT Reader

406MHz power, frequency, and reply decoding. It can also test the legacy

121.5MHz ELT.

HF Comm

Receiver sensitivity, transmitter power, frequency, and modulation.

SELCAL

Generate SELCAL tones modulated over HF or VHF.

ARINC 429

Transmit and Receive, Label encoding and decoding.

TCAS

Replies to TCAS interrogations at user-selectable altitudes and ranges.

ADS-B 978

Receiver sensitivity, power, frequency, ADS-B OUT parameters.



Getting Started

What's in the box?  

- T-RX™ w/Li-ion smart battery installed (Figure 1)

- External Antenna (Figure 2) 

- Charging Cable



Optional Accessory Kit includes:

- Pelican case (Figure 3) 

- Extra battery (Figure 4)

- Battery charging dock (Figure 5)



4

T-RX™ User Guide

Version 1.0

Charge your T-RX™ internal battery

Your T-RX™ will arrive with the battery installed. Connect your charging cable to the charging port

(Item 8, Figure 6). Your battery will be fully charged when the middle LED stops blinking. Once fully

charged disconnect the charging cable.

How it works?

Press the power button (Item 1, Figure 6) to turn on your T-RX™. The first menu option at the top left

section of the screen defaults to “TESTS”. Simply press on the dropdown menu next to the “TESTS”

menu and select the desired test function. Various configurable options for the selected test will now

be available.

How to set up?

How do I connect the external antenna?

The T-RX™ has two internal antennas, but you may need to use the external antenna on certain

occasions. Connect the provided external antenna to TNC connector (item 6, Figure 6)

How do I adjust the screen brightness?

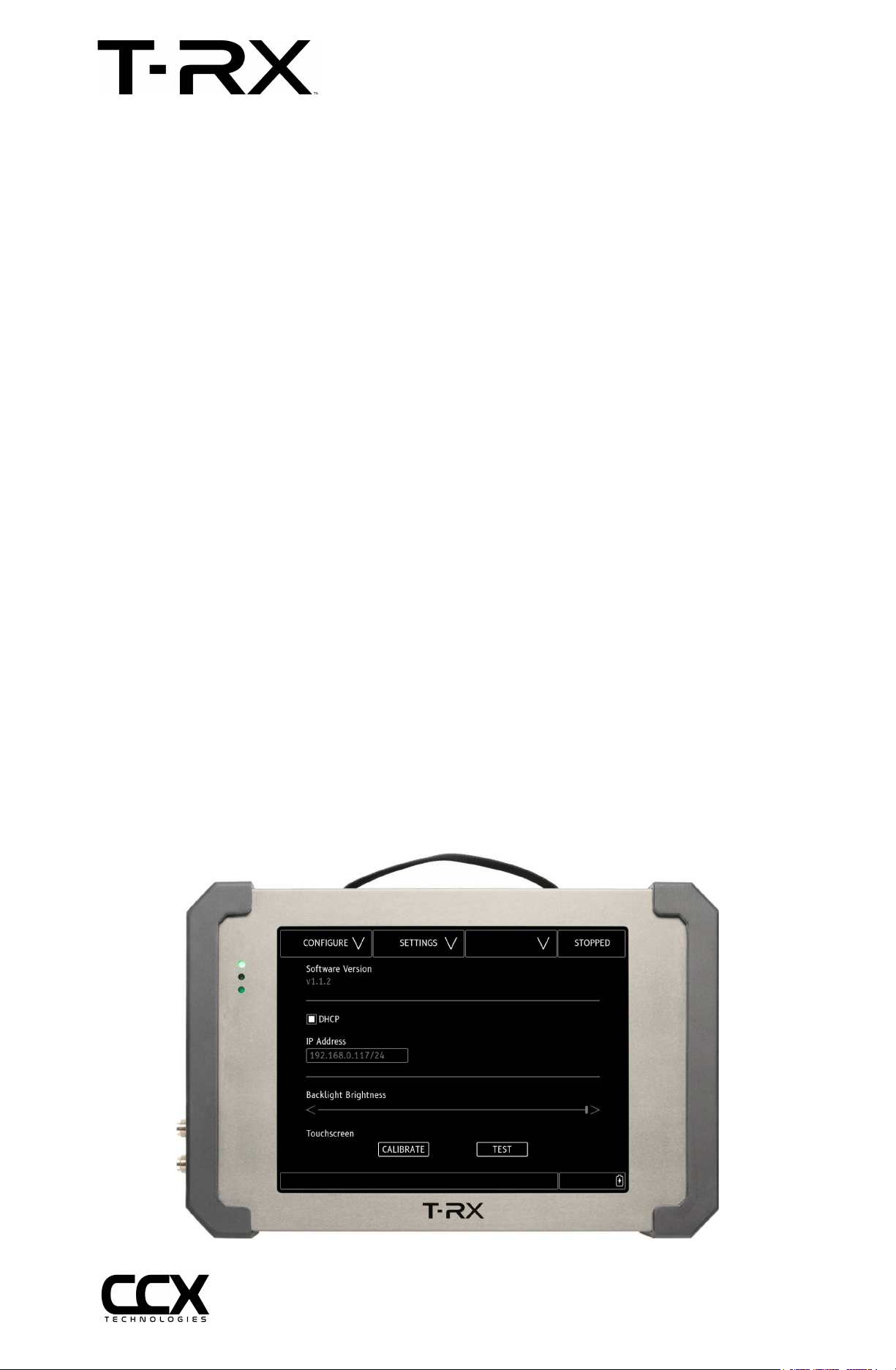

Press the “TESTS” menu at the top left section of the screen. Select “CONFIGURE”. Slide the

Backlight Brightness to the desired level.

How do I calibrate the T-RX™ touchscreen?

Press the “TESTS” menu at the top left section of the screen. Select “CONFIGURE”. Select

“CALIBRATE”. Follow the on-screen instructions to calibrate.



5

T-RX™ User Guide

Version 1.0

How do I change the battery?

Step 1

Using a #2 Phillips screwdriver, remove (4 ea) screws on the right end cap of your

T-RX™.

Step 2

Slide the right end cap off.

Step 3

Using the tab on the battery, pull the battery out.

Step 4

Slide the replacement battery into the battery port.

Step 5

Place the right end cap back onto the T-RX™.

Step 6

Reinstall the (4ea) screws that secure the end cap.



Getting Technical



Figure 6 - T-RX™ Connectors

Connector Info

1

Power

On/Off.

2

USB

Reserved for future use.

3

Ethernet 1

Used for retrieving test data and loading of software upgrades.

T-RX™ is a DHCP client.

4

Ethernet 2

Reserved for future use.

5

ARINC 429

ARINC 429 TX/RX

6

External Antenna

T-RX™ has an internal antenna, however, if needed the provided

external antenna can be used.

7

Direct Transmitter

Connection

Connects directly to a transmitter, such as a VHF comm,

Transponder, or DME, bypassing the aircraft antenna. It can also be

used for bench testing of these components.

8

External Charging Port

Used for charging the internal T-RX™ battery.

6

T-RX™ User Guide

Version 1.0

ARINC 429 Connector Pinout



Pin

Function

Pin

Function

Pin

Function

Pin

Function

Pin

Function

1

A429 RX + 1

2

A429 RX - 1

3

GND

4

A429 RX+ 2

5

A429 RX- 2

6

GND

7

A429 TX+

8

A429 TX-

9

GND

10

GND

11

Extra RF 5

12

Extra RF 4

13

Extra RF 3

14

Extra RF 2

15

Extra RF 1

7

T-RX™ User Guide

Version 1.0

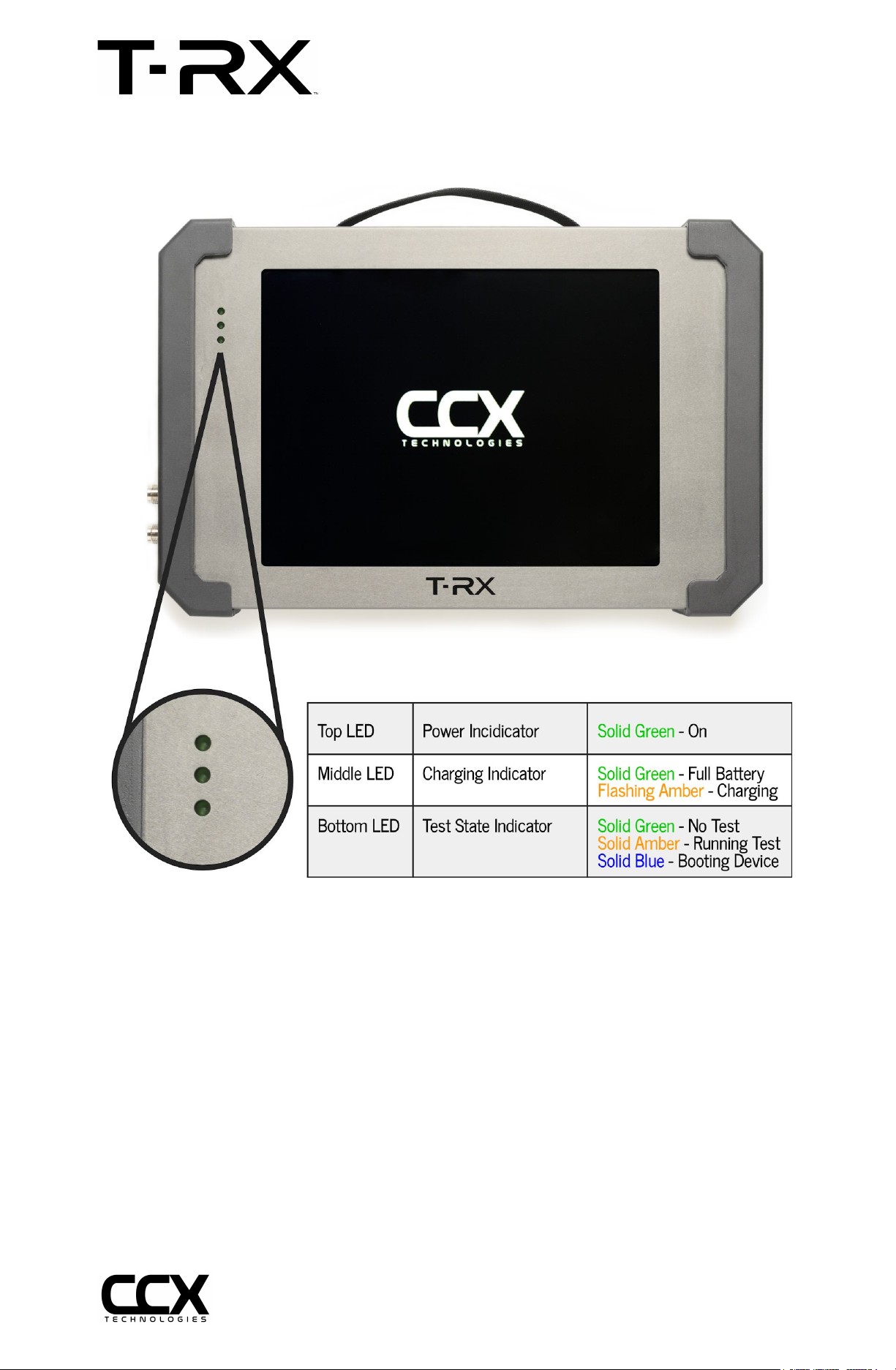

LED Indicators



GUI 101

T-RX™ has an easy to use intuitive graphical user interface. To begin testing, start by ensuring the top

left menu is set to “TESTS”. Next press the menu to the right of “TESTS” to display all available test

options for your T-RX™. Select the test you wish to perform, and adjust the options for that test as

needed. When the options for your test are correctly set press “RUN” to begin the test.

8

T-RX™ User Guide

Version 1.0

T-RX™ Radio Standard Tests



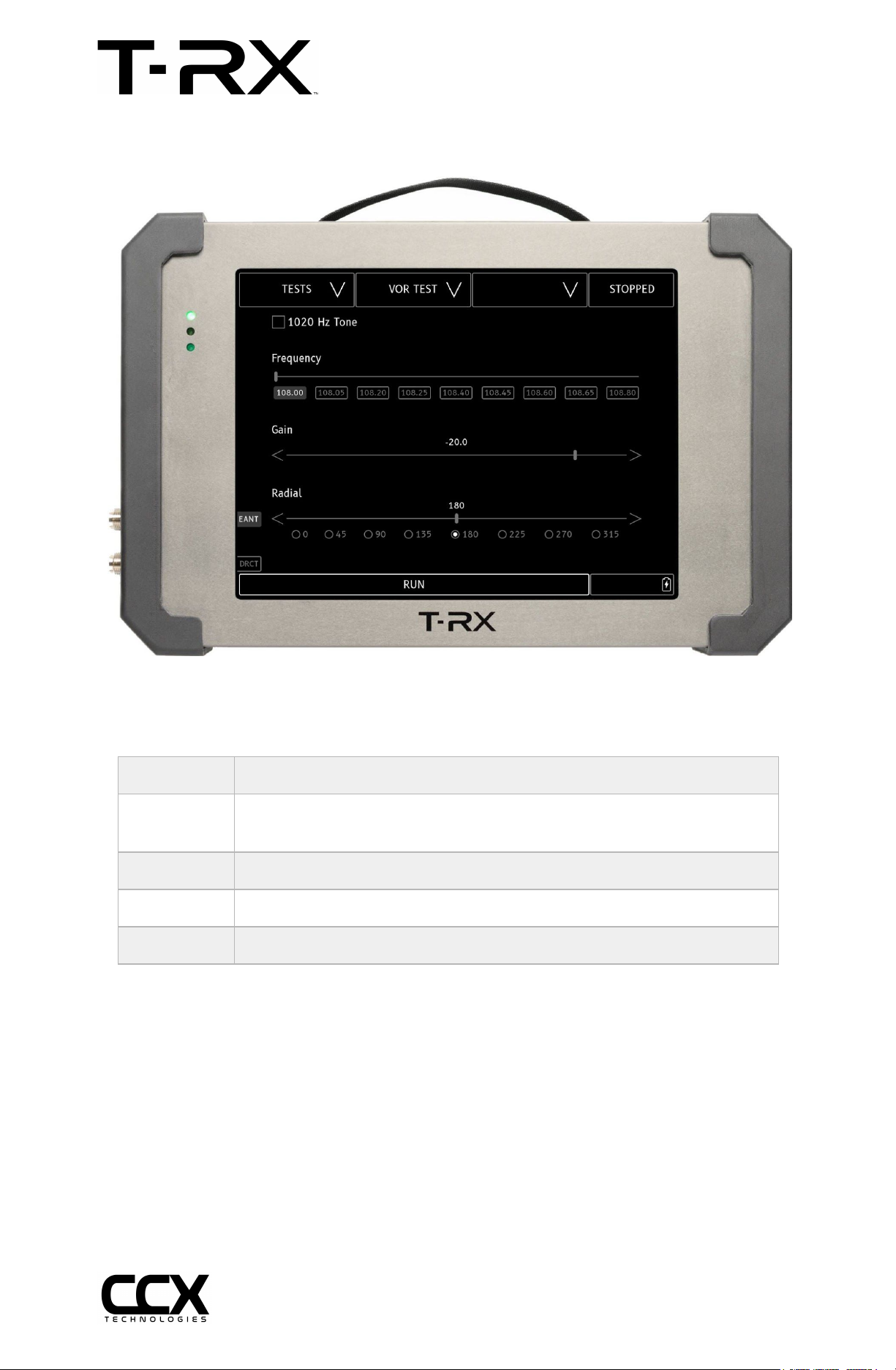

VOR Test Options

1020 Hz Tone

On/off

Frequency

(MHz)

Select the desired frequency by selecting a preset, or by sliding the frequency

scale left or right.

Gain (dB)

Set the gain by pressing < or > or manually sliding to the required gain level.

Radial

Select from a radial preset, or by pressing < or >.

EANT

Select EANT for external antenna or no selection for the internal antenna.



9

T-RX™ User Guide

Version 1.0



ILS Test Options

Frequency

(MHz)

Select the desired frequency by selecting a preset, or by sliding the frequency

scale left or right.

Gain (dB)

Set the gain by pressing < or > or manually sliding to the required gain level.

Localizer

DDM. Select from a preset, or by pressing < or >.

Glideslope

DDM. Select from a preset, or by pressing < or >.

EANT

Select EANT for external antenna or no selection for the internal antenna.



10
