Cedar Ridge CRHFD400RT-M-M Bedienungsanleitung
ITEM #0328248
WOOD FIREPLACE MANTEL
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST,
LS-FBD400-M3-1101
MODEL #CRHFD400RT-M-M
Español p. 17
Cedar Ridge
h e a r t h
®
2

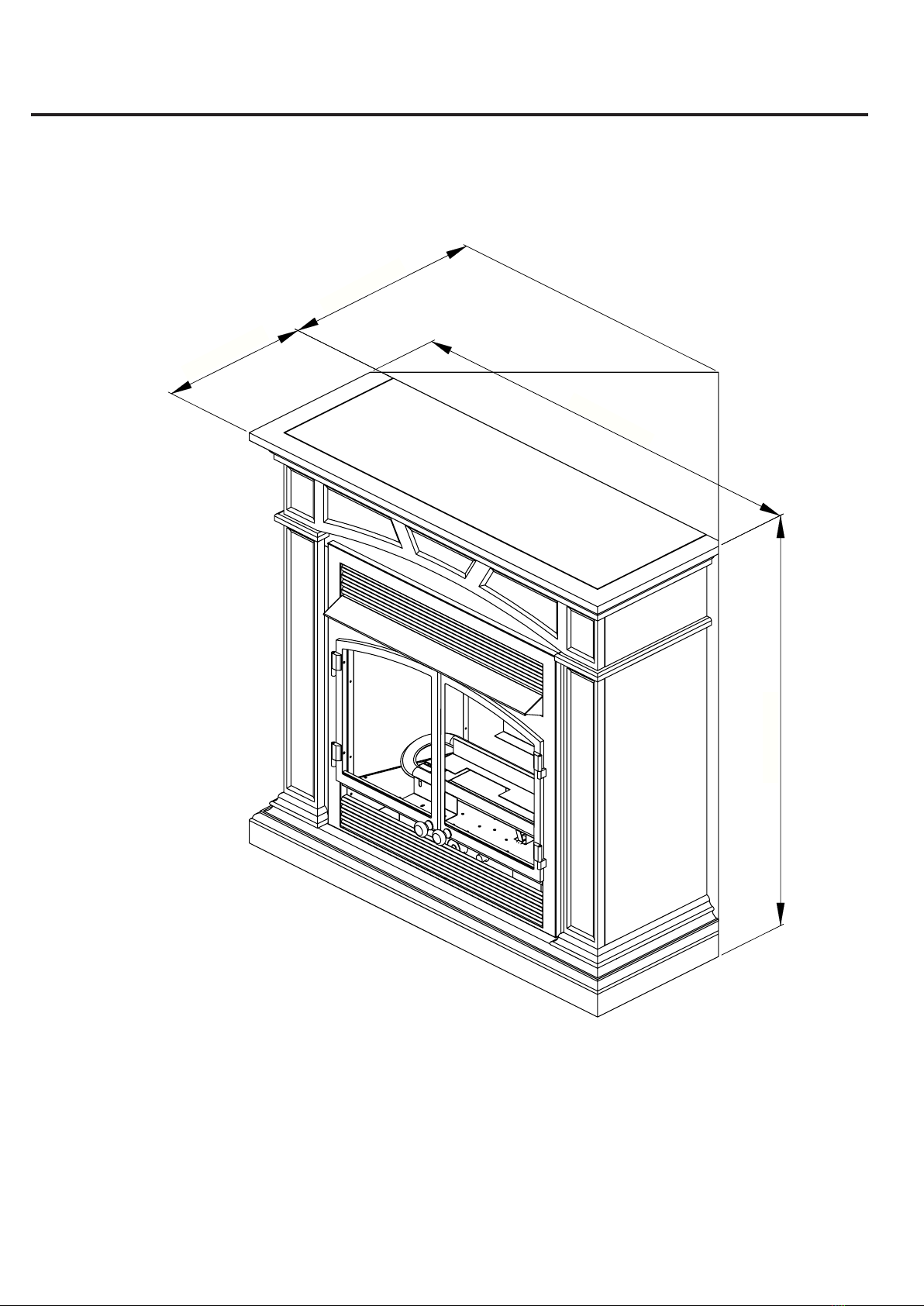

PRODUCT SPECIFICATIONS
16.18 in
21.53 in
44.52 in
42.83 in
3

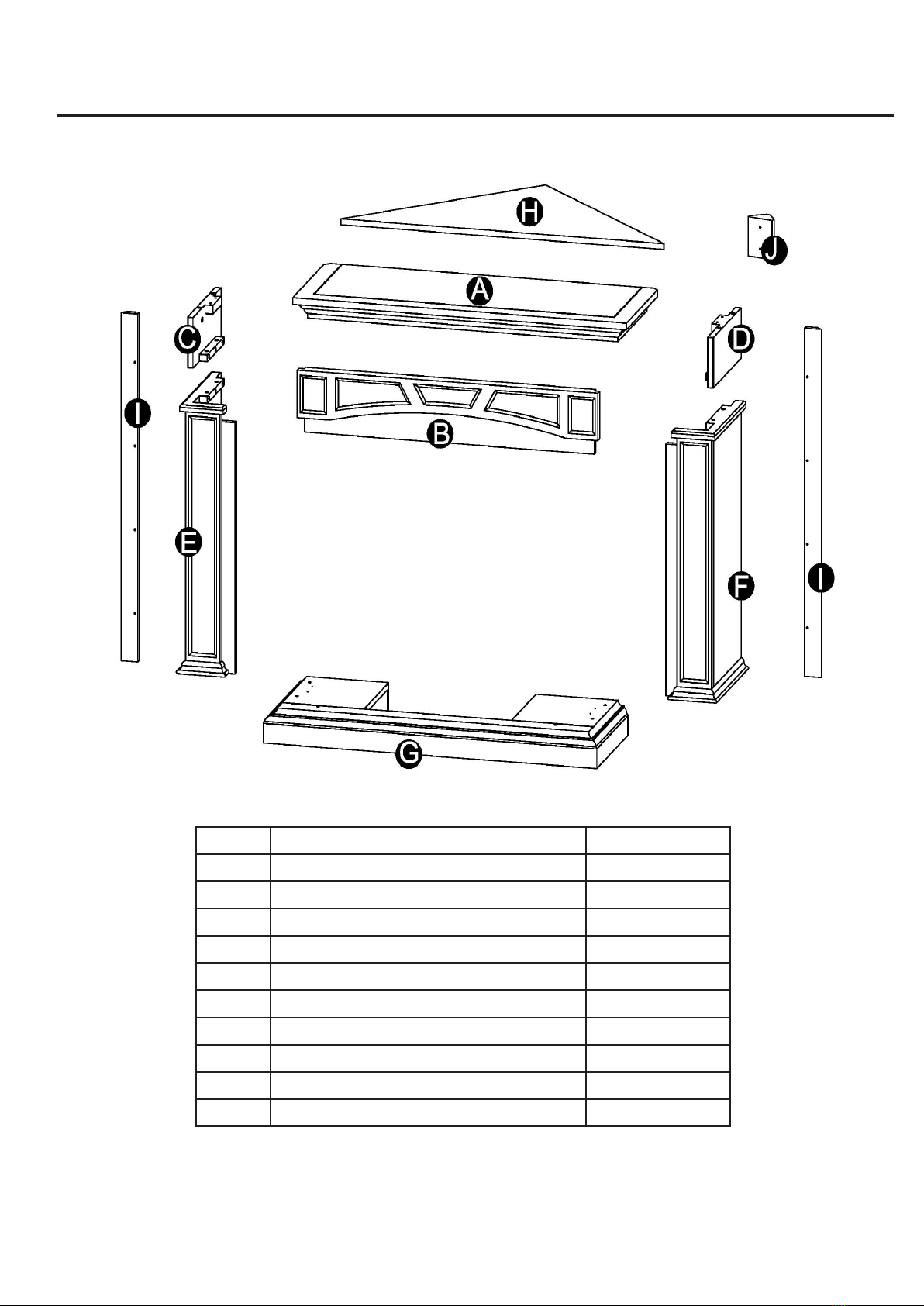

PART DESCRIPTION Quantity
A Top 1
B Panel 1
C Left Upper Panel 1
D Right Upper Panel 1
E Left Lower Panel 1
F Right Lower Panel 1
G Base 1
H Top Triangle Panel 1
I Backboard 2
J Set Square Support 1
PACKAGE CONTENTS
4

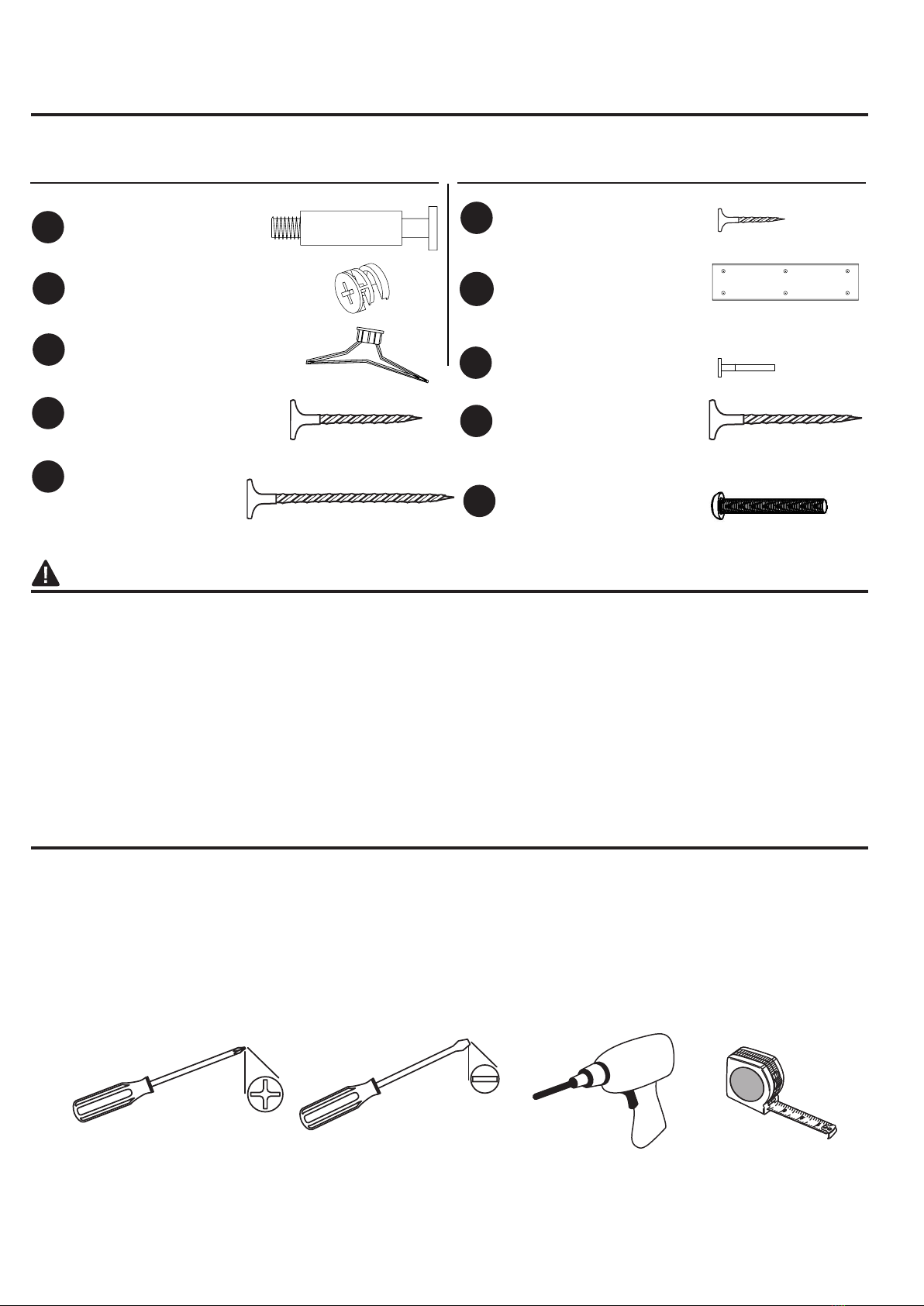

HARDWARE CONTENTS
AA
ST5 Screw
2⅜ in.
16
2Wall Anchor
20
ST4 Screw
1 3/16 in. ST4 Screw
1 9/16 in.
M6 Screw
1 ⅜in.
ST4 Screw
⅝in.
16
Mounting
Bracket
Cam Lock
Cam Dowel
WARNINGS AND CAUTIONS
WARNING
• When tightening screws, do not overtighten. This may cause threads to strip. We recommend
using a hand-powered screwdriver rather than a power screwdriver.
• Do not force screws into holes.
CAUTION
• Forcornerinstallations(optional);ifbaseboardsareinstalledwherethereplaceisintended
tobedisplayed,thenthereplacewillnottushagainstthewall.Foraproperusht,you
may need to remove part of the baseboard moulding if necessary.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly: Philips Screwdriver, Flathead Screwdriver, Drill, and Tape
Measure
BB
CC
DD
Part Description Quantity (Shown to size)
3
18
GG
EE
(not actual size)
Part Description Quantity (Shown to size)
1
8
4
White Key
HH
(not actual size) (not actual size)
(not actual size)
FF
II
JJ
(not actual size)
2
5

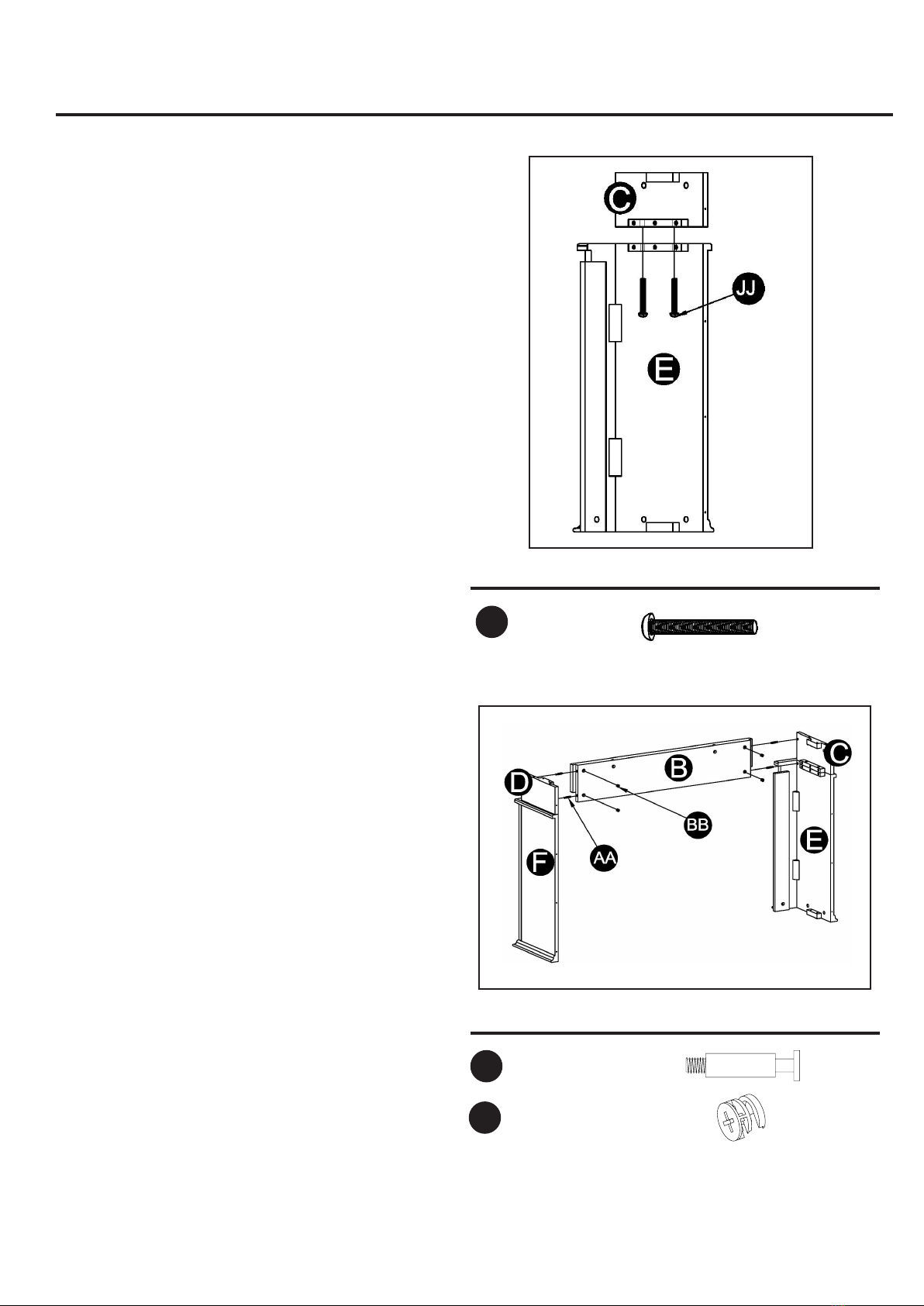

Fig.1
1. Fasten the Left Upper Panel (C) and the
Left Lower Panel (E) with M6 Screw 1-3/8 in.
(JJ) as shown in Fig 1. Do the same thing for
the Right Upper Panel (D) and the Right Lower
Panel (F).
Hardware Used
M6 Screw
1 ⅜in. x4
JJ
2. After assembling the mantel (C, D, E, F),
insert Cam Locks (BB) into Panel (B), screw in
Cam Dowels (AA) into the Left Upper Panel(C)
and the Right Upper Panel (D). Attach Panel
(B) into assembled frame (C, D, E, F) by
tightening the Cam Locks (BB) as shown in
Fig 2.
Fig. 2
Hardware Used
Cam Dowels x4
x4
AA
BB Cam Locks
ASSEMBLY INSTRUCTIONS
6
Hardware Used
Cam Dowels x6
x6
AA
BB Cam Locks

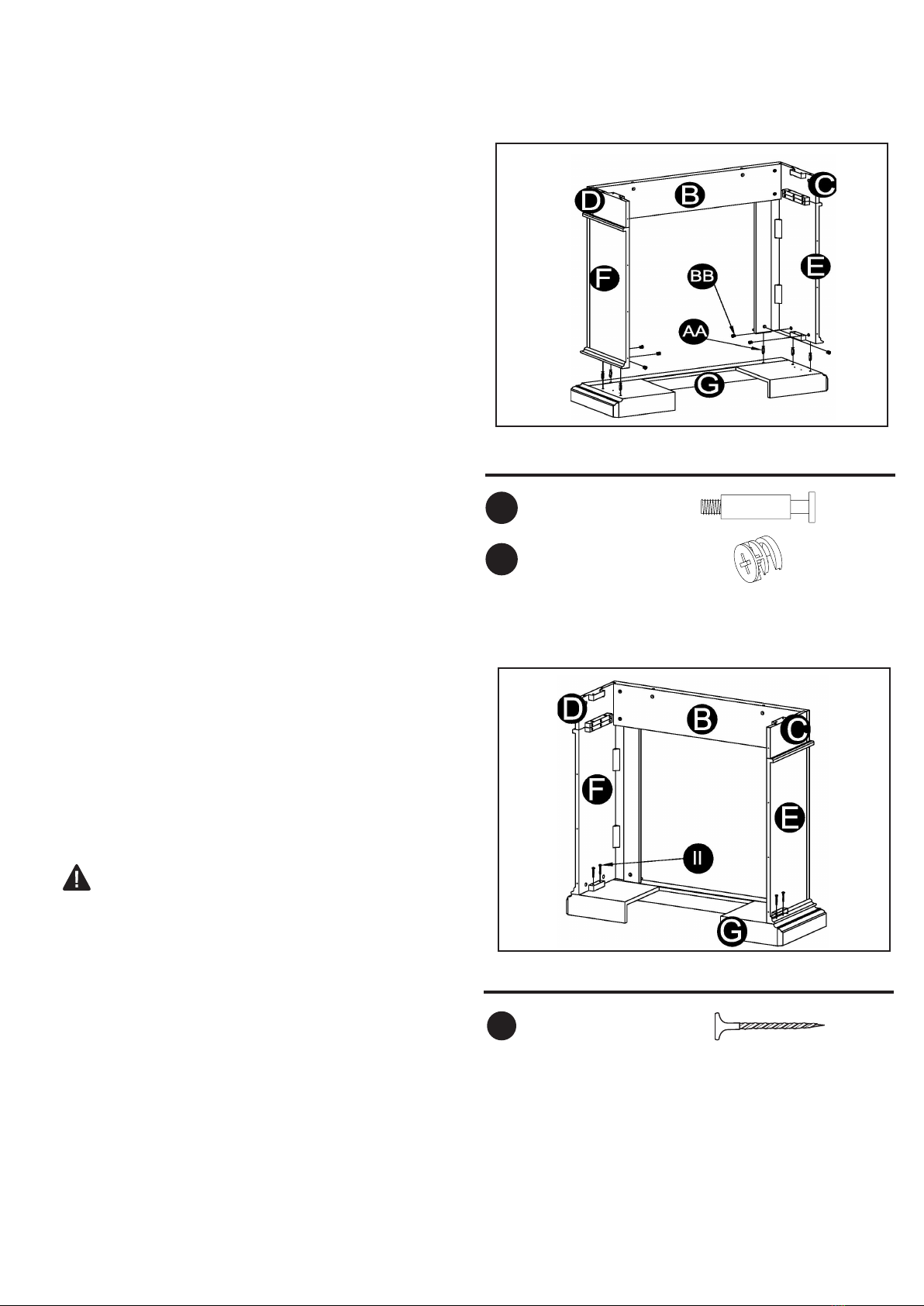

3. Insert Cam Locks (BB) into the Left Lower
Panel (E) and the Right Lower Panel (F),
screw in Cam Dowels (AA) into Base (G).
Attach Base (G) into assembled frame (B, C,
D, E, F) by tightening the Cam Locks (BB)
as shown in Fig 3.
Fig. 3
Skip to step 11 for Corner Mantel Installation.
4. Fasten the batten with ST4 Screw 1-9/16 in.
(II) to the Base (E) as shown in Fig. 4
Fig. 4
Hardware Used
ST4 Screw - 1 9/16 in. x4
II
7
Hardware Used
Cam Dowels x6
x6
AA
BB Cam Locks

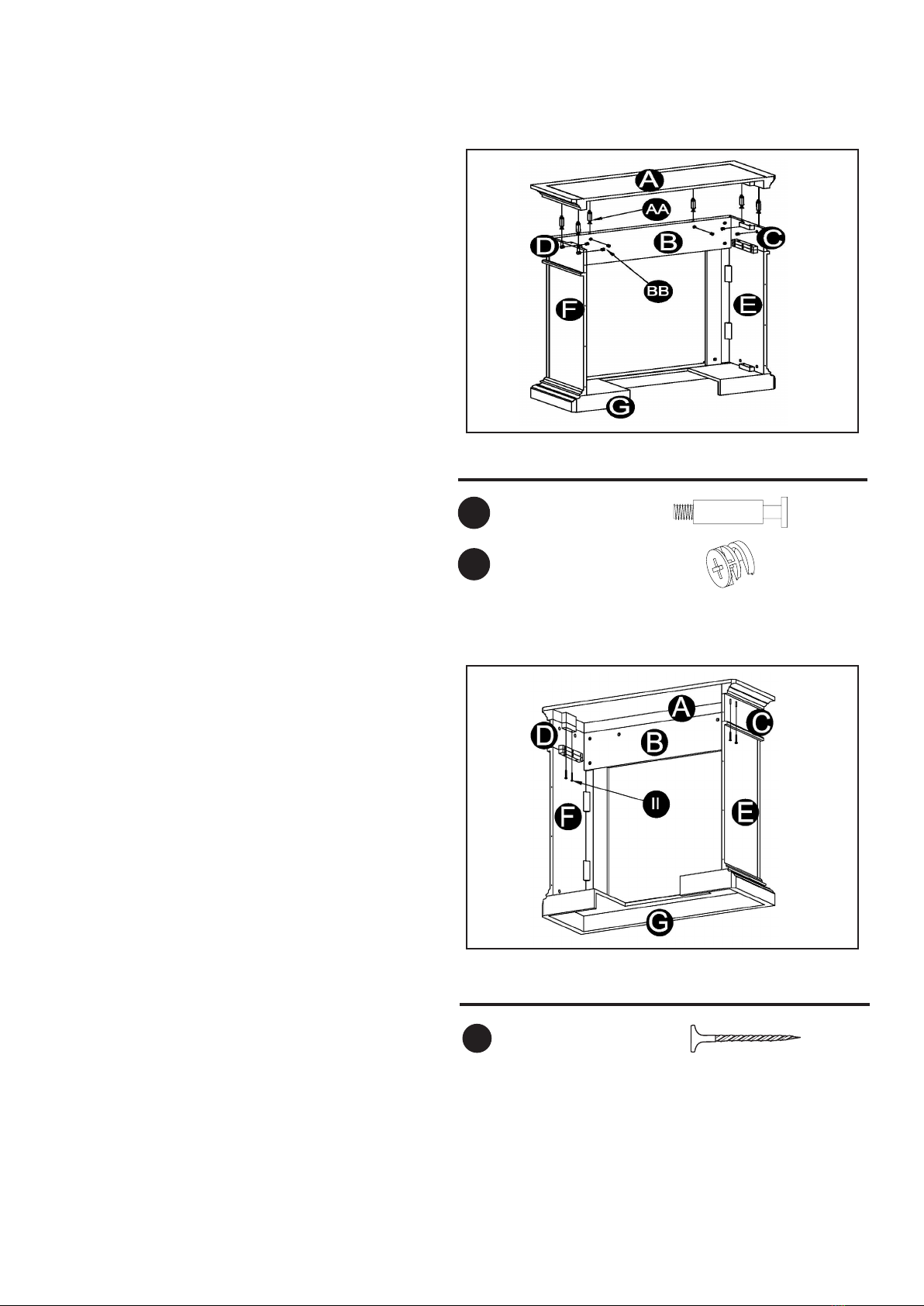

5. Insert Cam Locks (BB) into Panel (B), the
Left Upper Panel (C) and the Right Upper
Panel (D), screw in Cam Dowels (AA) into Top
(A). Attach Top (A) into assembled frame (B,
C, D, E, F) by tightening the Cam Locks (BB)
as shown in Fig 5.
Fig. 5
6. Fasten the batten with ST4Screw 1-9/16 in.
(II) to the Top (A) as shown in Fig 6.
Fig. 6
Hardware Used
ST4 Screw - 1 9/16 in. x4
II
8
Fig. 7
Fig. 8

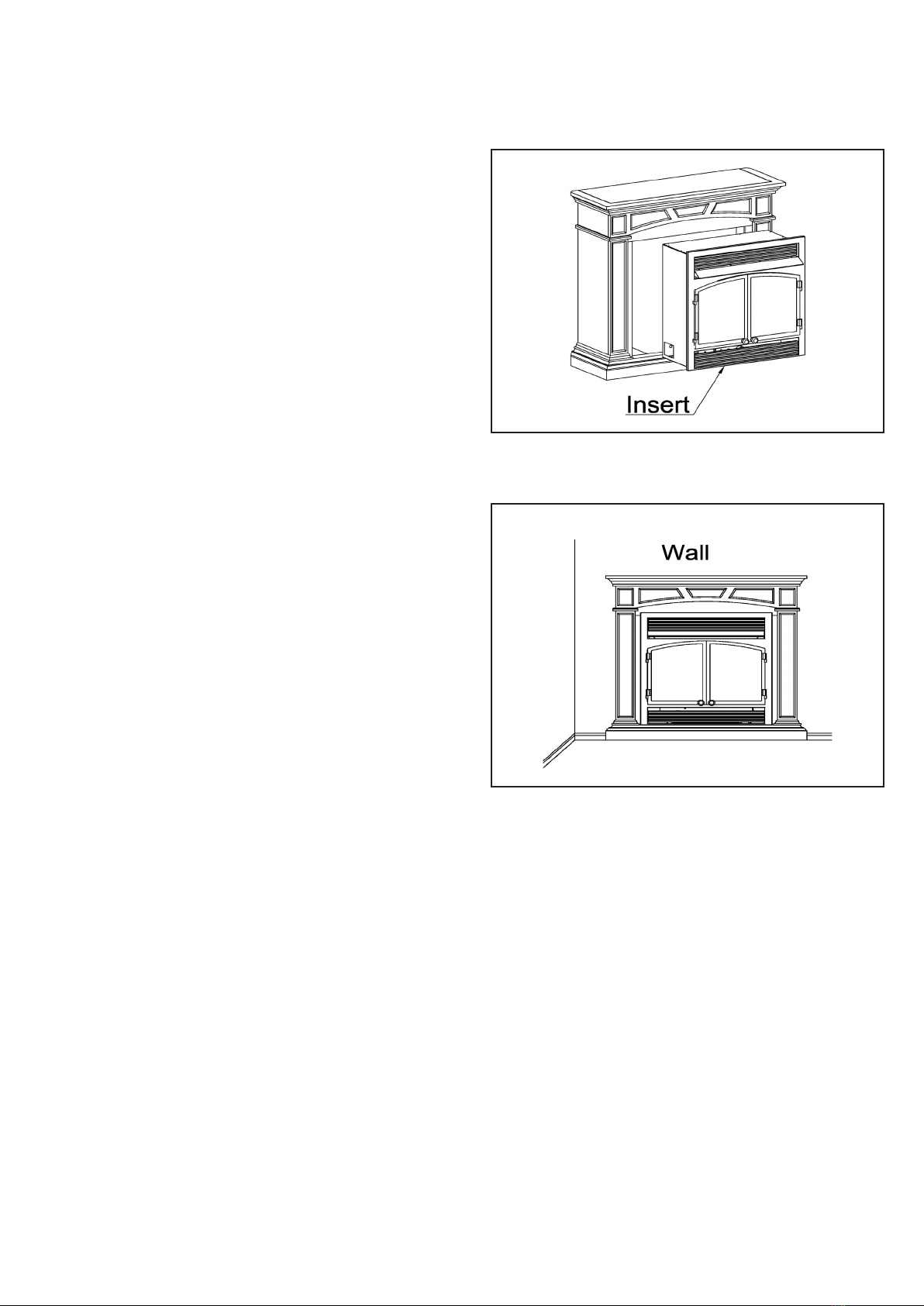

7. After assembling the mantel, lift upright
and push the insert from the front of the
mantel as shown in Fig 7.
8.Positionthereplacetothedesiredplace
as shown in Fig 8.
9
x 3
Fig.9
Fig. 10
ASSEMBLY INSTRUCTIONS CONTINUED (CORNER MANTEL)

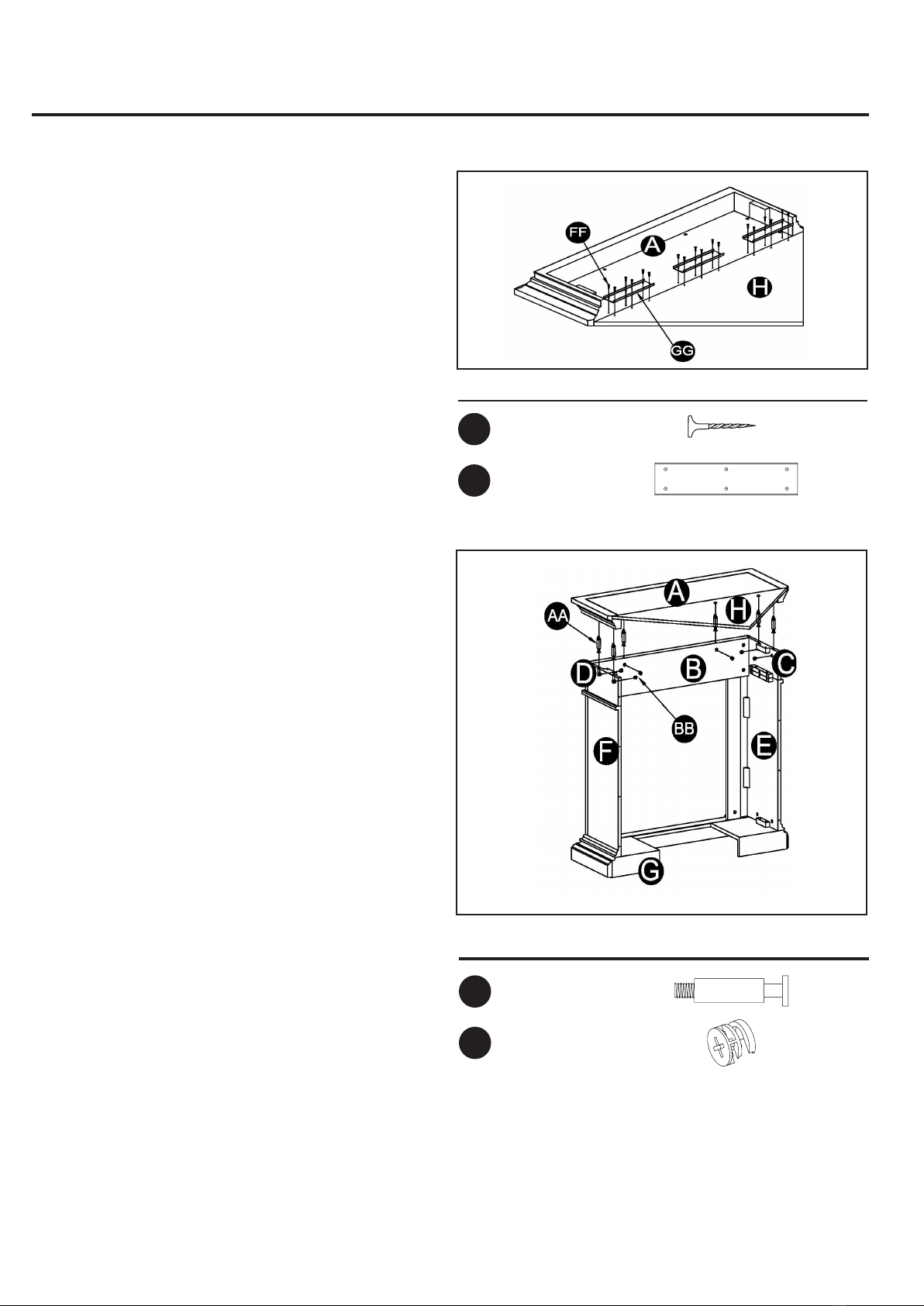

9. Turn the Top (A) Panel over. Using the Con-
nector Brackets (GG) that supplied, connect
the Top (A) to the Top Triangle Panel (H) with
ST4 Screw 5/8 in. (FF) as shown in Fig 9.
Hardware Used
ST4 Screw - ⅝in. x 18
Mounting
Bracket
10. Insert Cam Locks (BB) into Panel (B), the
Left Upper Panel (C) and the Right Upper
Panel (D), screw in Cam Dowels (AA) into Top
(A). Attach Top (A) into assembled frame (B,
C, D, E, F) by tightening the Cam Locks (BB)
as shown in Fig 10.
Hardware Used
Cam Dowel x6
x6
AA
BB Cam Lock
FF
GG
10

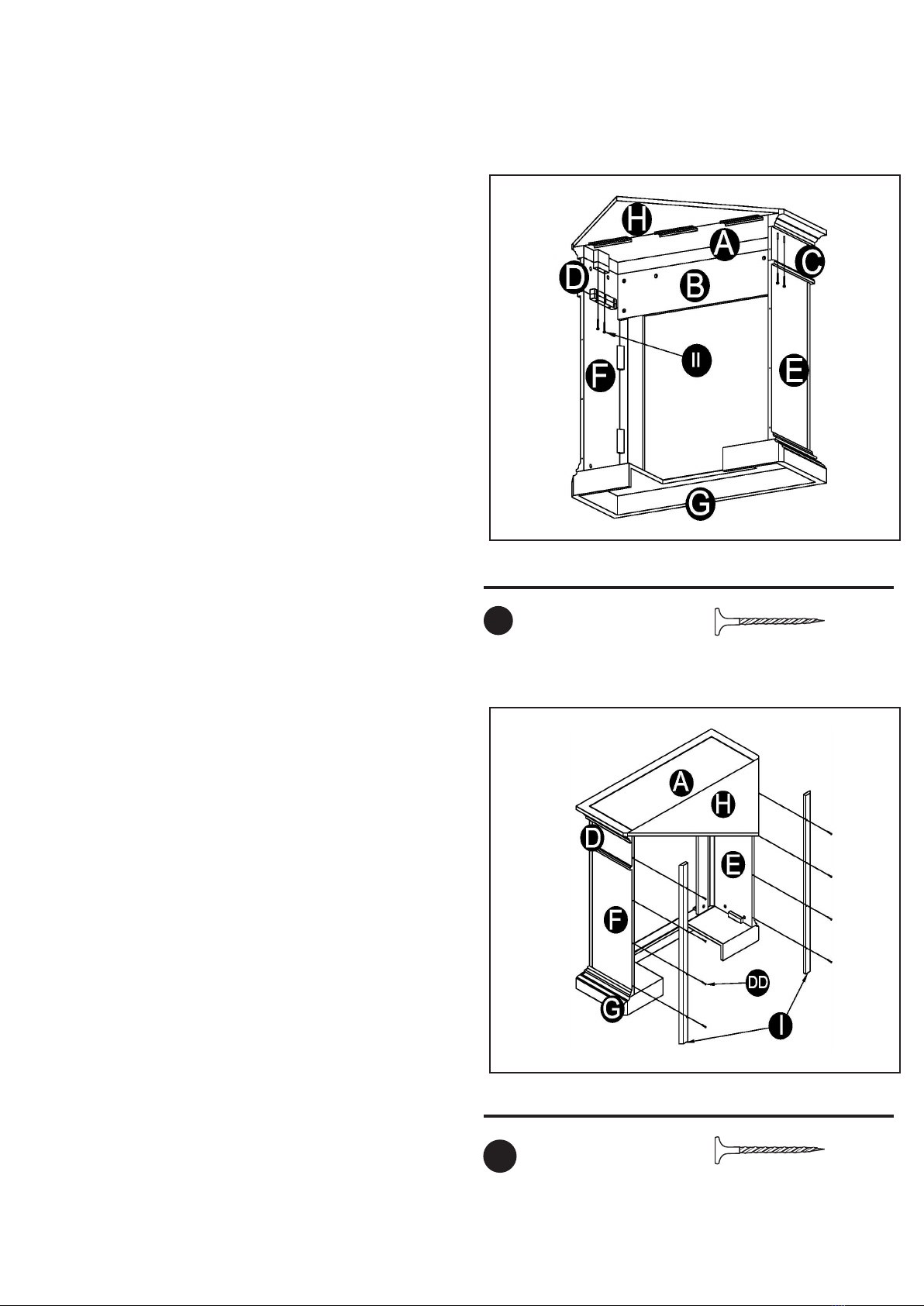

11. Fasten the batten with ST4Screw 1-9/16 in.
(II) to the Top (A) as shown in Fig 11.
Fig. 11
Fig. 12
Hardware Used
ST4 Screw - 1 9/16 in. x4
12. Attach the left and right Backboard (I) trim
piecestothebackofthereplacewithST4
Screw 1-3/16 in. (DD) as shown in Fig 12.
Hardware Used
ST4 Screw - 1 3/16 in. x8
DD
II
