celexon screen Electric
Professional Plus baery
Thank you for choosing a quality product from celexon.
Please read the instrucons carefully before using the screen
and keep them for future reference!
1
• Before mounting, please read the user manual and further safety and
usage instructions.
• Do not start installation before reading and understanding the operating
instructions.
• This product should only be installed by qualified personnel with mechanical
and electrical knowledge.
• Perform the installation with another person to ensure safe installation
• Tighten the screws, but do not overtighten them. Over tightening (for ex-
ample by using a cordless screwdriver) can cause damage and interfere with
the screen‘s secure hold.
• This product is intended for indoor use. Outdoor use may cause damage to
the product.
• Hanging points must be checked for strength and carrying capacity at least
twice a year.
• Use the product only in its intended manner. Any other use may cause dama-
ge to the product or its surroundings.
• If you notice any external damage to the device or unexpected or unusual
functions, the product may not be used further. In these cases, switch off the
product immediately and remove it from the mains. Immediately contact
the dealer from whom you purchased the product or celexon directly (WEB:
www.celexon.co.uk, MAIL: info@celexon.co.uk) for more information.
• Failure to follow the instructions above may result in personal injury or dama-
ge to the product or equipment connected to it. In case of incorrect installati-
on or use, the warranty may also be void.
• If you are unsure when using the product, contact a specialist, your dealer or
celexon directly (WEB: www.celexon.co.uk, MAIL: info@celexon.co.uk). Sub-
ject to technical changes and errors..
• Children should not use the screen unattended or play underneath.
Safety instructions
This manual is intended to familiarize you with the operation of this product.
Keep this manual in a safe place so that you can access it at any time.
2
Safety instructions
Care Instructions
Please read the following instructions carefully and keep them for later use. The
manufacturer assumes no responsibility for damage to property or personal
injury when the screen is used outside the recommended specifications, or in case
of improper installation.
Do not use this screen near heaters or air conditioners. Also, do not mount the
product in direct sunlight or in front of a window. Due to the temperature-sensi-
tive PVC surface, it can lead to lasting damage to the projection screen. We recom-
mend that you wait approx. 2 hours after delivery for the installation to allow the
fabric to acclimatize; especially when the screen is brought from cold to warm sur-
roundings. Please avoid any stains on the cloth surface as these could possibly not
be removed. The positions of the endpoints are already set optimally at the fac-
tory and should not be changed. Especially with motor screens, the entire length
of the fabric should always be used to ensure the best flatness. An adjustment of
a few cm of the end stop points should only be made by persons with specialist
knowledge and in consultation with the manufacturer. An incorrect setting may
damage the screen.
NEVER clean the screen with alcohol or other detergents that contain solvents. Use
only a soft and clean cloth with a mild soapy water, if necessary. Be sure to avoid
contact with sharp objects as these could permanently damage the projection
screen fabric. Further information can be found in the enclosed screen information.
Voltage: 100V~120V, 60Hz or
220V~240V, 50Hz
Consumption: 30W (MAX)
Integrated Battery: DC 10.8V, 2600mAh
Power Supply: DC 12,6V, 1A
Electric Specification
3
In the box
Installing the Screen
a) 1 x Screen with integrated
mounting points
b) 1 x Radio
remote control
f) 2 x Plate
Required (Not included):
Battery button cell CR2450 for remote control
g) 2 x Hanging loops h) 4 x Lock nut i) 1 x 12.6V 1A USB
power adapter
c) 1 x User Manual
d) 4 x Plastic Rawl plug e) 4 x Screws for wall and ceiling
mounting Ø4x50mm
Install the screen at a location visible to all viewers; ideally, the screen should be
mounted in the center and in sight of the spectators. The lower third of the screen
should be approximately at eye level of the viewer. Install the screen straight and
level otherwise there is a risk that the screen cloth is skewed when unwound. With
this screen you have the possibility to choose between three mounting options:
Option 1: Ceiling Mount
Option 2: Wall Mount
Option 3: Floating Ceiling Mounted via Hanging Loops
(on ceiling hooks - not included)
4
Installing the Screen
Option 1: Ceiling mounting (screwed)
ATTENTION! Make sure that you are using stable ground.
Measure the distance (A) of the holes in the endcaps (two holes per side) and
transfer the distance to the ceiling. Make sure that the holes are straight and level
(parallel to the wall).
ATTENTION only on stone surfaces: Pre-drill the holes and insert the plugs (d).
Use appropriate plugs and screws for the mounting surface (if necessary, suitable
materials must be purchased separately). Then place the plate (f) (one plate per
side cap) on the holes in the end cap. Use the screws (e) to mount the screen to
the ceiling.
CAUTION: Tighten the screws, but do not over tighten them. Over tightening
(for example by using a cordless screwdriver) can cause damage and interfere
with the screen‘s secure hold. If you notice cracks in the side cap, they need
to be replaced. The screen must not be used with defective caps. Please
contact celexon directly for replacement caps (WEB: www.celexon.co.uk,
MAIL: info@celexon.co.uk).
Option 2: Wall mounting (screwed)
ATTENTION! Make sure you are using stable ground.
Measure the distance (A) of the holes in the endcaps (two holes per side) and
transfer the distance to the wall. Make sure that the holes are straight and in scale.
ATTENTION only on stone surfaces: Pre-drill the holes and insert the plugs (d).
Use appropriate plugs and screws for the mounting surface (if necessary, suitable
5

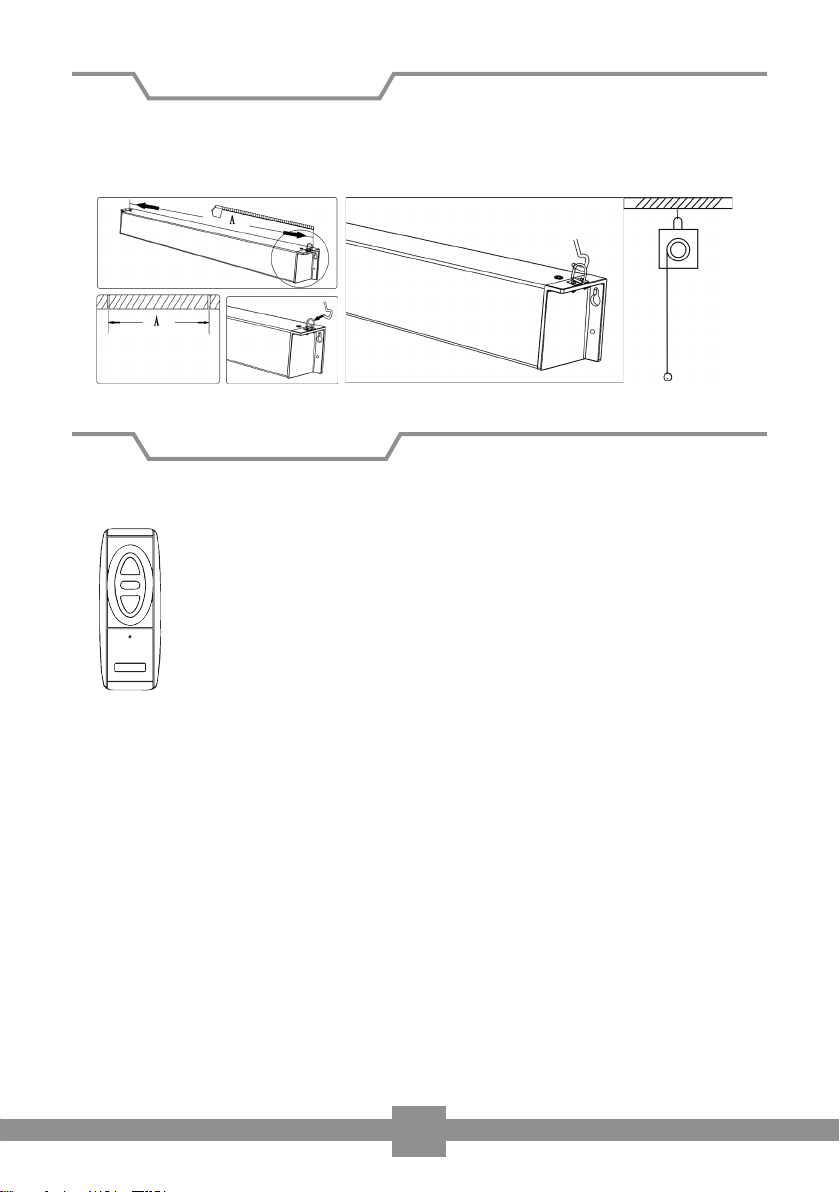

Option 3: Suspended ceiling mounting via suspension eyelets (on ceiling
hooks - not included)
ATTENTION! Make sure that you use a stable surface.
Place the plate (f) (one plate per side cap) underneath the holes of the end cap
and guide the hanging loop (g) through the side cap and plate from above. Then
tighten the loop with the lock nut (h) from below. Measure the distance (A) of
the loops and transfer the distance to the ceiling. Make sure that the loops are in
alignment with each other and that the marking is parallel to the wall.
ATTENTION: Mounting material such as ceiling hooks are not included in this
installation option and must be purchased separately.
materials must be purchased separately). Use the screws (e) and screw into the
top hole, leaving a gap of 1cm. Hang the screen to the wall via the top mounting
hole and check again that the screen is level.You can then tighten this screw.
CAUTION: Tighten the screws, but do not over tighten them. Over tightening
(for example by using a cordless screwdriver) can cause damage and interfere
with the screen‘s secure hold. If you notice cracks in the side cap, they need
to be replaced. The screen must not be used with defective caps. Please
contact celexon directly for replacement caps (WEB: www.celexon.co.uk,
MAIL: info@celexon.co.uk).
Then screw through the lower screw hole and make sure that the screws are not
tightened too tight.
Installing the Screen
6
Once the ceiling hooks are mounted, the screen can be hung on the loops.
Operating the screen
Operation of the radio remote control
Pairing the radio remote
1) Press the„Up“ button on the remote control. The screen will
automatically drive to the upper end position and automatically
stop.
2) Press the„Stop“ button on the remote control. The movement
of the screen stops immediately.
3) Press the„Down“ button on the remote control. The screen will
automatically drive to the lower end position and automatically
stop.
The radio remote control is already factory-paired with the integrated receiver.
If the pairing is canceled, please proceed as follows:
1) Press the„Up“ button for 3 seconds until the remote control LED lights, and
connect the power cord to the screen. A beep confirms the pairing mode
started.
2) Release the„Up“ button when you hear the beep.
3) Briefly press and release the„Up“ button. When the beep sounds 3 times
quickly, the remote control pairing is complete.
Installing the Screen
EU / EC Declaration of Conformity
Manufacturer: celexon Europe GmbH
Adresse: Gutenbergstraße 2, 48282 Emsdetten, DE
hereby declares that the following celexon branded product
Product name: celexon screen Electric Professional Plus Battery
complies with the essential requirements of the EU Directives listed below - in accordance
with the instructions given by the manufacturer, corresponds to:
Christoph Hertz
Managing Director
Emsdetten, 27.06.19
The symbol indicates the
separate withdrawal of electrical
and electronic equipment in EU
countries. Please do not throw
the appliance in the household
waste. Find out about the
return system that is valid in
your country and, if you have
questions about the disposal
process, contact your local
authority or your local collection
point.
Electromagnetic compatibility (2014/30 / EU)
-ETSI EN 301 489-1 V2.2.0 (2017-03)
-ETSI EN 301 489-3 V2.1.1 (2017-03)
Radio Equipment Directive (2014/53 / EU)
Article 3.1
a) Health
- EN 62479:2010
a) Safety
- EN 60950-1: 2006+A11: 2009+A1:
2010+A12: 2011+A2: 2013
Article 3.1
b) Electromagnetic compatibility
ETSI EN301 489-1 V2.2.0 (2017-03)
ETSI EN301 489-3 V2.1.1 (2017-03)
Article 3.2
Radio frequency
ETSI EN300 220-2 V3.1.1 (2017-02)
ETSI EN300 220-1 V3.1.1 (2017-02)
Restriction of Hazardous Substances (RoHS)
2011/65 / EU
