Celexon Expert Bedienungsanleitung

Operating instructions

celexon Electric Expert and

Expert XL

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully

before connecting or operating this product. Please retain these instructions for future

reference.

Version: 32422_061

The purpose of these operating instructions is to familiarise you with the operation of

this product. Therefore, keep these instructions in a safe place so that you can refer to

it at any time.

• Before installation, please refer to the enclosed data sheet for further safety and use

instructions.

• Do not begin installation until you have read and understood the complete

operating instructions.

• Carry out the installation with another person to ensure safe installation.

• Remove the product from its packaging and remove all packaging material.

Make sure that there is no packaging material on or in the product. If you notice

any damage to the packaging, also check whether there is any damage to the

product. If you notice any external damage to the unit or any unexpected or

unusual functioning, the product must not be used any further. Immediately

contact the dealer from whom you purchased the product or celexon directly

(Web: www.celexon.co.uk, Mail: info@celexon.co.uk) for further information.

• To ensure trouble-free operation, the product may only be used indoors. It is NOT

suitable for outdoor use.

• The use of the appliance and accessories is forbidden to children under 16 years of

age.

• Ensure that no children play with the appliance or are in the vicinity without

supervision.

• Conversion or modication of the product impairs product safety.

• Caution: Risk of injury! Never open the product without authorisation. Never carry

out repair yourself!

• Do not use the product near gas or water appliances or in a dusty environment.

• Handle the product with care. It can be damaged by knocks, blows or falling from

even a small height.

• Keep the product away from moisture and heat.

• Never immerse the product in water or other liquids.

• Use the product only in its intended manner. Use for any other purpose may damage

the product or its surroundings.

• Tighten the screws, but do not overtighten them. Overtightening the screws (e.g.

by using a cordless screwdriver) can cause damage and affect the secure hold of

the screen.

WARNINGS

• Suspended loads must be checked for strength and load-bearing capacity at least

twice a year.

• Children should not use the screen or play under it unsupervised.

• Caution: Risk of injury! The unit closes ush and rmly in its retracted state, keep

ngers, hands or other small parts away from the opening.

• All supply lines and cables must not be subjected to additional loads and must be

laid in such a way that they are not damaged or crushed.

• Failure to observe the above instructions may result in personal injury and damage

to the product or equipment connected to it. Incorrect installation or use may also

invalidate the warranty.

• If you are unsure about the use of the product, please contact specialist personnel,

your dealer or celexon directly (Web: www.celexon.co.uk, Mail: info@celexon.co.uk).

• Technical changes and errors expected.

The manufacturer accepts no responsibility for damage to property or personal

injury, if the screen is used outside the recommended specications, or in the event of

improper installation. Do not use this screen in the vicinity of heaters or air conditioners.

Also, do not mount the product in direct sunlight or in front of a window. Due to the

temperature-sensitive PVC surface, the projection screen fabric may be permanently

damaged.

We recommend that you wait approx. 2 hours after delivery before installing the

projection screen. This way you will allow the screen to acclimatise, especially when

moving from a cold to a warm environment (or vice versa).

Please avoid any stains on the surface of the screen. These may not be able to be

removed.

The positions of the end points are already optimally set at the factory and should not

be changed. Especially with electric screens, the entire length of the fabric should always

be used in order to achieve the best atness. An adjustment of a few cm of the end points

should only be made by persons with specialist knowledge and in consultation with the

manufacturer. Incorrect adjustment can result in damage to the projection surface.

Voltage: 100 V ~120 V, 60 Hz

220 V ~ 240 V, 50 Hz

Consumption: 156 W (MAX)

0,4 W (Standby)

TECHNICAL DATA

DISCLAIMER

The information in this document is subject to change without notice by the

manufacturer. Changes will be added to subsequent versions of this manual.

Errors expected.

CARE INSTRUCTIONS

NEVER clean the screen with alcohol or other cleaning agents containing

solvents. Use only a soft and clean cloth. If necessary, dirt can be removed

from the surface with a mild soap solution (max. 5%). It is essential to avoid

contact with pointed or sharp objects. These could permanently damage the

projection screen fabric. Further instructions can be found in the enclosed

projection screen instructions.

IN THE BOX

Install the screen in a position that is fully visible to all viewers! The optimum

installation height corresponds to the position of the viewers in the centre of

the screen with the screen fabric extended: eye level = lower third of the screen

surface.

The screen can be installed on the wall or ceiling. Obtain suitable mounting

material for your installation surface.

INSTALLATION NOTES

Measure the distance between the mounting brackets. The brackets should

each be installed evenly along the housing.

Transfer the measurement to the mounting surface. Ensure that the holes are

parallel. Pre-drill the holes at the markings in the appropriate diameter for the

mounting material, insert them and screw on the brackets.

1x Screen Mounting bracket

Motor Expert (2x)

Motor Expert XL (4x)

1 x Wall switch

MOUNTING ON THE CEILING / WALL

STEP 1

Lift the screen (with 2 people) and hook the casing rstly into the rear guide

of the bracket with a slight turn and then x the casing to the bracket from

the front with the locking screws. Do not release the housing until the locking

screw has connected the housing and the bracket together.

Remove the transport protection between the weighted rod and the housing.

Finally, check the screws on the screen and tighten them if necessary. In the

event of damage to the brackets or the safety screws, please contact your

dealer. The screen may only be used after the defective components have been

replaced.

A = Expert 9,5cm | Expert XL 12,4cm

B = Expert 2,7cm | Expert XL 1,6cm

C = Expert 11,5cm | Expert XL 13,3cm

STEP 2

OPERATION

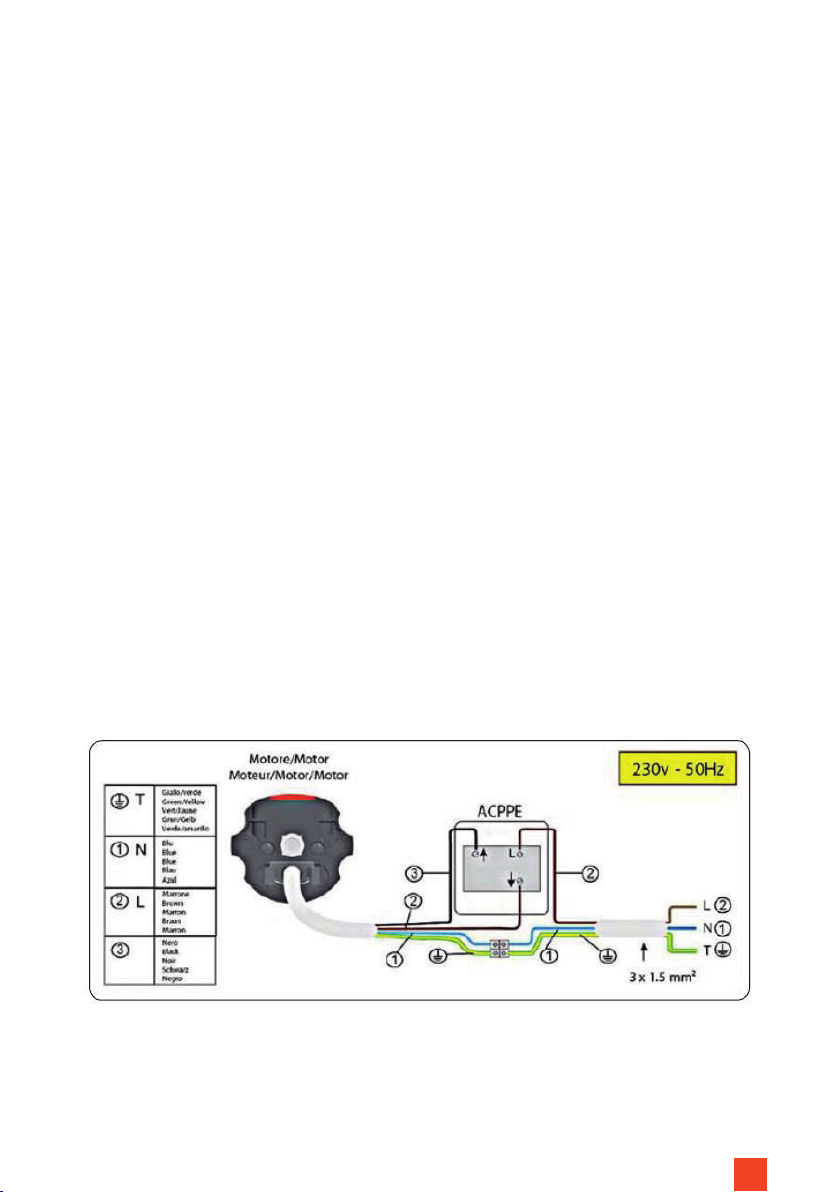

The electrical connection of the screen must be carried out by quali ed

personnel according to the technical data (see above). Mount the wall switch

near the screen so that the user always has the screen in view when extending

and retracting it.

The cable must not be laid on hot surfaces or stretched. Never connect the wall

switch to more than one device. Disconnect the screen during maintenance

work.

STEP 1: SECURITY CHECK & CONNECTION

STEP 3: RETRACT THE SCREEN (FIG. 3)

Press and hold the button marked with

the up arrow. The screen retracts and

stops automatically at the housing or

the set upper end point. Make sure

that no objects or persons obstruct the

retraction.

STEP 2: EXTEND THE SCREEN (FIG. 2)

Press and hold the button marked with

the down arrow. The screen extends

and stops automatically at the set end

point. Make sure that no objects or

persons obstruct the extension of the

screen.

STEP 4: STOP THE SCREEN

To stop the projection screen manually, release the pressed button - the screen

stops immediately.

It is possible to set the stop points. Please request the instructions for this procedure from

your specialist dealer or directly via www.celexon.com

Manufacturer: celexon Europe GmbH

Address: Gutenbergstraße 2, 48282 Emsdetten, DE

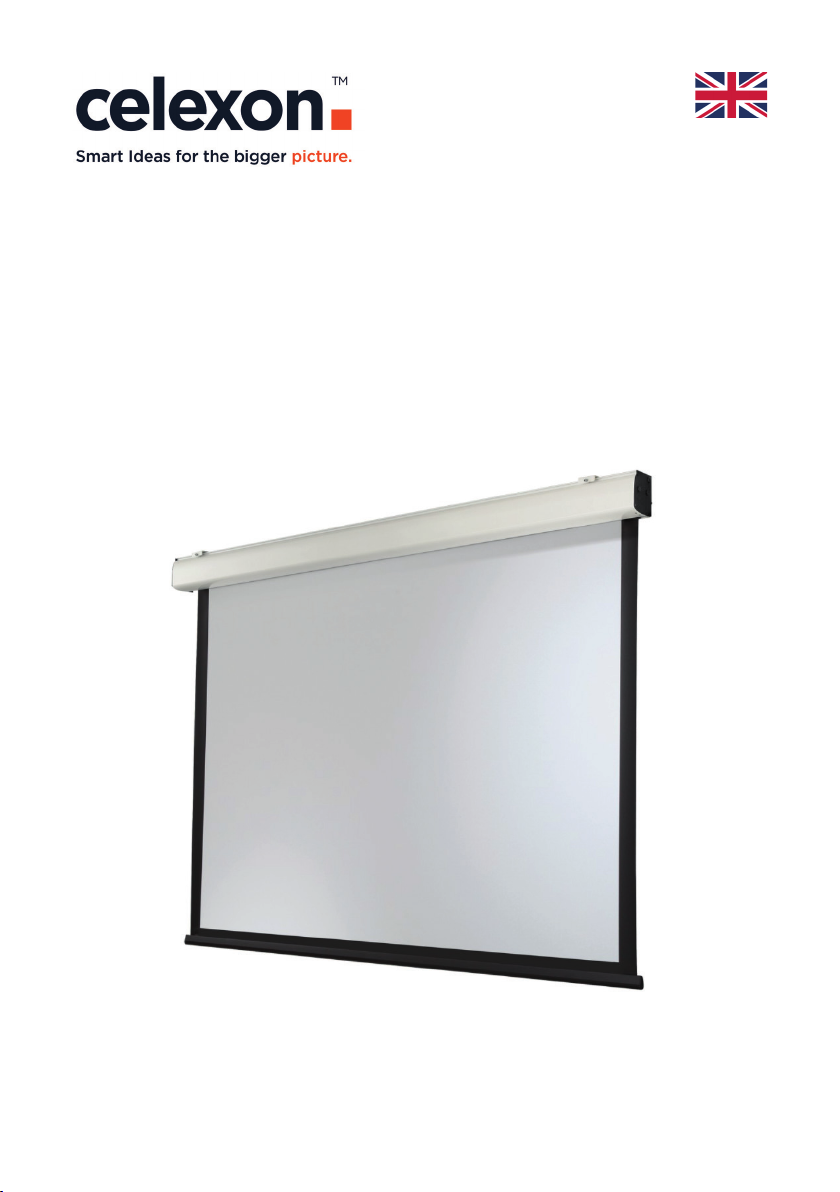

Product name: celexon Electric Expert and Expert XL

Products that are marked with the CE mark meet all requirements of the relevant

EU directives. The EU declaration of conformity can be downloaded from the

following address: www.celexon.de/zertikate

INFORMATION ON EU CONFORMITY

The symbol indicates the separate collection of electrical and electronic

devices in EU countries. Please do not throw the device into household

waste. Find out about the return system applicable in your country and

contact your local authority or your local waste and pollutant collection

point if you have any questions about the disposal process.

Manufacturer: celexon Europe GmbH

Address: Gutenbergstraße 2, 48282 Emsdetten, DE

Product name: celexon Electric Expert and Expert XL

Products that are marked with the UKCA mark meet all requirements of the re-

levant UK directives. The UK declaration of conformity can be downloaded from

the following address: www.celexon.de/zertikate

INFORMATION ON UK CONFORMITY

The symbol indicates the separate collection of electrical and electronic

devices in EU countries. Please do not throw the device into household

waste. Find out about the return system applicable in your country and

contact your local authority or your local waste and pollutant collection

point if you have any questions about the disposal process.
