Cermate Technologies TN531D Technisches Handbuch

Technical Document

Version 0.0

January, 2010

www.cermate.com

PLC Connection Guide

TN531D

BACNet/IP Driver Setting

◎Revision Record

Revision

Date

Content

Owner

TND531-E0

Page 2 of 9

www.cermate.com

Preface

This tech note introduces how to connect BACNet/IP device with the PanelMaster HMI.

When you wish to link with the BACNet/IP device, please follow below steps to

use the CAS BACNet Explorer to search on-line device:

(1) CAS BACNet Explorer setting

TND531-E0

Page 3 of 9

www.cermate.com

(2) Apply the CAS BACNet Explorer tool

Step 1: Press the “License”

Step 2: Fill out one e-mail addres to apply the “Product Key”and it can be used for

60-minutes.

If you need to use several times, you can use same e-mail account to apply it.

Step 3: Press the ”Request a key”, it will enter its website and key-in the e-mail account to

execute the “Apply”button and then get their product key from your e-mail.

Step 4: Please copy the “Product Key”into this space.

Step 5: Press the “Activate”to enable this tool.

Step 1

Step 3

Step 1

Step 5

Step 1

Step 2

Step 4

Step 1

TND531-E0

Page 4 of 9

www.cermate.com

(3) BACNet/IP netwrok setting

Step 1: Select the “Network”

Step 2: Select the “BACnet IP”and “BACnet Ethernet”

Step 3: Key-in the “BACNet IP Port”

Step 4: To make sure the the PC and BACNet/IP device is linking, to press the “Refresh”

button toget the on-line device.

Step 5: To select the BACNet IP device to press the “OK”button.

Step 2

Step 4

Step 1

Step 5

Step 3

TND531-E0

Page 5 of 9

www.cermate.com

(4) Press the ”Discover” button and select all device to press ”Send”.

指令功能碼:讀取命令碼 0x01/0x02/0x03/0x04

寫入命令碼 0x05/0x06/0x15/0x16

TND531-E0

Page 6 of 9

www.cermate.com

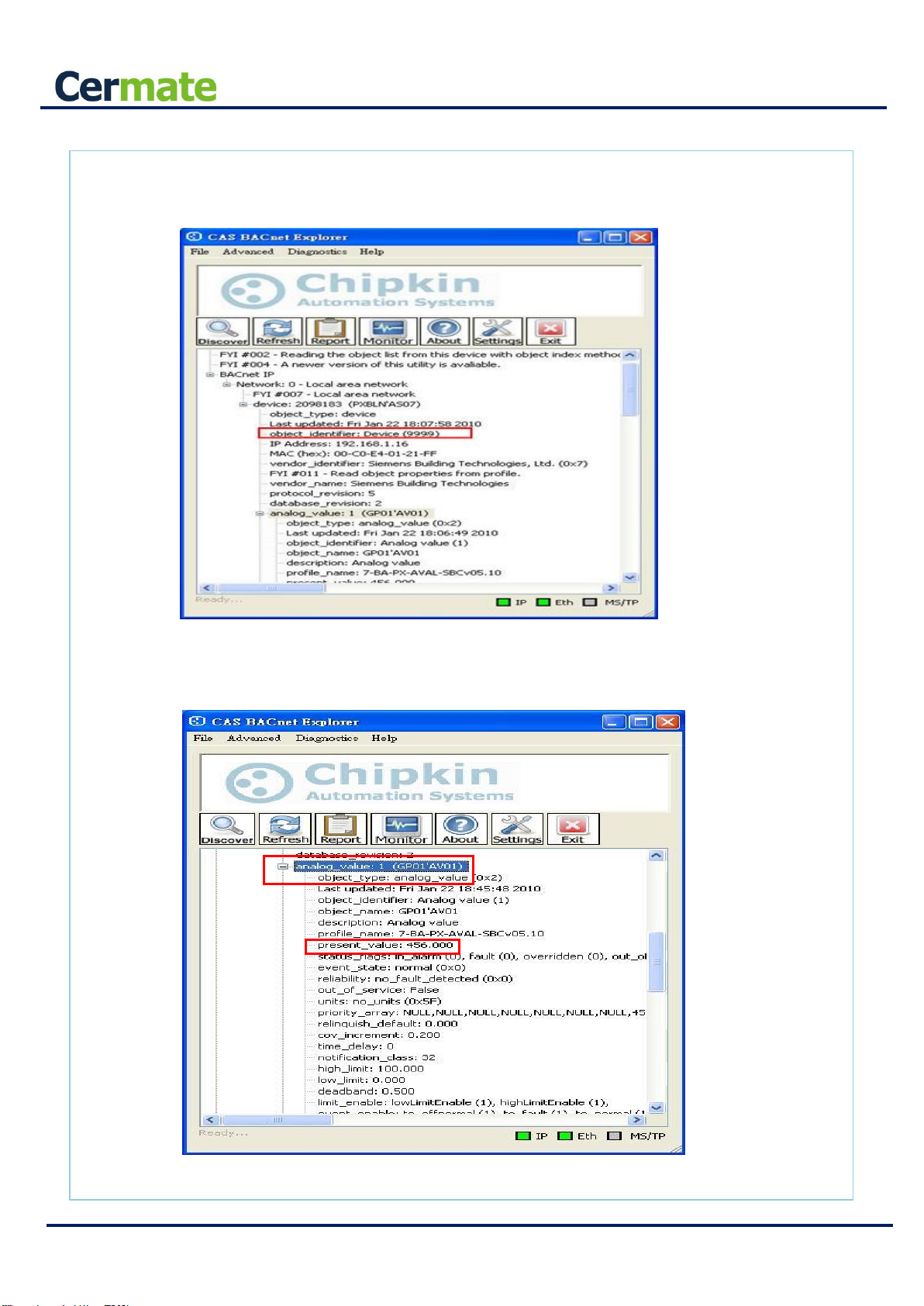

Sample: the object ID is ”9999” and this ID is the node address of the PM software

setting.

Note: The node address of the PM Designer software (Before Ver1.2.57) is

0~32767. Please setting the object ID to 0~32767.

Device AV1=456.000 (Floating Point)

TND531-E0

Page 7 of 9

www.cermate.com

HMI Settings:

Select [Device/Server: Honeywell BACnet/IP Protocol]

Setting HMI IP address to 192.168.1.34, and the Node Address=9999 (Object I.D.)

TND531-E0

Page 8 of 9

www.cermate.com

Bit Device:

Word Device:

~Thank You~

TND531-E0

Page 9 of 9

www.cermate.com

Technical Support Information

中國大陸 QQ 專線 : 800014850

www.panelmaster.com.cn / www.cermate.com

資料下載專區 ftp:://mail.cermate.com + User name + Password (欲加入會員需要申

請)

合作貼牌聯絡專線: China: 0910011916 / 86-13823788405 [email protected]

Taiwan: 886-910011915 [email protected]

Worldwide: 886-910011914 [email protected]

Cermate Technologies (Shanghai) Inc. 屏通科技(上海)有限公司

Phone: +86-21-51758590~2

FAX : +86-21-51758589

E-mail: [email protected]om

Shenzhen Cermate Technologies Inc. 屏通科技(深圳)有限公司

Phone: +86-755-83562179,

FAX : +86-755-83562294

E-mail: sa-cermate@cermate.com

Cermate Technologies Inc. (台湾) 屏通科技股份有限公司

7F-1, No. 168, Lien-Cheng Road, Chung-Ho City, Taipei, Taiwan 235 R.O.C.

Phone: 886-2-22437000

FAX : 886-2-22499933

E-mail: service@cermate.com
