Cerwin-Vega STROKER Series Bedienungsanleitung

USER MANUAL

STROKER SERIES

STROKER PRO SERIES

SPEAKERS

ST65C / SPRO65C

Cerwin Vega Mobile Speakers

Congratulations for purchasing Cerwin Vega Mobile speakers for your car

audio system. You have chosen Cerwin Vega Mobile because you deserve the best!

Cerwin Vega Mobile speakers are designed and engineered to reproduce

great sound quality for many years of listening enjoyment in your vehicle!

We highly recommend that your new speakers be installed by an

authorized Cerwin Vega Mobile dealer. Your authorized dealer can

professionally assemble/disassemble the interior of your vehicle and set

the proper speaker placement for ideal sound quality.

If you decide to install the speakers by yourself, please thoroughly read

through this manual before getting started. This manual will help

familiarize yourself with these speakers and guide you through the

installation process and procedures.

Please contact your local authorized Cerwin Vega Mobile dealer if you

have any questions regarding the instructions in this manual. If you

require additional assistance, please contact the Cerwin Vega Mobile

Technical Support Department during business hours at 213.261.4161

Installation

Installing the Speakers

Your new Cerwin Vega Mobile series speakers were designed with the ﬂexibility to be installed in multiple locations. However,

to ensure the best performance possible, it is important to isolate the front sound waves of the speaker from its rear sound

waves. This is done by securely mounting the speaker to a ﬂat surface known as a bafﬂe. Make sure to seal the speaker to

ensure there are no air leaks around its frame.

Selecting a Location

If your vehicle has existing factory locations, the easiest method would be to replace them with the exact same size speaker.

In the case where there is not a factory speaker location, there are many places where the speakers will ﬁt in a vehicle, but

they are not always the best locations for good sound. Make sure to take the time to select the best locations possible.

Mounting the speakers so that they are equal distance from your ears will achieve the best results. If you experience any

difﬁculties, please consult with your local authorized Cerwin-Vega Mobile dealer. They have the tools and know-how to help

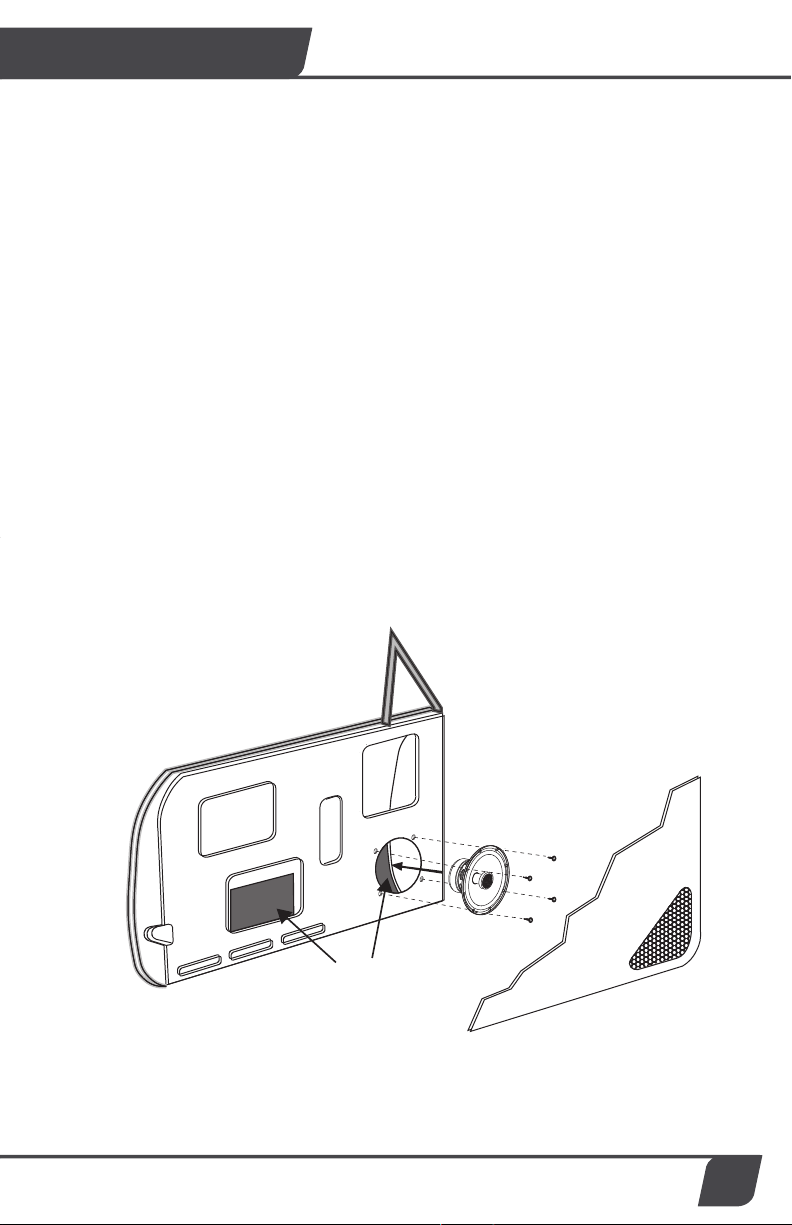

Door Mounting (if not using factory locations)

Prior to cutting, remove the panel from the door and check for clearance in the in the intended installation area, making sure

the window will go all the way up and down without any interference. Avoid cutting any structural metal support or braces to

mount the speakers. We HIGHLY recommend that for the BEST sound you put a sound deadening mat on the door “skin”

(as shown below). The more “damped” your car is.... the better it will ultimately sound!!!

SOUND DEADENING

Door Mounting

Installation

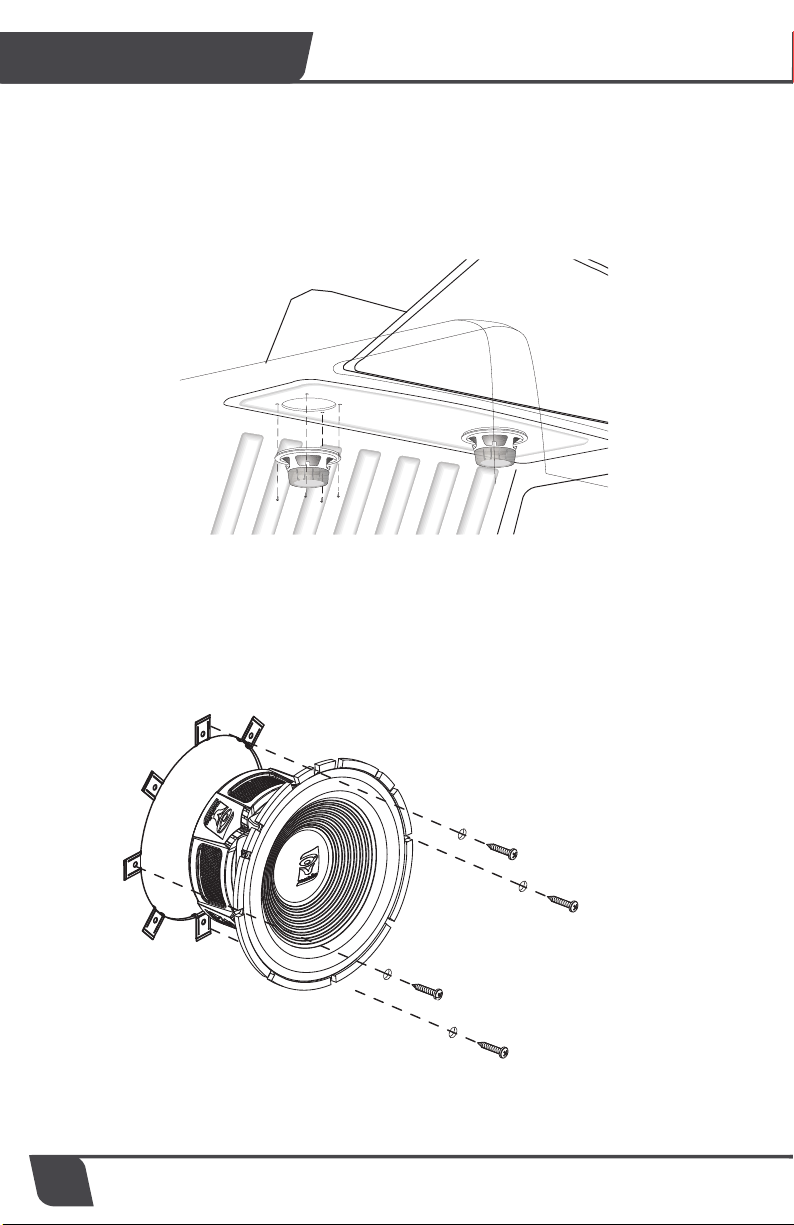

Rear Deck Mounting

There are two primary methods for mounting speakers in the rear deck of a vehicle, top and bottom mounting. Top mounting

requires dropping the speakers in through the deck (interior) while bottom mounting secures the speakers from underneath

(trunk). Either method requires a good seal around the frame for the best performance.

Running New Wiring

In most cases when mounting new speakers you will use the factory supplied wiring, but if new wires have to be run there are

some precautions that need to be taken. If the wire needs to run through metal, such as a door jamb, always use a grommet

to prevent damage to your wires. Never run wire through bare metal! This can damage the source unit, amp, or even the

speakers themselves. Safety of the wiring against short circuits is THE MOST IMPORTANT INSTALLATION CONCERN.

Installation

The illustration below shows how to connect one channel of the ST65C component system

(SPRO65C is same in connection)

Crossover Programing

Each ST65C / SPRO65C component system comes with a pair of model speciﬁc adjustable crossovers

giving you attentuation and phase adjustments. The tweeter adjustment has settings for -2dB of

attenuation, OdB or +2dB of gain. There is also a “Phase switch” that you may use in different

application/locations to correct for acoustical phase issues casued by placement of the drivers in the

vehicles particular enviroment.

To Ampliﬁer

Midbass Driver Tweeter

INPUT WOOFER TWEETER RAF

- 2

180

PHASE

LEVEL

Optional RAF

Removable

Plug

Tweeter Installation

When ﬂush or surface mounting tweeters, make sure desired location can accommodate the hole sizes

and depth required. Mount cup using provided hardware, ﬂush mount illustration shown below. Mount

surface cup with provided screws in tweeter mounting kit. Snake speaker wires through tweeter cup,

connect tweeter to wires and snap tweeter into cup by pushing down gently. Be careful not push on

the center of the tweeter grill.

Clamp

Ring

Mounting Cup

Tweeter

Crossover Installation

Install in a well ventilated area whenever possible. If you must install the passive crossovers in the doors due

to the use of factory wiring. As you “feed” into the door cavity, ensure that the crossover is installed behind

the door panel instead of inside the door itself. This will offer the greatest capacity for avoiding any water

damage caused by rain or moisture. Also avoid placing it near factory wiring looms to ensure no radiated noise

problems. Connect the input side labeled “INPUT” of each passive crossover to the ampliﬁer’s speaker output

terminals. Be sure to observe correct polarity for positive and negative terminals. Next, connect the middle

terminals labeled “WOOFER” to the midrange speaker. Be sure that the wiring is protected all the way to the

terminal and that the wires are secure at both the speaker and passive crossover. Finally, connect the end

terminals labeled “TWEETER” to the tweeter. Be careful to observe the correct polarity when connecting

the tweeter to its lead wires as these are smaller gauge and require care and patience to connect correctly.

Each ST65C or SPRO65C component crossover has a third set of outputs marked “RAF”. This stands for Rear

Acoustic Fill. This output can be used to power and additional speaker off the same channel without effecting

the impedance load on the source unit. The level of this output is pre-determined at -10dB of attenuation, for

a REAL “rear ﬁll” This creates a much more real stereo image and a bigger sound stage.

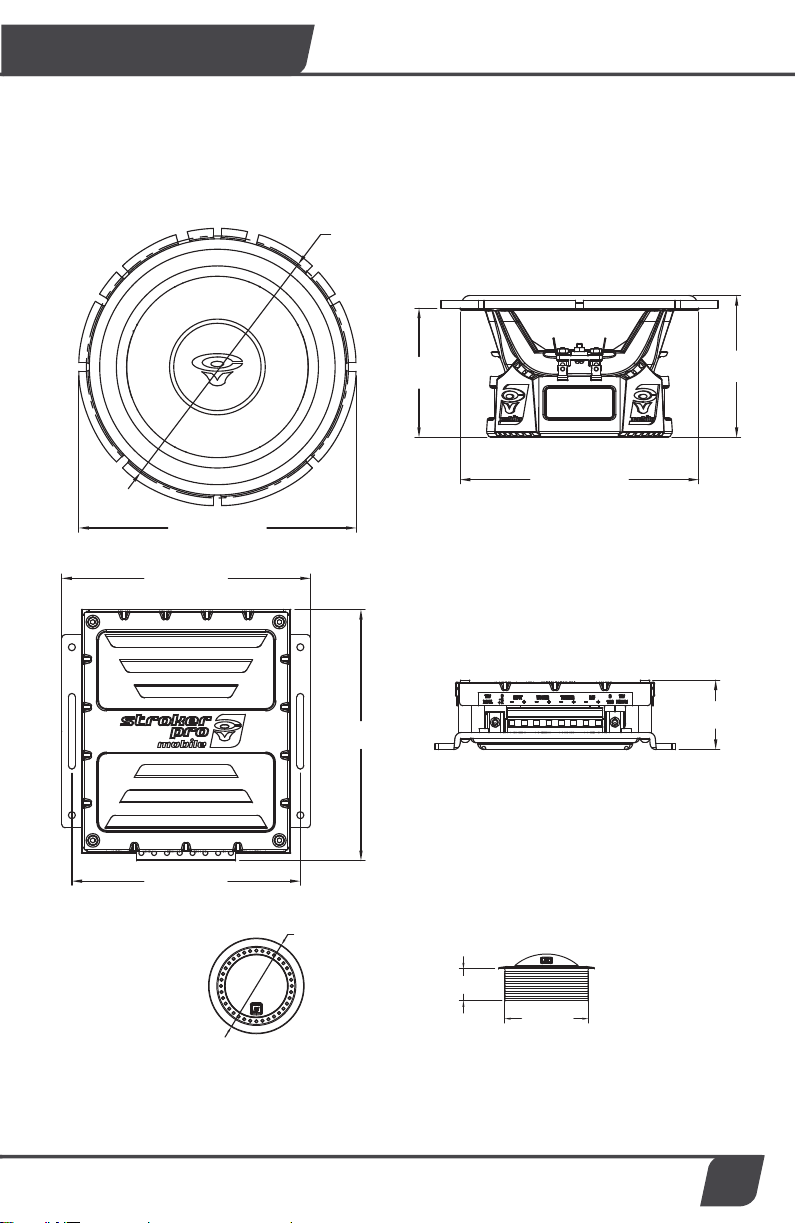

Speciﬁcations

SPRO65C

Ø2.25"

(57.15mm)

0.75"

(19.05mm)

Ø 1.97"

(Ø50.00mm)

Ø 6.14"

(156.00mm)

Ø 6.5"

(Ø 165.00mm)

5.83"

(148.00mm)

5.89"

(149.60mm)

5.35"

(136.00mm)

1.63"

(41.30mm)

Ø 5.59"

(Ø 142.00mm)

3.03"

(77.00mm)

3.33"

(84.50mm)

Speciﬁcations

ST65C

1.63"

(41.30mm)

5.83"

(148.00mm)

5.35"

(136.00mm)

5.89"

(149.60mm)

Ø2.25"

(57.15mm)

0.75"

(19.05mm)

Ø 1.97"

(Ø50.00mm)

Ø 6.14"

(156.00mm)

Ø 6.5"

(Ø 165.00mm)

Ø 5.59"

(Ø 142.00mm)

3.03"

(77.00mm)

3.33"

(84.50mm)

Speciﬁcations

MODEL

ST65C 6.5" 2-way component speaker set - 250W MAX / 125W RMS POWER HANDLING

SPRO65C 6.5" 2-way component speaker set - 350W MAX / 175W RMS POWER HANDLING

TYPE POWER HANDLING

Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you with countless hours of listening

enjoyment.

Please take a brief moment to register your new product. By registering your new product, you will receive beneﬁts such as:

- Important product notiﬁcations that may pertain to your purchase.

- Conﬁrmation and record of ownership in case of loss or theft.

- Knowledgeable customer service and technical assistance pertaining to your product.

www.cerwinvegamobile.com.

Registration is voluntary and failure to register will not diminish your limited warranty rights.

Limited Warranty (U.S.A.)

Cerwin Vega Mobile warrants all of our ampliﬁers and speakers to be free of defects in materials and workmanship for a

period of one (1) year.

This warranty is non-transferable and applies only to the original purchaser from an authorized Cerwin Vega Mobile dealer. If

service is required and necessary under this warranty due to manufacturing defect or malfunction, then Cerwin Vega Mobile

will repair and/or replace defective product with either new or remanufactured like product at no charge at our discretion.

Damage to product caused by the following will not be covered under this warranty: abuse, accident, misuse, neglect,

modiﬁcations, repairing attempts, seller/installer misrepresentation.

This warranty does not cover any incidental, consequential, or cosmetic damage due to accidents or normal wear and tear,

nor does it cover the cost of removing or reinstallation of the product.

Warranty is void if the product’s serial number has been removed, defaced, and/or tampered with.

Warranty Procedure:

We recommend that you contact your Cerwin Vega Mobile authorized dealer where your original purchase was made to

initiate all warranty claims. Our authorized dealers can guide you through the warranty procedure to ensure that your claim

will be processed in a timely manner. All warranty returns must be accompanied with a proof of purchase (a copy of the

original sales receipt) and be shipped freight prepaid to our facility with an RA (Return Authorization) number clearly marked

on the outside of the package. Direct returns from consumers or non-authorized dealers will be refused if shipped without a

valid RA number authorized by Cerwin Vega Mobile beforehand.

INTERNATIONAL

Products purchased outside of the U.S.A. are covered only by that country’s distributor and not by Cerwin Vega Mobile U.S.A.

Please Ship All Warranty Claims With Pre-Authorized RA Number To:

CV&DA Holdings, Inc.

ATTN: Customer Service Department

1225 E. 7th St.

Los Angeles, CA 90021 USA

Please Contact Customer Service for Further Warranty Information:

U.S.A.

Tel: 213-261-4161 / Fax: 213-947-4767
