vmaxx
SUBWOOFER
VMAX65D2
VMAX8D2/VMAX8D4
VMAX10D2/VMAX10D4
VMAX12D2/VMAX12D4
MANUAL
We reserve the right to change the products and specifications at any time without notice.
Images may or may not include optional equipment.
Cerwin Vega Mobile Subwoofers
Congratulations for purchasing Cerwin Vega Mobile subwoofers
for your car audio system. You have chosen Cerwin Vega
Mobile because you deserve the best!
Cerwin Vega Mobile speakers are designed and engineered to
reproduce great sound quality for many years of listening enjoy-
ment in your vehicle! We highly recommend that your new
speakers be installed by an authorized Cerwin Vega Mobile
dealer. Your authorized dealer can professionally assemble /
disassemble the interior of your vehicle and set the proper
subwoofer placement for ideal sound quality.
If you decide to install the subwoofers by yourself, please
thoroughly read through this manual before getting started.
This manual will help familiarize yourself with these speakers
and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer
if you have any questions regarding the instructions in this manual.
If you require additional assistance, please contact
the Cerwin Vega Mobile Technical Support Department
during business hours at 213-261-4161
VMAX65D2 - 6.5 INCH SUBWOOFER
VMAX8D2 / VMAX8D4 - 8 INCH SUBWOOFER
VMAX10D2 / VMAX10D4 - 10 INCH SUBWOOFER
VMAX12D2 / VMAX12D4 - 12 INCH SUBWOOFER
Heavy Industrial Strength Aluminum Cast Frame
Black Design Patterned Treated Semi-Pressed Plped Cone
Elevated Motor Structure Cooling Design
Oversized Spider
Black Coated Voice Coil for Higher Thermal Capability
Oversized Polished Black Chrome Finished Terminals
Shorting Ring for lower Distortion
Polished Bumped Backplate
Klippel DA Optimized Motor and Suspension Symmetry
E
B
D
Dimensions
Total Diameter (A)
Mounting Diameter (B)
Screw Hole Dia. (C)
Mounting Depth (D)
Magnet Dia. (E)
Displacement
Unit
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
cu.ft / 3/L
VMAX65D2 VMAX8D2/8D4 VMAX10D2/10D4 VMAX12D2/12D4
5.59” (142)
4.25” (108)
7.36” (187)
4.80” (122)
9.47” (240.5)
5.39” (137)
11.02” (280)
5.98” (152)
A
C
12.79” (325)
7.89” (200.5)
11.06” (281)
6.89” (175)
8.74” (222)
6.57” (167)
6.89” (175)
5.53” (140.5)
0.18” (4.5) 0.24” (6) 0.26” (6.5) 0.26” (6.5)
0.037 (1.04L) 0.058 (1.65L) 0.072 (2.05L) 0.094 (2.67L)
Parameter (unit)
SPL (dB)
Re (Ω)[series]
Qms
Qes
Qts
Fs (Hz)
Vas (L)
Cms (mm/N)
Mms (g)
Sd (m2)
BL (T*M)
Xmax (mm)
Pwr (W) NOM/MAX
VMAX65D2 VMAX8D2 VMAX8D4 VMAX10D2 VMAX10D4 VMAX12D2 VMAX12D4
2Ω/4Ω
0.40
0.44
51.3
4.7
58.7
5.07
83.5
200/400
12.5
2Ω/4Ω
500/1000
2Ω/4Ω
0.55
0.62
16.9
43.6
100.4
7.5
4.75
81.9
500/1000
2Ω/4Ω
800/1600
2Ω/4Ω
0.54
0.6
20.4
36.9
159.5
21.5
5.23
84.4
800/1600
2Ω/4Ω
1000/2000
2Ω/4Ω
0.44
0.48
25
32.9
272.3
44.2
4.49
86.9
1000/2000
0.16
0.014
10
81.1
5.86
0.65
0.58
41.5
8.1
0.14
103.2
0.02
13.8
15
0.13
0.02
15
83.3
6.73
0.61
0.56
32.6
24.6
0.13
178.5
0.036
14.7
15
0.12
0.036
15
84.8
5.09
0.5
0.46
29.1
40.6
0.1
290.9
0.053 0.053
19.5
14
0.12
14
RECOMMENDED ENCLOSURES
(All measurements are
calculated Using 3/4” MDF)
Volume
(net int.)
External Dimensions
Width x Height x Depth Volume
(net int.)
Enclosure External Dimensions
Width x Height x Depth
Slot Port Internal Dimensions
Port Width x Port Height x Port Length
Port Extension Length
“PE”
VMAX65D2
VMAX8D2/VMAX8D4
VMAX10D2/VMAX10D4
VMAX12D2/VMAX12D4
0.4 ft3
0.6 ft3
1.0 ft3
1.25 ft3
8” x 9.5” x 15”
203.2mm x 241.3mm x 381mm
9.5” x 9.5” x 17.5”
241.3mm x 241.3mm x 444.5mm
11” x 14.5” x 15.5”
279.4mm x 368.3mm x 393.7mm
13” x 14.5” x 16”
330.2mm x 368.3mm x 406.4mm
0.75 ft3
1.0 ft3
1.25 ft3
1.75 ft3
10” x 12” x 16”
254mm x 304.8mm x 406.4mm
11.25” x 13” x 17”
285.8mm x 330.2mm x 431.8mm
12” x 14.25” x 17.5”
304.8mm x 361.95mm x 444.5mm
14” x 16” x 18.25”
355.6mm x 406.4mm x 463.55mm
0.75” x 8” x 17”
19.05mm x 203.2mm x 431.8mm
0.75” x 10” x 24”
19.05mm x 254mm x 609.6mm
1.25” x 12” x 21”
31.75mm x 304m x 533.4mm
1.5” x 14” x 21”
38.1mm x 355.6mm x 533.4mm
8”
203.2mm
10”
254mm
10.5”
266.7mm
12.5”
317.5mm
We reserve the right to change the products and specifications at any time without notice.
Images may or may not include optional equipment.

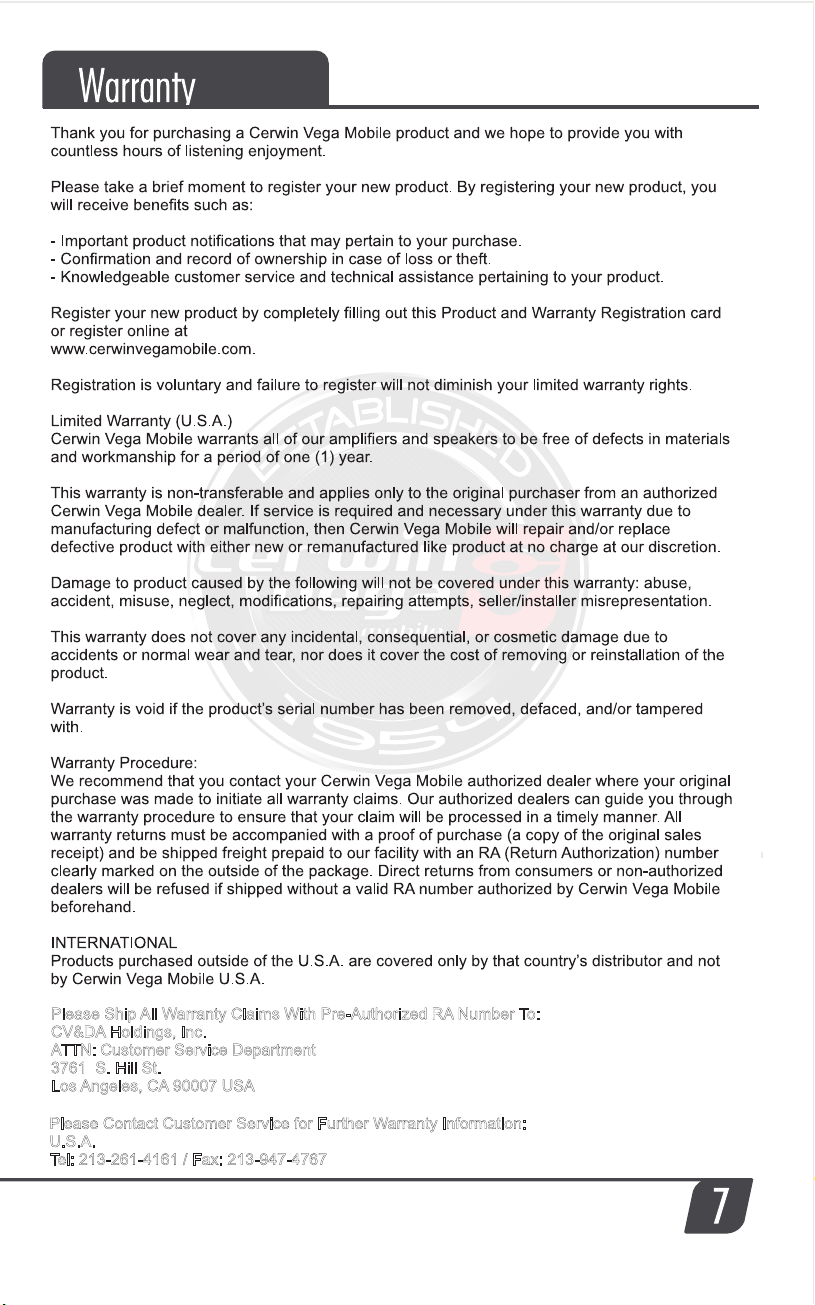

Please Ship All Warranty Claims With Pre-Authorized RA Number To:
CV&DA Holdings, Inc.
ATTN: Customer Service Department
3761 S. Hill St.
Los Angeles, CA 90007 USA
Please Contact Customer Service for Further Warranty Information:
U.S.A.
Tel: 213-261-4161 / Fax: 213-947-4767
3761 South Hill Street
Los Angeles 90007, USA
P 213-261-4161 / F 213-947-4767
2019 Cerwin Vega Mobile All rights reserved.
(a division of CV & DA Holdings, Inc.)
