Checkpoint Smart-1 series Bedienungsanleitung
Classification [Protected] P/N:707305
© 2017 Check Point Software Technologies Ltd. All rights reserved.
For a list of our trademarks, please refer to: www.checkpoint.com/copyright.html.
For a list of our Third Party Copyright notices, please refer to: www.checkpoint.com/3rd_party_copyright.html
Smart-1 Installing and Removing
Memory
707305
Protected
2017
This document is for Smart-1 205, 210, 225, 3050 and 3150 models.
Important - We recommend that only experienced personnel install or
remove hardware components. Installing or removing components
incorrectly can permanently damage the Security Management
Appliance.
Preparing the Security Management
Appliance
Before you start to install or remove DIMMs, make sure that:
•You can connect to the WebUI or CLI to shut down the Security Management
Appliance.
•The Security Management Appliance is in a clean environment and on a
level surface.
•You can physically access and open the cover of the Security Management
Appliance.
•You have the Check Point DIMM upgrade kit.
2
Important
•To protect the Security Management Appliance and the memory modules
from electrostatic discharge damage, make sure that you are properly
grounded before you touch these components. For more, see the Health
and Safety Information in:
Smart-1 205/210 Appliances Getting Started Guide
http://supportcontent.checkpoint.com/documentation_download?ID=32280
Smart-1 225/3050/3150 Appliances Getting Started Guide
http://supportcontent.checkpoint.com/documentation_download?ID=32309
•We recommend that you use the grounding wrist strap that is included in
the upgrade kit. The grounding plug on the rear of the Security Management
Appliance provides a chassis grounding point.
Upgrade Kit Contents
•Installation guide - Smart-1 Installing and Removing Memory
•Expansion DIMMs
•Upgrade kit sticker
•ESD grounding strap (anti-static)
•Screwdriver
To prepare the Security Management Appliance:
1. From the WebUI or the CLI, shut down the Security Management Appliance.
2. Use the power switch to turn off power to the Security Management
Appliance.
3. Remove the power cords from the Security Management Appliance.
4. Put on the ESD strap and attach the other end to a grounding point.
5. Loosen the Security Management Appliance cover screws.
6. Remove the top cover from the Security Management Appliance.
3
The diagram shows how to remove the Smart-1 3150 cover. The Smart-1
205, Smart-1 210, Smart-1 225, and Smart-1 3050 covers are similar.
Item
Description
1 Security Management Appliance cover
2 Security Management Appliance cover screws
3 ESD grounding point - location changes according to model
4
Smart-1 205 and Smart-1 210 DIMM
Configuration
Item Description
1 Security Management Appliance rear panel
2 Sockets for DIMMs
3 Security Management Appliance front panel
The Smart-1 205 Security Management Appliance has a default memory
configuration of 4GB: 2x2GB, with two DIMMs.
The Smart-1 210 Security Management Appliance has a default memory
configuration of 8GB: 2x4GB, with two DIMMs.
5

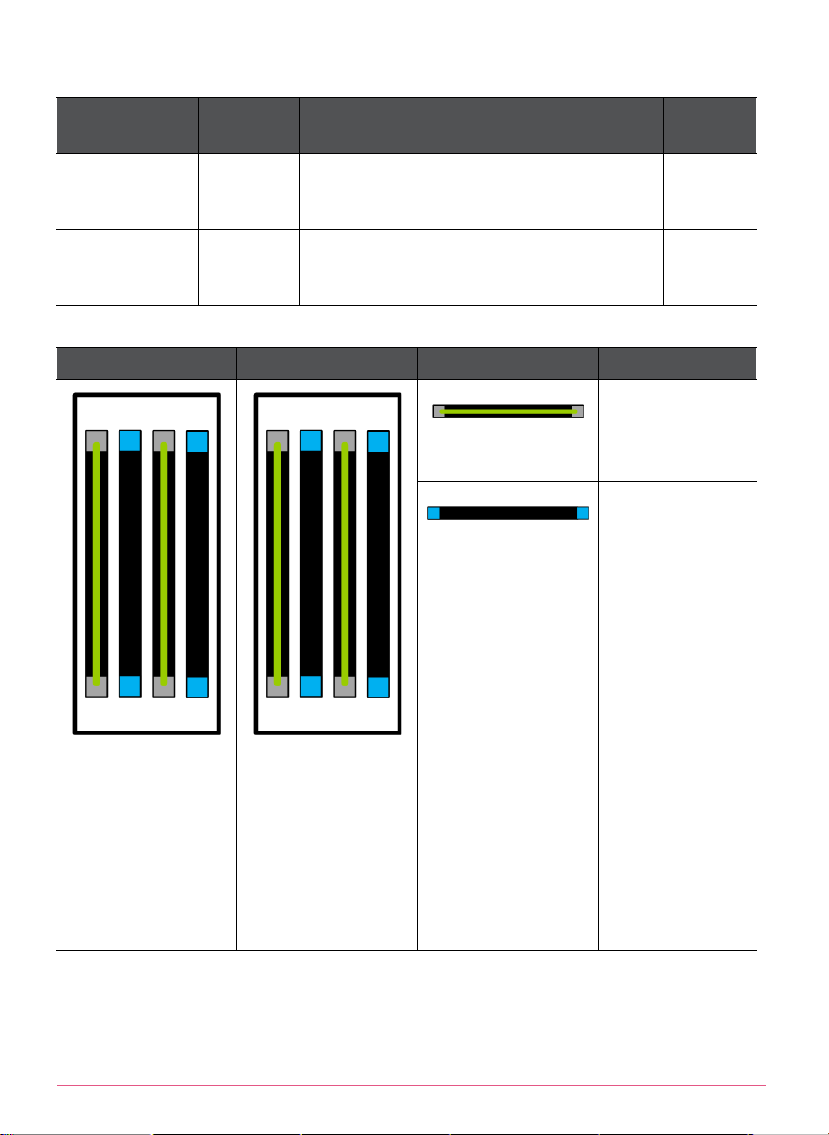

To upgrade to Use
DIMMs
Procedure Slots
Smart-1 205
16GB
2x8GB Remove the two 2GB DIMMs and install
two 8GB DIMMs in the same slots
1 and 3
Smart-1 210
16GB
2x8GB Remove the two 4GB DIMMs and install
two 8GB DIMMs in the same slots
1 and 3
Default Upgraded Item Description
Top View
(front of the
Security
Management
Appliance is at the
top of the
diagram)
Top View
(front of the
Security
Management
Appliance is at the
top of the diagram)
Memory socket
with DIMM
installed
Expansion
memory socket
6
Smart-1 225 DIMM Configuration
Item Description
1 Security Management Appliance rear panel
2 Sockets for DIMMs
3 Security Management Appliance front panel
7
The appliance has a default memory configuration of 16GB: 2x8GB, with two
DIMMs.
To upgrade to Use
DIMMs
Procedure Slots
32GB 4x8GB Install an additional two 8GB DIMMs All
Default Upgraded Item Description
Top View
(front of the
Security
Management
Appliance is at the
bottom of the
diagram)
Top View
(front of the
Security
Management
Applianceis at the
bottom of the
diagram)
Memory socket
with DIMM
installed
Expansion
memory socket
8
Smart-1 3050 and Smart-1 3150 DIMM
Configuration
Smart-1 3050 with open cover Smart-1 3150 with open cover
Item
Description
1 Security Management Appliance rear panel
2 Sockets for DIMMs
3 Security Management Appliance front panel
9
Smart-1 3050
The Security Management Appliance has a default memory configuration of
32GB: 8x4GB, with eight DIMMs.
To upgrade to Use
DIMMs
Procedure Slots
64GB 16x4GB Install an additional eight 4GB DIMMs All
128GB 16x8GB Replace all DIMMs with sixteen 8GB
DIMMs. See diagram.
All
256GB 16x16GB Replace all DIMMs with sixteen 16GB
DIMMs
Gaia only (not supported on
SecurePlatform)
All
Smart-1 3150
The Security Management Appliance has a default memory configuration of
64GB: 8x8GB with eight DIMMs.
To upgrade to Use
DIMMs
Procedure Slots
128GB 16x8GB Install an additional eight 8GB DIMMs All
256GB 16x16GB Replace all DIMMs with sixteen 16GB
DIMMs
Gaia only (not supported on
SecurePlatform)
All
10
Default Configuration for Smart-1 3050, Smart-1 3150:
Top View
(front of the Security Management Appliance is at the bottom of the diagram)
Upgraded Configuration for Smart-1 3050: 64GB, 128GB, 256GB, and Smart-1
3150: 128GB, 256GB:
Top View
(front of the Security Management Appliance is at the bottom of the diagram)
Item Description
Memory socket with DIMM installed
Expansion memory socket
